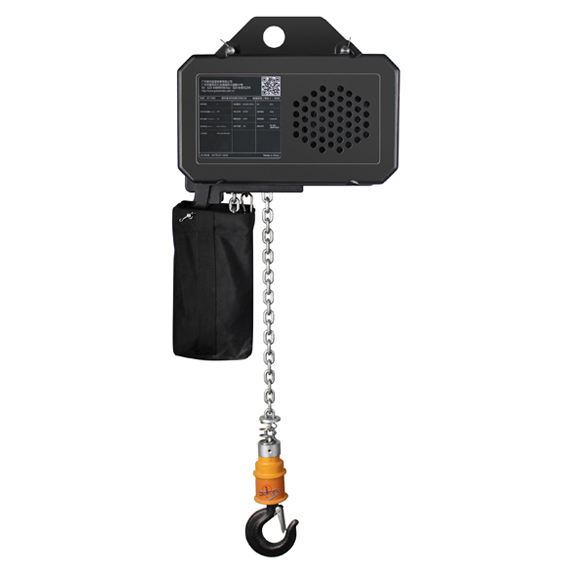

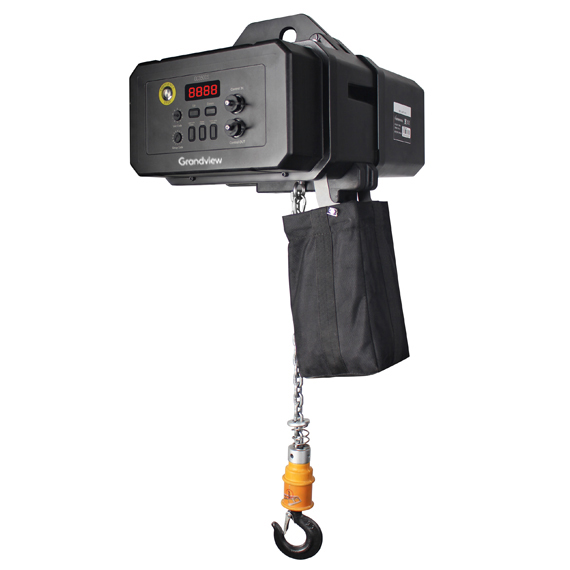

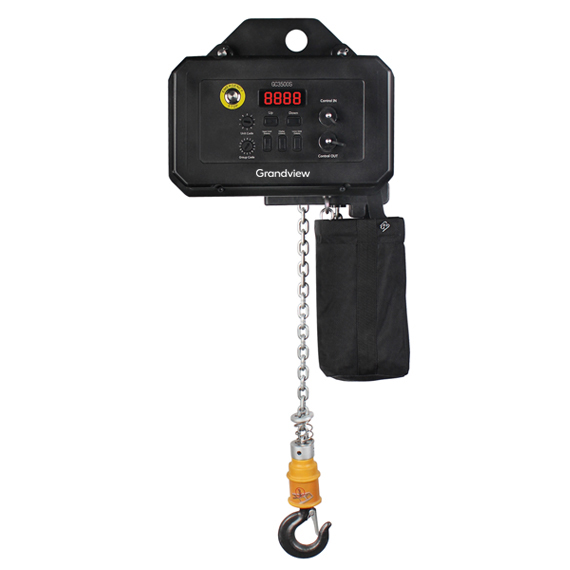

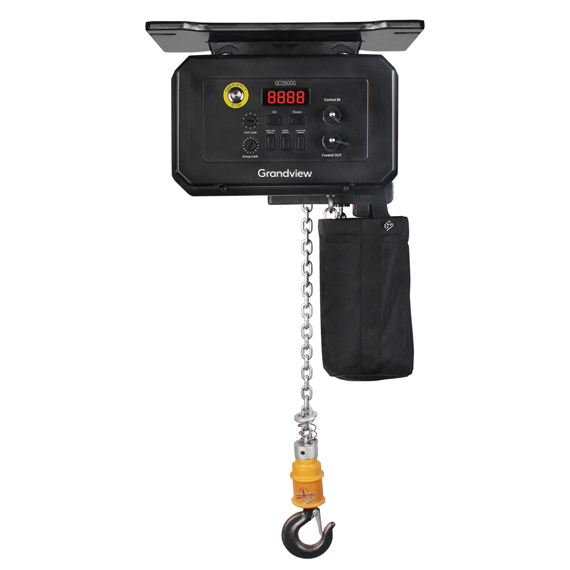

C3 Series GCRT

Rigging Point

  • It adopts frequency conversion technology, constant speed drive, multiple units for grouping, and efficient synchronization. It is suitable for hotel banquet halls, multifunctional conference centers, etc. It can also be programmed by PC to control the different speeds of each crane to create a changing stage effect. Equipped with independent self-developed wireless administrator controller, no matter remote operation or on-site control, it can provide more secure protection.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GCRT 2512
    • GCRT 5012
      • Product Dimensions(mm)

        400×360×470
      • Net Weight(kg)

        35
      • Max Load(kg)

        250
      • Power(w)

        300
      • Max Travel(mm)
        12000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V
      • jib attachment(mm)
        307x136
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Package + Total Product
        Weight
        (kg)
        41.5
      • Packing Dimensions
        (D×W×H)mm
        462x322x500
      • Product Dimensions(mm)

        400×360×470
      • Net Weight(kg)

        35
      • Max Load(kg)

        500
      • Power(w)

        300
      • Max Travel(mm)
        12000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V
      • jib attachment(mm)
        307x136
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Package + Total Product
        Weight
        (kg)
        41.5
      • Packing Dimensions
        (D×W×H)mm
        462x322x500
  • Sketch
  • Download
