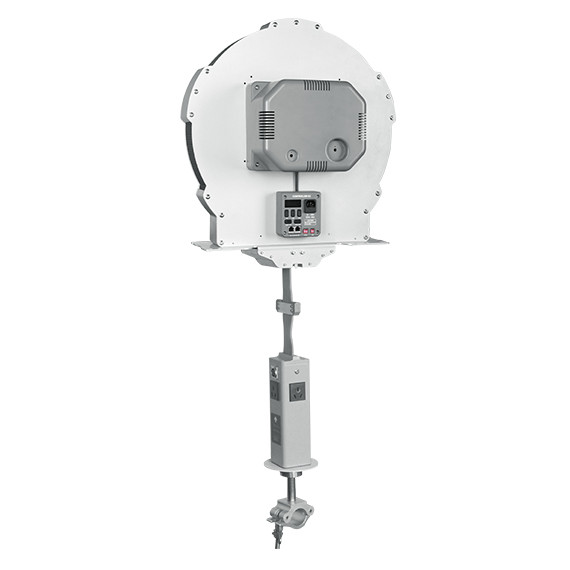

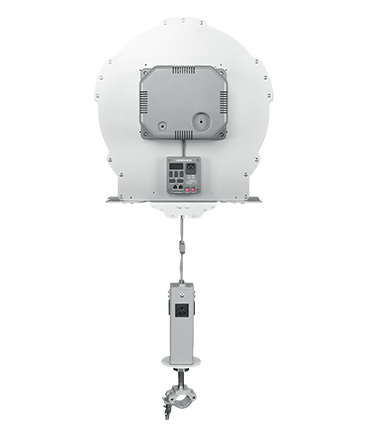

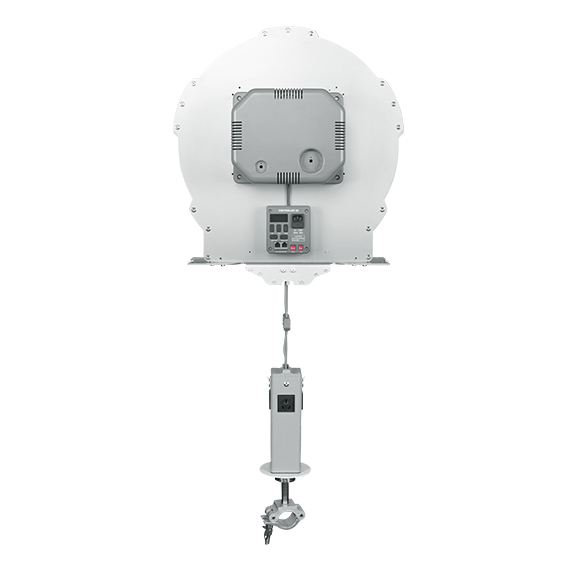

GSPC 20

Motorized Cable Manager

  • Major Function:

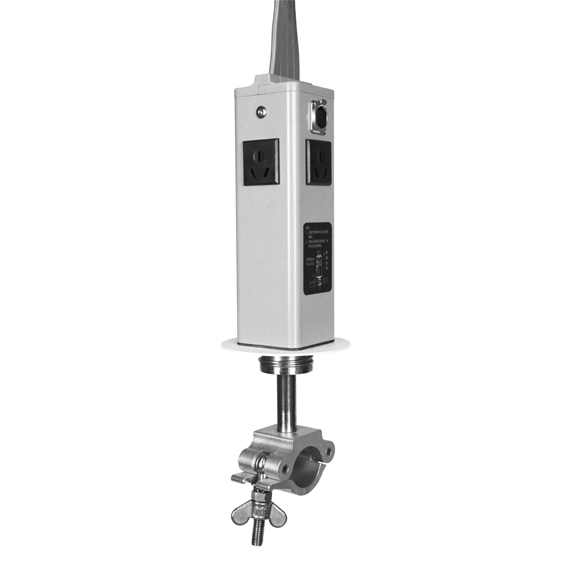

  • -Wire take-up cable interface: 4 16A sockets (four groups of 2.5 square power cords are customized by the customer) 2 5-pin DMx512 interfaces.
  • -RS485 - Control method: weak point dry contact, RS485
  • - Standard with upper and lower limit: prevent overtravel
  • Maximum cable tension: 5KG
  • -Standard built-in optocoupler sensor: stroke positioning can be set arbitrarily
  • Optional accessories: wireless power manager key, which can be used for various emergency braking
  • - Reel slip device: The unique patented reel slip device ensures that the cable will not be broken by external force
  • -Mechanical double limit switch: Mechanical double limit switch to prevent overtravel
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GSPC20
      • Product Dimensions(mm)

        542×295×1032.8
      • Net Weight(kg)

        50
      • Max Load(kg)

        5
      • Power(w)

        90
      • Max Travel(mm)
        20000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Package + Total Product
        Weight
        (kg)
        59
      • Packing Dimensions
        (D×W×H)mm
        865x440x610
