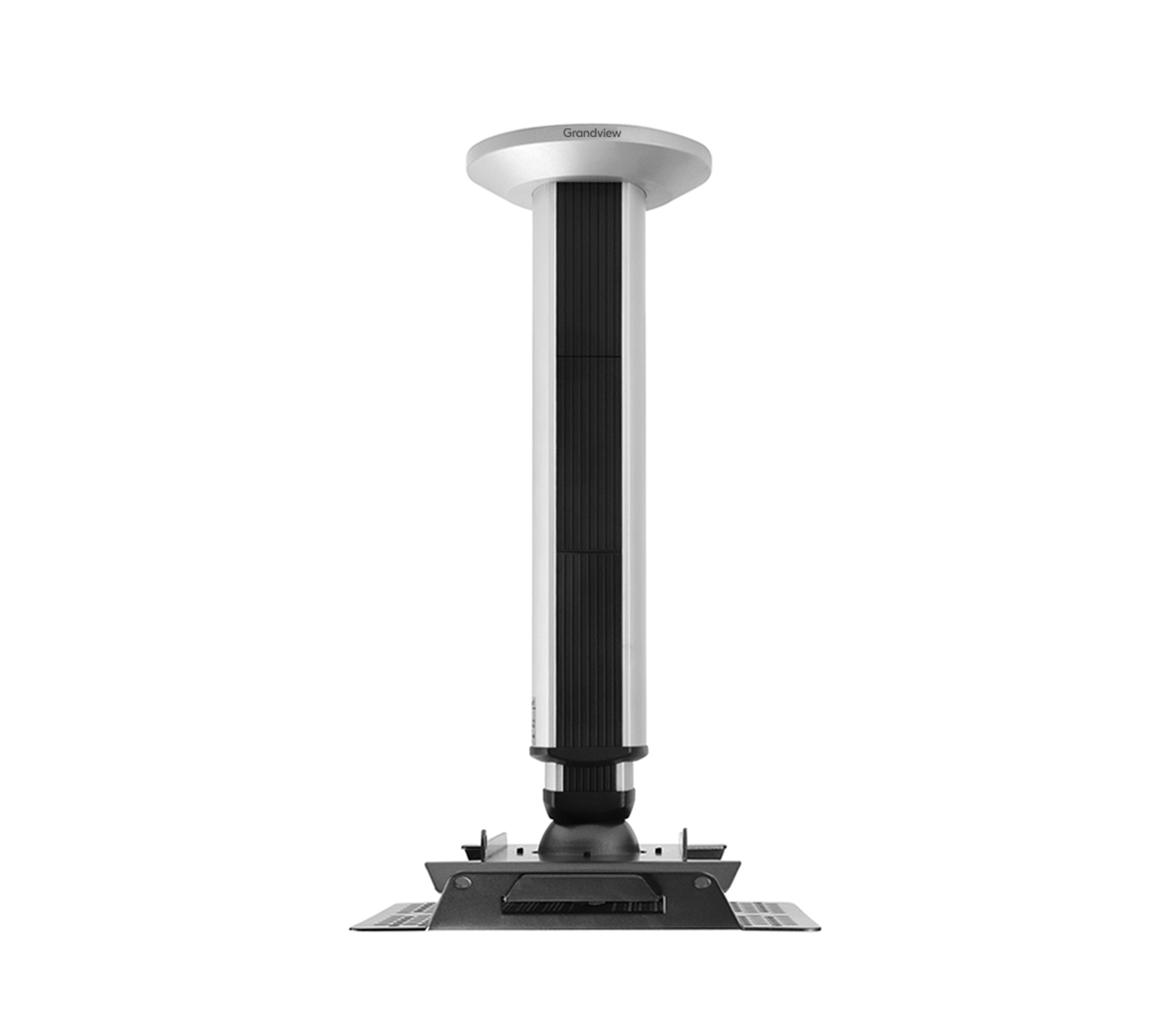

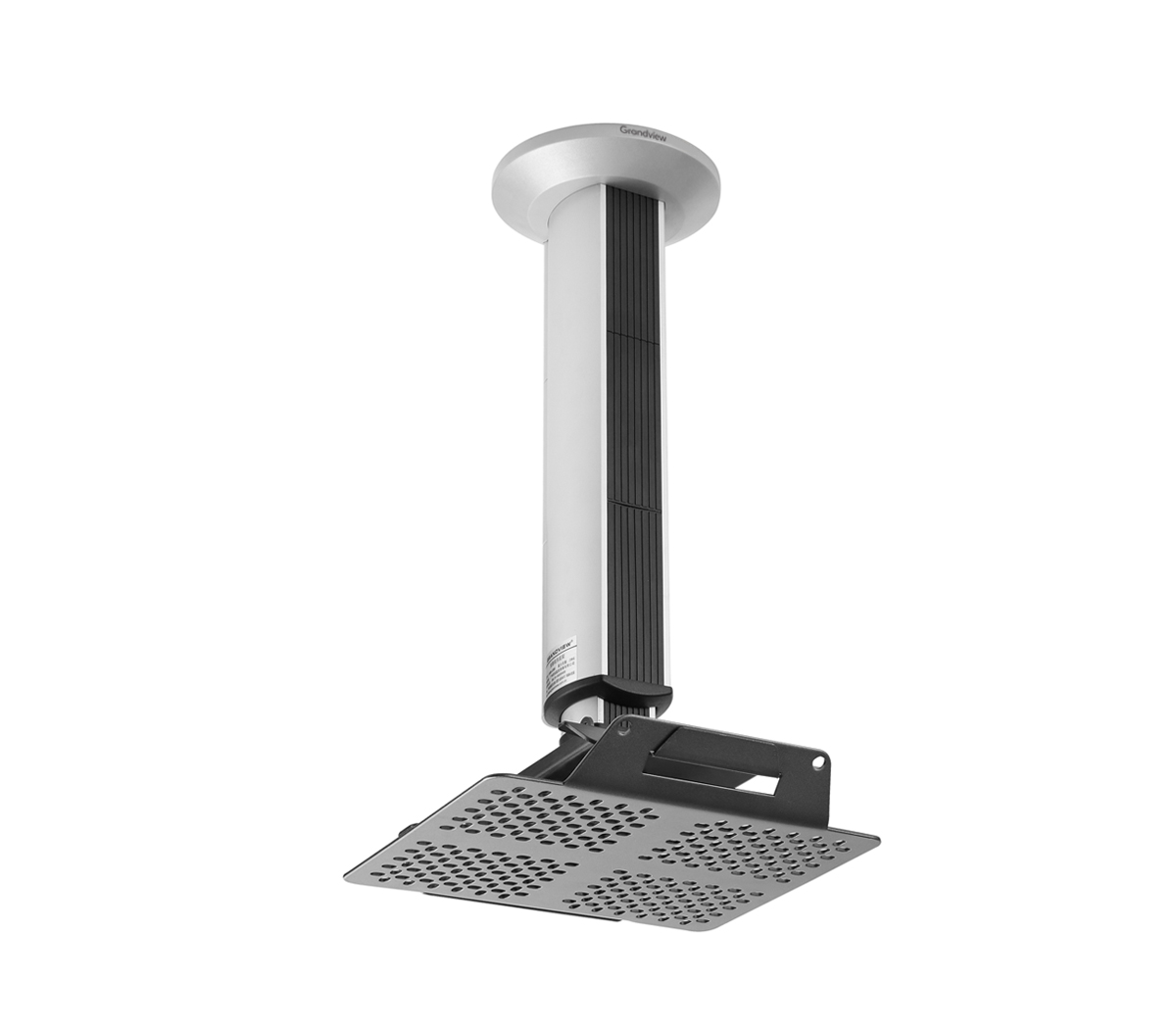

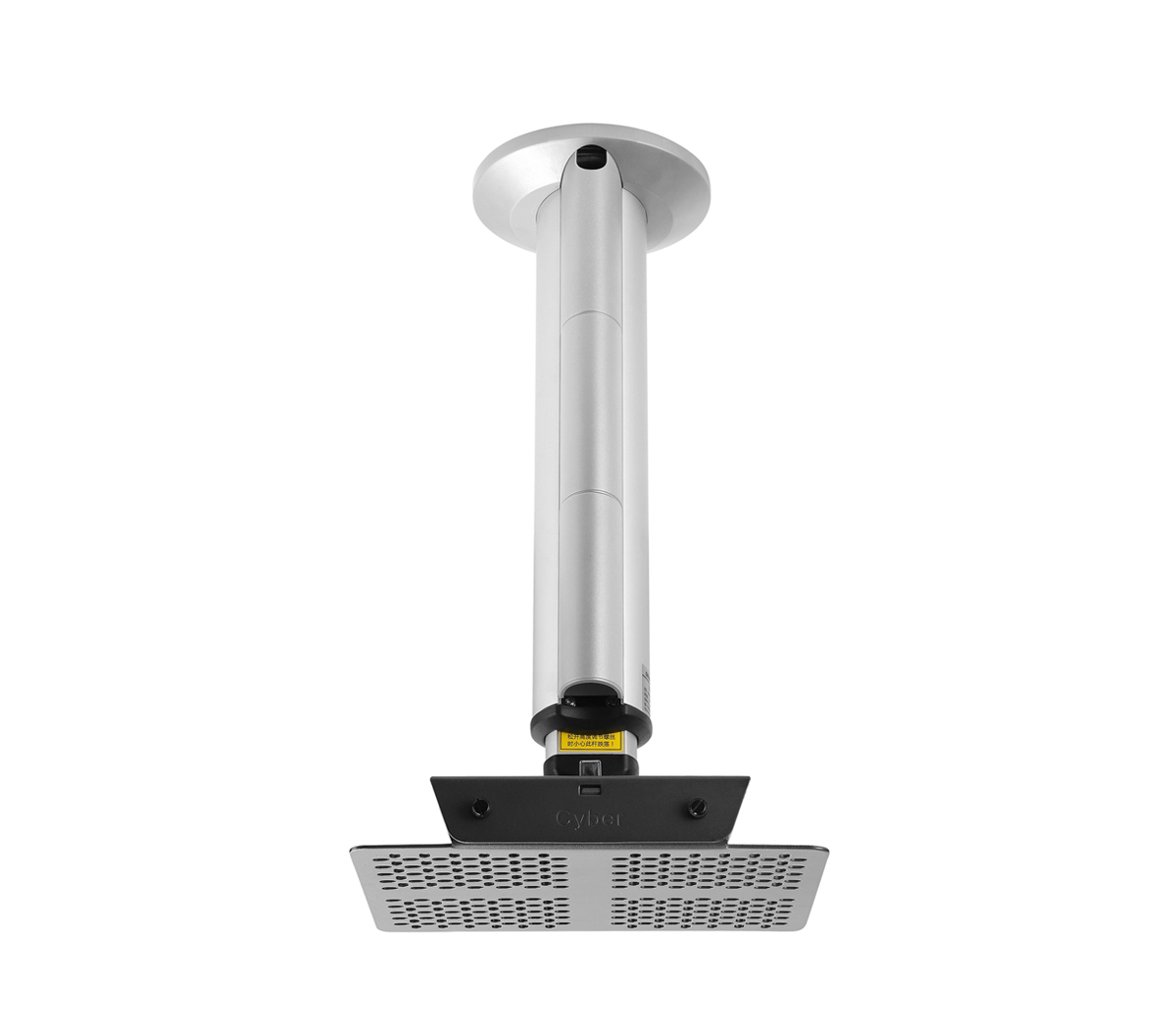

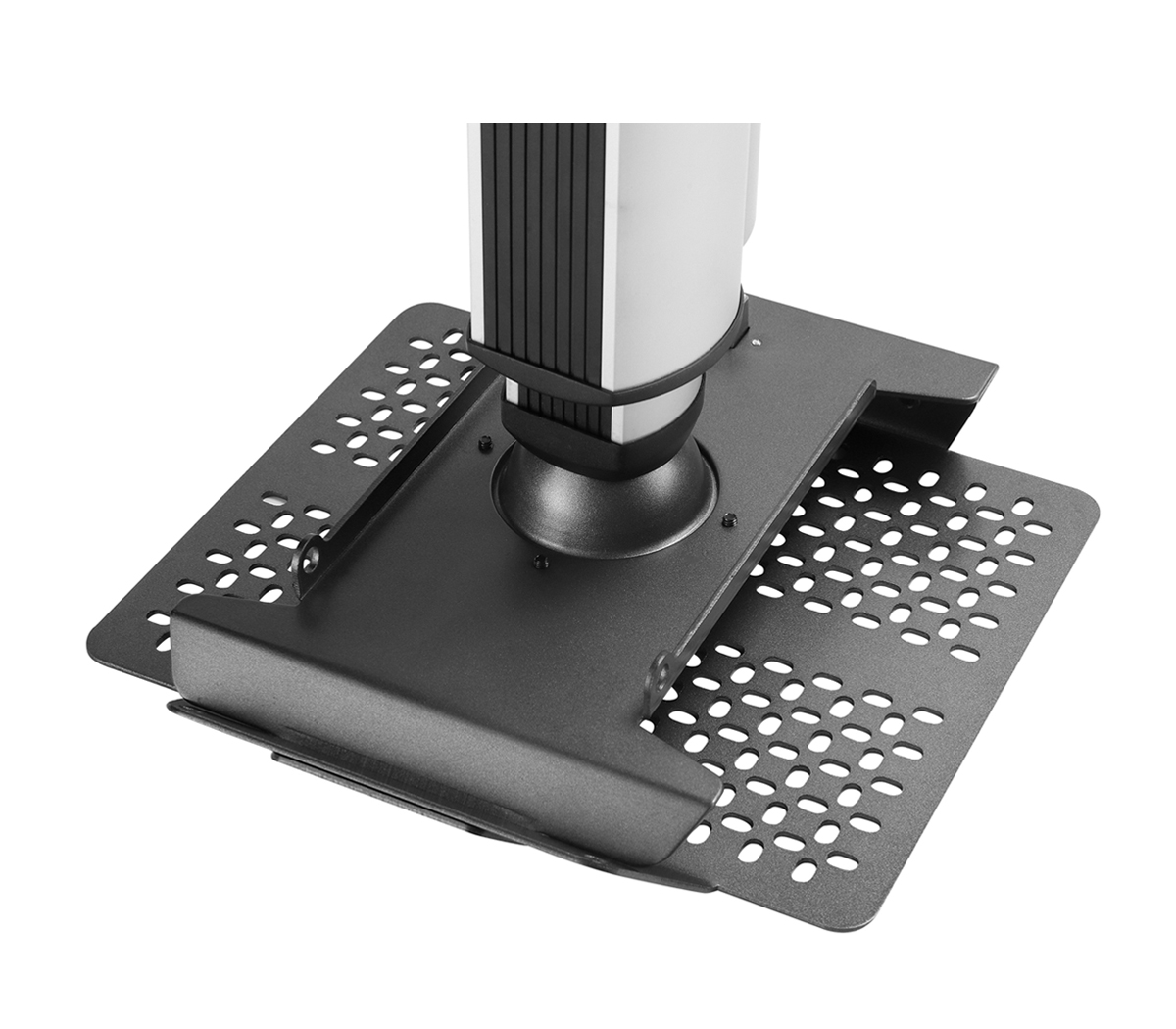

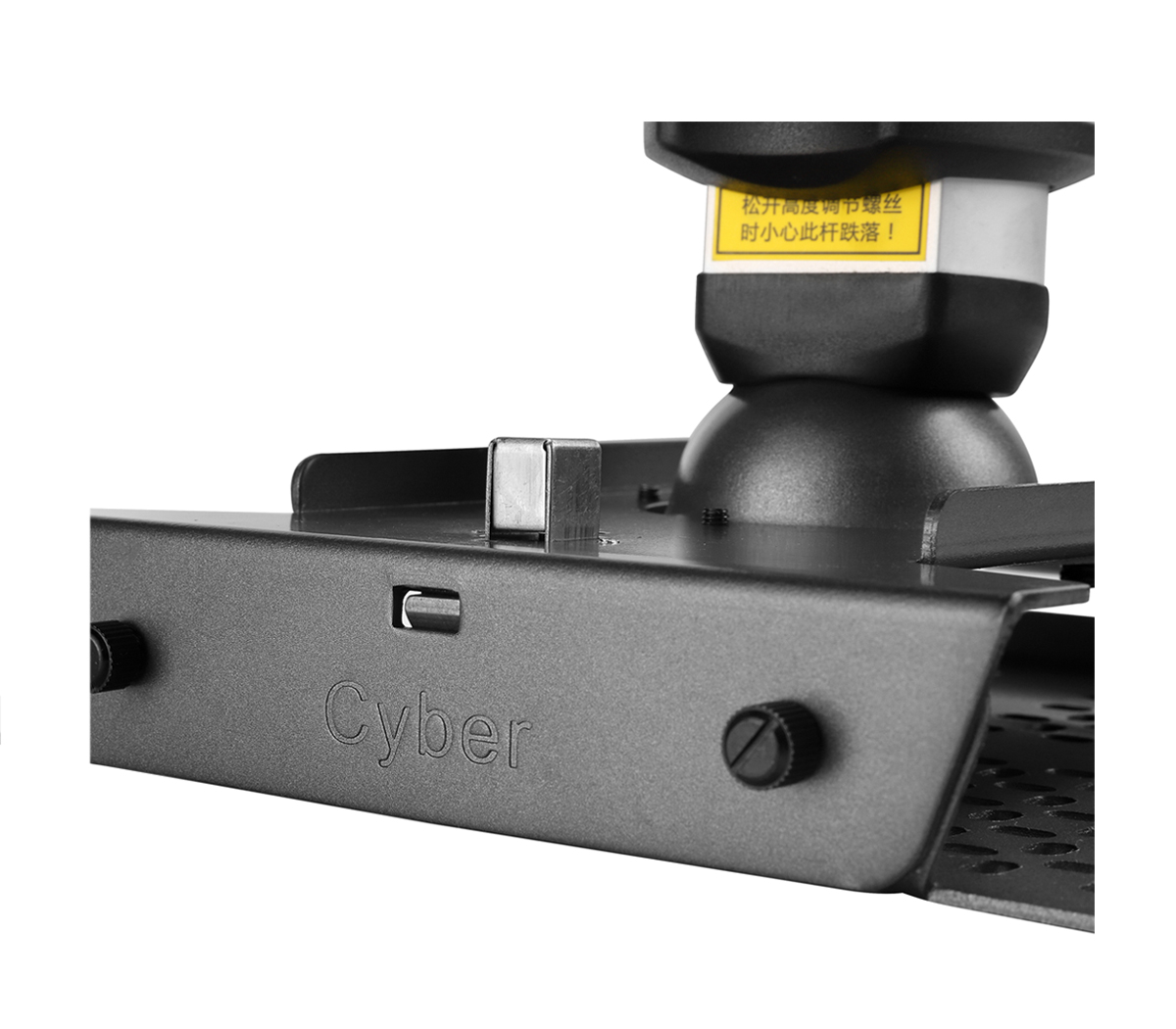

GPCM-C Series

Fixed Celing Mount

  • .Wire storage
  • .Retractable pole
  • .Adjustable angle: front and rear direction, tilt forward 30°, backward 3°,
  • .3°Left and right
  • .Horizontal rotation: 360°
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCM-C600
    • GPCM-C500
    • GPCM-C400
    • GPCM-C300
    • GPCM-C200
    • GPCM-C100
      • Product Dimensions(mm)

        225×215×700
      • Net Weight(kg)

        3.21
      • Max Load(kg)

        25
      • Max Travel(mm)
        700-880
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        3.71
      • Packing Dimensions
        (D×W×H)mm
        655x240x65
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
      • Product Dimensions(mm)

        225×215×600
      • Net Weight(kg)

        3.03
      • Max Load(kg)

        25
      • Max Travel(mm)
        600-780
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        3.5
      • Packing Dimensions
        (D×W×H)mm
        565x240*65
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
      • Product Dimensions(mm)

        225×215×500
      • Net Weight(kg)

        2.97
      • Max Load(kg)

        25
      • Max Travel(mm)
        500-680
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        3.42
      • Packing Dimensions
        (D×W×H)mm
        465x240*65
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
      • Product Dimensions(mm)

        225×215×400
      • Net Weight(kg)

        2.68
      • Max Load(kg)

        25
      • Max Travel(mm)
        400-580
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        3.34
      • Packing Dimensions
        (D×W×H)mm
        385x260x140
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
      • Product Dimensions(mm)

        225×215×300
      • Net Weight(kg)

        2.4
      • Max Load(kg)

        25
      • Max Travel(mm)
        300-380
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        3.06
      • Packing Dimensions
        (D×W×H)mm
        385x260x140
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
      • Product Dimensions(mm)

        225×215×175
      • Net Weight(kg)

        2.07
      • Max Load(kg)

        25
      • Max Travel(mm)
        175
      • Angle Adjustments
        Up/Down/Left/Right
        30 3 3
      • Package + Total Product
        Weight
        (kg)
        2.73
      • Packing Dimensions
        (D×W×H)mm
        385x260x140
      • Applicable Hole
        Distance Of Projector(mm)
        φ205~φ160
