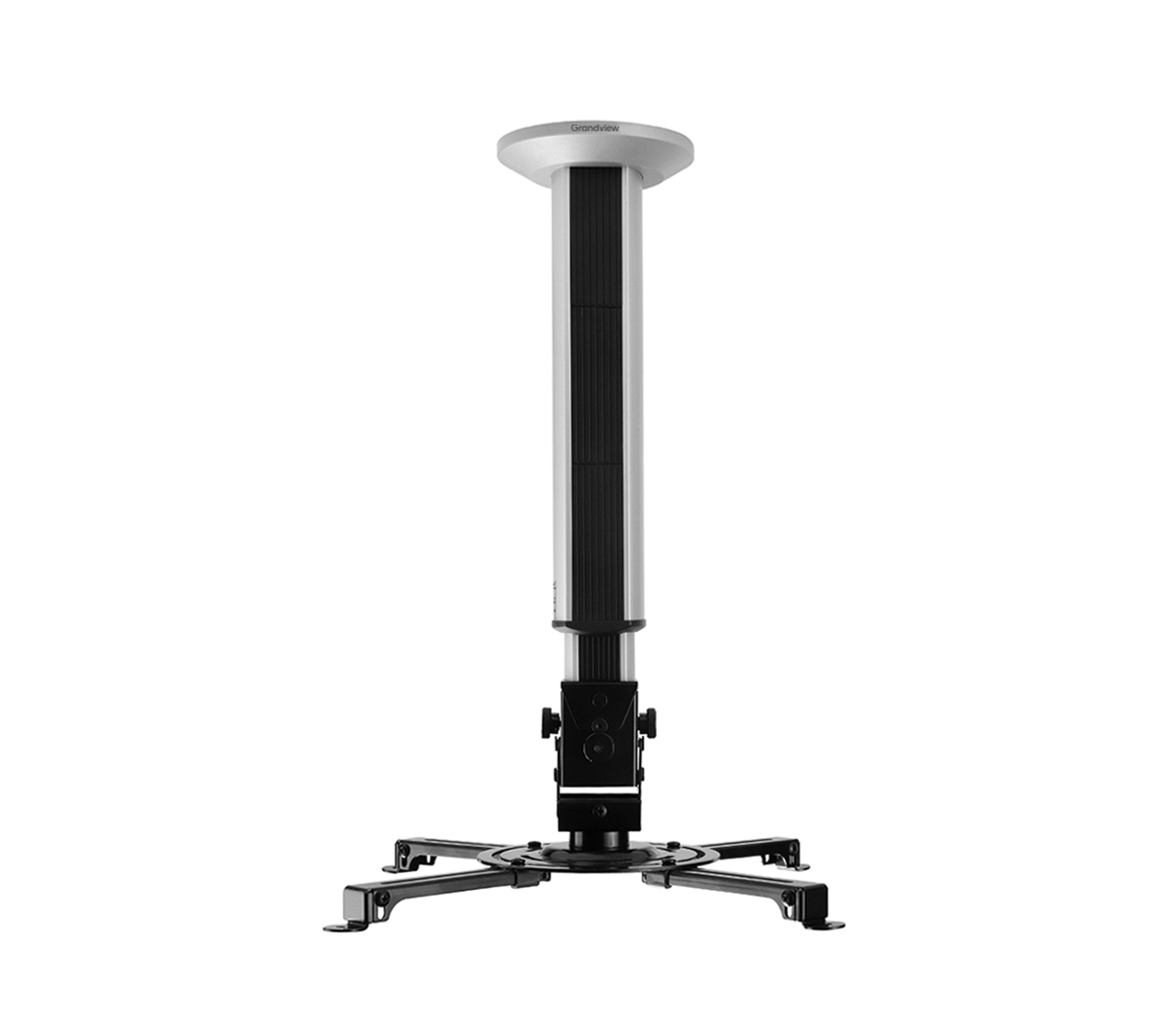

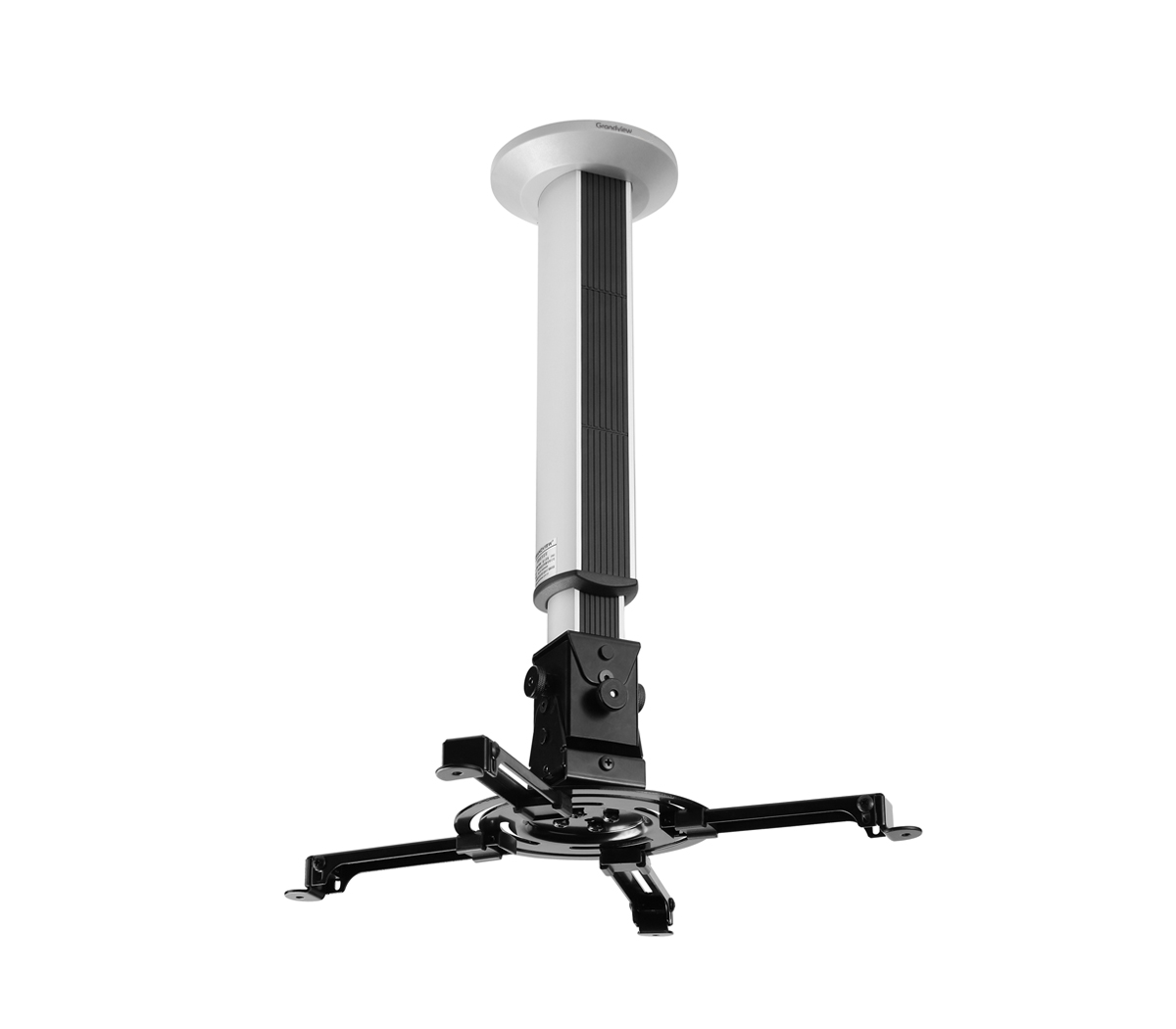

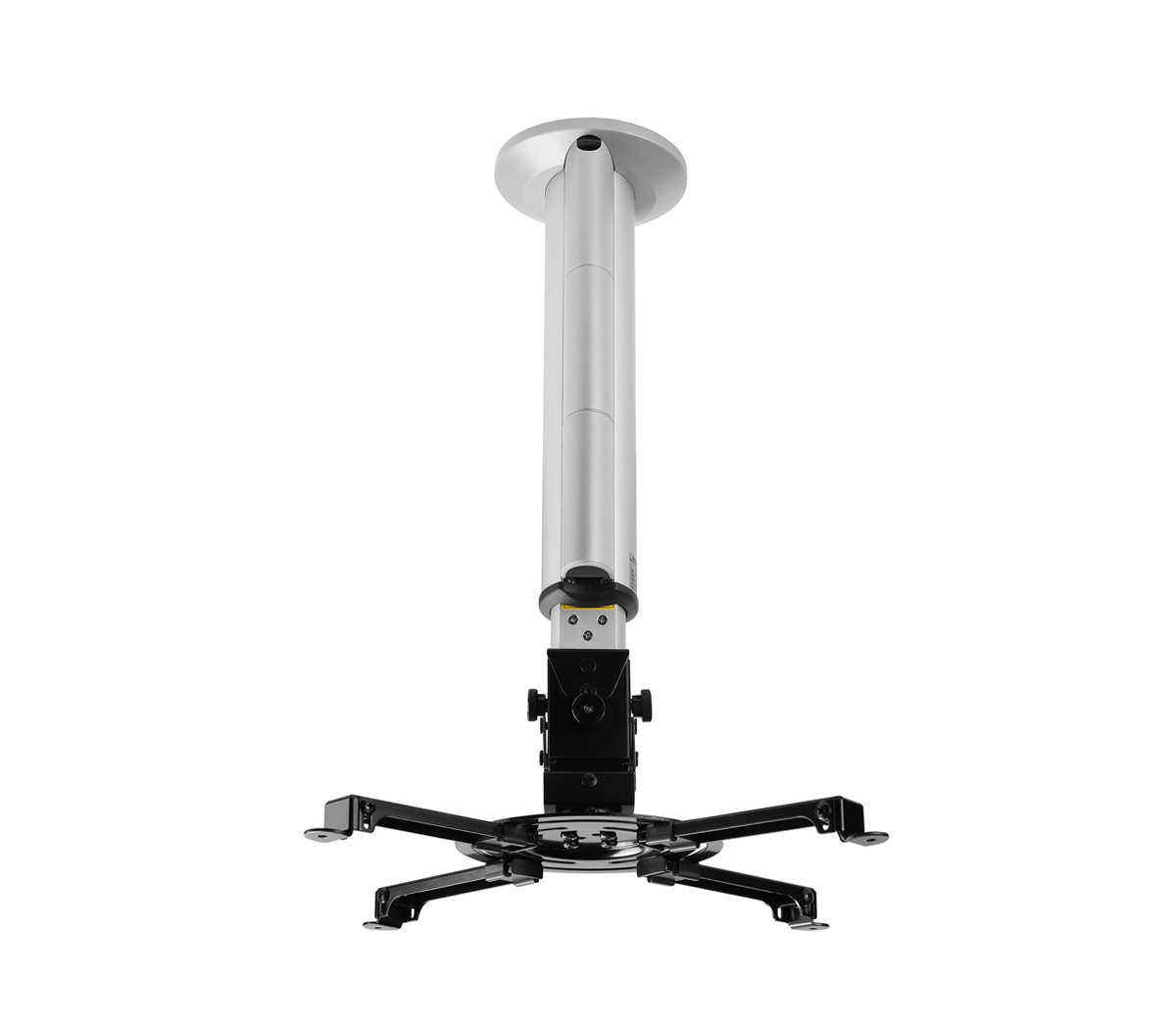

GPCM-E Series

Fixed Ceiling Mount

  • .Wire storage
  • .Retractable pole

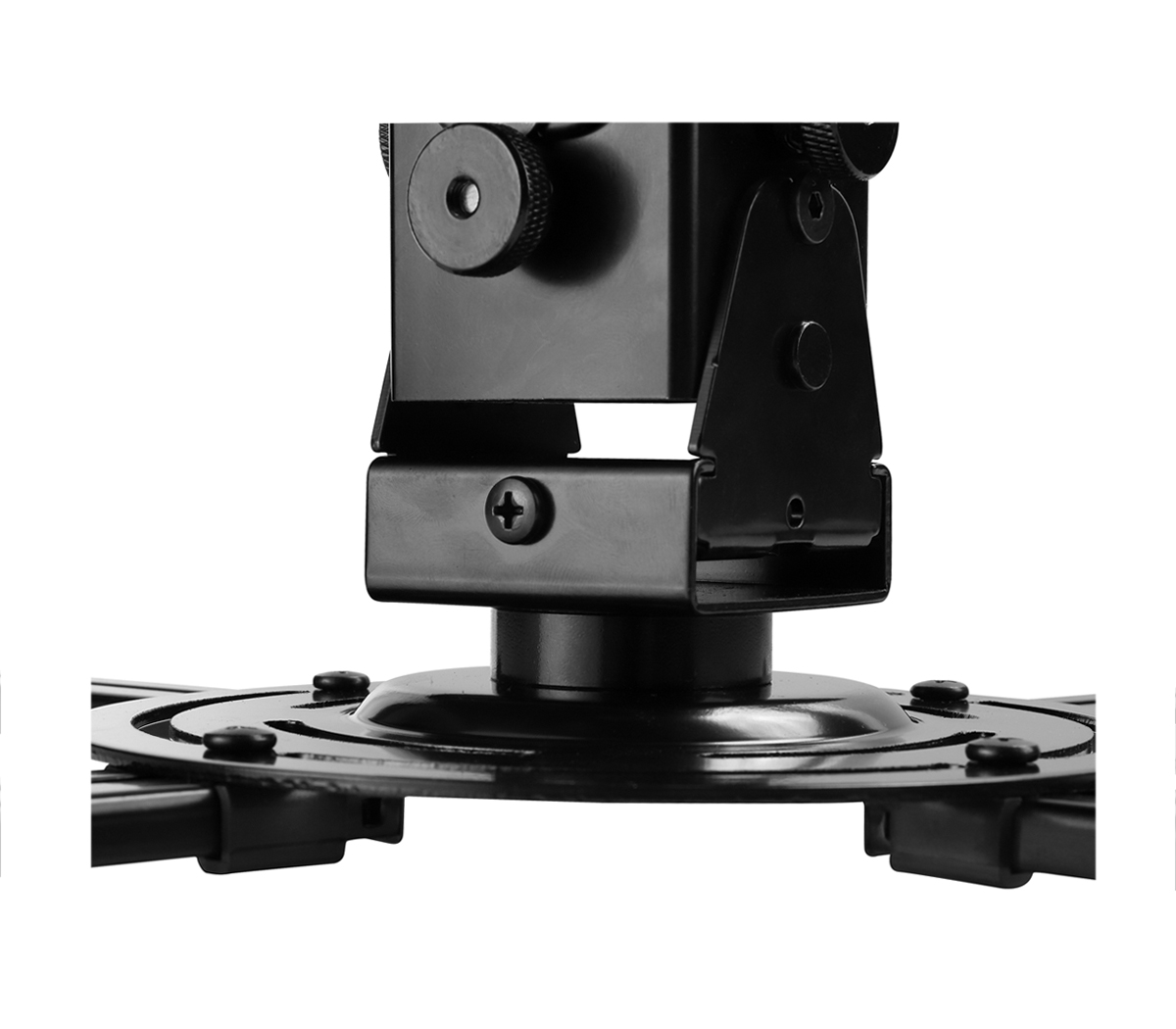

  • .Adjustable angle: front and rear direction, tilt forward 30°, backward 3°, Left and right 3°

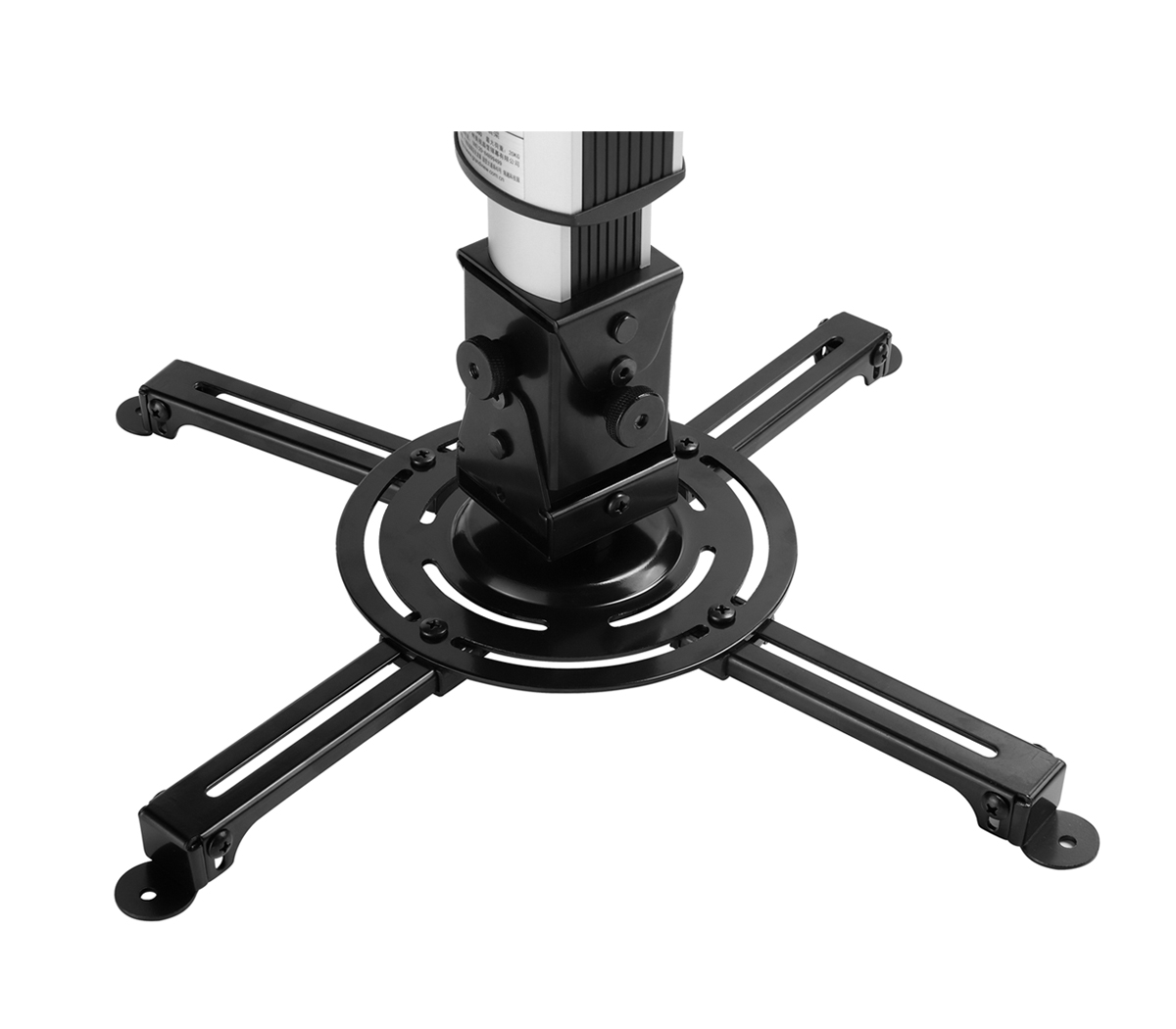

  • .360°Horizontal rotation: 360°
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCM-E4560II
    • GPCM-E3540II
    • GPCM-E4560
    • GPCM-E3540
      • Product Dimensions(mm)

        265×265×485
      • Net Weight(kg)

        2.18
      • Max Load(kg)

        10
      • Max Travel(mm)
        485-600
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 8 8
      • Applicable Hole
        Distance Of Projector(mm)
        φ45-φ345
      • Product Dimensions(mm)

        265×265×385
      • Net Weight(kg)

        2.02
      • Max Load(kg)

        10
      • Max Travel(mm)
        385-400
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 8 8
      • Applicable Hole
        Distance Of Projector(mm)
        φ45-φ345
      • Product Dimensions(mm)

        270×270×485
      • Net Weight(kg)

        2.18
      • Max Load(kg)

        10
      • Max Travel(mm)
        485-600
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 8 8
      • Applicable Hole
        Distance Of Projector(mm)
        φ29-φ390
      • Product Dimensions(mm)

        270×270×385
      • Net Weight(kg)

        2.02
      • Max Load(kg)

        10
      • Max Travel(mm)
        385-400
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 8 8
      • Applicable Hole
        Distance Of Projector(mm)
        φ29-φ390
  • Sketch
  • Download
    GPCM-E Instructions
    GPCM-E II Instructions
    GPCM-E Product Catalog
