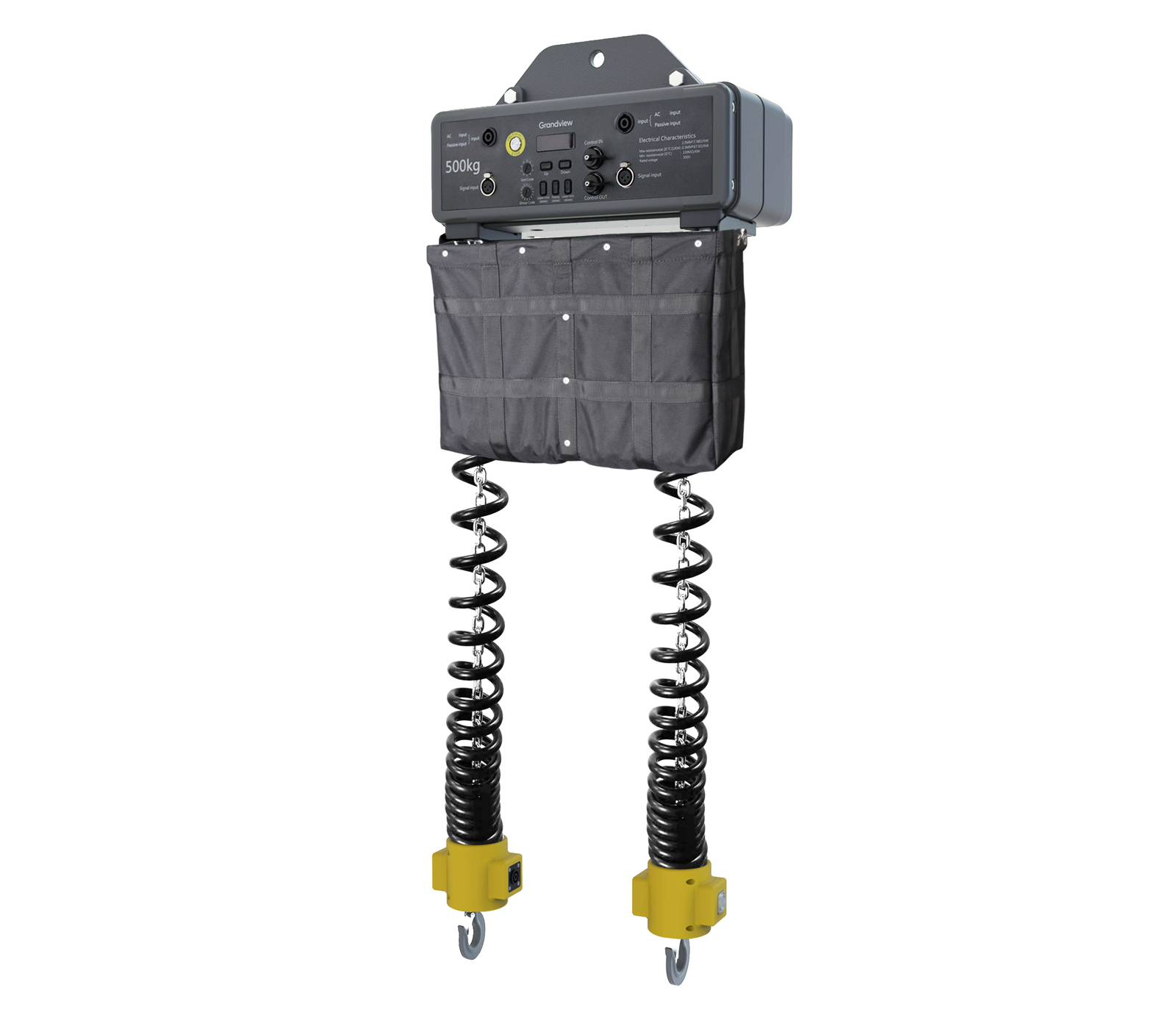

D1 Series GCRT

Rigging Point

  • Professional hanging and rolling line array speakers, flat panel displays, advertising light boxes and other heavy-duty audio-visual equipment, with a variety of audio and video transmission signal lines and high-power power lines, wireless remote control, with RS485 central control interface, double-chain synchronous hoisting structure Anti-rotation, multiple limit adjustment.
  • Major Function:
  • Installable cables: HDMI, Category 6 network cable, AV audio cable, speaker cable, 220V power cable;
  • Gear (transmission): Precise helical helical gear transmission, with two-way chain output mechanism, the operating noise under full load is as low as 68 decibels;
  • A variety of control methods: weak point dry contact, RS485, wireless remote control;
  • Braking system: heavy-duty DC electromagnetic brake, safe and durable;
  • Encoder: The built-in encoder can set the ideal stroke at will;
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GCRT5012-D
      • Product Dimensions(mm)

        247×450×515
      • Net Weight(kg)

        42.8
      • Max Load(kg)

        500
      • Power(w)

        300
      • Max Travel(mm)
        12000
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V
      • jib attachment(mm)
        472x136
      • Ceiling Opening
        Dimensions(mm)
        205
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

  • Sketch
  • Download
    D1 Series - Product Catalog
