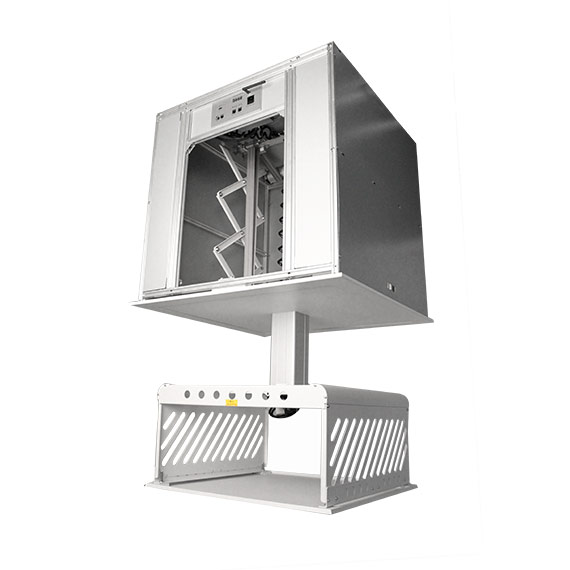

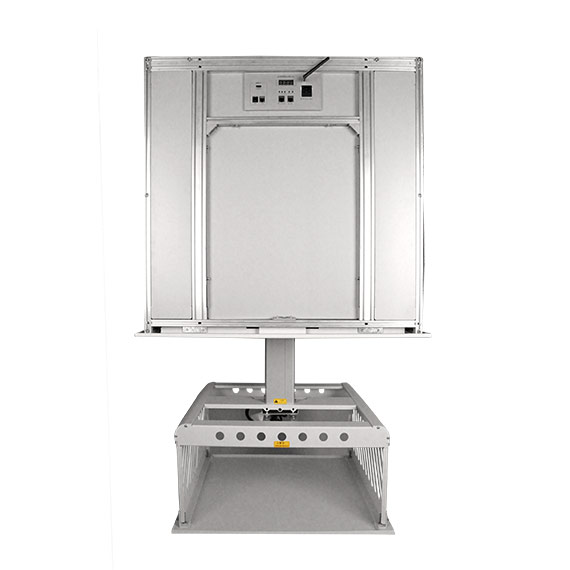

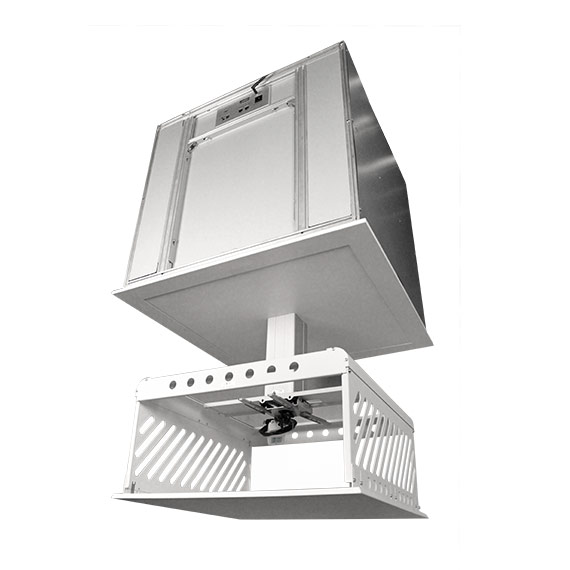

GPXC/XD Series

Projector Lift

  • GPXD/XC series telescopic pole projector ceiling lift, fixed short stroke suitable for small and medium commercial and home projectors. It has a single-pole telescopic, simple lines, and is versatile with various decoration styles. The built-in electric double-door or ceiling cover type can be hidden in the ceiling after closing.
  • Major Function:
  • .X-arm lift with pulley, stable operation, multi-point lifting.
  • .Built-in a variety of wires;
  • .Multiple protection anti-fall device, fully enclosed aluminum alloy frame structure, strong and durable; industrial long-running motor;
  • .Multi-section aluminum alloy square tube, double-opening inner door; stable operation; high-precision encoder, positioning accuracy ≤ 1mm.
  • .Built-in cables: projector power cable × 1, HDMI2.0 × 1, Category 6 network cable × 1; (other requirements can be customized)
  • .Projector universal mounting claw, multi-angle adjustable.
  • Location method: RF positioning and 485 positioning
  • .Control mode: RF, weak current dry contact and RS485 code
  • *The size of the installed projector is the recommended size, which is for reference only, and the actual size shall prevail.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPXD/XC 4201
    • GPXD/XC 5001
    • GPXD/XC 5801
    • GPXD/XC 6401
      • Product Dimensions(mm)

        580×580×600
      • Net Weight(kg)

        45
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        440x180x440
      • Max Load(kg)

        10
      • Power(w)

        150
      • Max Travel(mm)
        150
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤68dB
      • Voltage(v)
        220v/110v
      • jib attachment(mm)
        275x560
      • Decorative Plate
        Dimensions(mm)
        620x620
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        >650mm
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        56
      • Packing Dimensions
        (D×W×H)mm
        700x750x700
      • Product Dimensions(mm)

        640×640×600
      • Net Weight(kg)

        50
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        490x180x490
      • Max Load(kg)

        15
      • Power(w)

        150
      • Max Travel(mm)
        150
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤68dB
      • Voltage(v)
        220v/110v
      • jib attachment(mm)
        310x620
      • Decorative Plate
        Dimensions(mm)
        680x680
      • Ceiling Opening
        Dimensions(mm)
        655x655
      • Required Ceiling
        Opening Height(mm)
        >650mm
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        61
      • Packing Dimensions
        (D×W×H)mm
        760x750x760
      • Product Dimensions(mm)

        760×760×600
      • Net Weight(kg)

        57
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        550x260x580
      • Max Load(kg)

        25
      • Power(w)

        150
      • Max Travel(mm)
        150
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤68dB
      • Voltage(v)
        220v/110v
      • jib attachment(mm)
        453x740
      • Decorative Plate
        Dimensions(mm)
        800x800
      • Ceiling Opening
        Dimensions(mm)
        775x775
      • Required Ceiling
        Opening Height(mm)
        >650mm
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        68
      • Packing Dimensions
        (D×W×H)mm
        880x750x880
      • Product Dimensions(mm)

        975×825×630
      • Net Weight(kg)

        69
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        150
      • Max Travel(mm)
        150
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤68dB
      • Voltage(v)
        220v/110v
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >680mm
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        80
      • Packing Dimensions
        (D×W×H)mm
        945x780x1095
