GSRB Series

Multi Purpose Mount

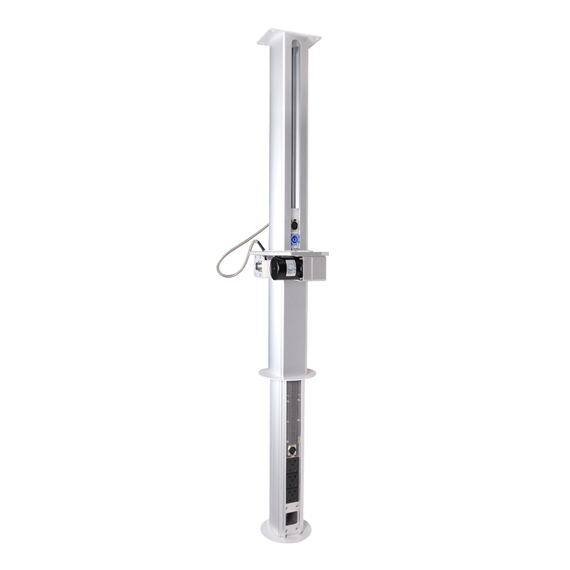

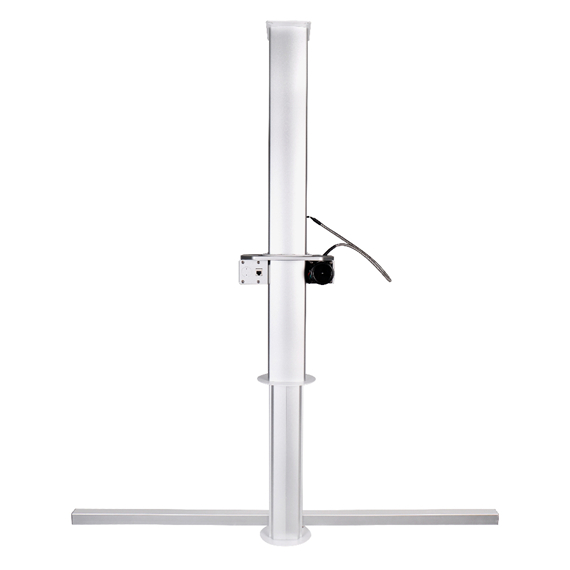

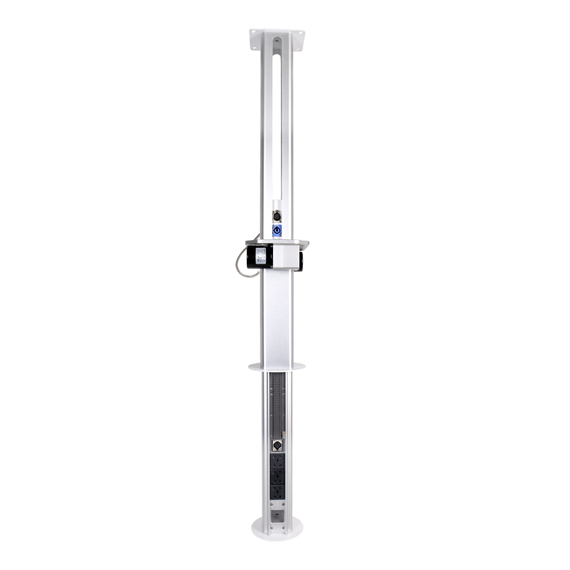

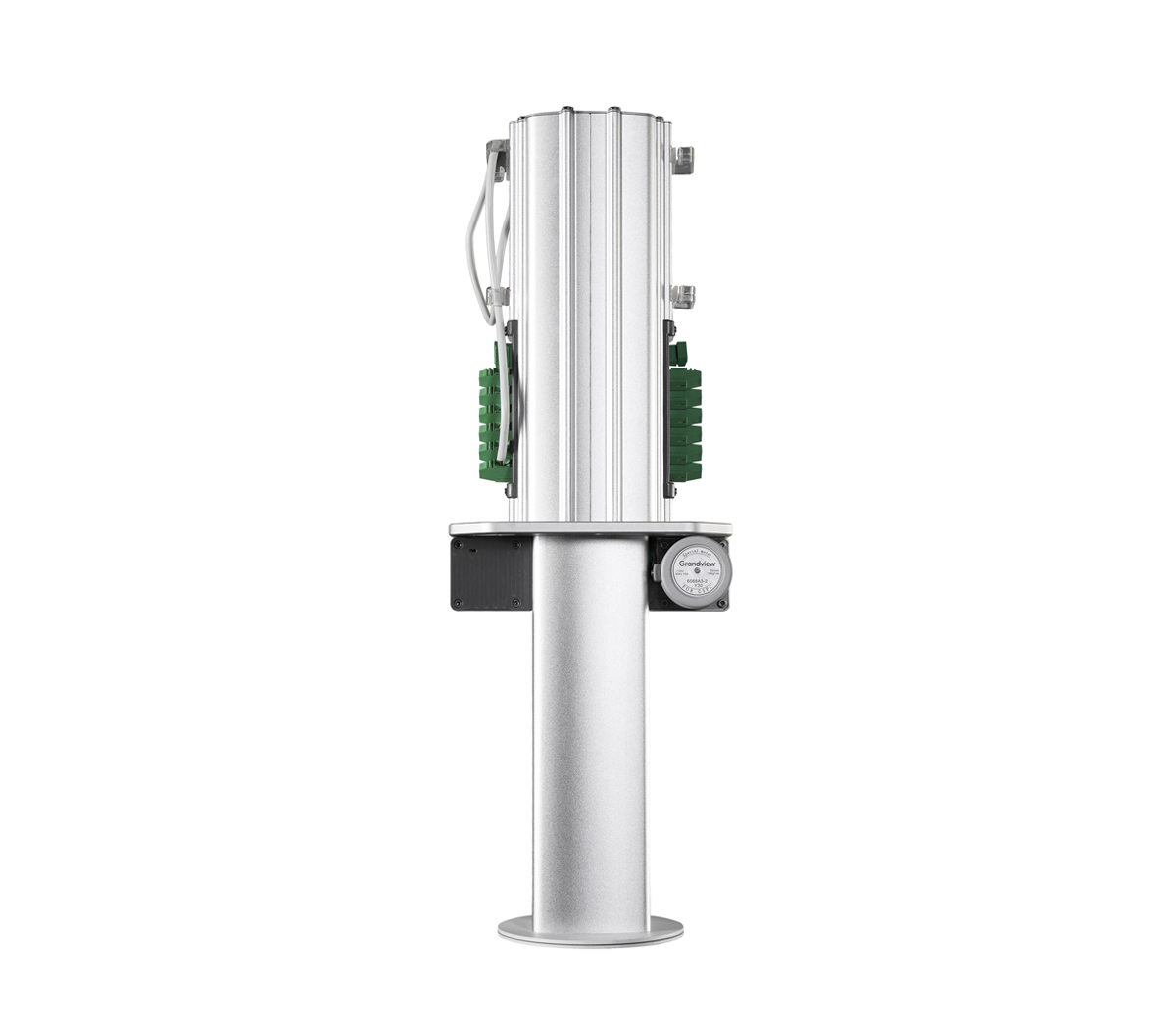

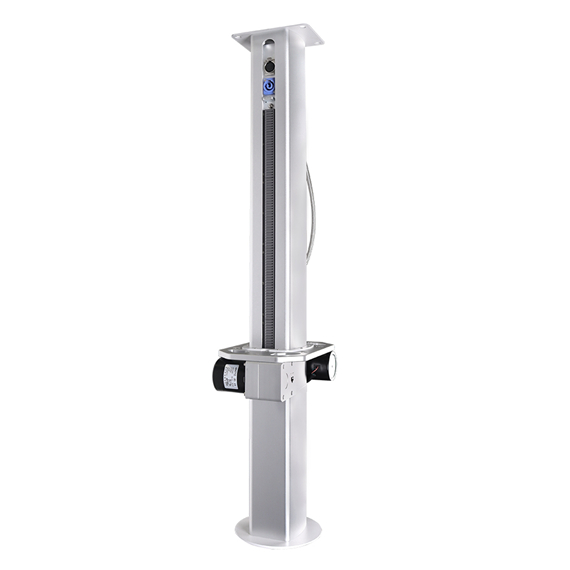

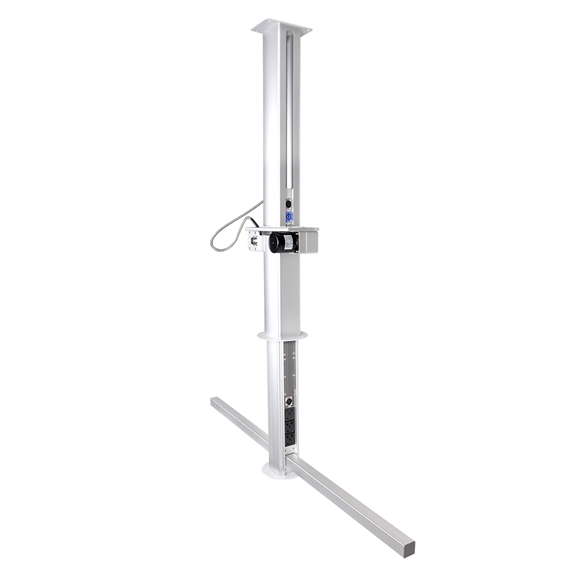

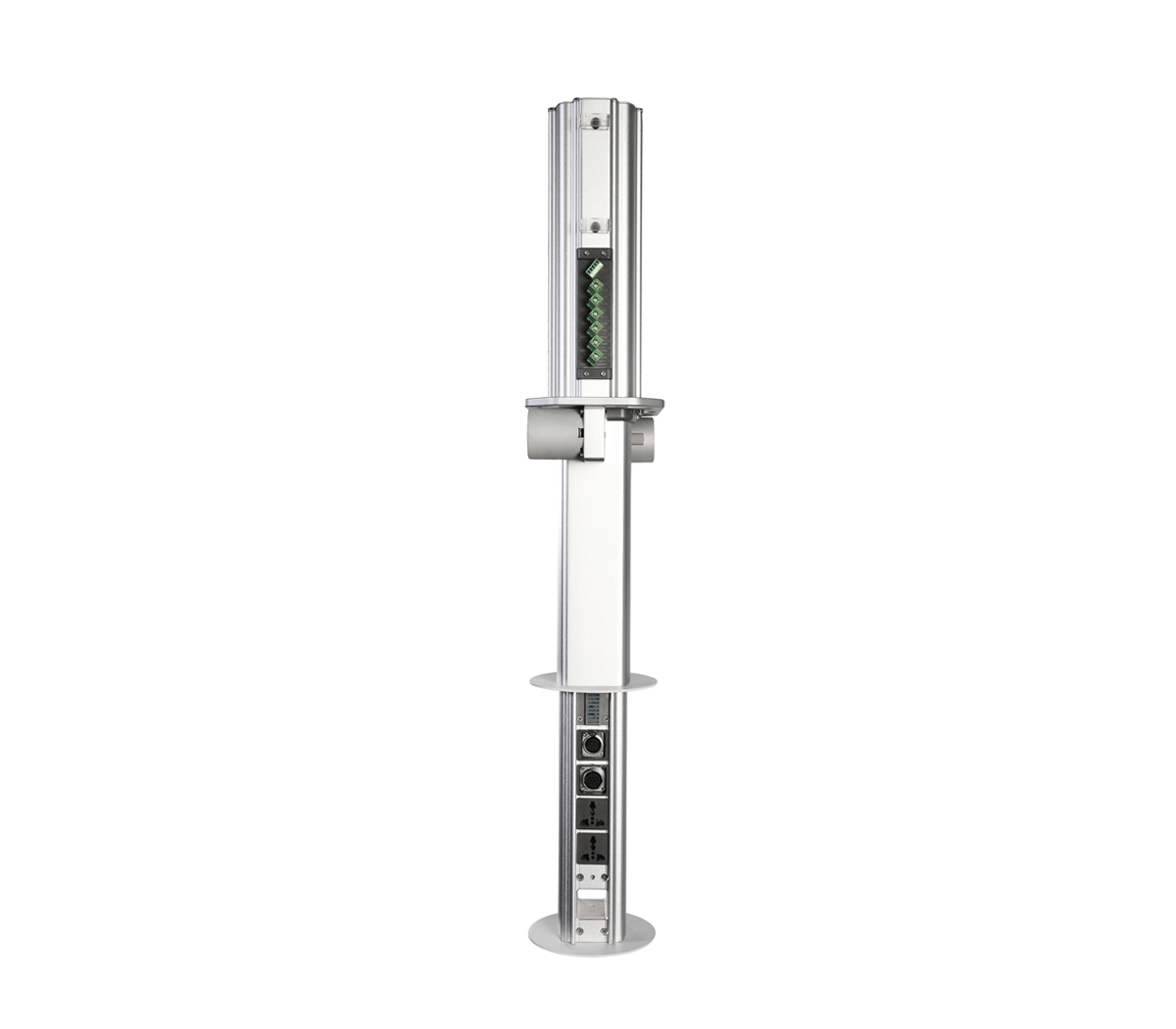

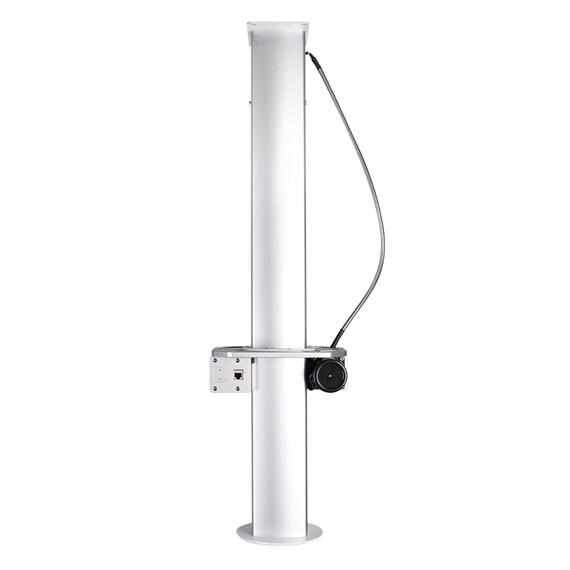

  • The electric telescopic lighting boom is specially used for the temporary hoisting of stage lighting equipment. It is suitable for the space where the hoisting points are scattered, the building height is limited, and the net height in the ceiling is low.
  • Major Function:
  • Fixed extension distance 300mm

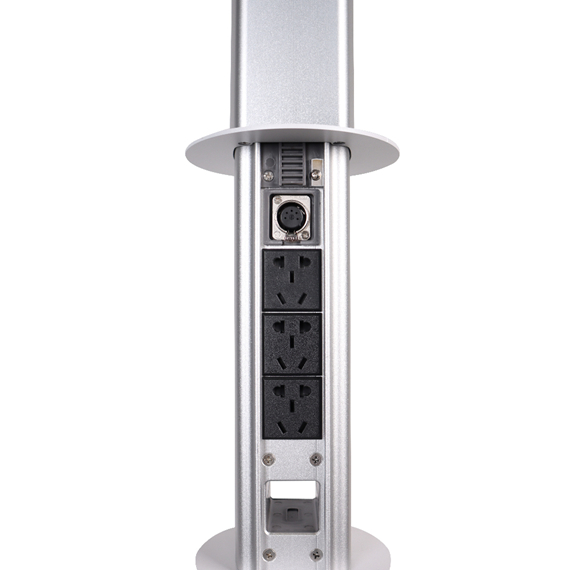

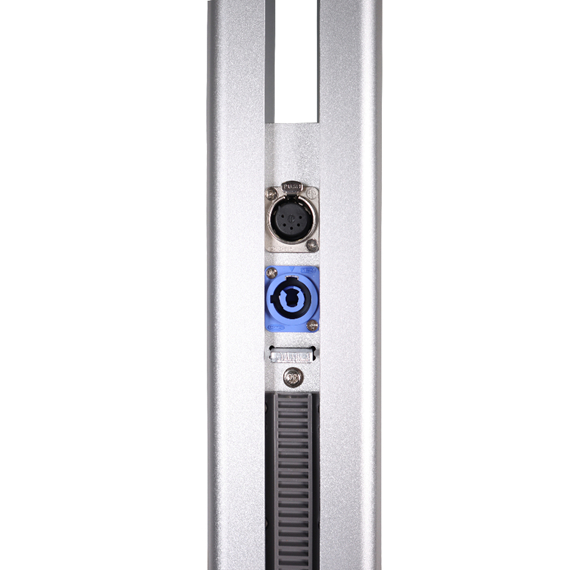

  • Power supply voltage and current 220V AC /3 groups of 16A output, two groups of DMX512 signal output
  • Control mode: independent manual control and customized RS485 control
  • Operation mode: motor low speed action
  • Lifting method: Press the key to rise or fall
  • Safety protection device After the square tube is inserted, it is interlocked, and it is forbidden to rise and fall.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GSRB 3004
    • GSRB 3003
      • Product Dimensions(mm)

        165×242×830
      • Net Weight(kg)

        12
      • Max Load(kg)

        500
      • Power(w)

        60
      • Max Travel(mm)
        450
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        130x90
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Required Ceiling
        Opening Height(mm)
        ≥880
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • Wireless
        Control(Y/N)
        Y
      • Package + Total Product
        Weight
        (kg)
        12.5
      • Packing Dimensions
        (D×W×H)mm
        295x865x210
      • Product Dimensions(mm)

        165×242×701
      • Net Weight(kg)

        10
      • Max Load(kg)

        500
      • Power(w)

        60
      • Max Travel(mm)
        300
      • Precision(mm)
        <1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        130x90
      • Ceiling Opening
        Dimensions(mm)
        φ175
      • Required Ceiling
        Opening Height(mm)
        ≥750
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • Wireless
        Control(Y/N)
        Y
      • Package + Total Product
        Weight
        (kg)
        11.5
      • Packing Dimensions
        (D×W×H)mm
        745x210x295
