GAMR

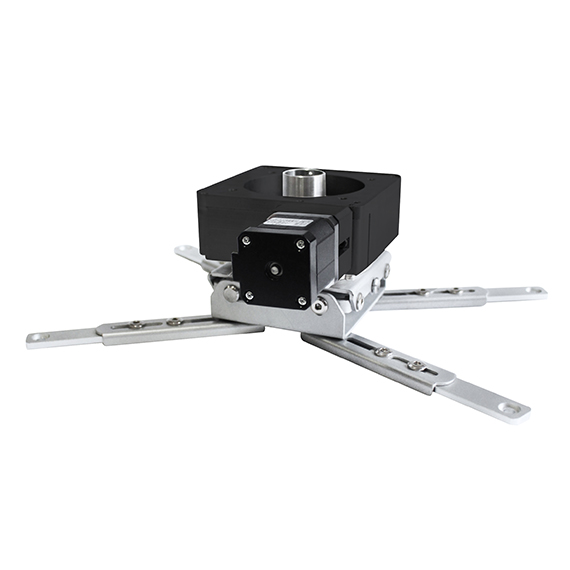

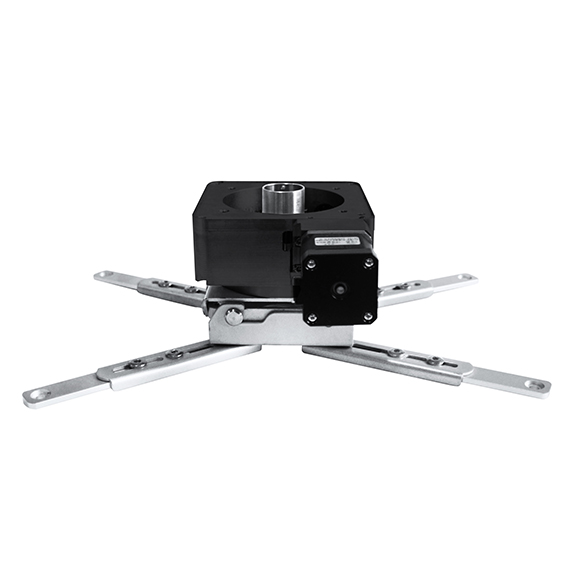

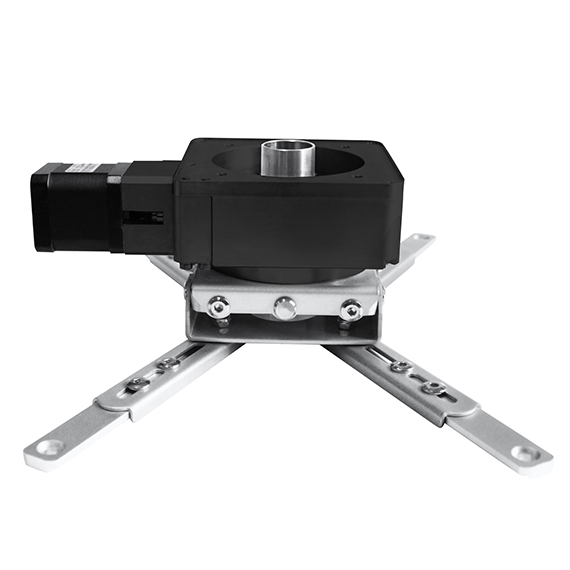

Projector Spinning Head

  • Major Function:
  • 1.The stepper motor can be used to preset four levels of positioning settings
  • 2.Industrial grade cross roller bearing is adopted to ensure radial level without virtual position
  • 3.High precision six stage grinding worm gear and worm are adopted, which can run without shaking
  • 4.Rotation angle: 0-270 degrees
  • 5.Maximum load: 40kg
  • 6.Rotation accuracy: < 0.01 degree
  • 7.Control mode: wireless remote control, RS485 control
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GAMR
      • Product Dimensions(mm)

        177×187×57
      • Net Weight(kg)

        2.4
      • Max Load(kg)

        40
      • Precision(mm)
        Rotate angle<0.01°
      • Voltage(v)
        AC220V/50Hz
      • Angle Adjustments
        Up/Down/Left/Right
        1°/8°/4°/4°
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

        Wireless remote
      • Packing Dimensions
        (D×W×H)mm
        150x250x100mm
  • Sketch
  • Download
    Technical Drawing
