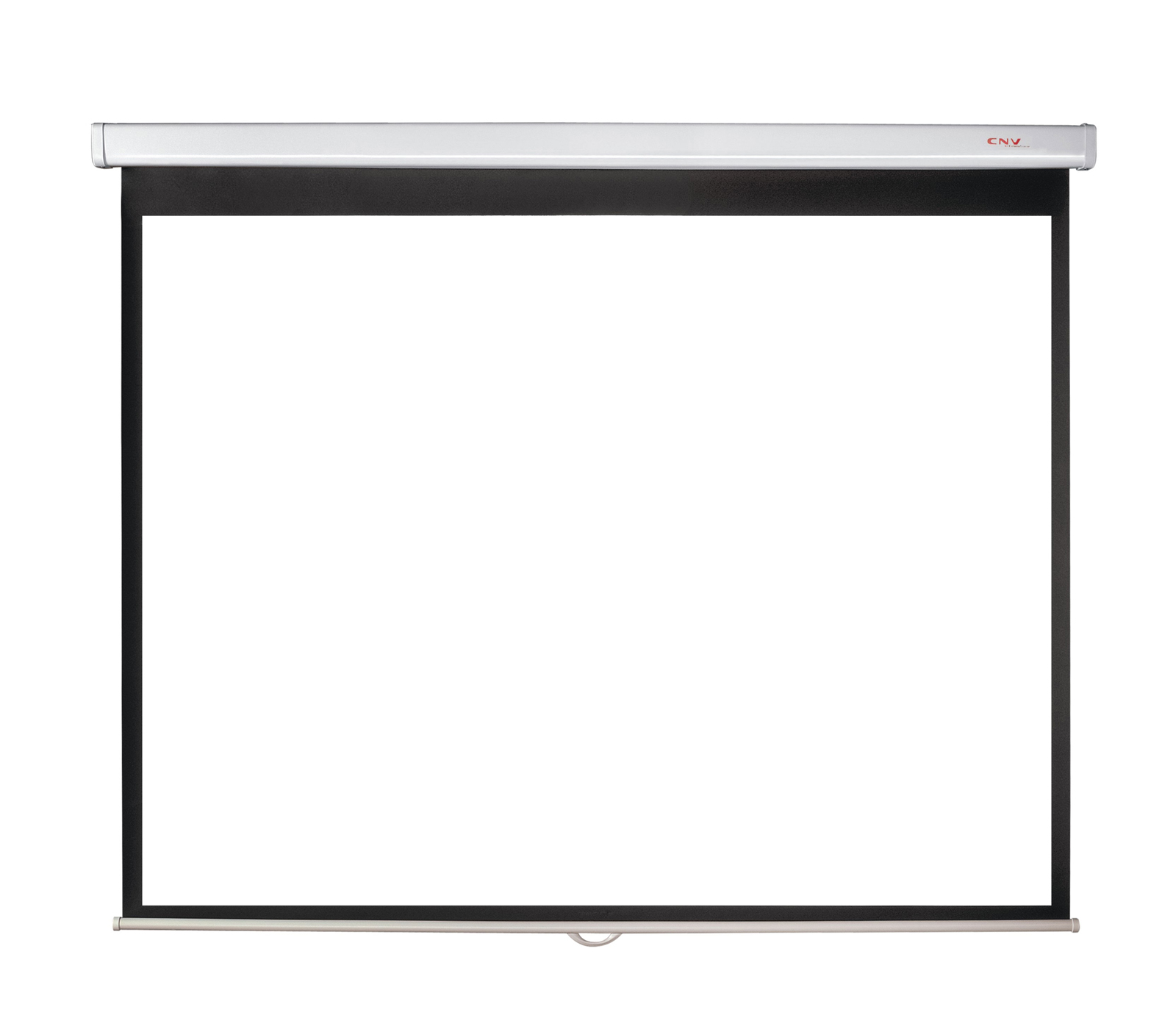

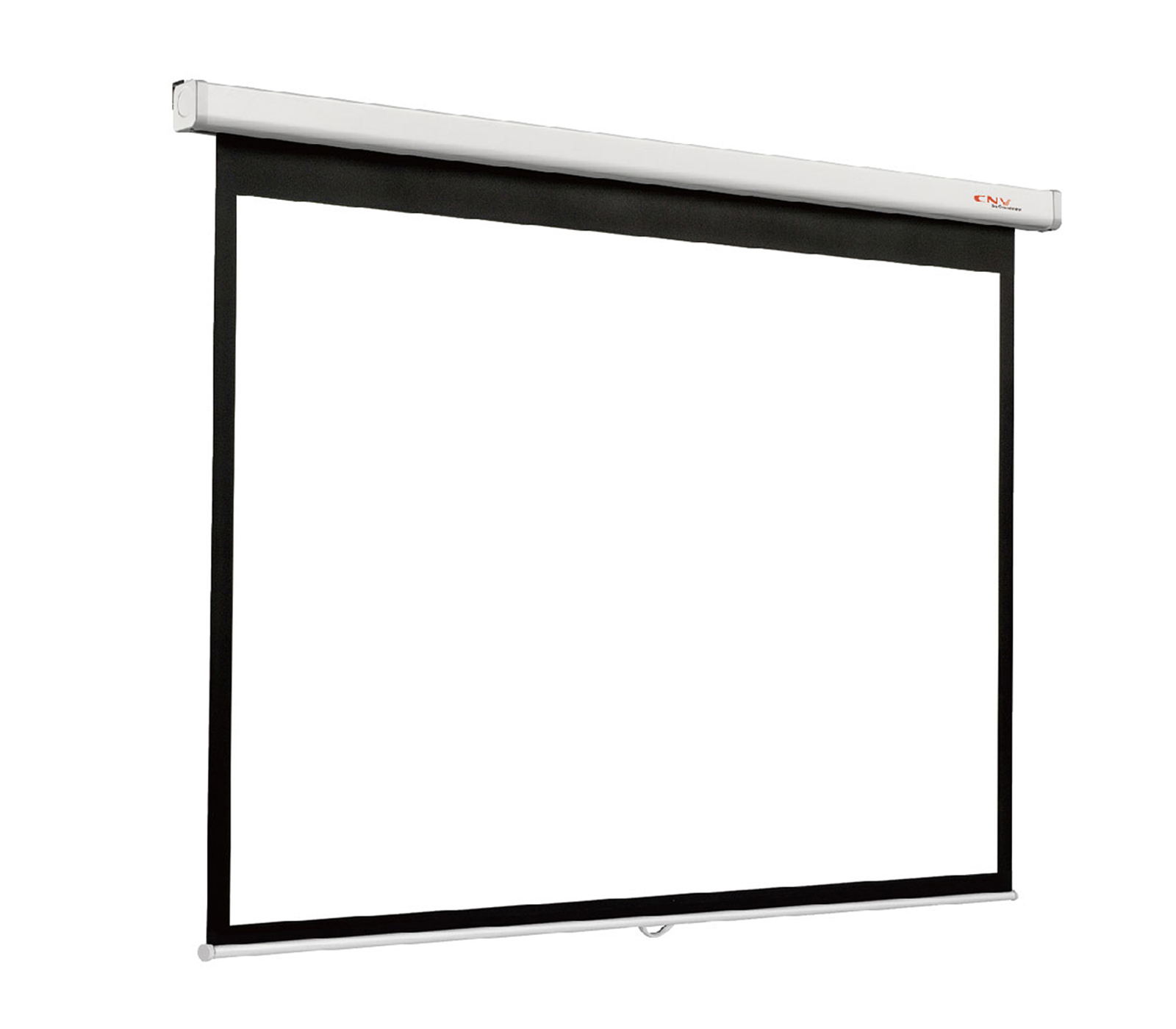

CNV Series Manual Pull-down Screen

  • The simple,square shaped metal casing gives the CNV Series a durable look.The CNV brackets give users the option of wall mount,ceiling mount or ceiling hang.This model is the perfect choice for economical educational budgets and applications.


  • • Self-Lock Mechanism
  • • Slow Retraction Mechanism
  • • Sizes: 84” – 120” diagonal
  • • Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WP5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • Model
      • 1:1
      • 4:3
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        2030 × 2030
        2252
        80
        40
        50
        2250
        79
        78
        96"
        2334 × 2334
        2556
        80
        40
        50
        2554
        79
        78
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1710 × 1280
        1497
        80
        35
        40
        1910
        79
        78
        90"
        1830 × 1372
        1614
        80
        60
        50
        2050
        79
        78
        100"
        2030 × 1520
        1762
        80
        60
        50
        2250
        79
        78
        120"
        2340 × 1755
        1977
        80
        40
        47
        2554
        79
        78
        133"
        2703 × 2027
        2280
        80
        40
        50
        2967
        110
        110
        138"
        2811 × 2110
        2363
        80
        40
        50
        3075
        110
        110
        145"
        2944 × 2210
        2463
        80
        40
        50
        3211
        110
        110
        147"
        2989 × 2240
        2468
        80
        40
        50
        3211
        110
        110
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1860 × 1046
        1708
        500
        60
        50
        2080
        79
        78
        92"
        2030 × 1145
        1807
        500
        60
        50
        2250
        79
        78
        100"
        2214 × 1245
        1887
        500
        40
        50
        2434
        79
        78
        106"
        2340 × 1320
        1962
        500
        40
        47
        2554
        79
        78
        120"
        2656 × 1494
        2067
        400
        40
        50
        2967
        110
        110
        122"
        2703 × 1519
        2092
        400
        40
        50
        3075
        110
        110
        127"
        2811 × 1580
        2053
        300
        40
        50
        3208
        110
        110
        133"
        2944 × 1655
        2128
        300
        40
        50
        3253
        110
        110
        135"
        2989 × 1681
        2154
        300
        40
        50
        3253
        110
        110
