Compare

Skyshow Series

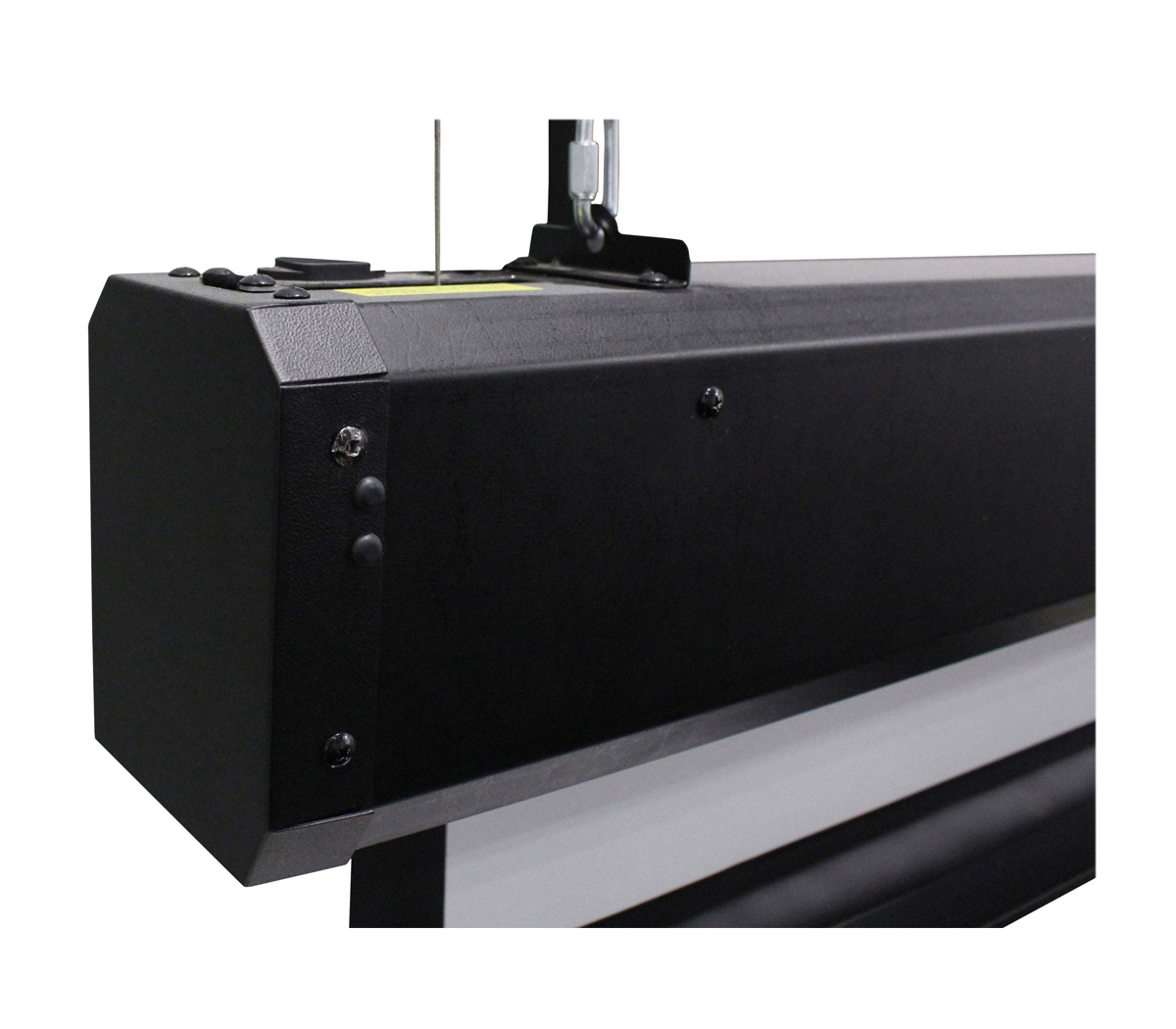

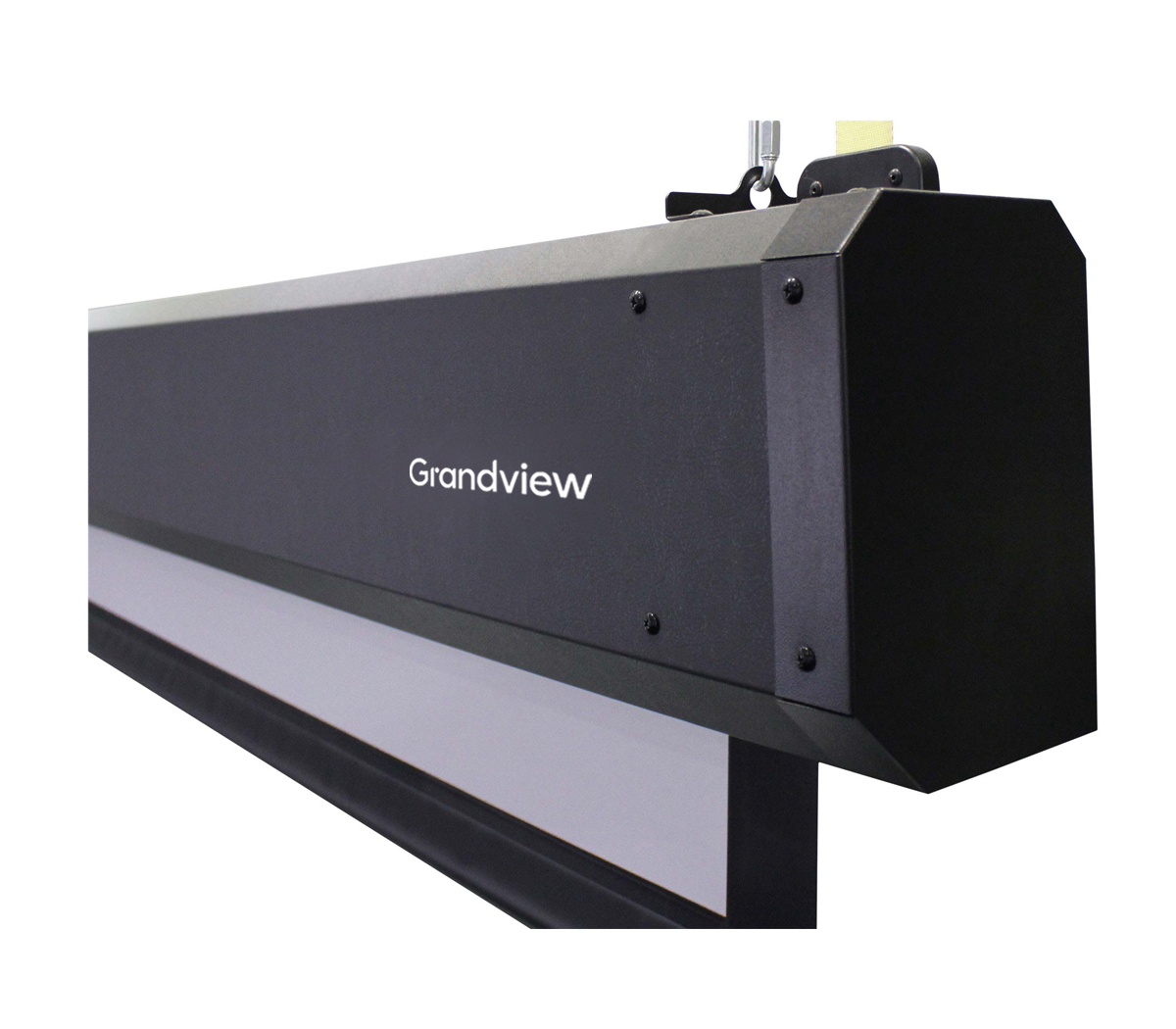

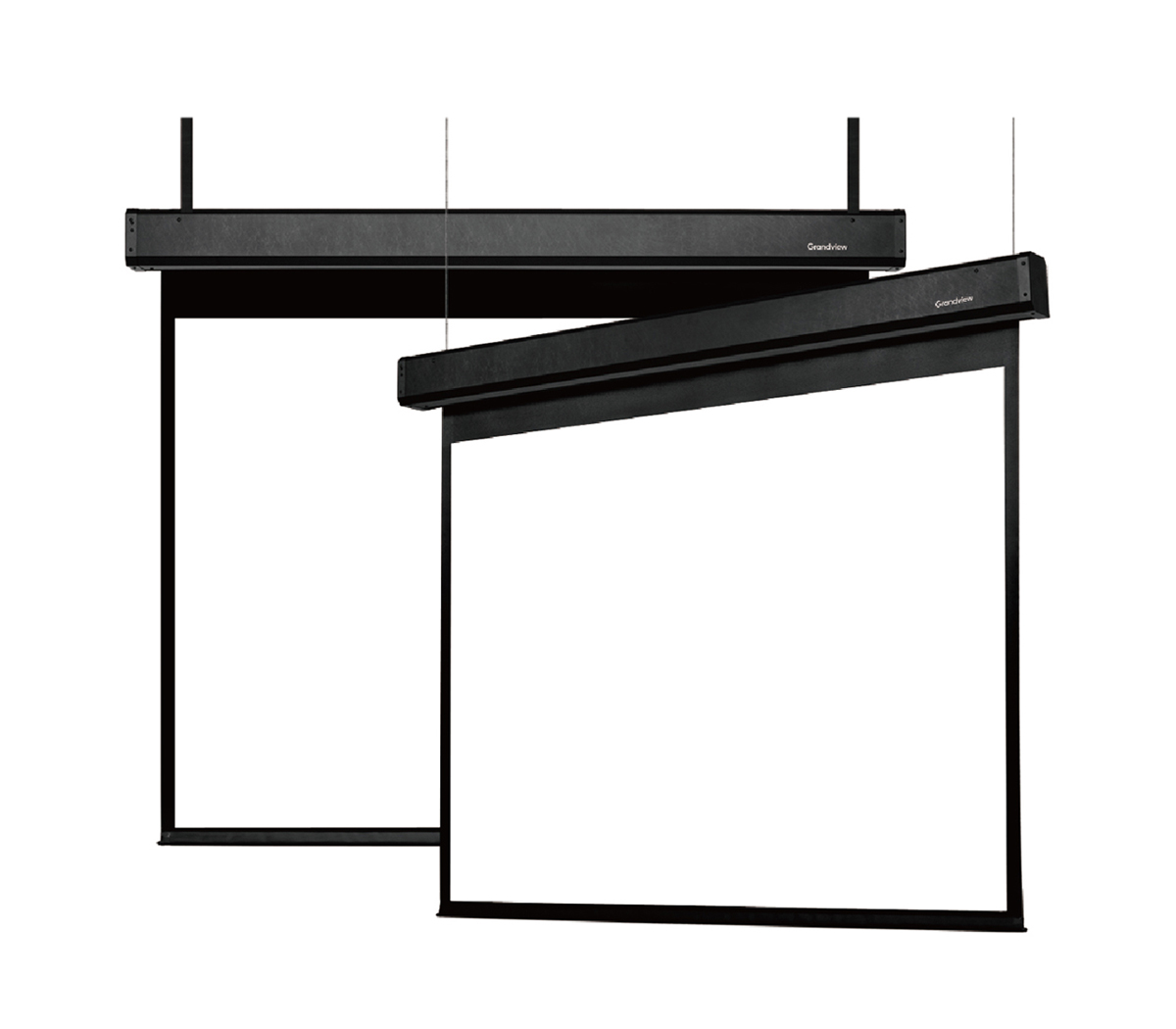

Motorized Screen-Model A/B

  • Grandview’s Skyshow screen was the world’s first large motorized screen with a built-in self-winding cable system allowing the casing to be lowered. The Skyshow screen features a heavy-duty cable/strap design on a separate motor system that allows the casing to be lowered to a maximum of 5 meters from the ceiling. With this innovative design, our engineers have made a product well suited for high ceiling installations with a state-of-the-art safety system.


  • • Electronic Positioning
  • • Mechanical Positioning
  • • Anti-Drop Mechanism
  • • Up to 5 meters drop
  • • Sizes: 60” – 240” diagonal
  • • Installation Options: High Ceiling Installations
  • • Control Options: RF Remote / Wall Switch / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: Black
  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Download

  • FAQ

  • Share

  • Standard Accessories

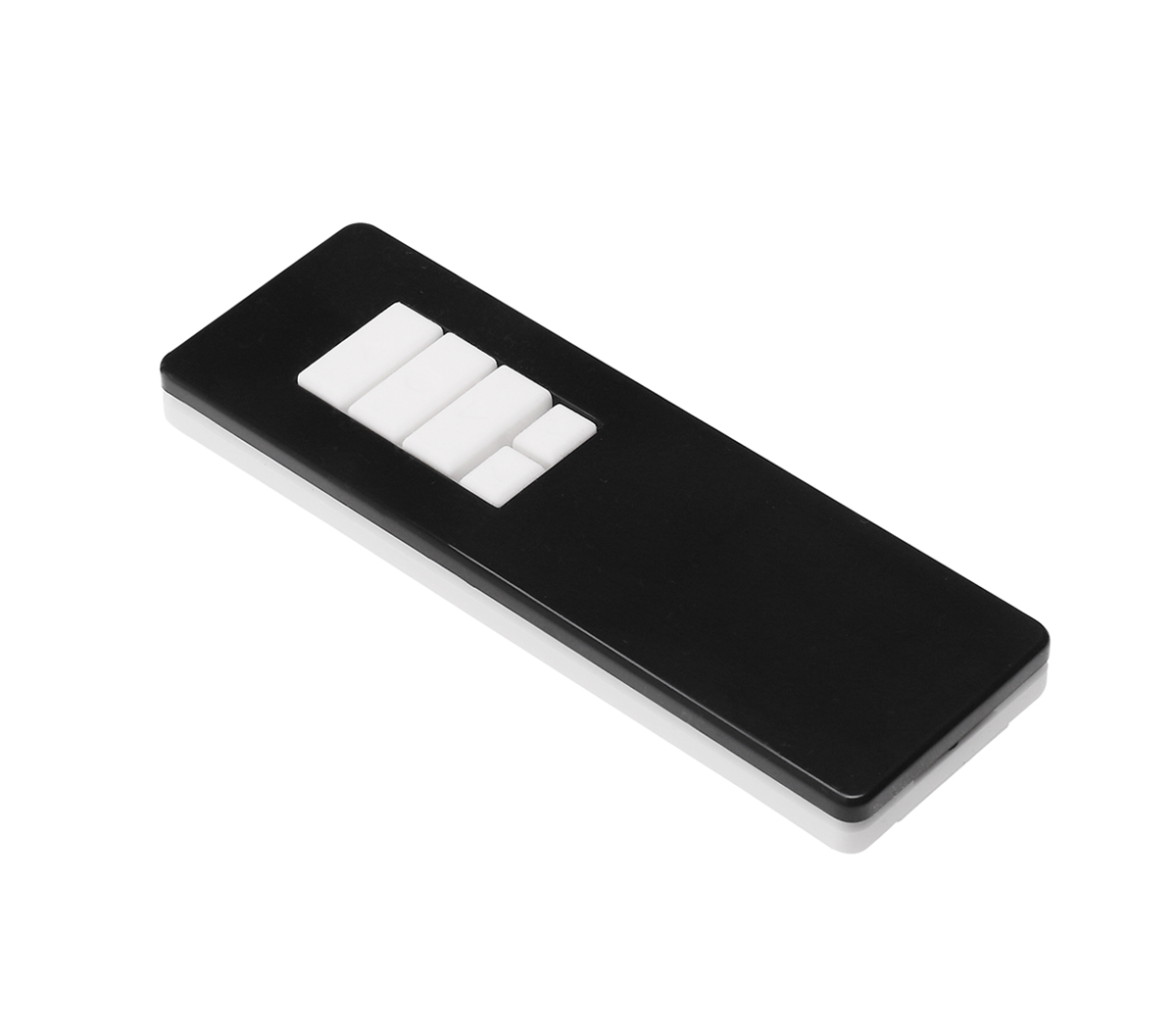

    • RF Remote Control

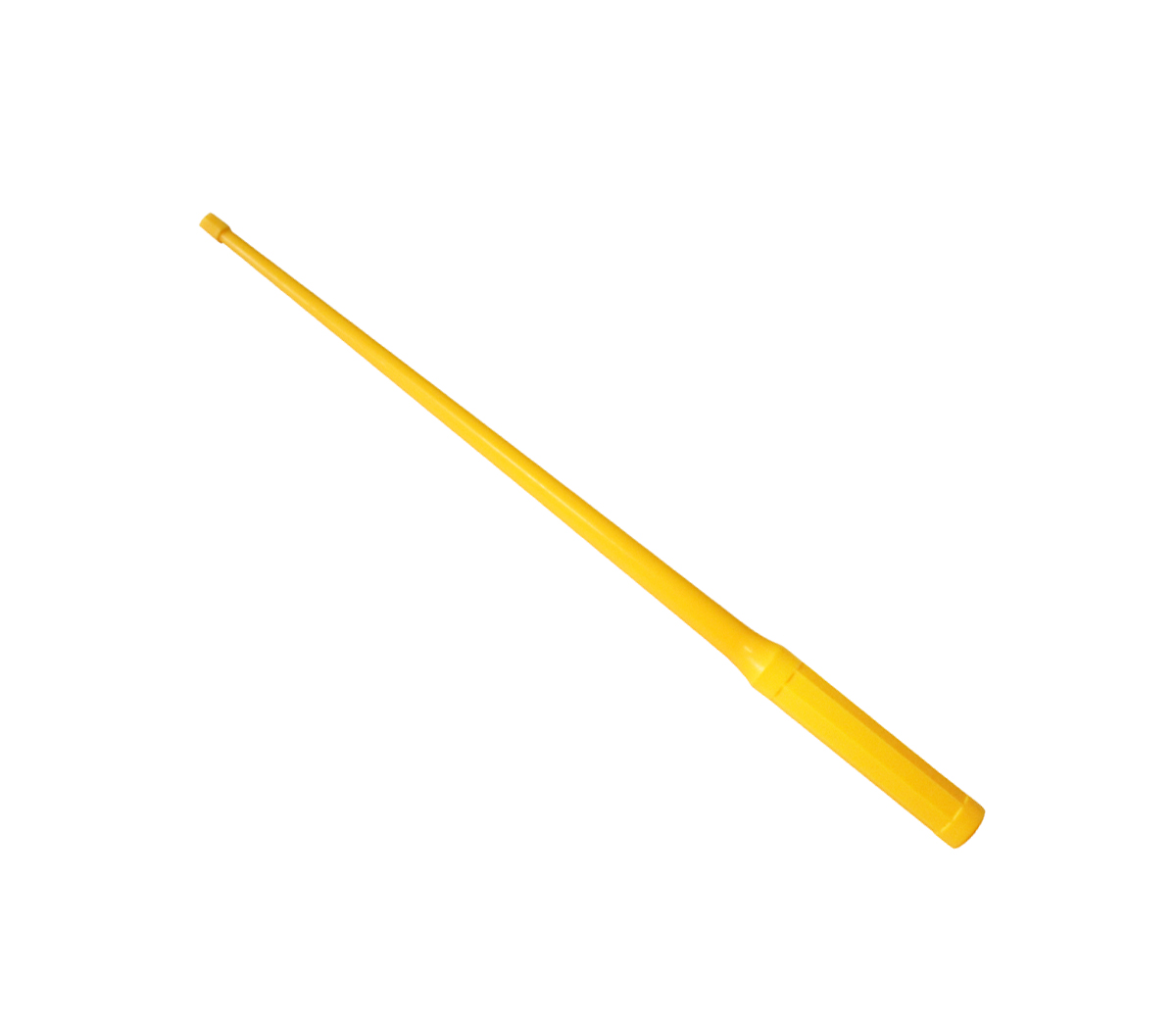

    • Limit Adjustment Tool

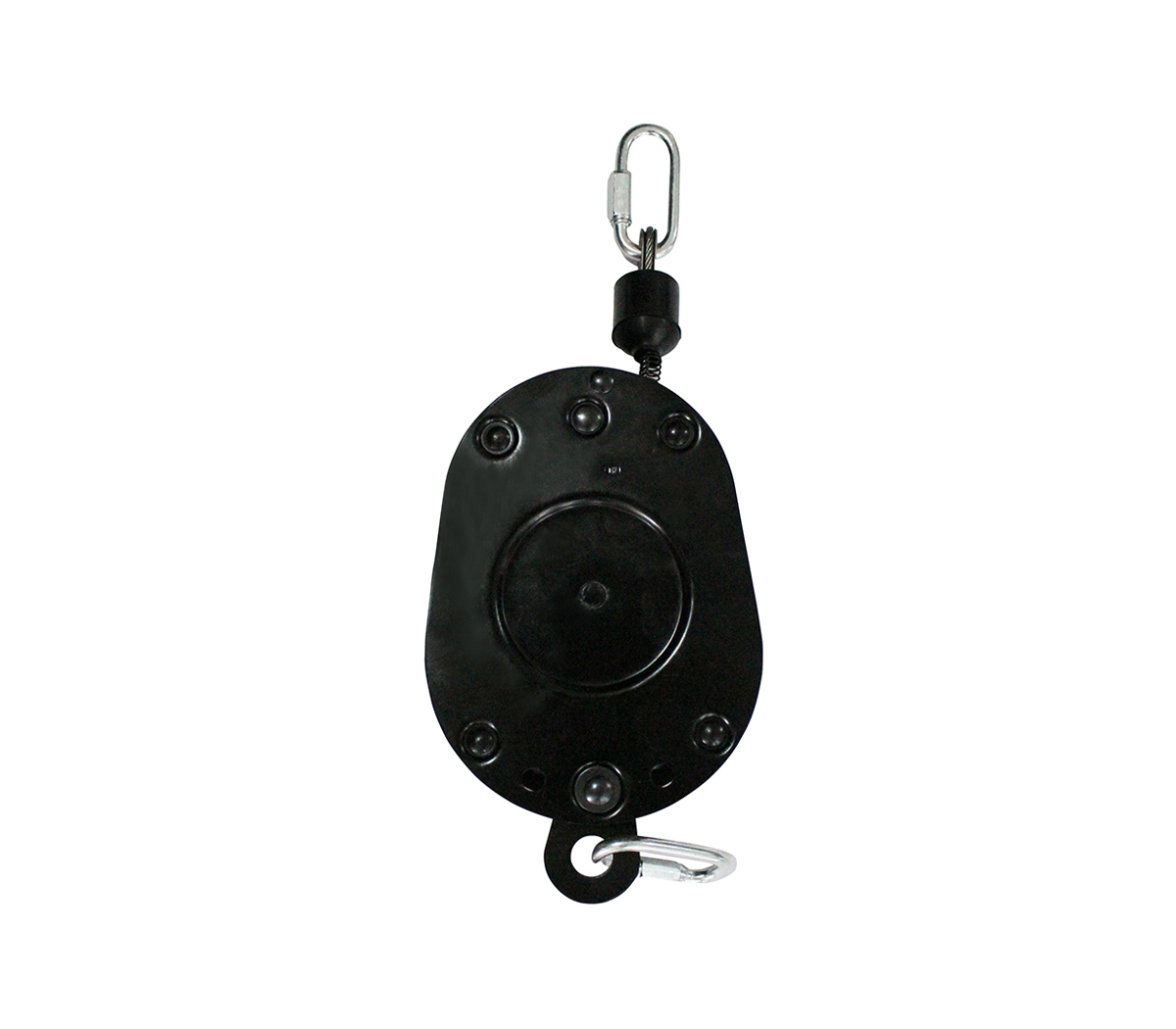

    • Brake Mechanism

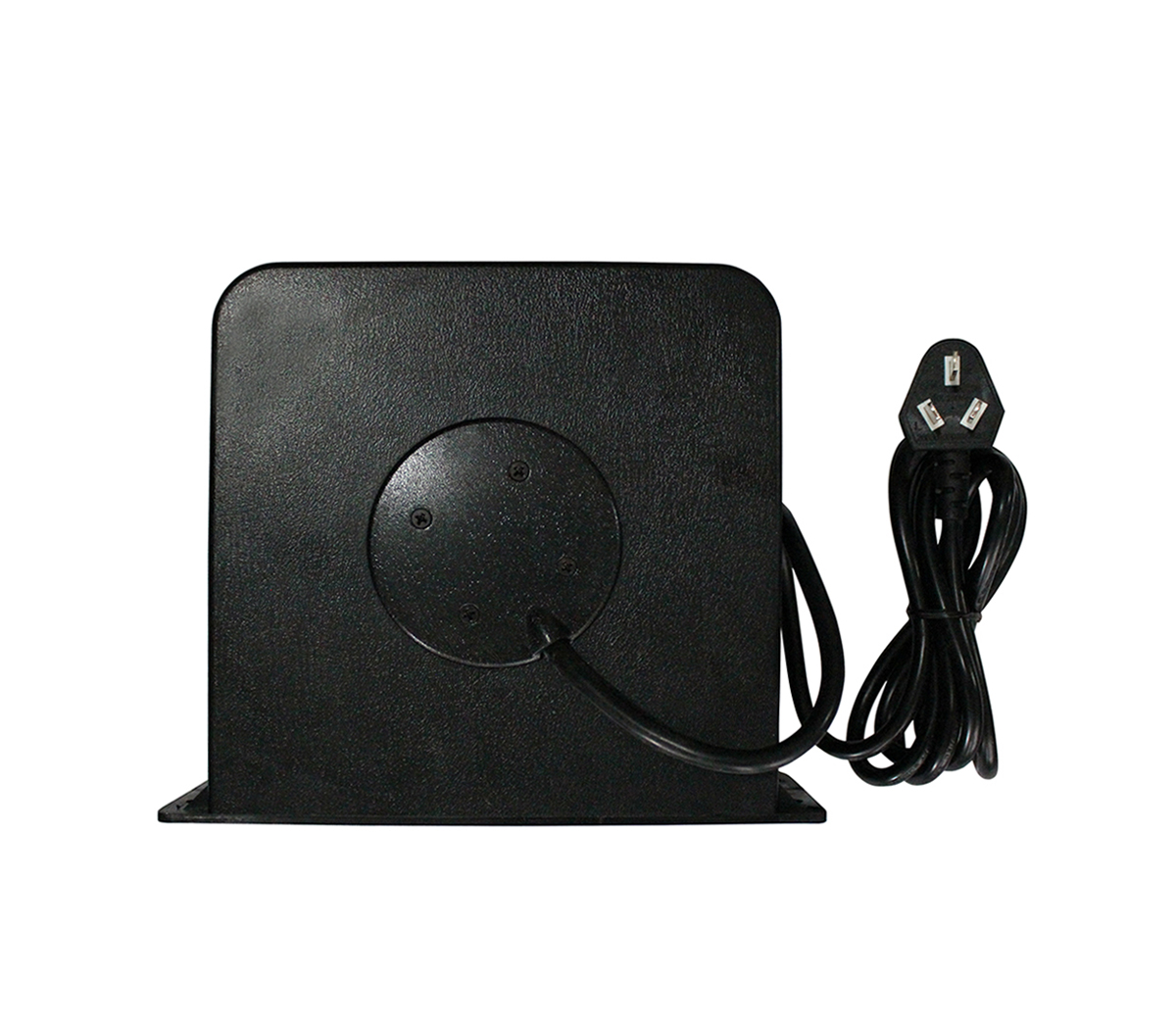

    • Cable Box
    Optional Accessories

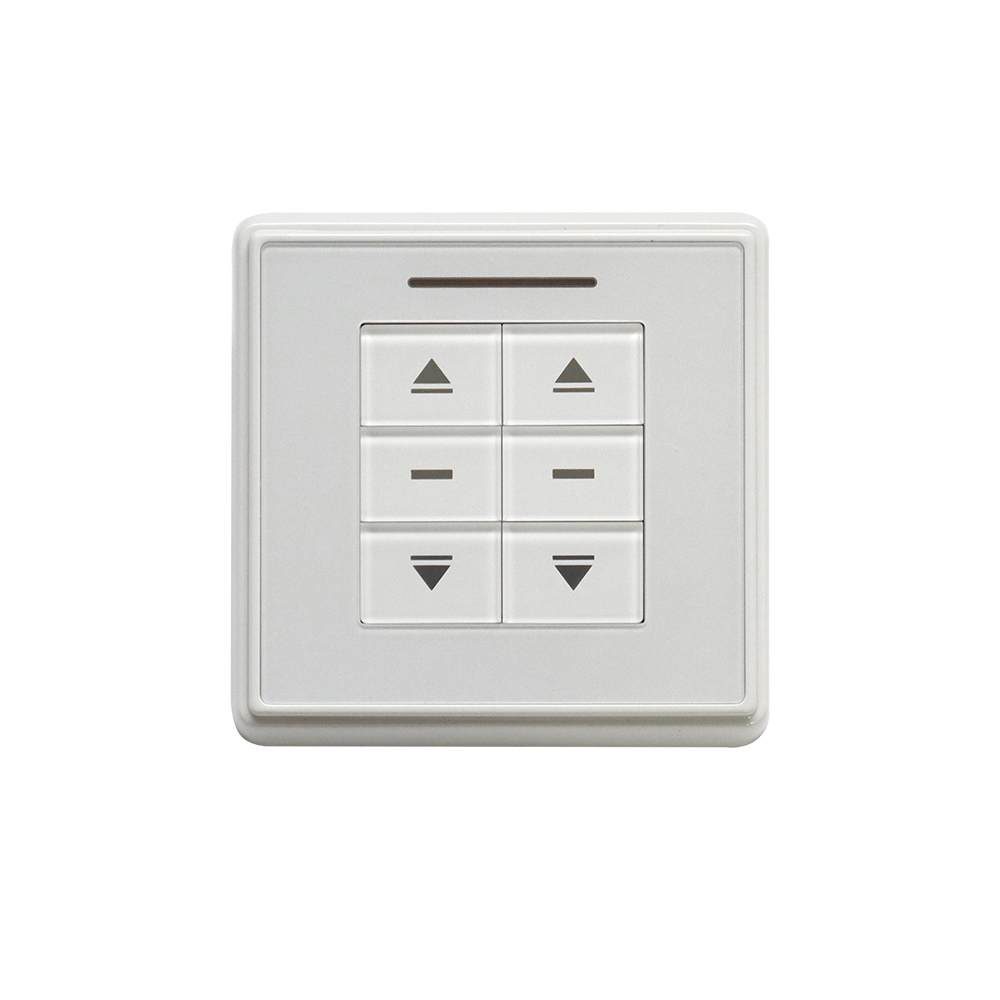

    • Wall Swtich

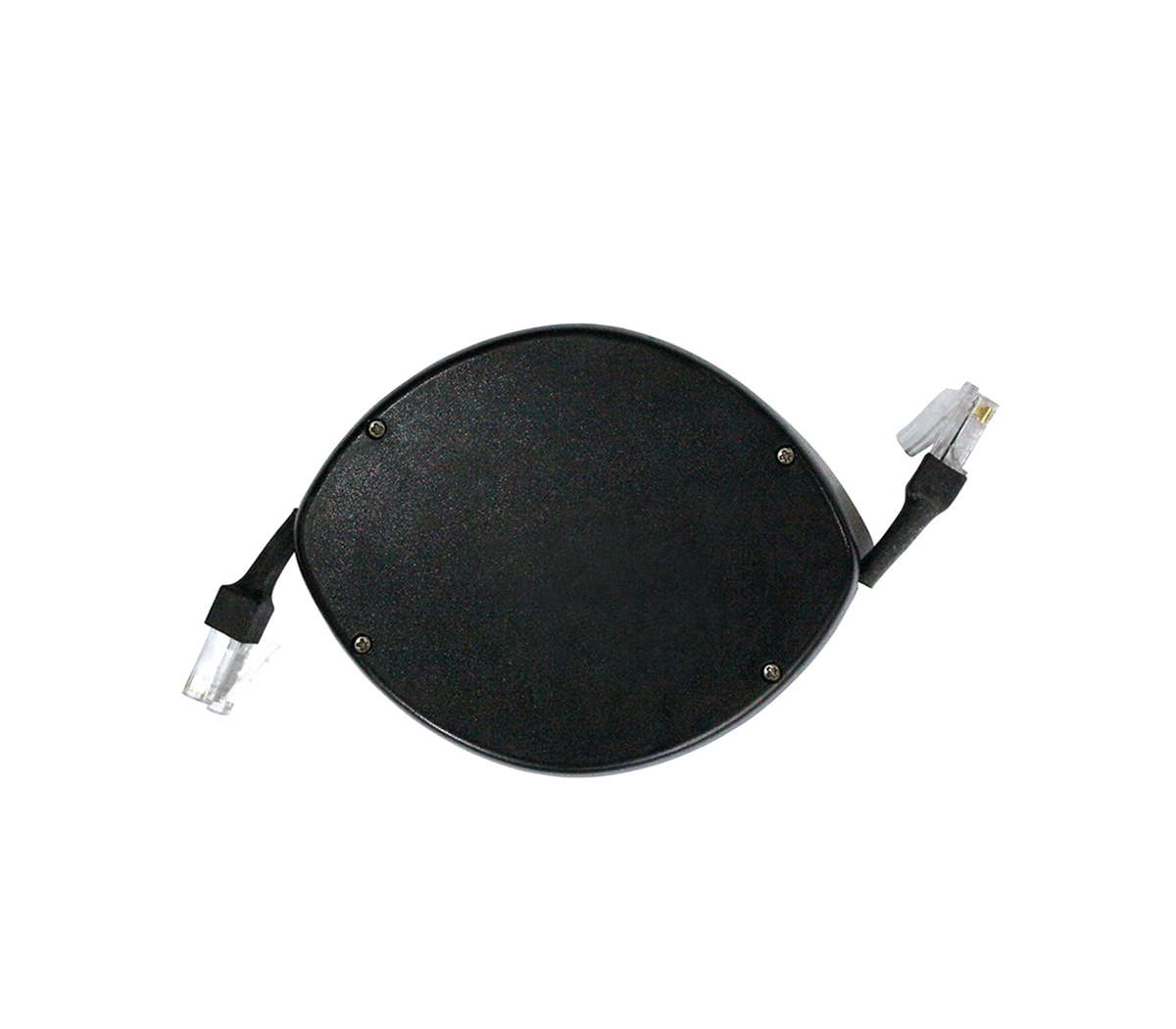

    • Multimedia Cable Box

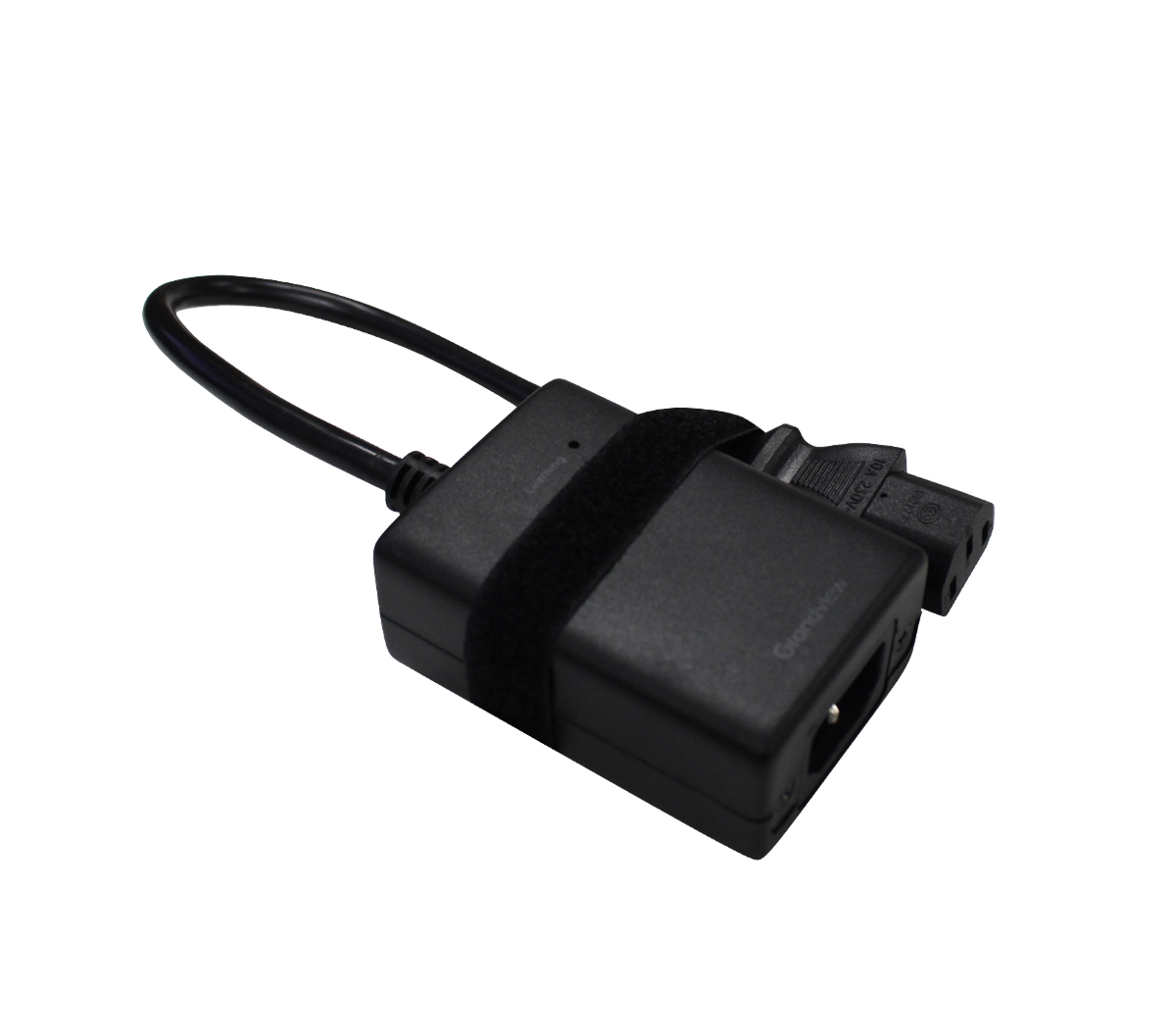

    • Power Synchro Relay
  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WM9
      • Viewing
        Angle
        160°
      • Gain
        1.0
  • Specs
    • Model B
    • Model A
    • Model
      • 1:1
      • 4:3
      • 16:9
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        60"
        1520 × 1520
        1970
        200
        50
        25
        1767
        173
        133
        70"
        1780 × 1780
        2230
        200
        50
        23
        2023
        173
        133
        84"
        2030 × 2030
        2480
        200
        50
        50
        2327
        173
        133
        96"
        2338 × 2338
        2788
        200
        50
        50
        2635
        173
        133
        100"
        2540 × 2540
        2990
        200
        50
        50
        2837
        173
        133
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        100"
        2030 × 1520
        1970
        200
        50
        50
        2327
        173
        133
        120"
        2338 × 1755
        2205
        200
        50
        50
        2635
        173
        133
        150"
        3048 × 2286
        2736
        200
        50
        50
        3345
        173
        133
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        77"
        1710 × 958
        1408
        200
        50
        50
        2007
        173
        133
        80"
        1771 × 996
        1446
        200
        50
        50
        2068
        173
        133
        92"
        2030 × 1145
        1595
        200
        50
        50
        2327
        173
        133
        100"
        2214 × 1245
        1695
        200
        50
        50
        2511
        173
        133
        106"
        2338 × 1320
        1770
        200
        50
        50
        2635
        173
        133
        120"
        2656 × 1494
        1944
        200
        50
        50
        2953
        173
        133
        136"
        3048 × 1715
        2165
        200
        50
        50
        3345
        173
        133
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        135"
        2743 × 2057
        2626
        200
        80
        80
        3237
        253
        167
        150"
        3048 × 2286
        2855
        200
        80
        80
        3542
        253
        167
        180"
        3620 × 2715
        3284
        200
        80
        80
        4114
        253
        167
        200"
        4020 × 3015
        3584
        200
        80
        80
        4514
        253
        167
        240"
        4878 × 3660
        4229
        200
        80
        80
        5372
        253
        167
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        124"
        2745 × 1544
        2113
        200
        80
        79
        3237
        253
        167
        138"
        3056 × 1719
        2288
        200
        80
        76
        3542
        253
        167
        150"
        3320 × 1867
        2436
        200
        80
        80
        3814
        253
        167
        180"
        3984 × 2240
        2809
        200
        80
        80
        4478
        253
        167
        200"
        4428 × 2491
        3060
        200
        80
        80
        4922
        253
        167
        217"
        4804 × 2702
        3271
        200
        80
        80
        5298
        253
        167
        220"
        4870 × 2740
        3309
        200
        80
        84
        5372
        253
        167
      • Diagonal Measurement
        Viewing Area
        （W×H）mm
        Product Height
        （A）mm
        Black Drop
        （B3）mm
        Lower Border
        （B2）mm
        Left/Right
        （B1）mm
        Product Length
        （L）
        Endcap Height
        （Hc）mm
        Endcap Width
        （Wc）
        128"
        2757 × 1723
        2292
        200
        80
        73
        3237
        253
        167
        150"
        3231 × 2019
        2588
        200
        80
        80
        3725
        253
        167
        180"
        3877 × 2423
        2992
        200
        80
        80
        4371
        253
        167
        200"
        4308 × 2692
        3261
        200
        80
        80
        4802
        253
        167
        226"
        4878 × 3049
        3618
        200
        80
        80
        5372
        253
        167
  • Download
    User Manual:Model A
    PDF
    User Manual:Model B
    PDF
    Instruction Manual for Ceiling Installation Parts
    PDF
