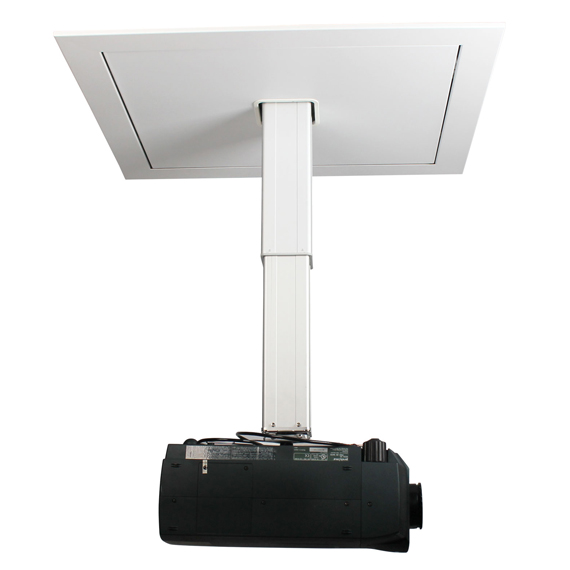

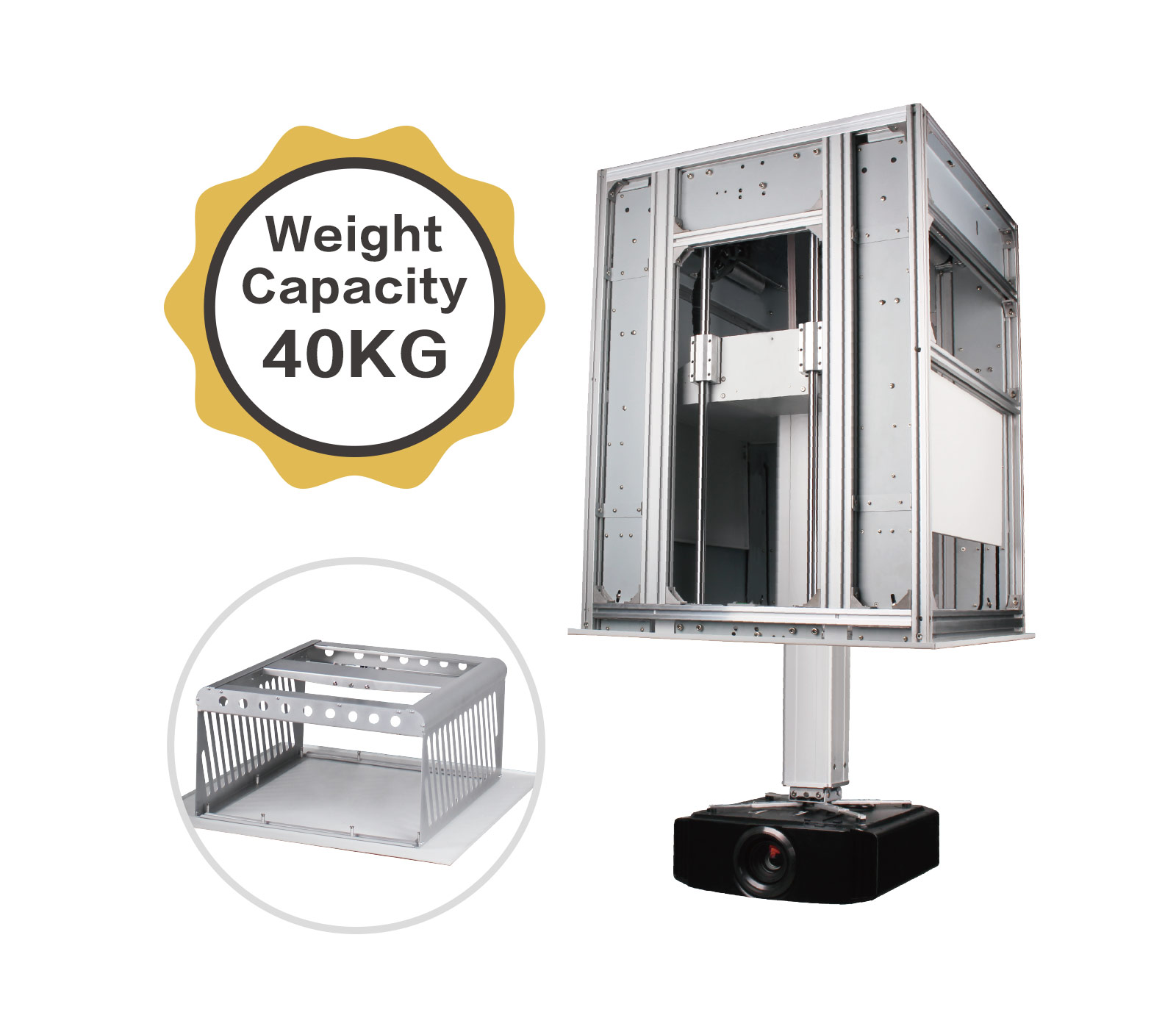

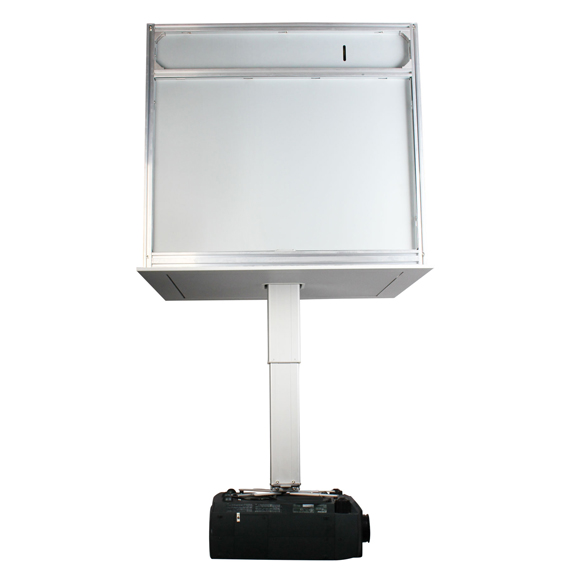

GPAD/AC 64 Series

Telescopic Projector Lift

  • The ceiling lifter of gpad / AC64 series telescopic rod projector can accommodate the majority of 20000 lumen engineering projectors with single pole expansion, simple lines and various decoration styles.
  • Major Function:
  • . guide pillar lifting, stable operation, built-in force precision screw connection, multi-point lifting
  • .The patent of line finance can be lifted and lowered without weight-bearing;
  • .Multi protection anti falling device, fully enclosed aluminum alloy frame structure, strong and durable; industrial long-running motor;
  • .Multi section aluminum alloy square tube, double open type inner door; stable operation; high precision encoder, positioning accuracy ≤ 1mm
  • . built in cable: projector power cable × 1, hdmi2.0 × 1, category 6 network cable × 2; (other requirements can be customized)
  • .projector universal mounting claw, multi angle adjustable
  • . positioning mode: RF positioning and 485 positioning

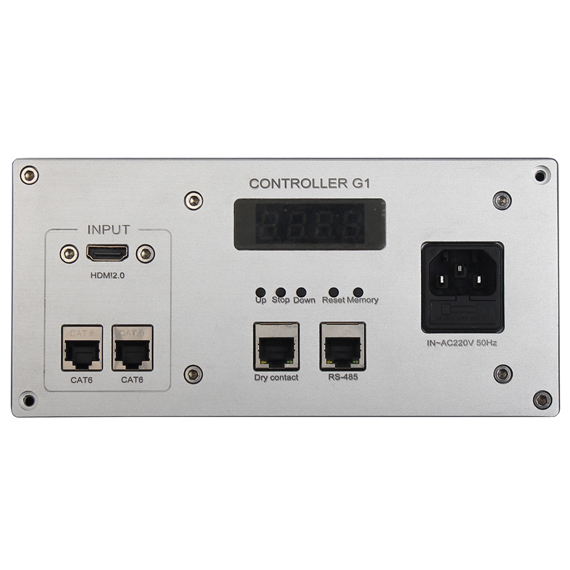

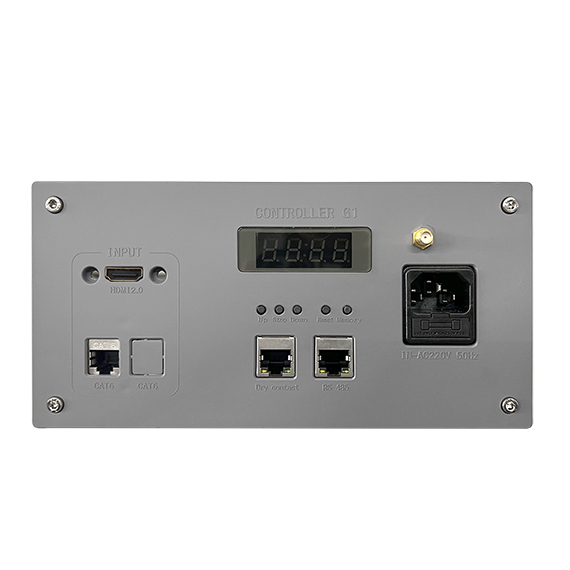

  • .Control mode: RF, weak current dry contact and RS485 code
  • .The size of the installation projector is recommended for reference only. The actual size shall prevail.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPAD/AC 6450 (Ⅱ)
    • GPAD/AC 6445 (Ⅱ)
    • GPAD/AC 6440 (Ⅱ)
    • GPAD/AC 6435
    • GPAD/AC 6430
    • GPAD/AC 6425
    • GPAD/AC 6420
    • GPAD/AC 6415
    • GPAD/AC 6410
    • GPAD/AC 6405
      • Product Dimensions(mm)

        975×825×1652
      • Net Weight(kg)

        160
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        5000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        175
      • Packing Dimensions
        (D×W×H)mm
        945x1802x1095
      • Product Dimensions(mm)

        975×825×1552
      • Net Weight(kg)

        155
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        4500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        170
      • Packing Dimensions
        (D×W×H)mm
        945x1702x1095
      • Product Dimensions(mm)

        975×825×1452
      • Net Weight(kg)

        150
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        4000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        165
      • Packing Dimensions
        (D×W×H)mm
        945x1602x1095
      • Product Dimensions(mm)

        975×825×1500
      • Net Weight(kg)

        145
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        3500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        160
      • Packing Dimensions
        (D×W×H)mm
        945x1650x1095
      • Product Dimensions(mm)

        975×825×1375
      • Net Weight(kg)

        140
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        3000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        155
      • Packing Dimensions
        (D×W×H)mm
        945x1525x1095
      • Product Dimensions(mm)

        975×825×1250
      • Net Weight(kg)

        135
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        2500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        150
      • Packing Dimensions
        (D×W×H)mm
        945x1400x1095
      • Product Dimensions(mm)

        975×825×1125
      • Net Weight(kg)

        130
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        2000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        145
      • Packing Dimensions
        (D×W×H)mm
        945x1275x1095
      • Product Dimensions(mm)

        975×825×1000
      • Net Weight(kg)

        125
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        1500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        140
      • Packing Dimensions
        (D×W×H)mm
        945x1150x1095
      • Product Dimensions(mm)

        975×825×875
      • Net Weight(kg)

        120
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        1000
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        135
      • Packing Dimensions
        (D×W×H)mm
        945x1025x1095
      • Product Dimensions(mm)

        975×825×750
      • Net Weight(kg)

        100
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        100
      • Max Travel(mm)
        500
      • Precision(mm)
        <2mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        480x945
      • Decorative Plate
        Dimensions(mm)
        867x1015
      • Ceiling Opening
        Dimensions(mm)
        840x990
      • Required Ceiling
        Opening Height(mm)
        >H+50
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 4 4
      • Dry Contact(Y/N)

      • Wireless
        Control(Y/N)
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        115
      • Packing Dimensions
        (D×W×H)mm
        945x900x1095

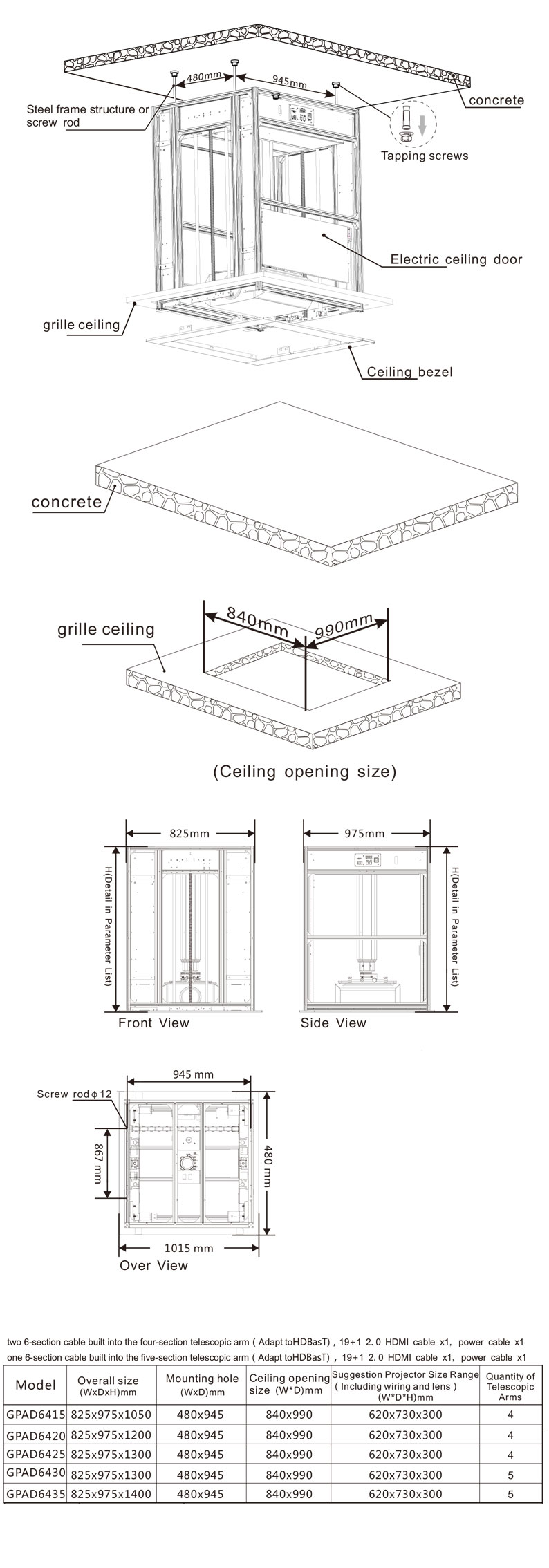

  • Sketch
  • Standard Accessories

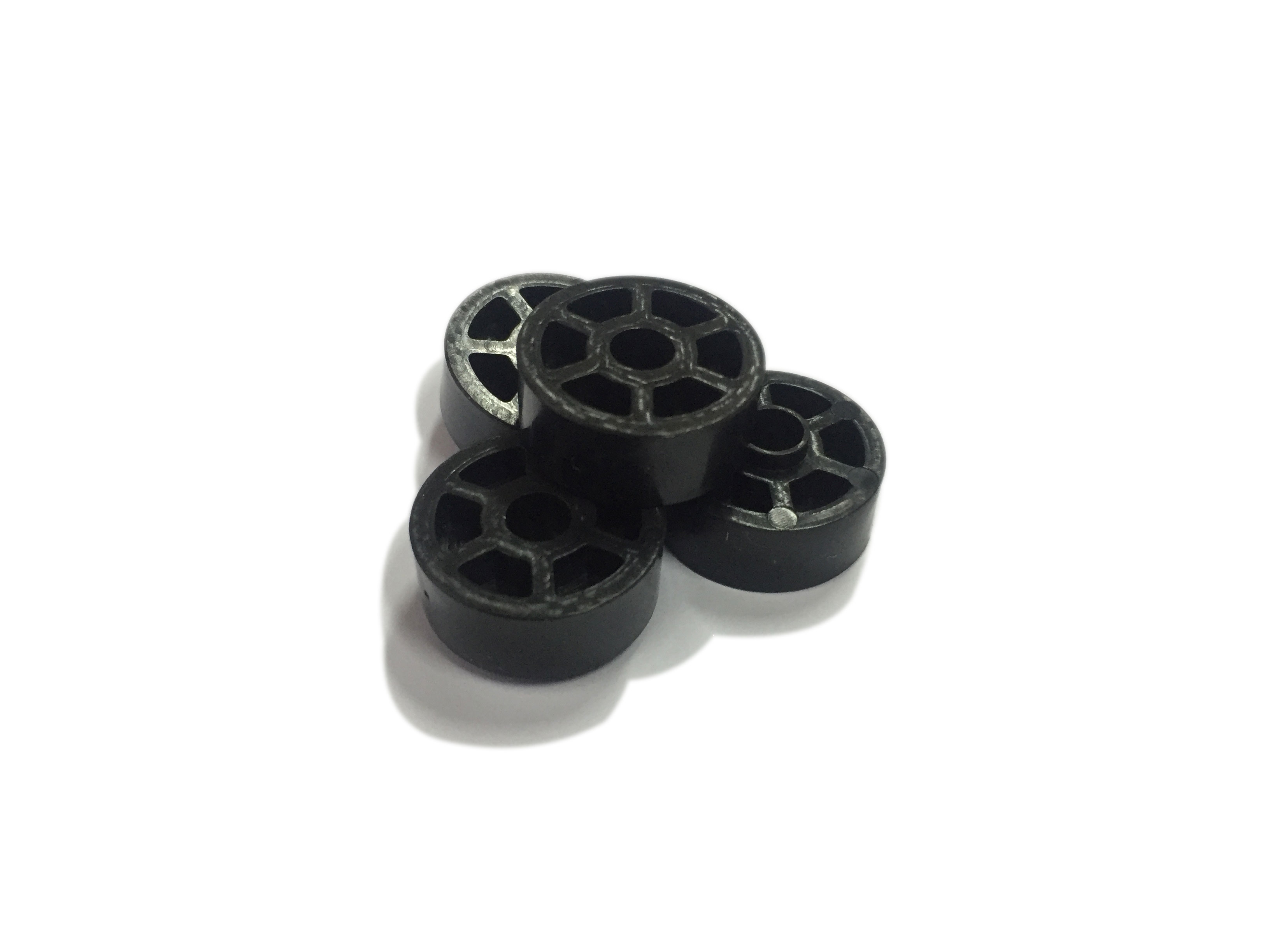

    • gasket

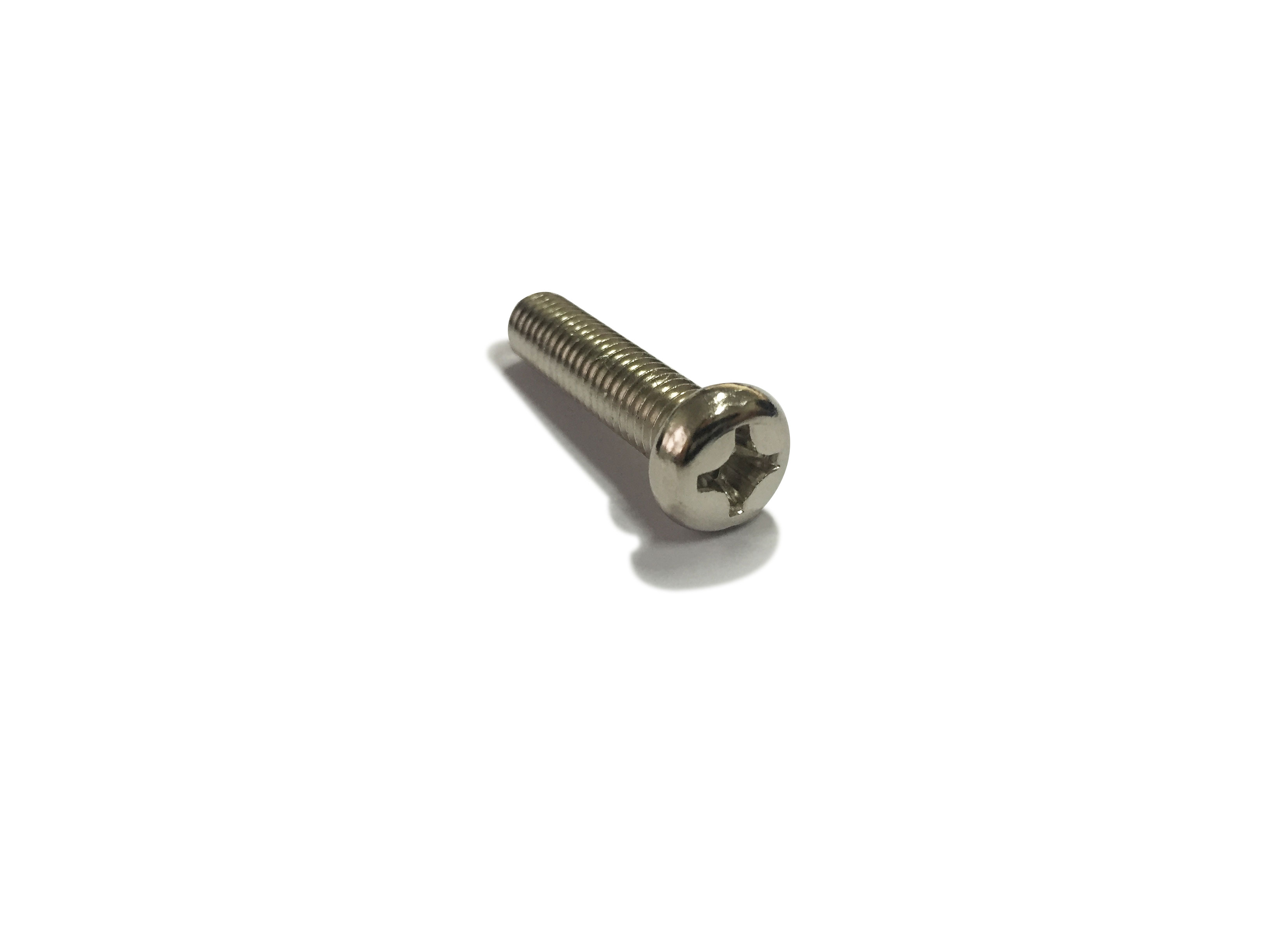

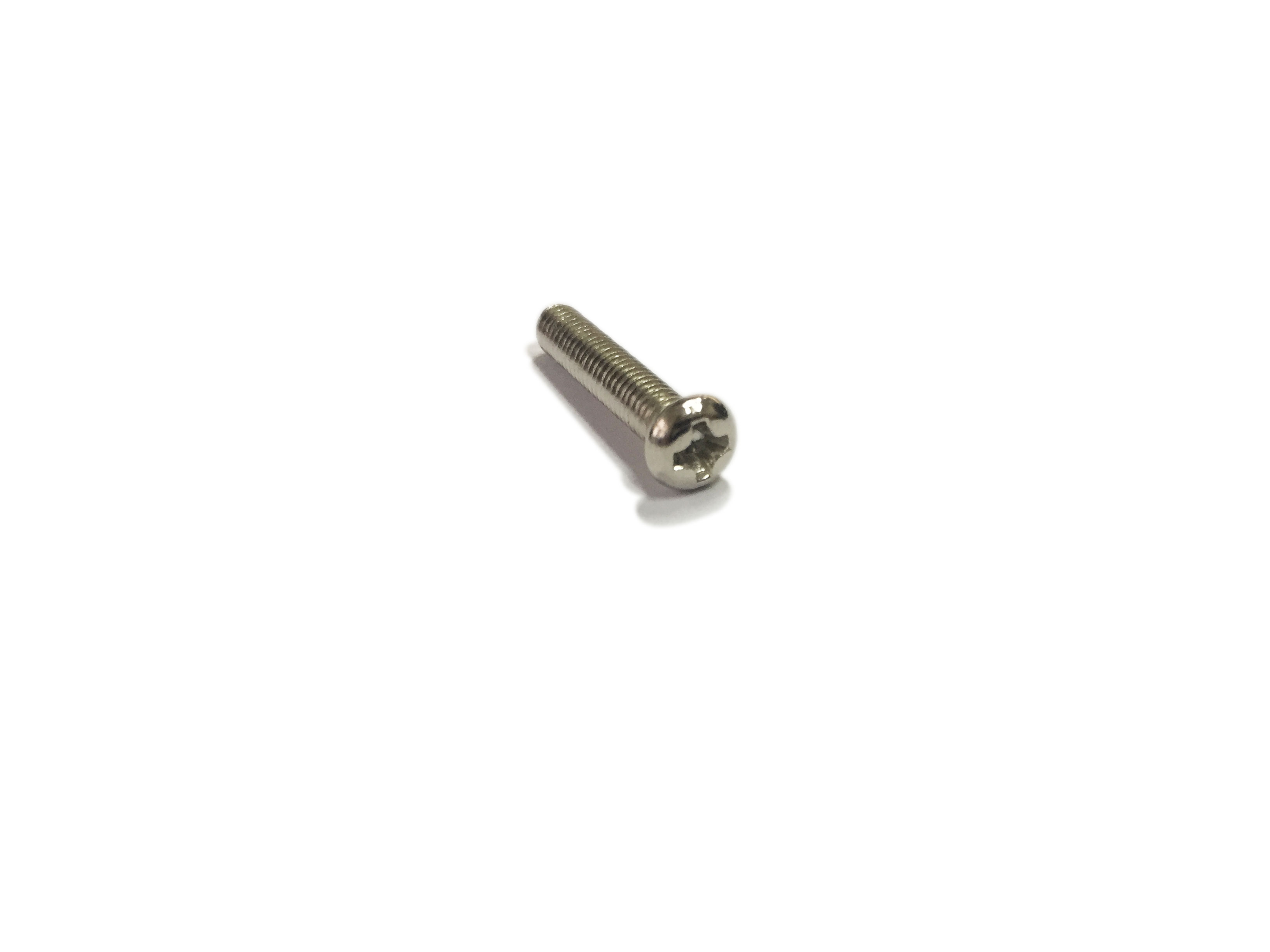

    • 4x25 screw(4pcs)
    • 5x25 screw(4pcs)
    • 6x25 screw(4pcs)

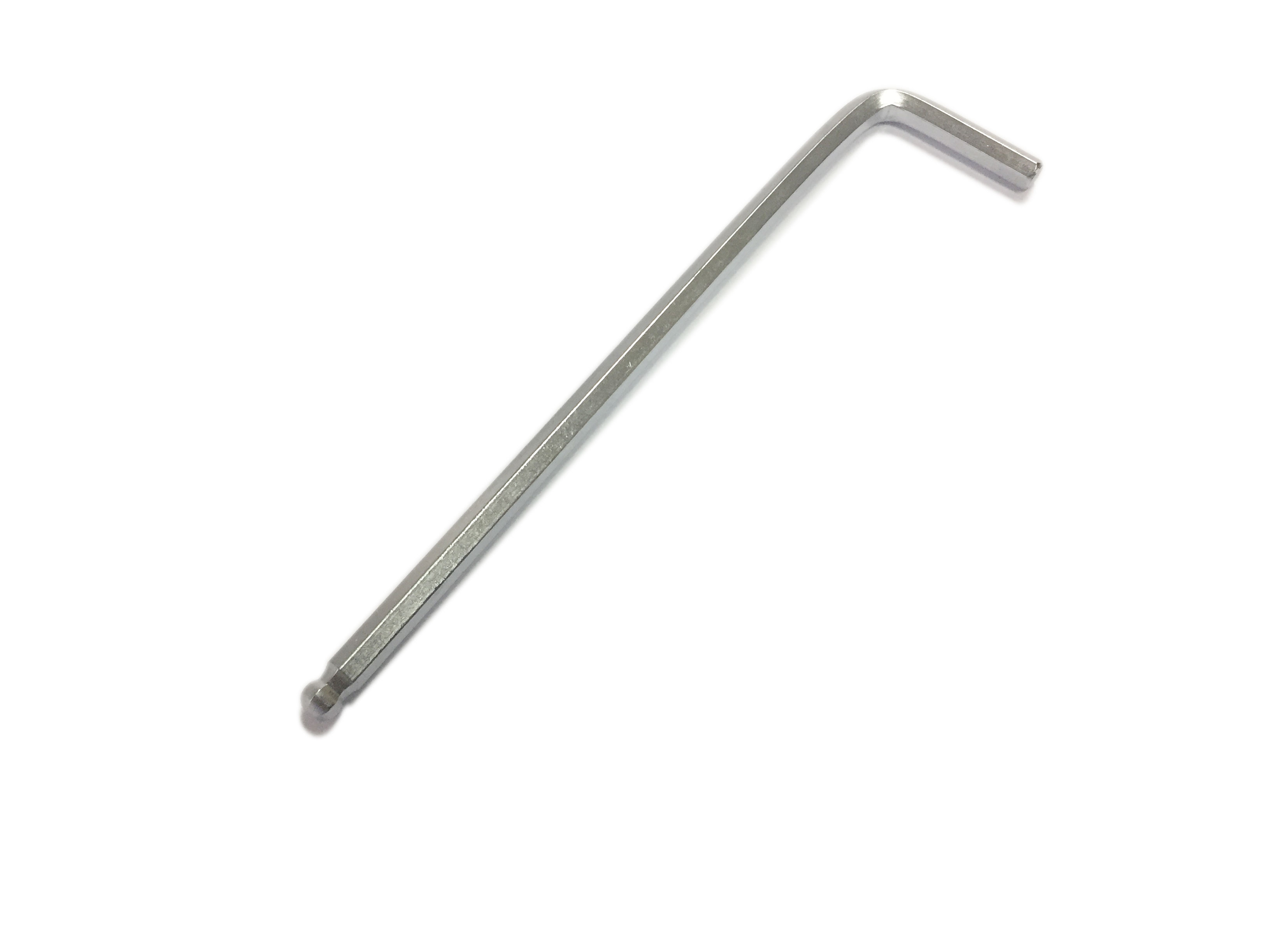

    • Limit Adjustment Tool

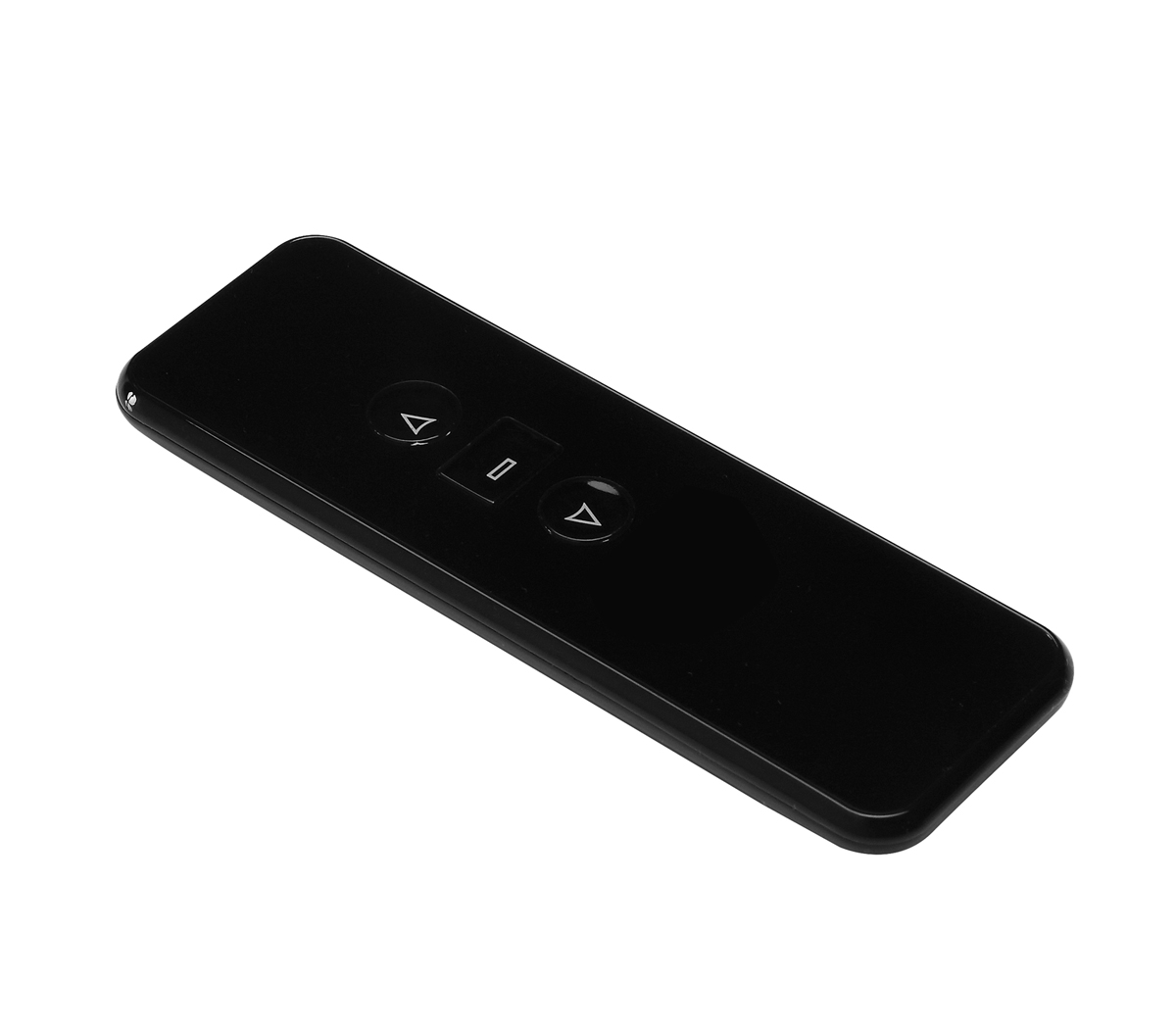

    • RF Remote Control

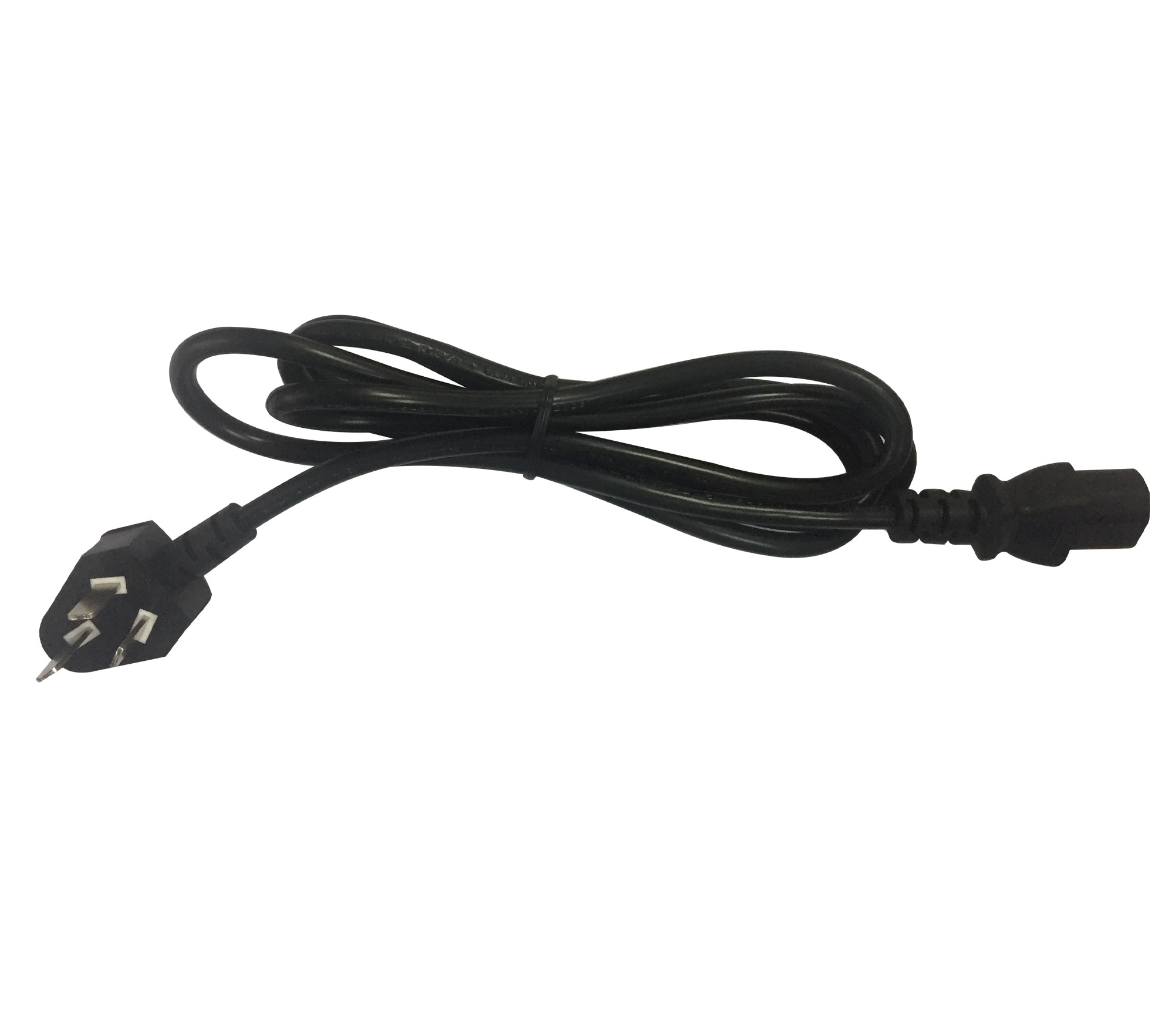

    • power line
    Control Options
    • Wireless RF

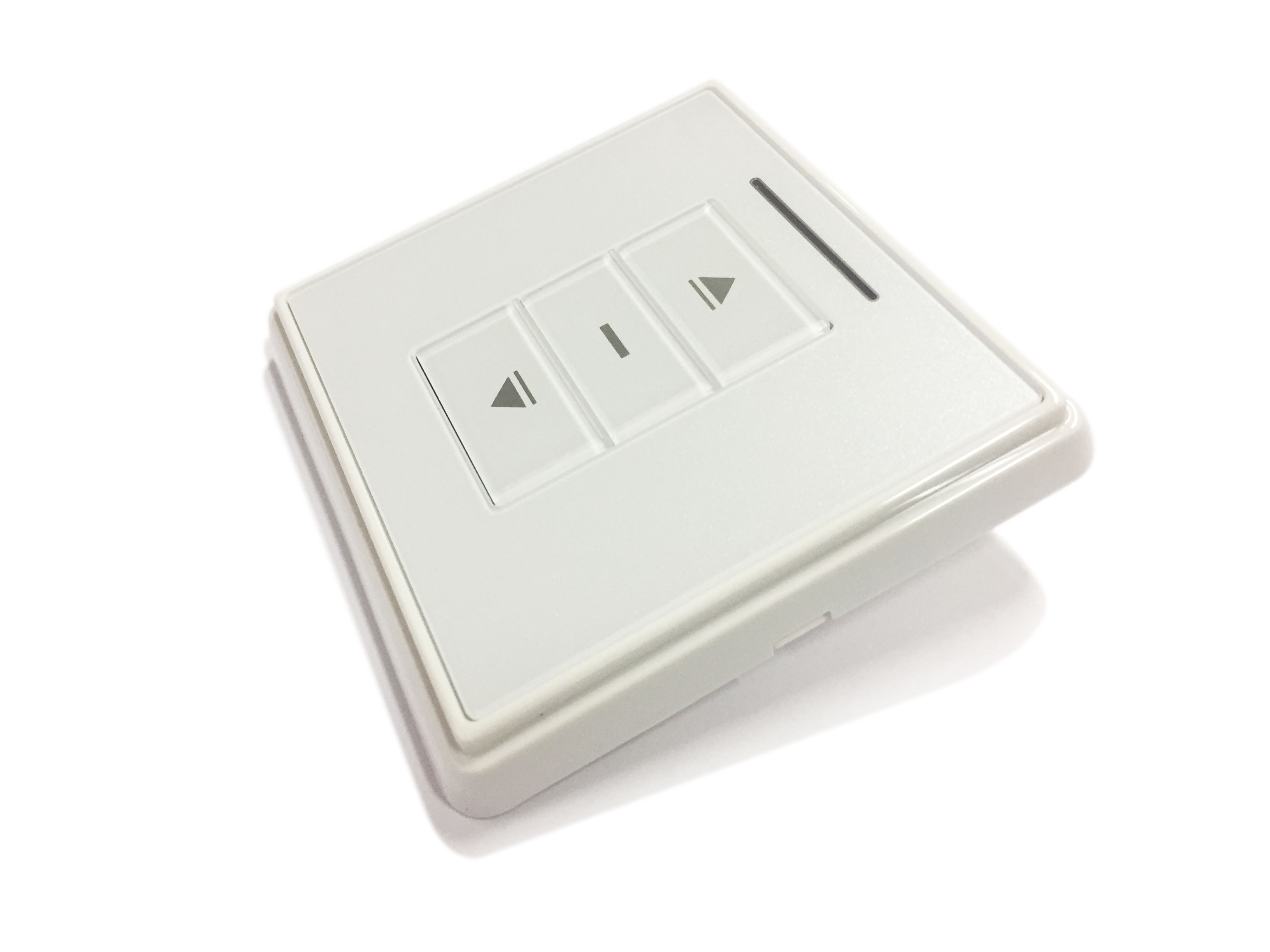

    • Wall Swtich

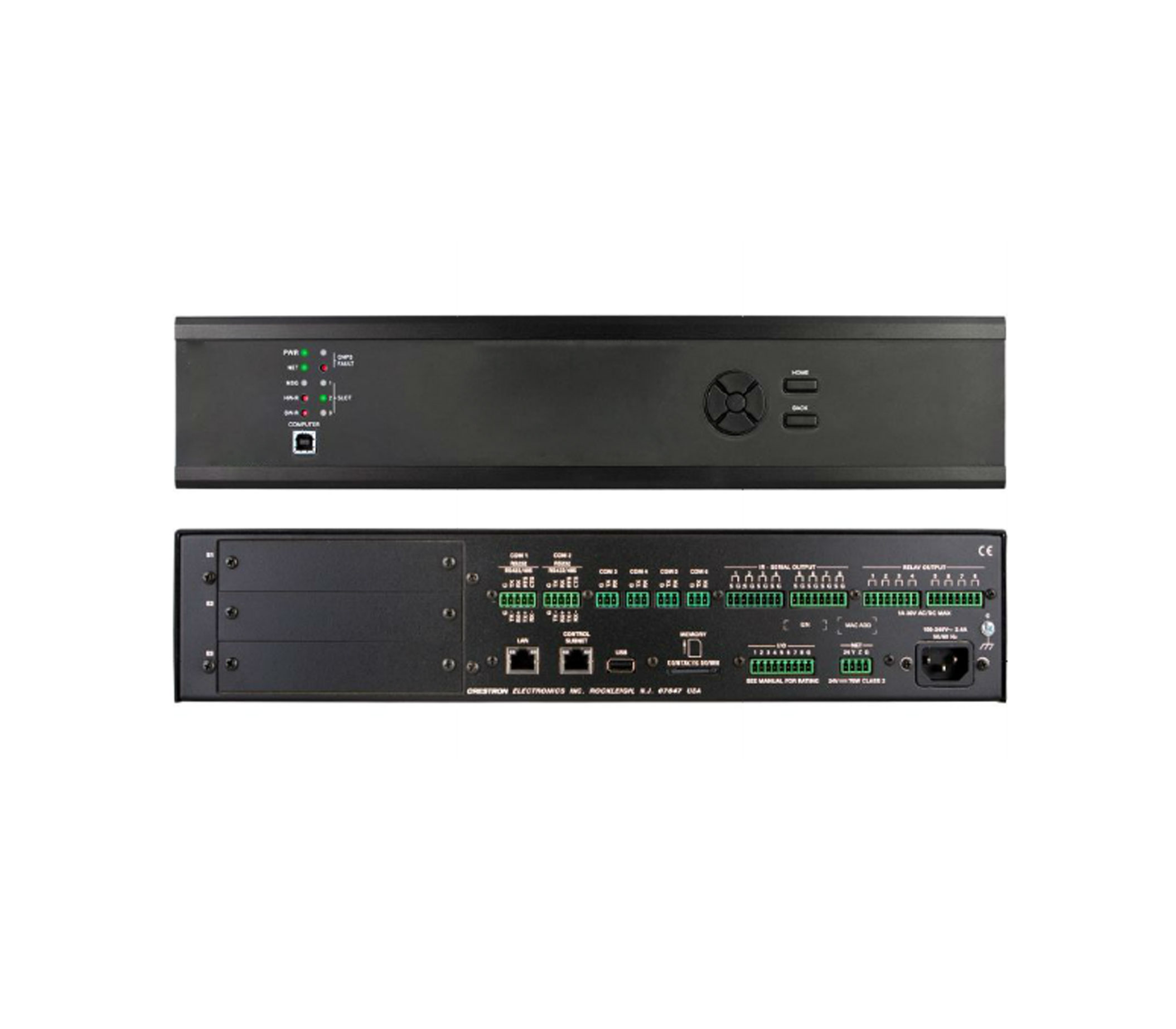

    • RS485
  • Download
    GPAD/AC 64 Series Instructions
    GPAD/AC 64 Toptu
    GPAD/AC 64 Series - Product Catalog
