GMPU Series - T1/T2/T4

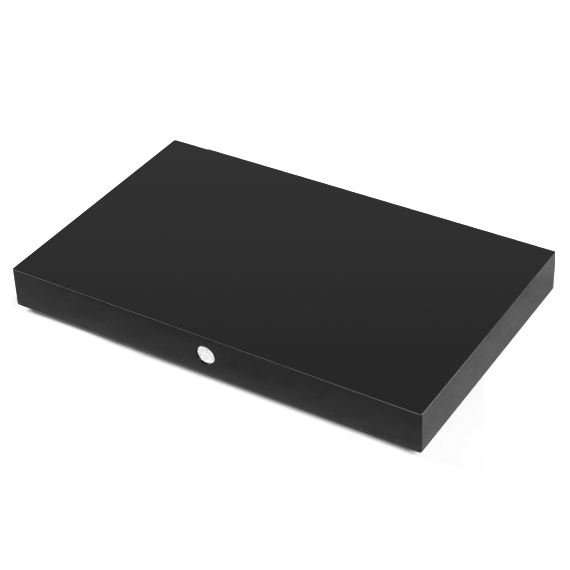

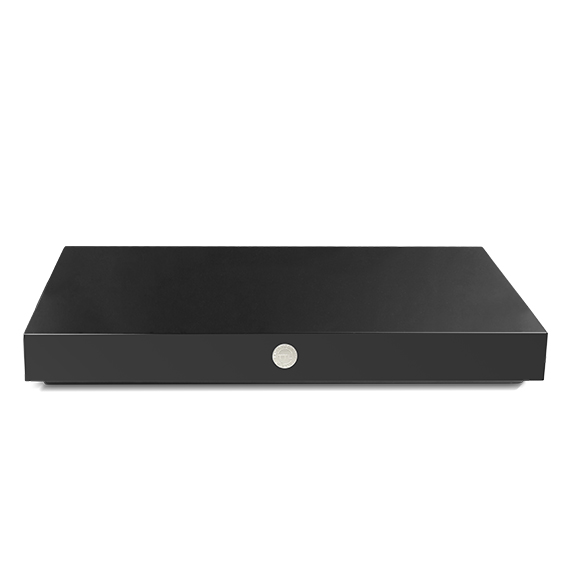

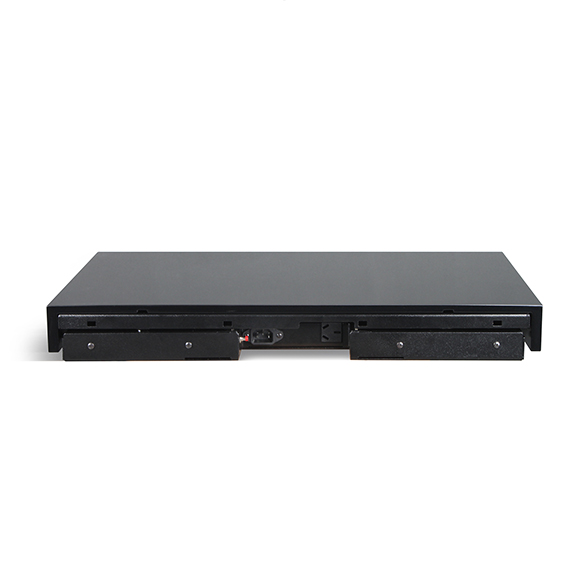

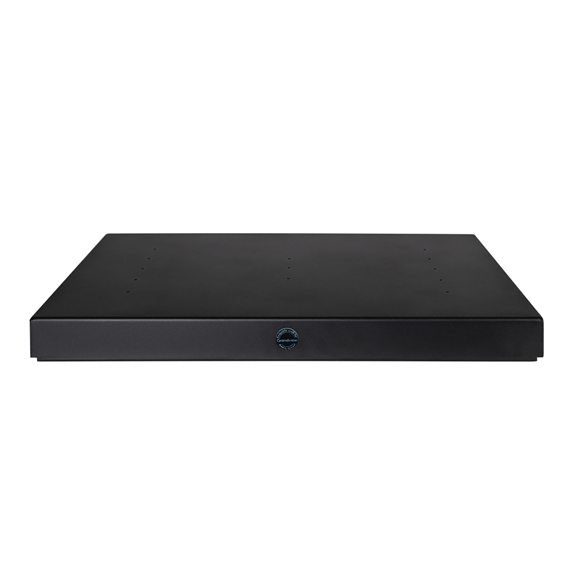

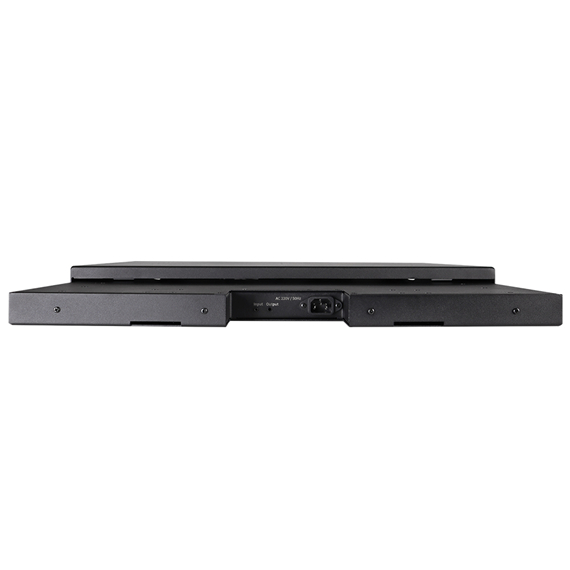

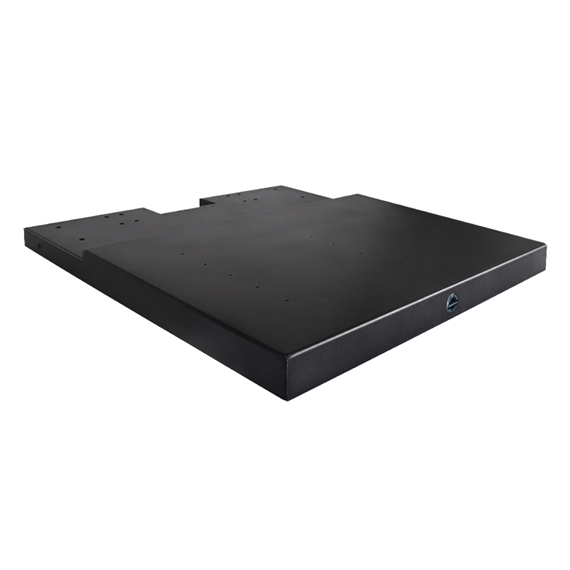

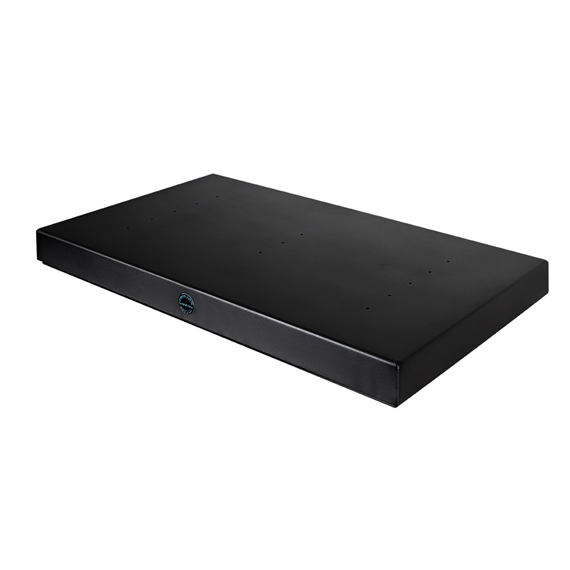

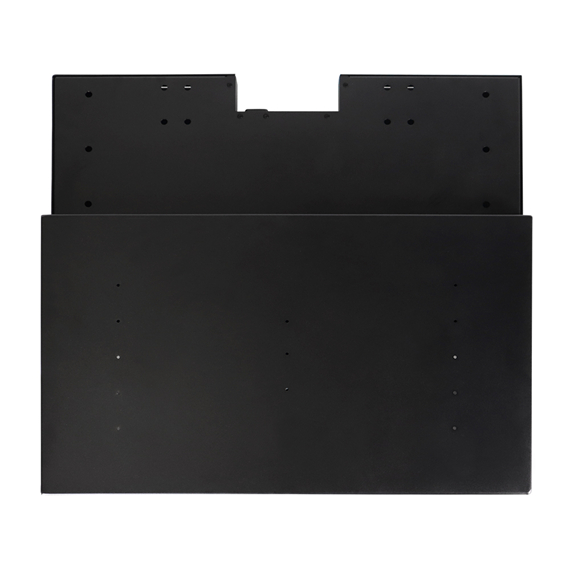

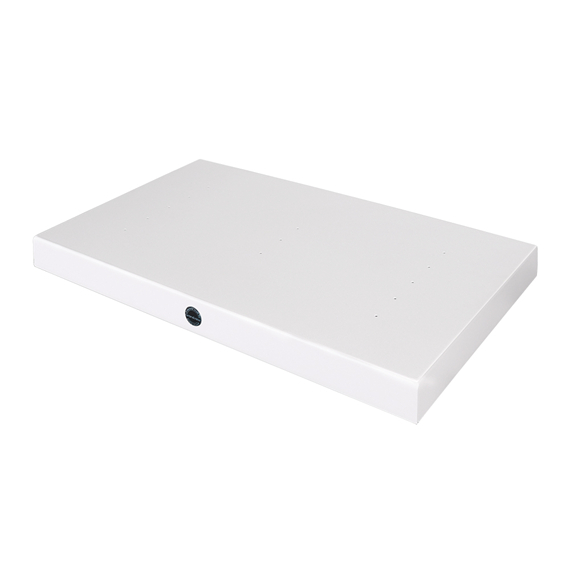

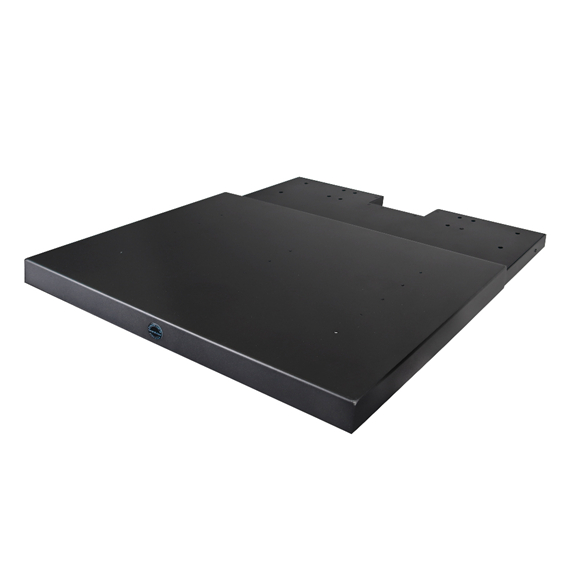

Laser Projector Intelligent Telescopic Platform

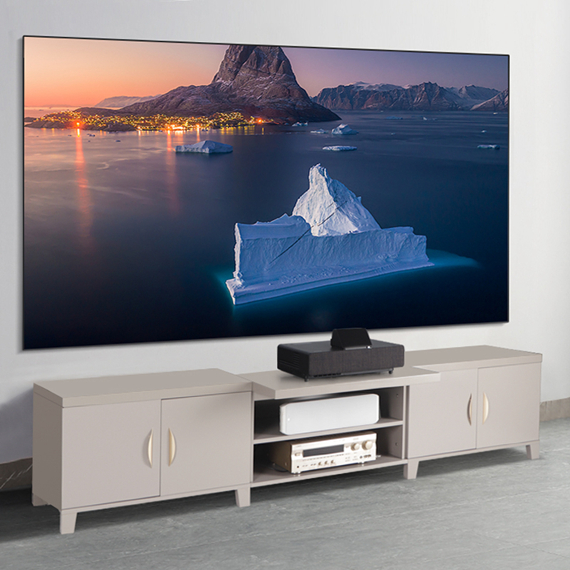

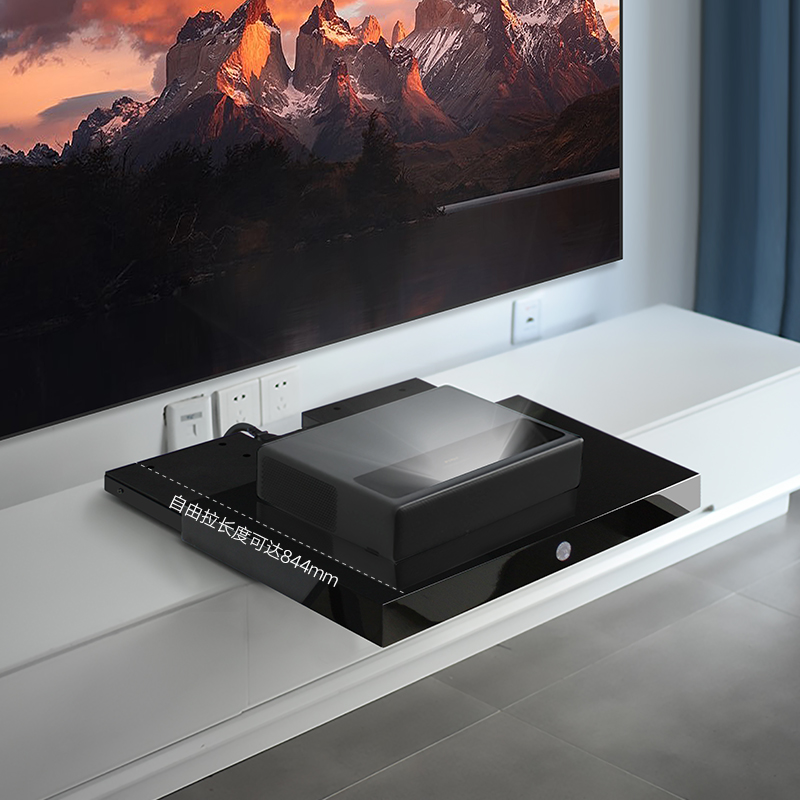

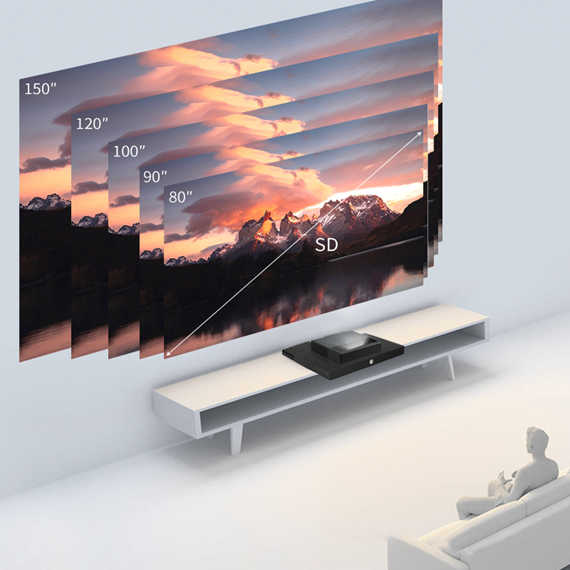

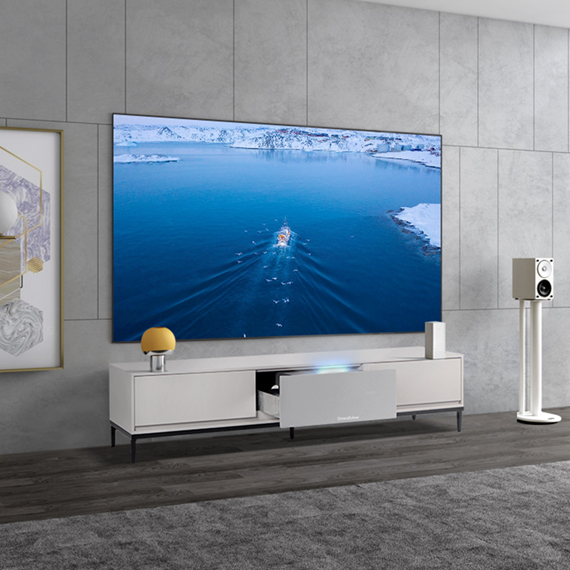

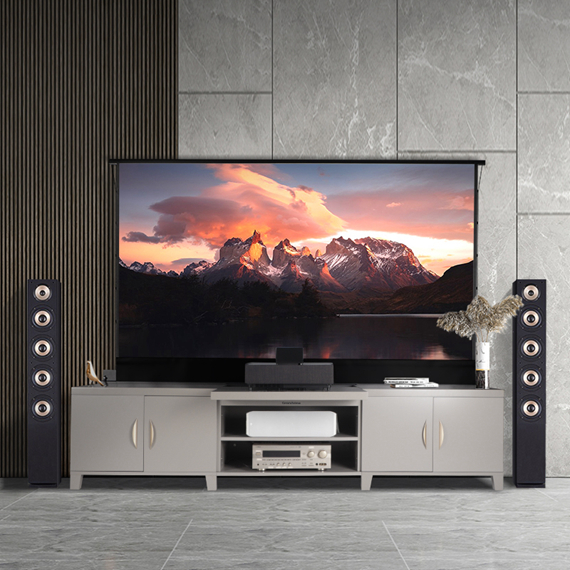

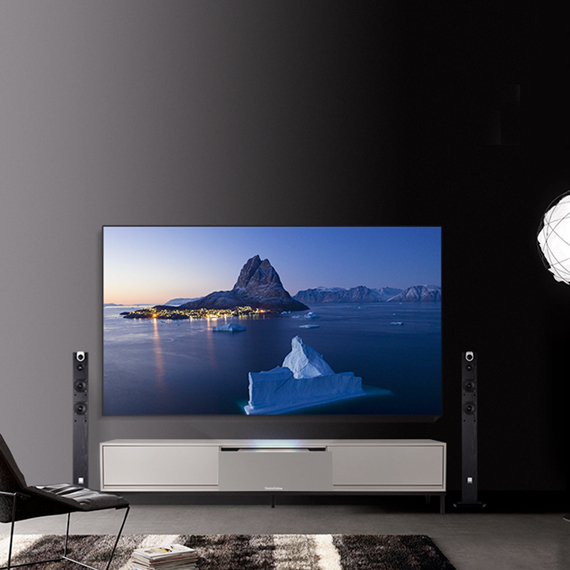

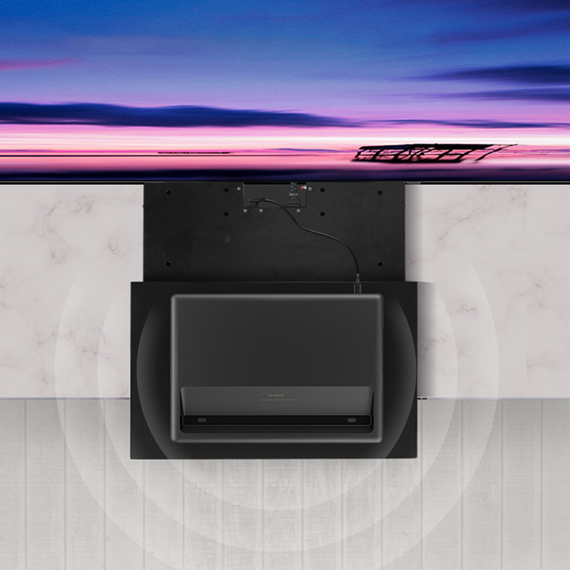

  • The intelligent mobile platform of laser projector is applied to play TV programs and entertainment at home, bringing you a brand-new and intelligent feeling in the process of experiencing science and technology. When you turn on the projector, the electric telescopic table automatically opens with the projector.

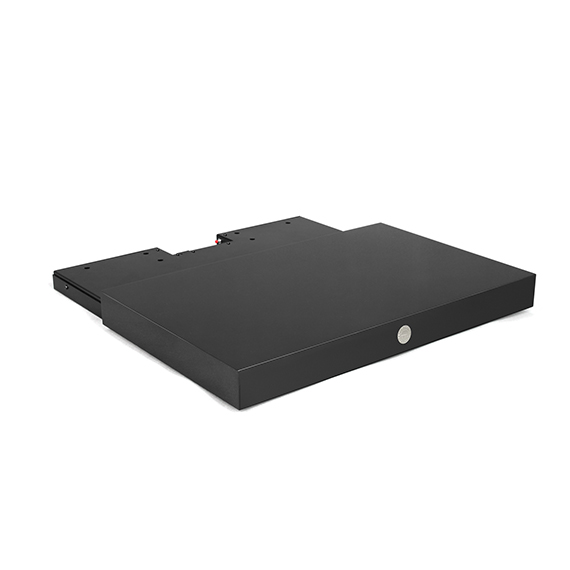

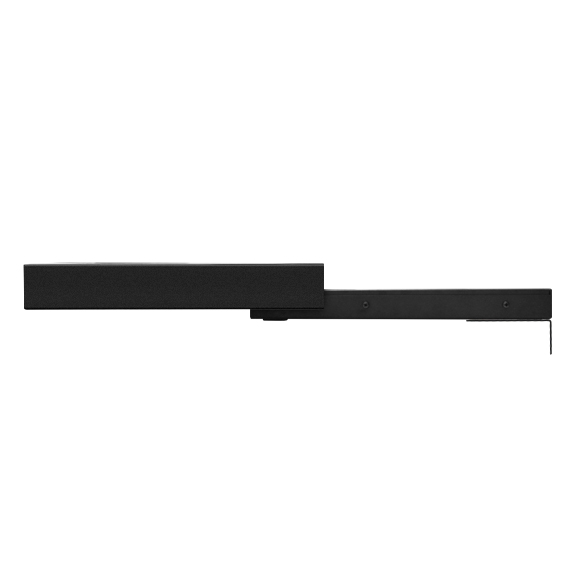

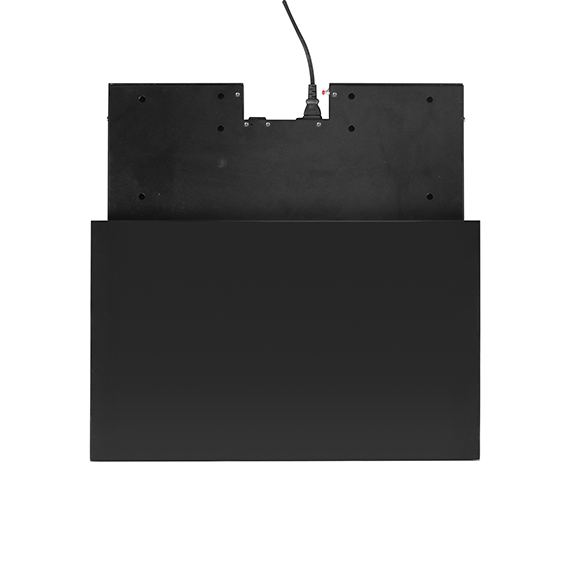

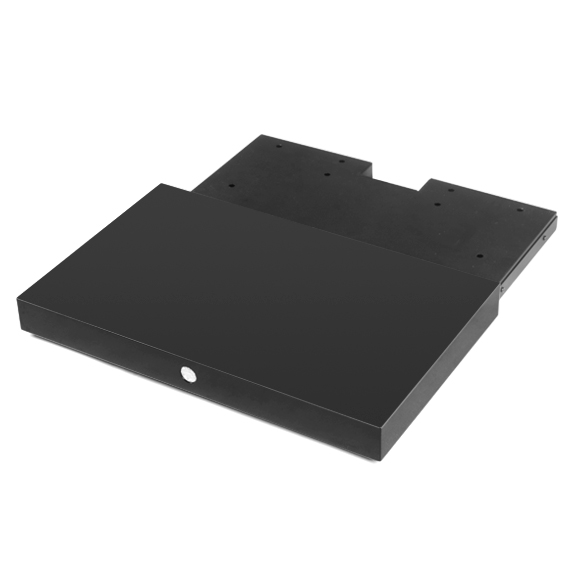

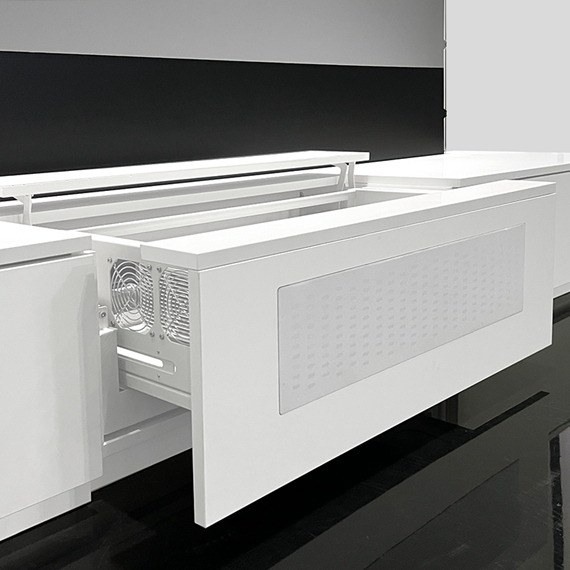

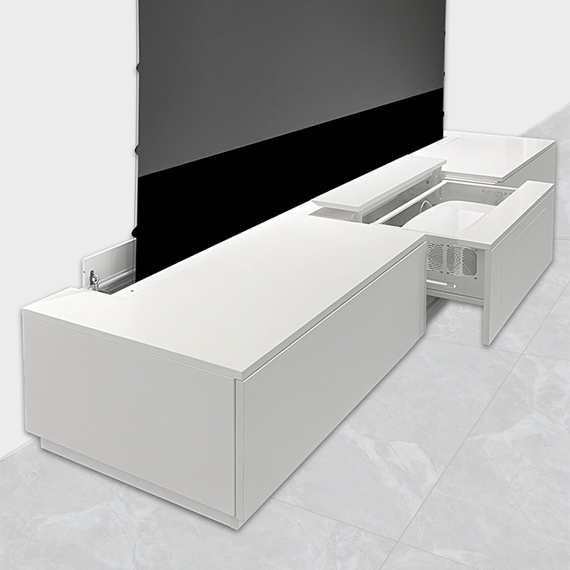

  • GMPU series laser TV electric telescopic stage is driven by motor, rack and double slide rails move in parallel. Through the optocoupler counting, it can accurately locate. The internal mechanical structure precision of the laser TV electric telescopic stage is extremely high, at the same time, it is fully durable, and the shell can match the home color.
  • Major Function:
  • 1.Industrial grade linear guide block, long-term reciprocating operation without virtual position
  • 2. Pearlescent black metal paint surface treatment, elegant texture
  • 3.Synchronous projector switch, built-in constant pressure signal switch port connected to laser projector
  • 4.There is no limit position for the electron, and one key can reach the required moving distance
  • 5. Telescopic distance: 0-360mm ultra long stroke
  • 6. Self lubricating parts, life cycle maintenance free
  • 7.Completely silent operation
  • 8. Control mode: wireless remote control, dc5-12v trigger
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GMPU-T1
    • GMPU-T2
    • GMPU-T4
      • Product Dimensions(mm)

        584×362×67
      • Net Weight(kg)

        14.6
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        550x200x300
      • Max Load(kg)

        20
      • Power(w)

        20
      • Max Travel(mm)
        260
      • Precision(mm)
        <1mm
      • Voltage(v)
        110v/220v
      • Wireless
        Control(Y/N)
      • Power Cord

      • Package + Total Product
        Weight
        (kg)
        16
      • Packing Dimensions
        (D×W×H)mm
        700x190x480
      • Product Dimensions(mm)

        700×475×67
      • Net Weight(kg)

        19.6
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        650x200x400
      • Max Load(kg)

        30
      • Power(w)

        20
      • Max Travel(mm)
        360
      • Precision(mm)
        <1mm
      • Voltage(v)
        110v/220v
      • Wireless
        Control(Y/N)
      • Power Cord

      • Package + Total Product
        Weight
        (kg)
        23
      • Packing Dimensions
        (D×W×H)mm
        820x190x570
      • Product Dimensions(mm)

        2786×590×337
      • Net Weight(kg)

        128.8
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x160x350
      • Max Load(kg)

        20
      • Power(w)

        20
      • Max Travel(mm)
        185
      • Precision(mm)
        <1mm
      • Voltage(v)
        110v/220v
      • Wireless
        Control(Y/N)
      • Power Cord

      • Package + Total Product
        Weight
        (kg)
        158.8
      • Packing Dimensions
        (D×W×H)mm
        610x500x2940
