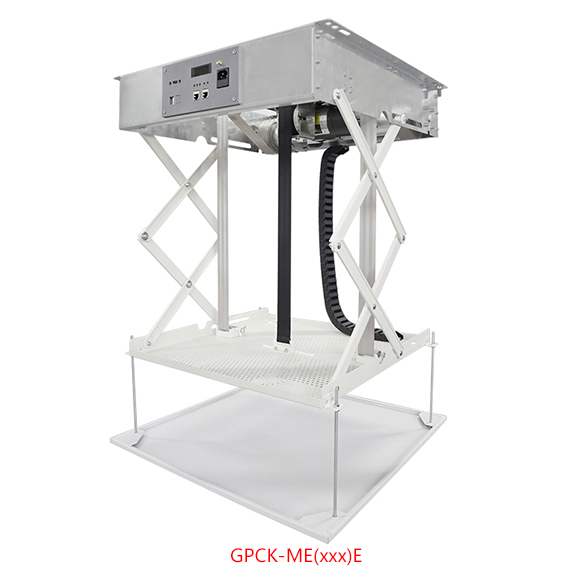

GPCK-ME SERIES

Motorized Projector Lift

  • Applicable scene:It is widely used ini various meeting rooms,multimedia classrooms.training rooms and other office places
  • Smooth running
  • Low noise(≤60dB)
  • Precise positioning
  • Durable
  • Maximum load 40Kg
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCK-ME 500
    • GPCK-ME 1000
    • GPCK-ME 2000
    • GPCK-ME 3000
    • GPCK-ME 4000
    • GPCK-ME 500P
    • GPCK-ME 1000P
    • GPCK-ME 2000P
    • GPCK-ME 3000P
    • GPCK-ME 1000E
    • GPCK-ME 2000E
    • GPCK-ME 3000E
    • GPCK-ME 4000E
      • Product Dimensions(mm)

        590×590×135
      • Net Weight(kg)

        15.3
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        460x240x460
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        500
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        435
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        17.7
      • Packing Dimensions
        (D×W×H)mm
        635x205x635
      • Product Dimensions(mm)

        590×590×190
      • Net Weight(kg)

        17
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        460x240x460
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        1000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        490
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        19.2
      • Packing Dimensions
        (D×W×H)mm
        635x270x635
      • Product Dimensions(mm)

        590×590×300
      • Net Weight(kg)

        19
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        460x240x460
      • Max Load(kg)

        20
      • Power(w)

        170
      • Max Travel(mm)
        2000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        600
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        21
      • Packing Dimensions
        (D×W×H)mm
        635x430x635
      • Product Dimensions(mm)

        590×590×410
      • Net Weight(kg)

        25
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        460x240x460
      • Max Load(kg)

        15
      • Power(w)

        170
      • Max Travel(mm)
        3000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        710
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        30
      • Packing Dimensions
        (D×W×H)mm
        635x480x635
      • Product Dimensions(mm)

        590×590×520
      • Net Weight(kg)

        32
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        460x240x460
      • Max Load(kg)

        15
      • Power(w)

        170
      • Max Travel(mm)
        4000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        600x600
      • Required Ceiling
        Opening Height(mm)
        820
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        38
      • Packing Dimensions
        (D×W×H)mm
        635x580x635
      • Product Dimensions(mm)

        695×695×135
      • Net Weight(kg)

        17.3
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        500
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        435
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        20.7
      • Packing Dimensions
        (D×W×H)mm
        720x215x720
      • Product Dimensions(mm)

        695×695×190
      • Net Weight(kg)

        19
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        1000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        435
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        22.2
      • Packing Dimensions
        (D×W×H)mm
        720x280x720
      • Product Dimensions(mm)

        695×695×300
      • Net Weight(kg)

        21
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        2000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        600
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        24
      • Packing Dimensions
        (D×W×H)mm
        720x440x720
      • Product Dimensions(mm)

        695×695×410
      • Net Weight(kg)

        27
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        25
      • Power(w)

        170
      • Max Travel(mm)
        3000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        710
      • Dry Contact(Y/N)

        optional
      • 485 Control(Y/N)

        optional
      • Wireless
        Control(Y/N)
        optional
      • Package + Total Product
        Weight
        (kg)
        33
      • Packing Dimensions
        (D×W×H)mm
        720x490x720
      • Product Dimensions(mm)

        695×695×250
      • Net Weight(kg)

        27
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        1000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        550
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Wireless
        Control(Y/N)
      • Package + Total Product
        Weight
        (kg)
        29.4
      • Product Dimensions(mm)

        695×695×360
      • Net Weight(kg)

        31
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        2000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        660
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Wireless
        Control(Y/N)
      • Package + Total Product
        Weight
        (kg)
        33.4
      • Product Dimensions(mm)

        695×695×470
      • Net Weight(kg)

        35
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        3000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        770
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Wireless
        Control(Y/N)
      • Package + Total Product
        Weight
        (kg)
        39.4
      • Product Dimensions(mm)

        695×695×580
      • Net Weight(kg)

        39
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        600x240x600
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        4000
      • Noice(dB)
        ≤60dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        550x520
      • Ceiling Opening
        Dimensions(mm)
        705x705
      • Required Ceiling
        Opening Height(mm)
        880
      • Dry Contact(Y/N)

      • 485 Control(Y/N)

      • Wireless
        Control(Y/N)
      • Package + Total Product
        Weight
        (kg)
        43.4

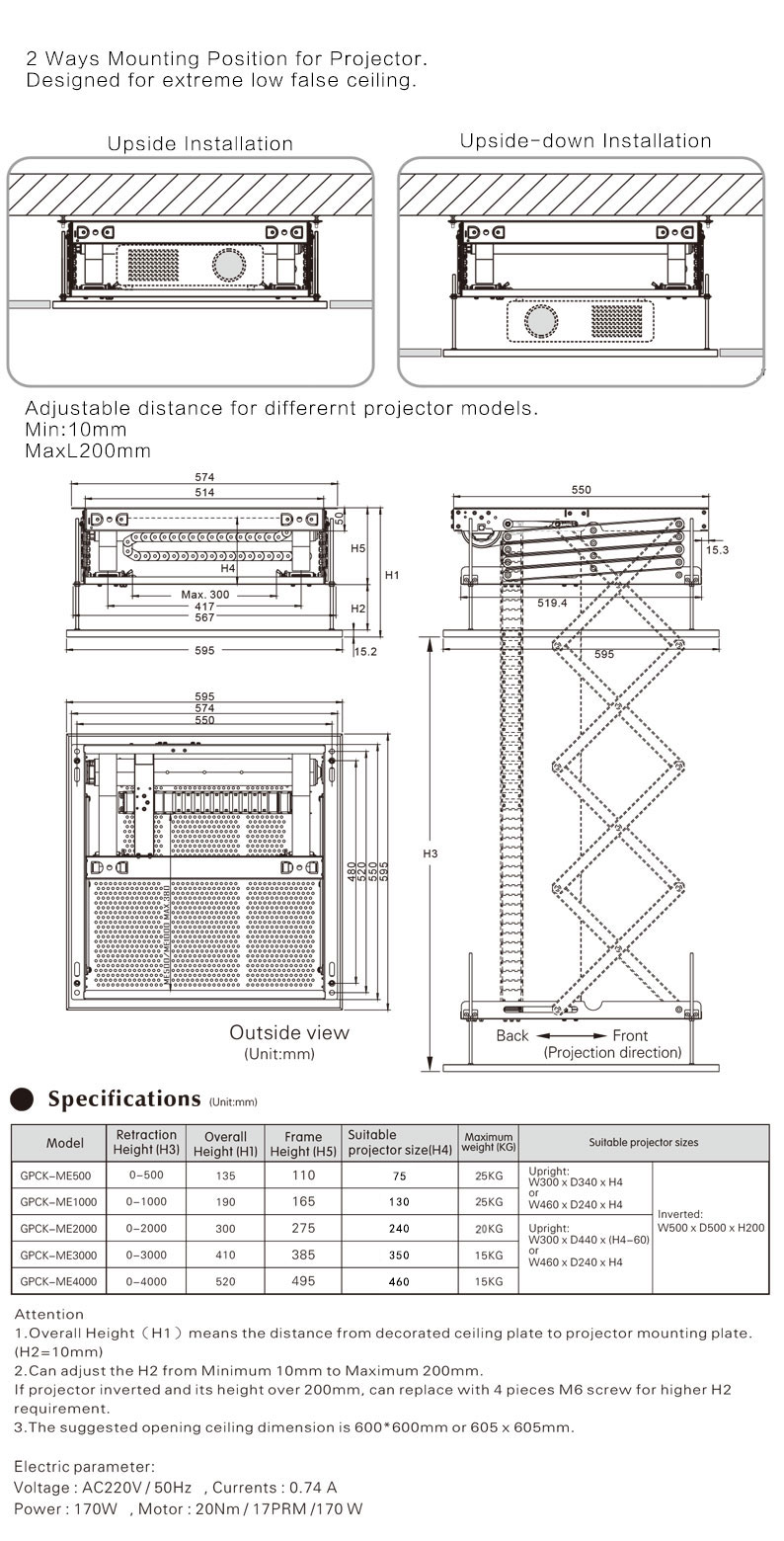

  • Sketch
  • Standard Accessories

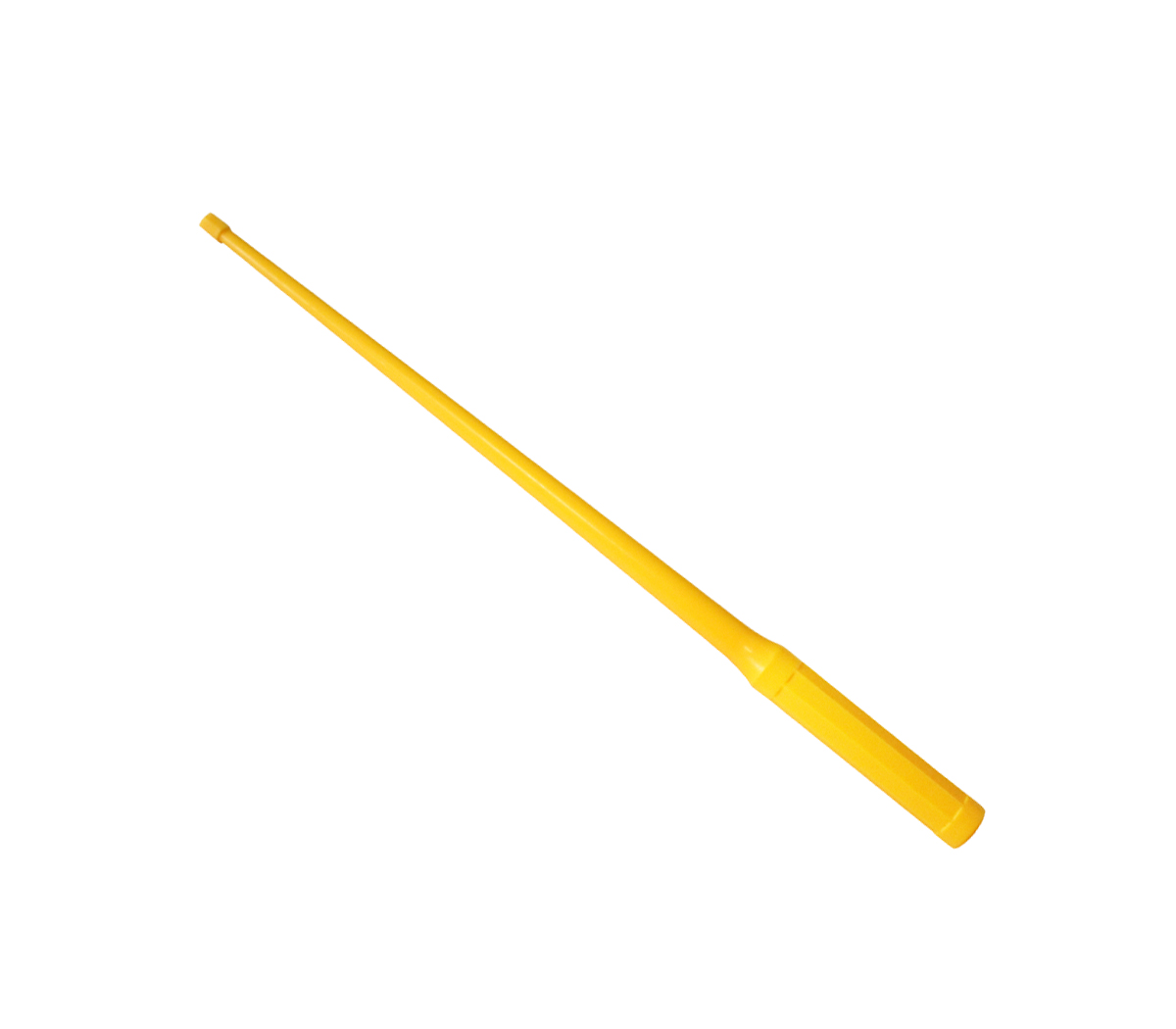

    • Limit Adjustment Tool

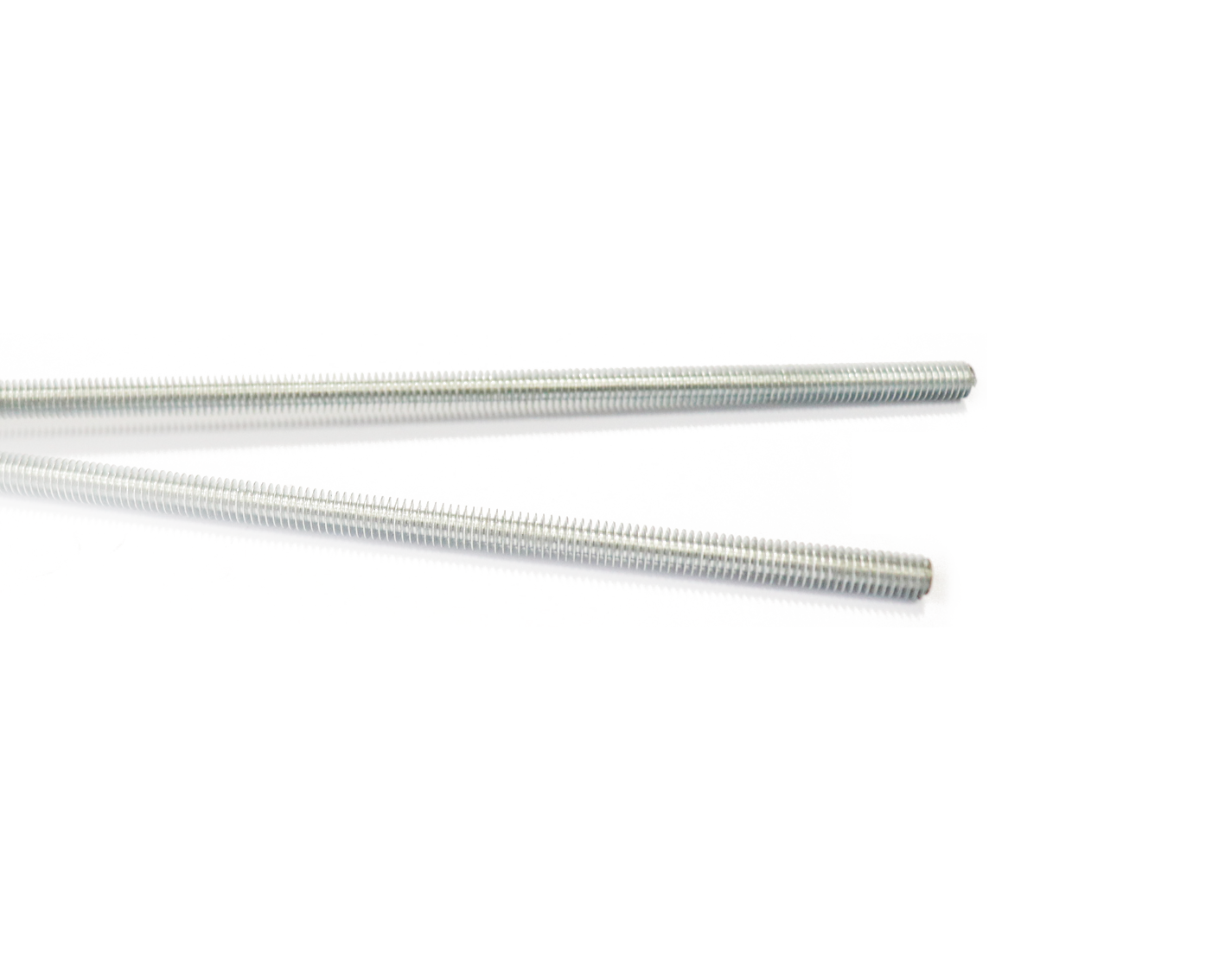

    • Thresded Rod(4pcs)

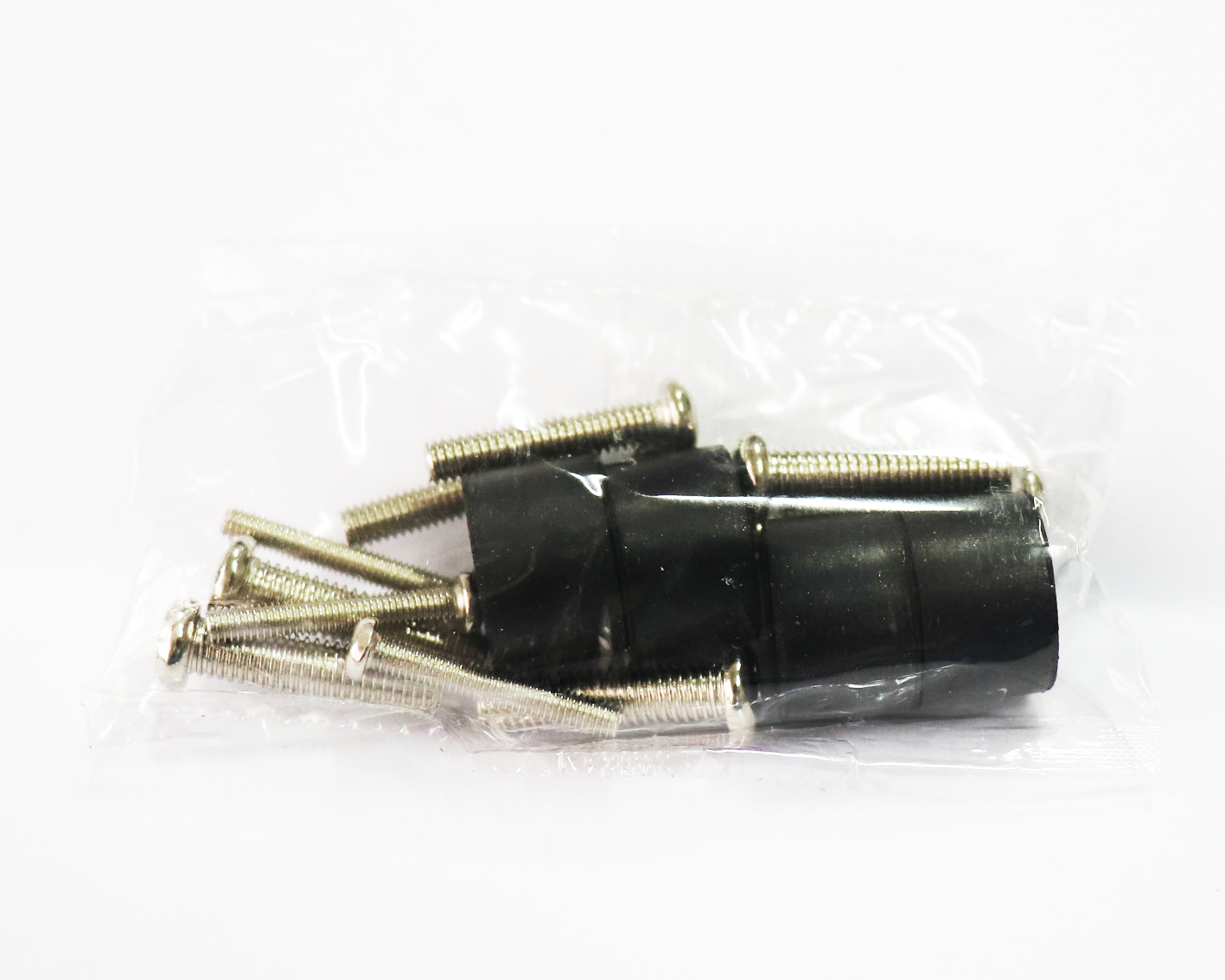

    • Screw
    Control Options

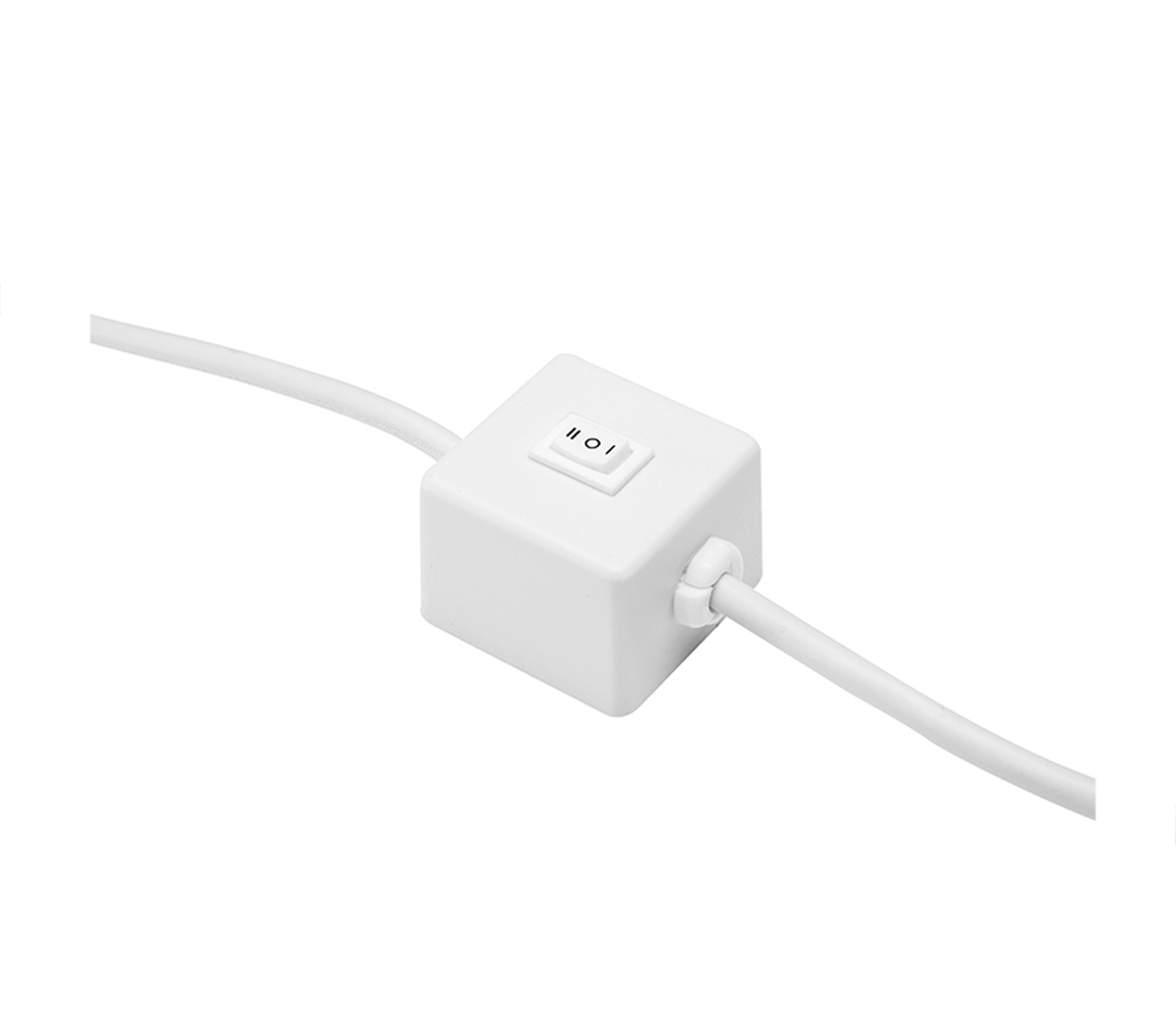

    • In-Line Switch

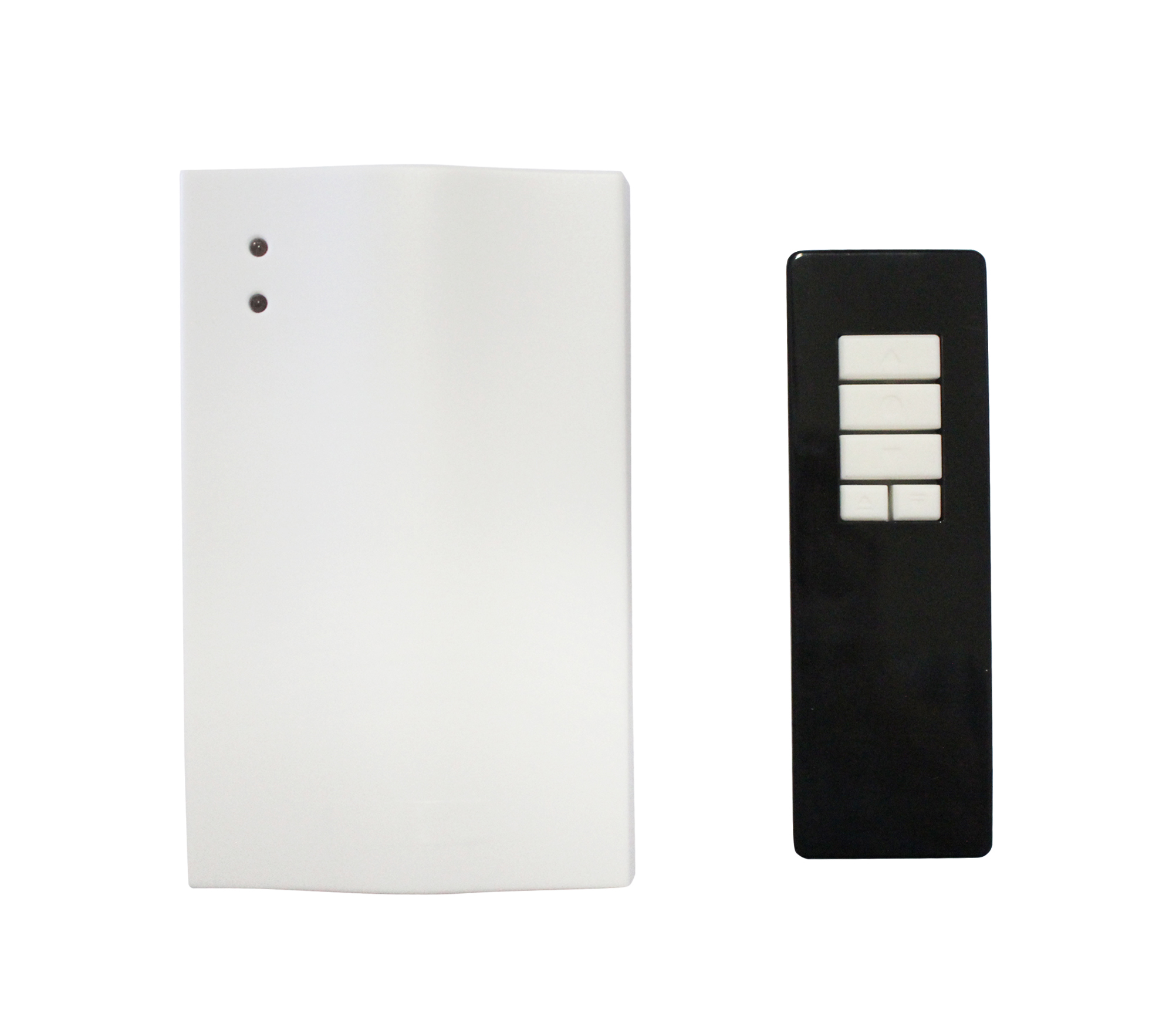

    • External RF Control
  • Download
    GPCK-ME(xxx)Drawing
    GPCK-ME(xxx)P Drawing
    GPCK-ME(xxx)E Drawing
    GPCK-ME(xxx) Instruction
    GPCK-ME(xxx)P Instruction
    GPCK-ME(xxx)E Instruction
