FANTASY SERIES

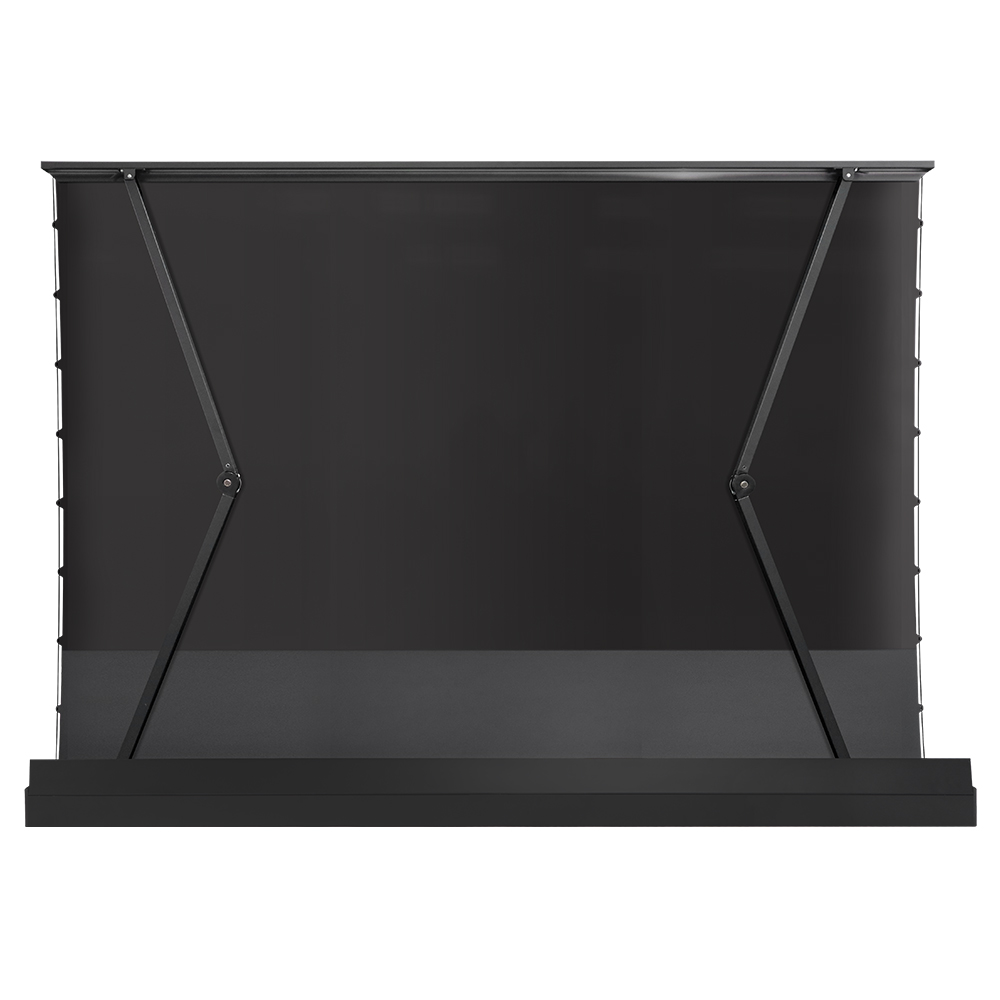

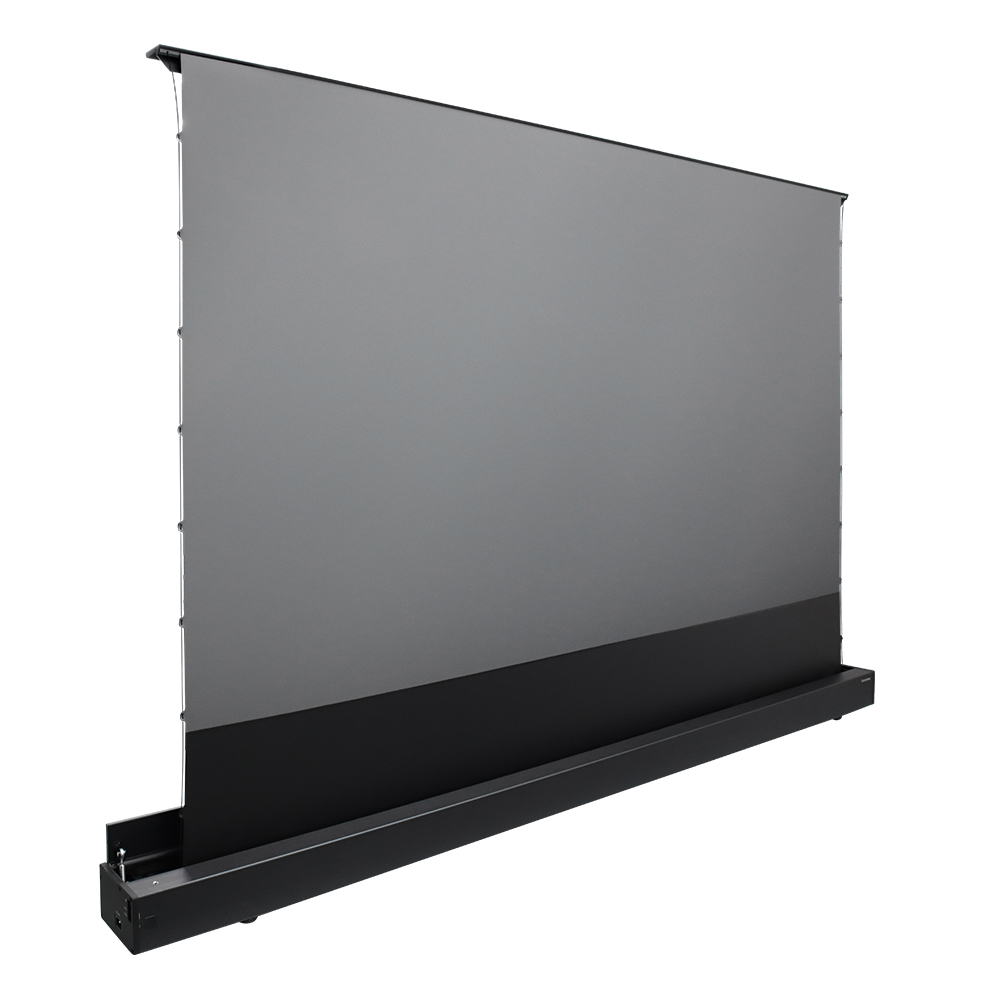

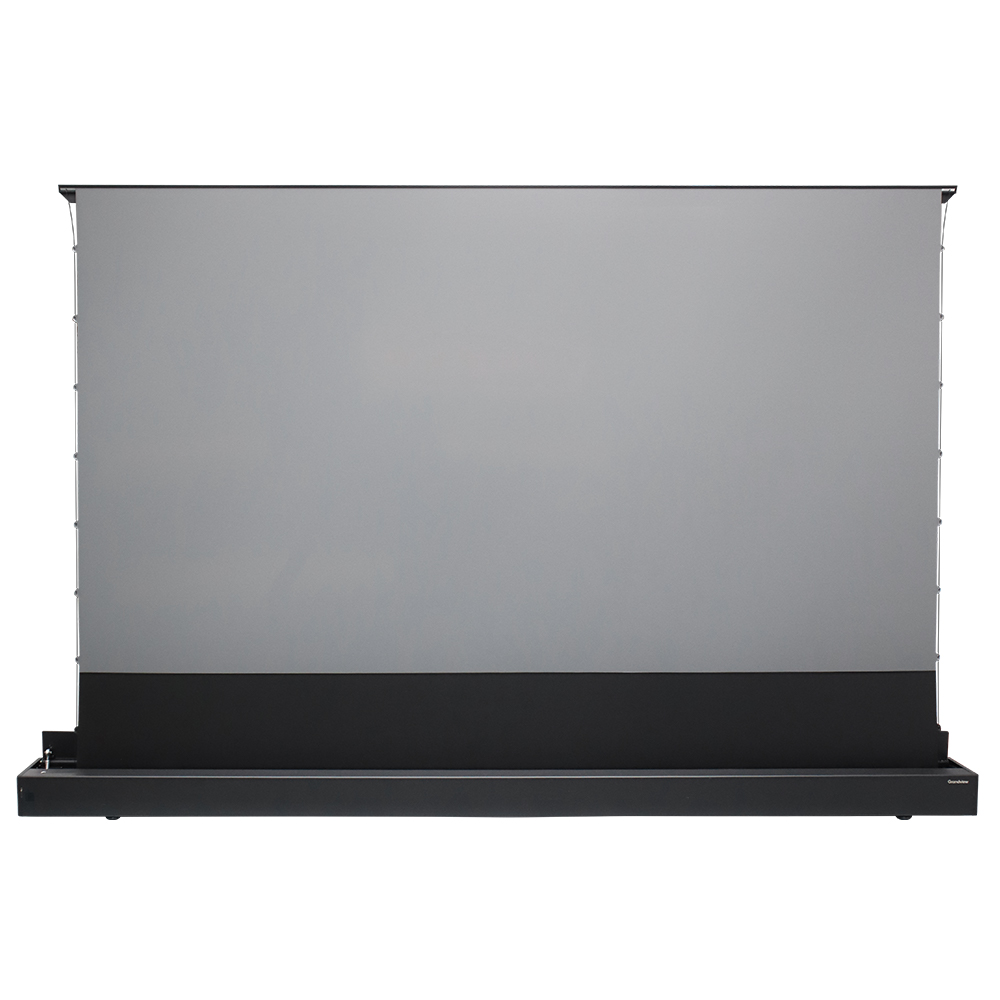

MOTORIZED TABLETOP SCREEN (FHP)

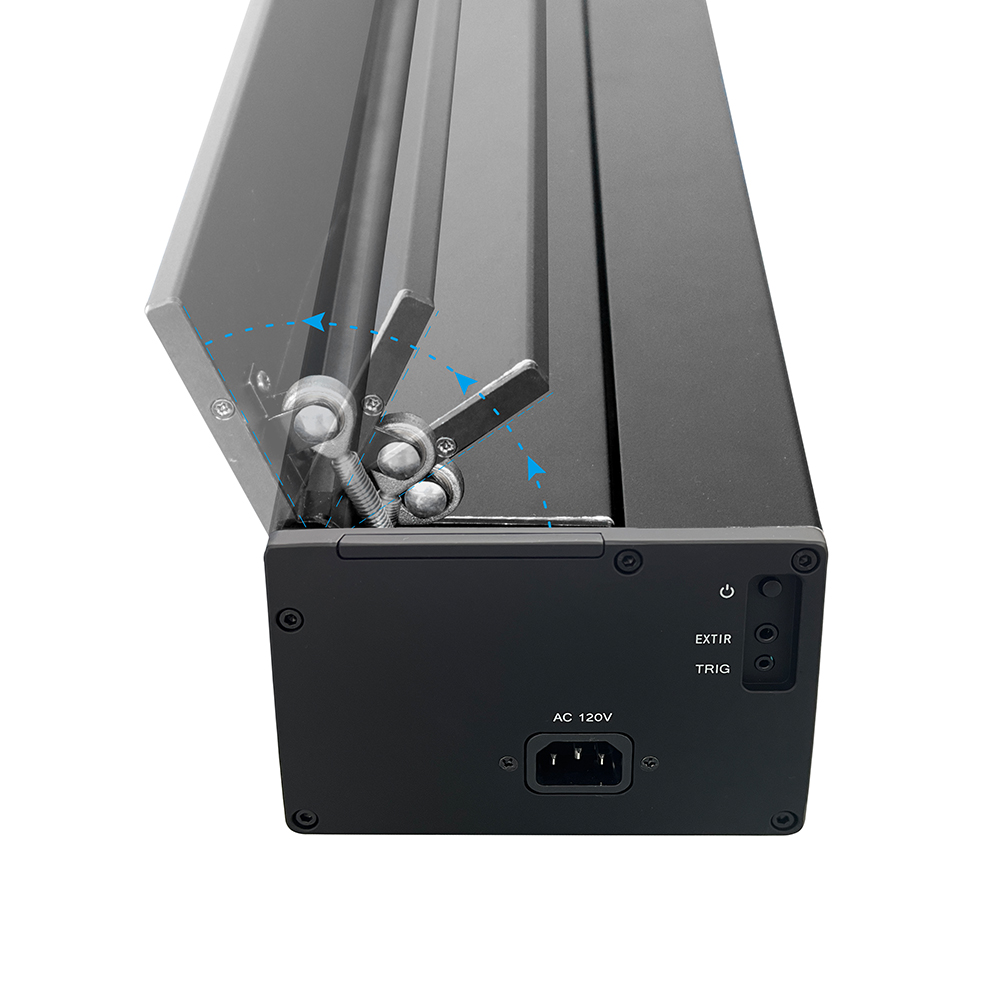

  • FHP tabletop motorized screen can be applied on table or floor, portable application available. The casing top cover and screen can be programmed to be controlled together with the projector by low voltage trigger. When turning on power of projector, screen casing top and screen fabric will be triggered opening automatically; when turn off the power of projector, screen casing top and screen fabric will be triggered closing at the same time. Combining with laser projector and set of stereo equipment, you can build your own home theatre.

  • • Screen size: 92" - 133" (133 inches Maximum size of Standard throw screen)
  • • UST fabric Standard with No left&right borders
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Standard Accessories

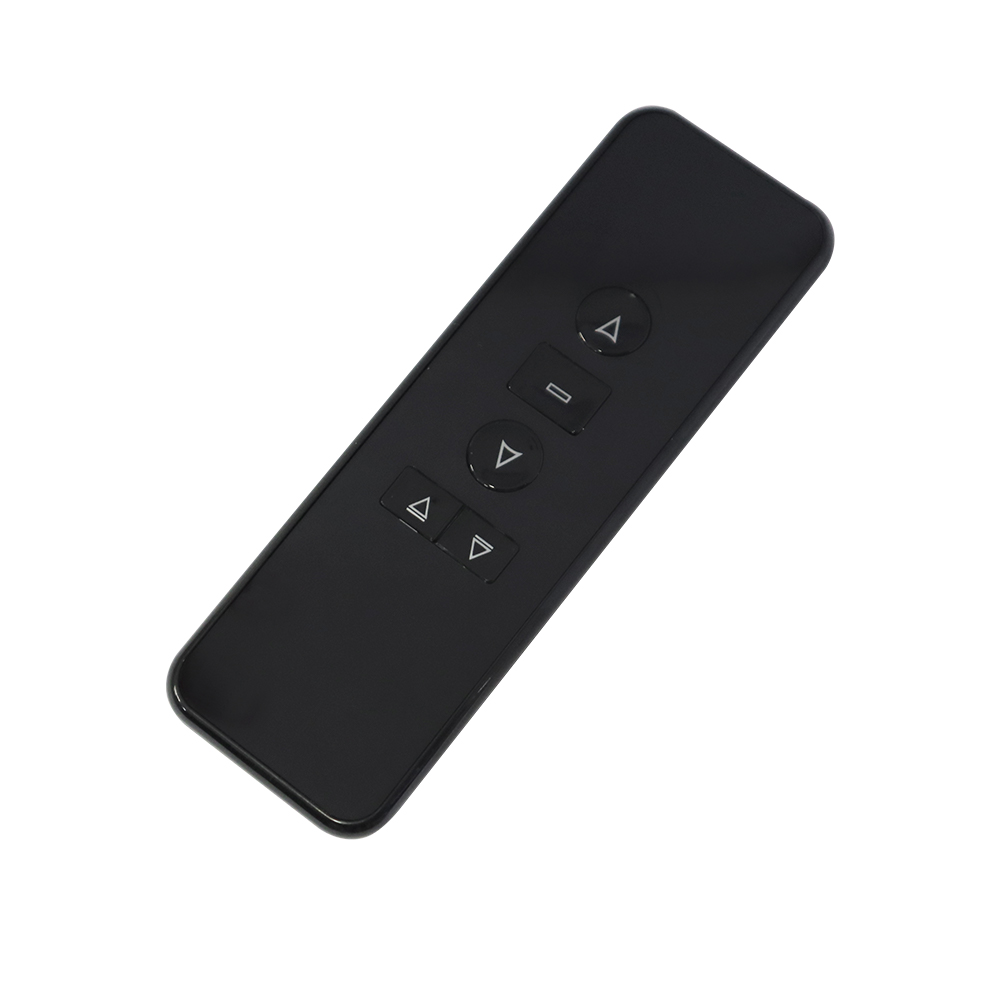

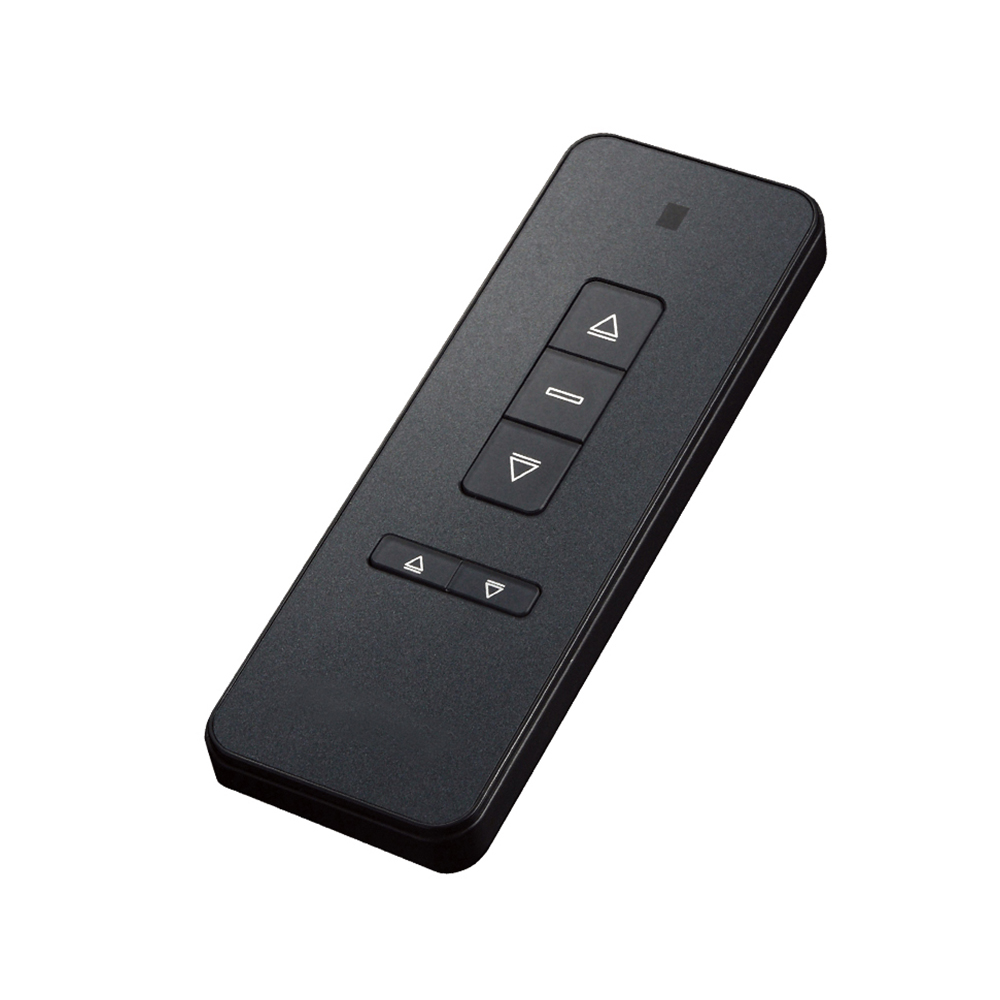

    • Wireless Remote
    • IR Remote

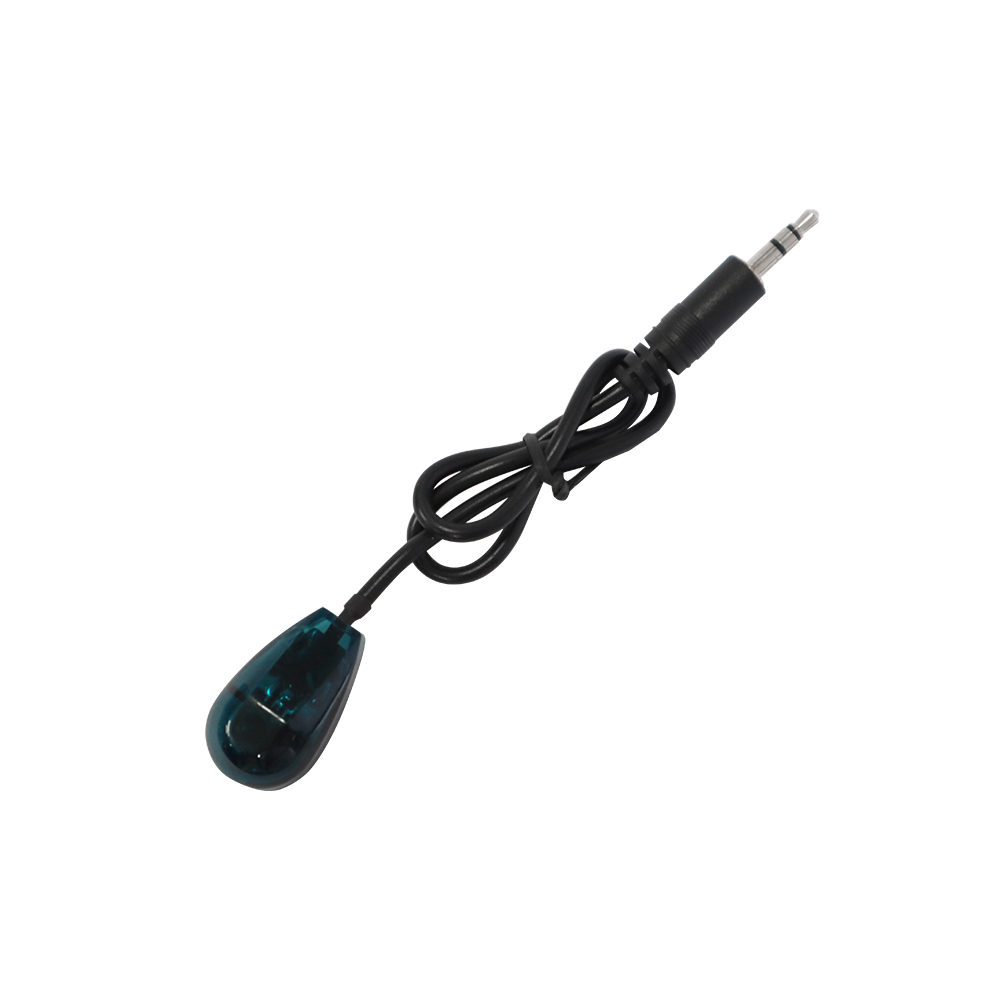

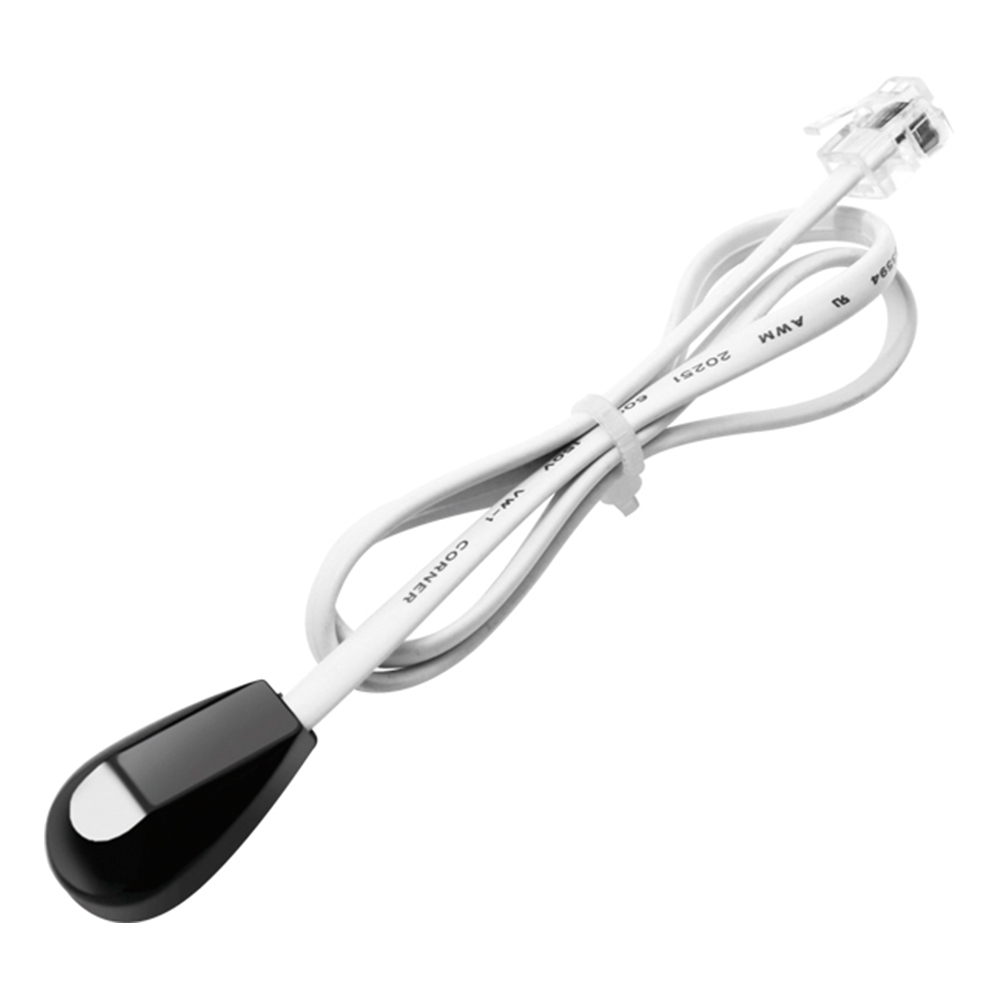

    • IR Receiver(IR Control)

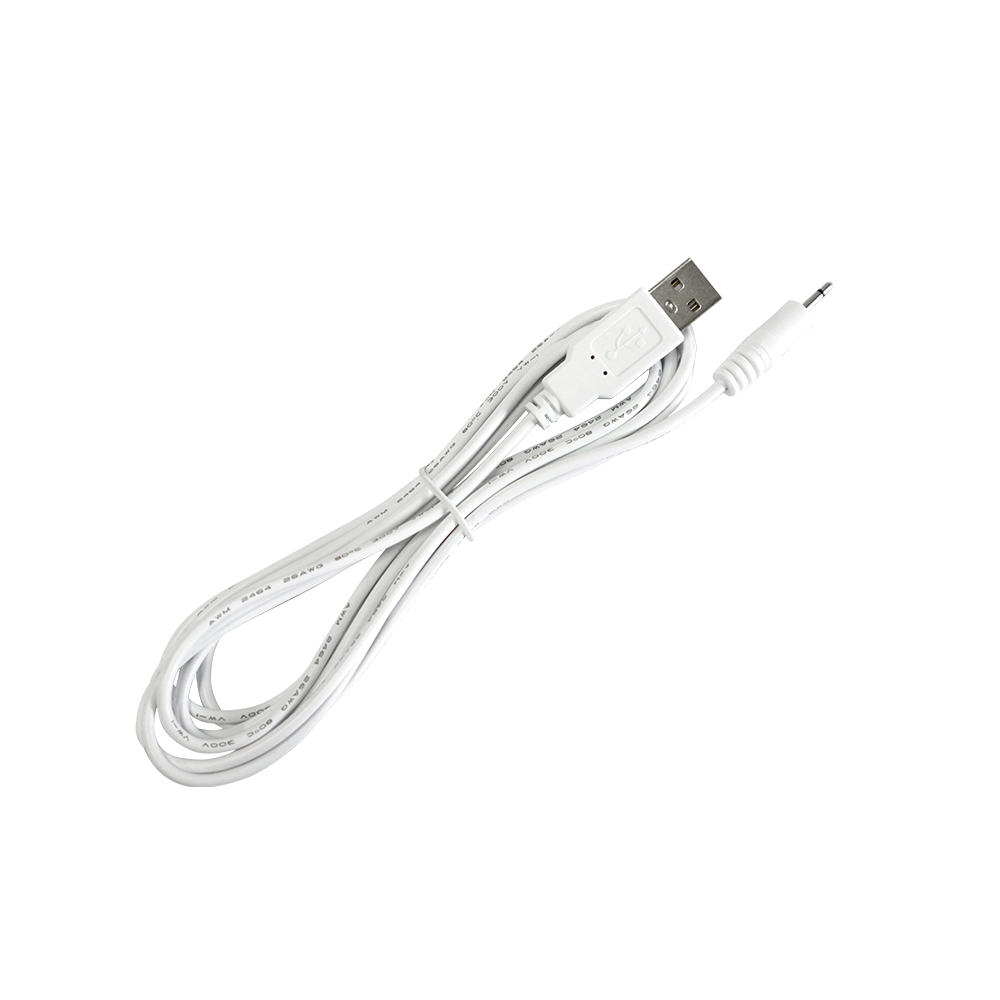

    • 12V Trigger Cable

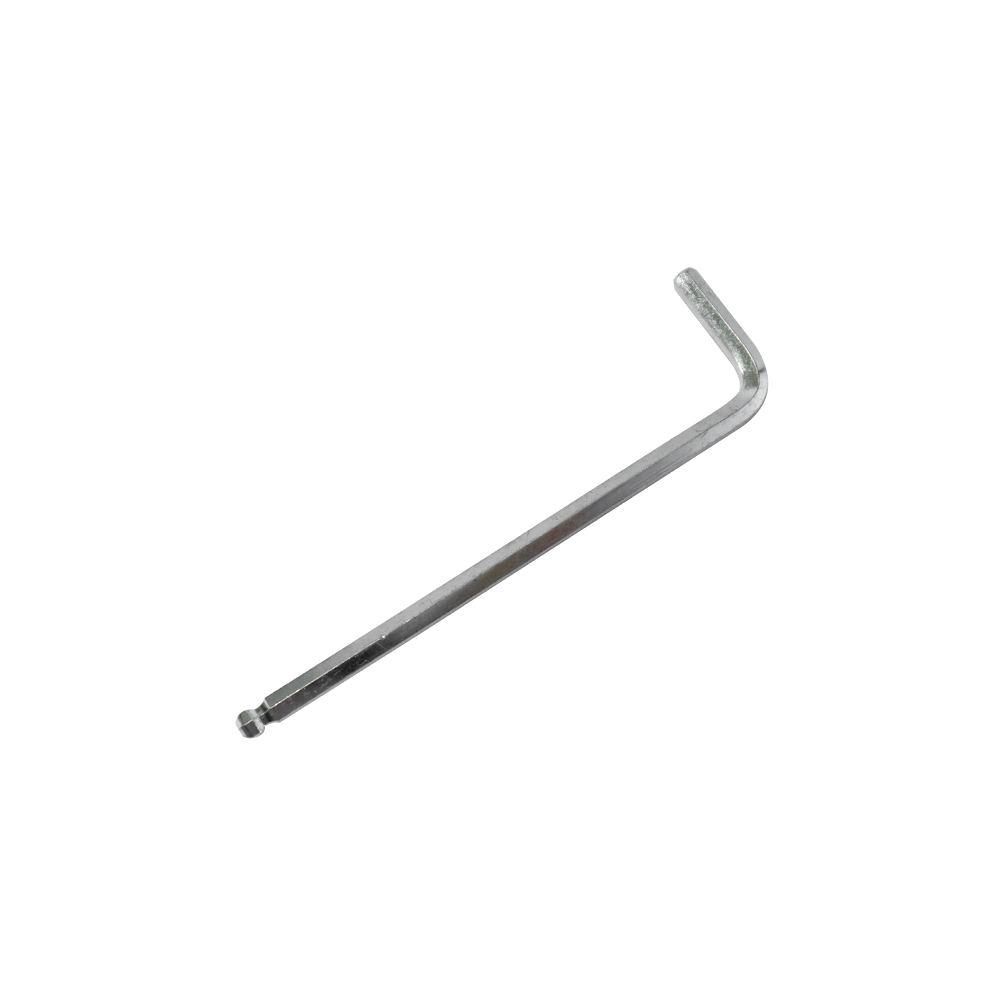

    • Allen Key

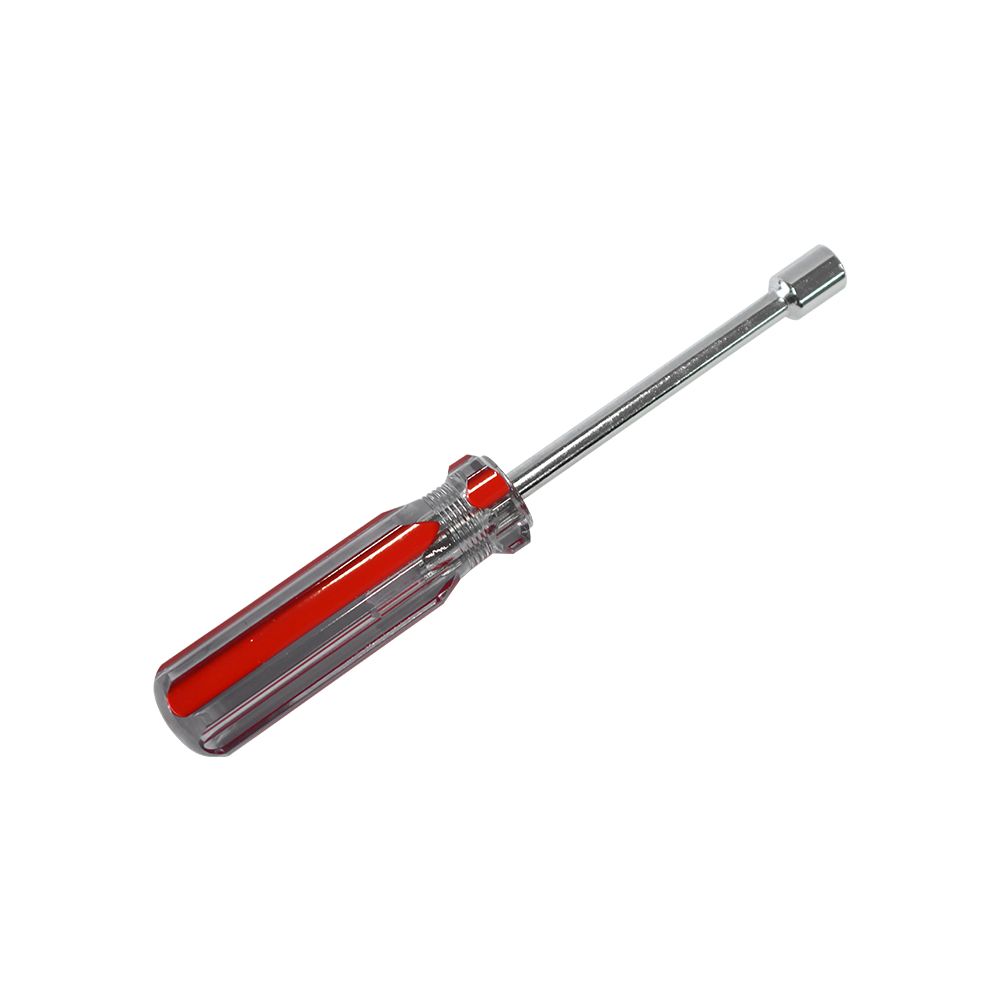

    • Socket Screwdrive

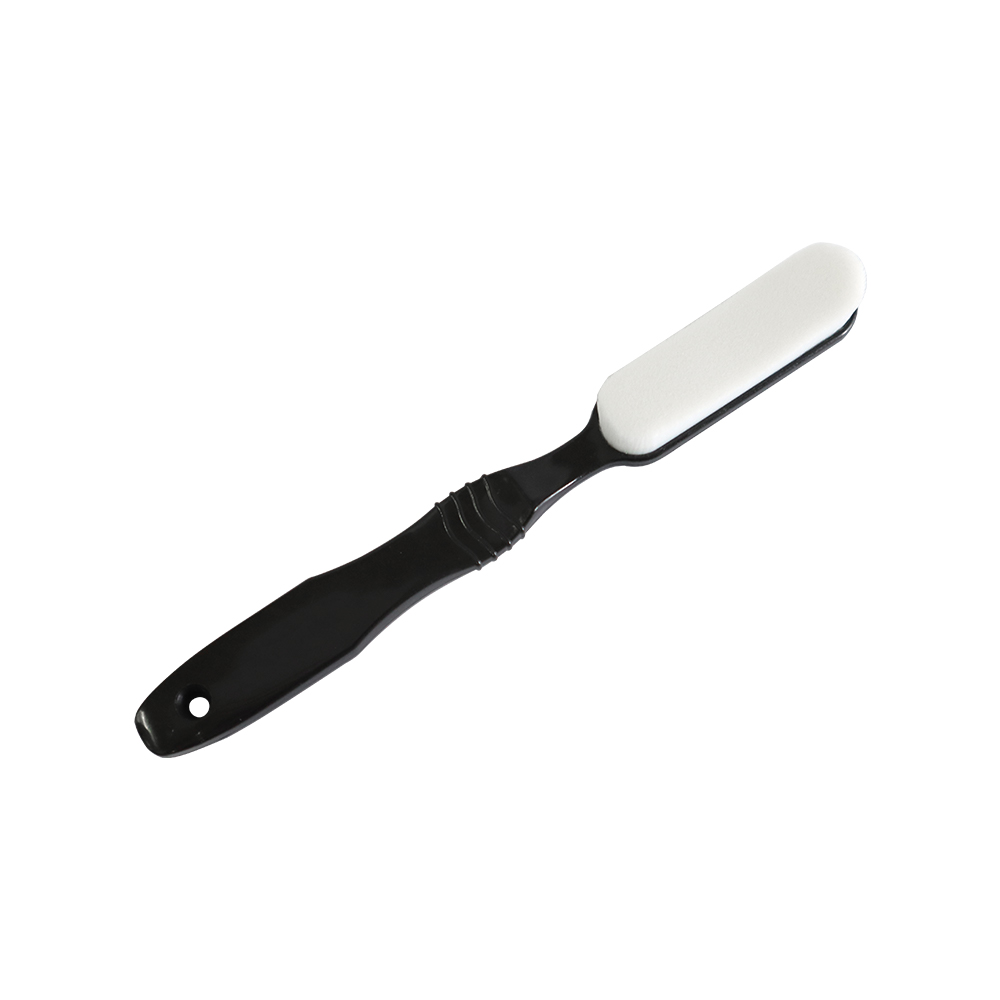

    • Brush

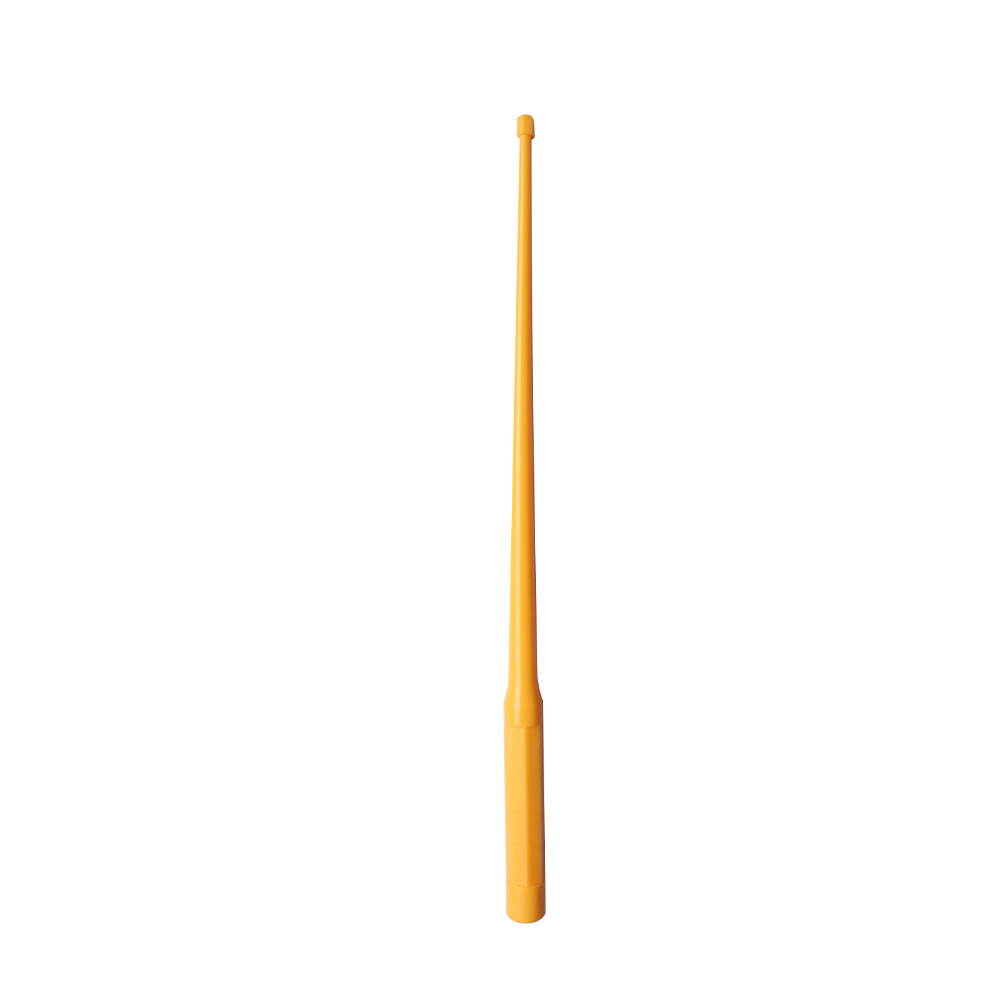

    • Limit Adjustment Tool

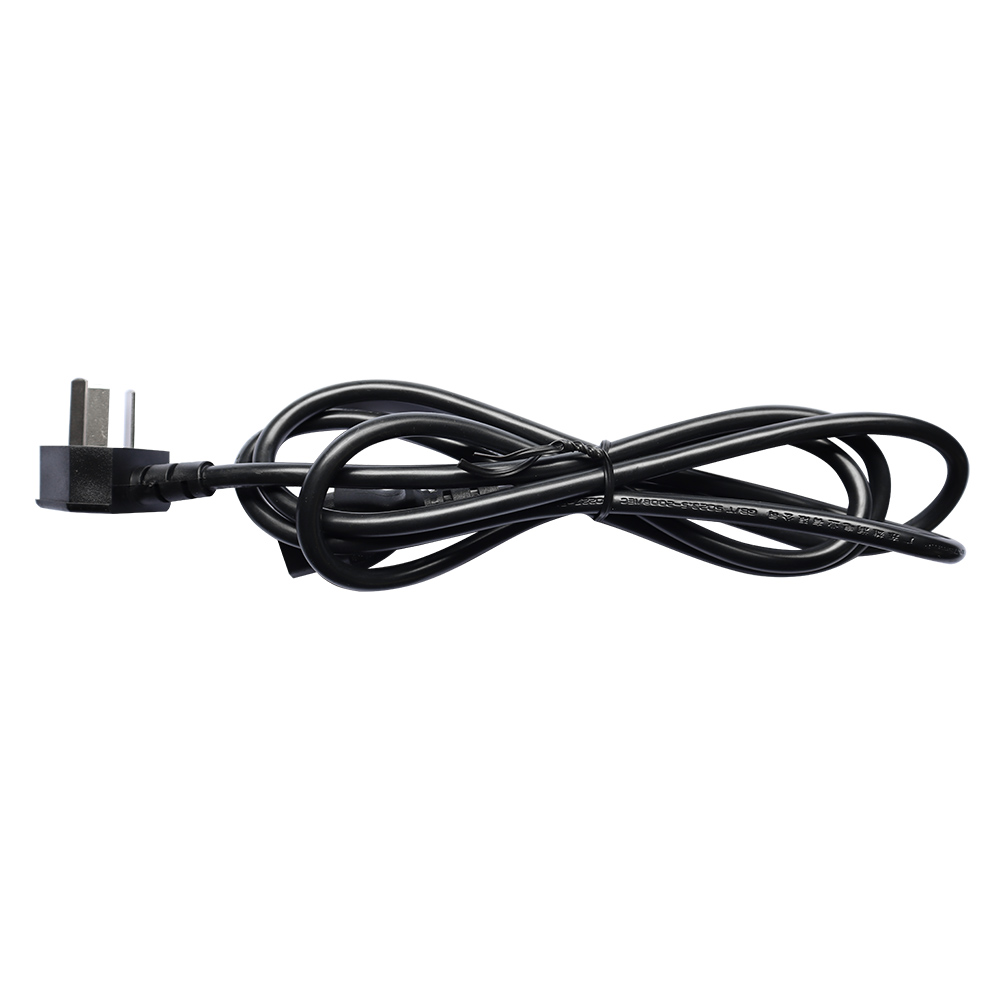

    • Power Cable
    Optional Accessories

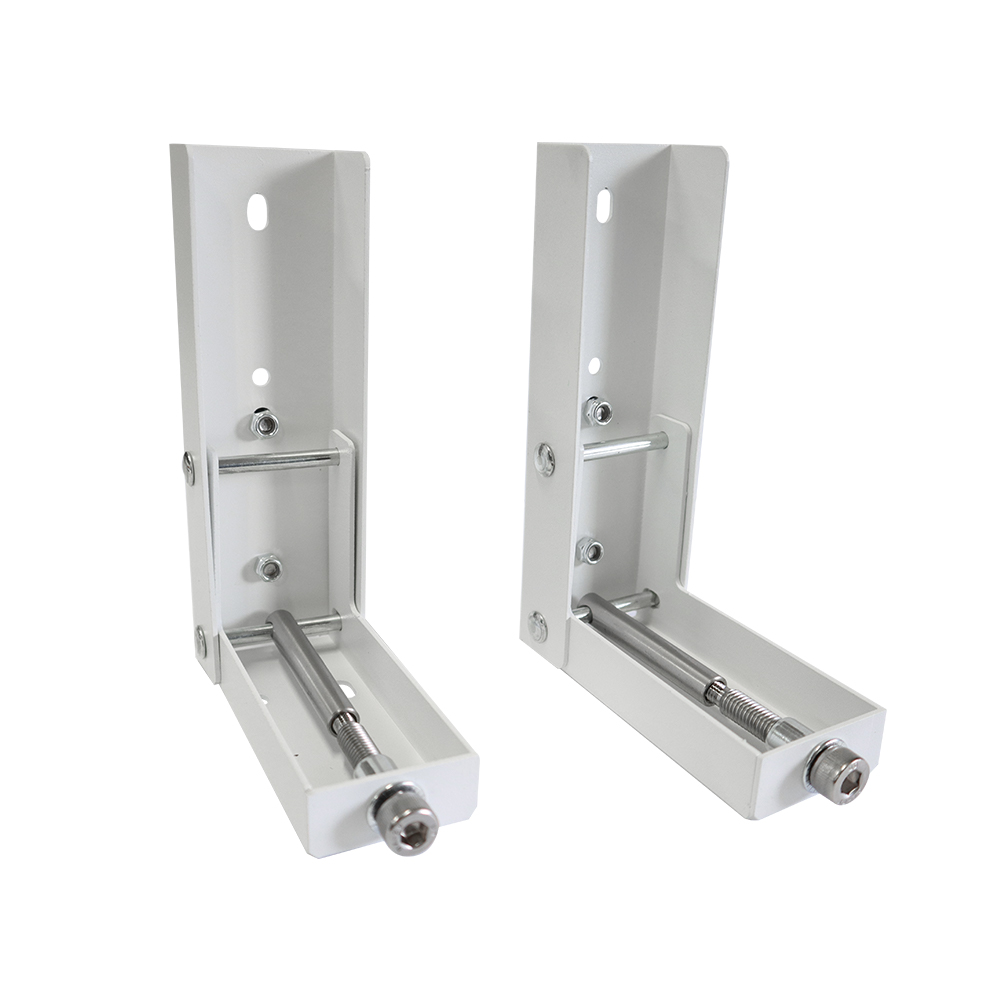

    • Adjustable Mounting Bracket

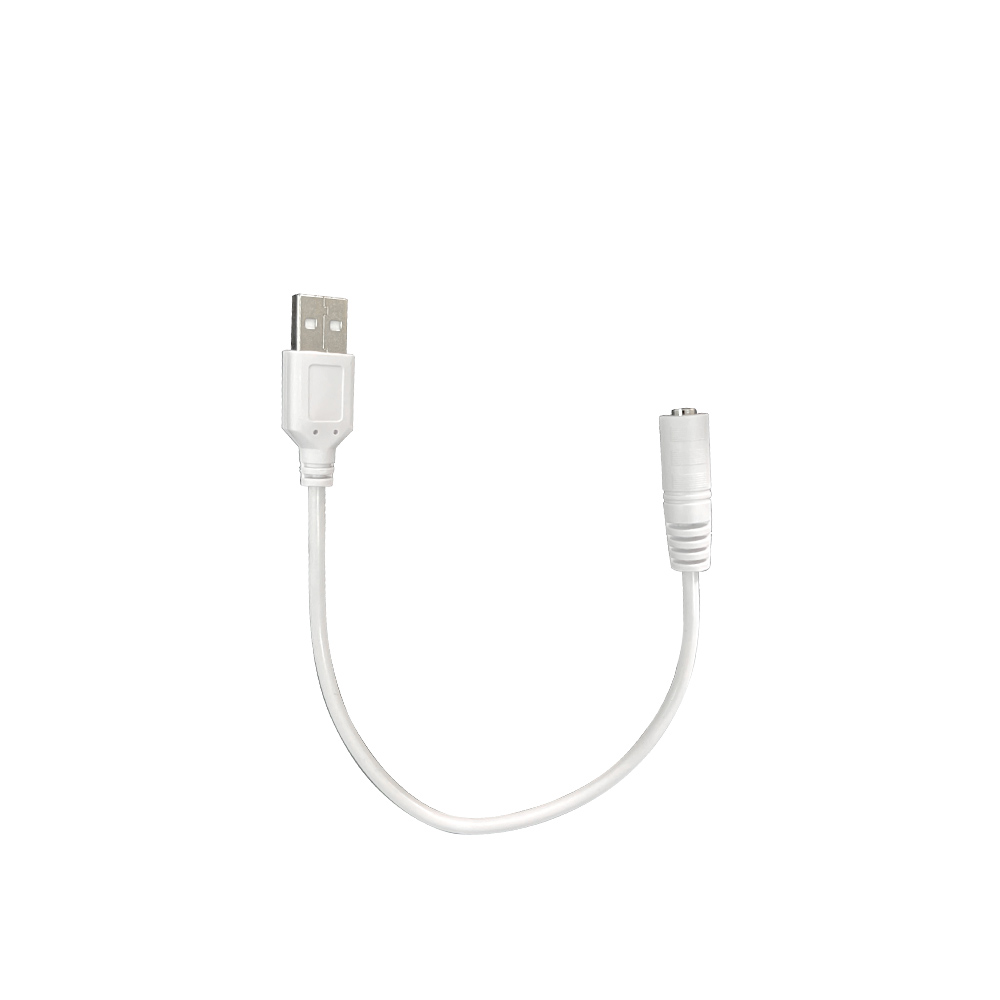

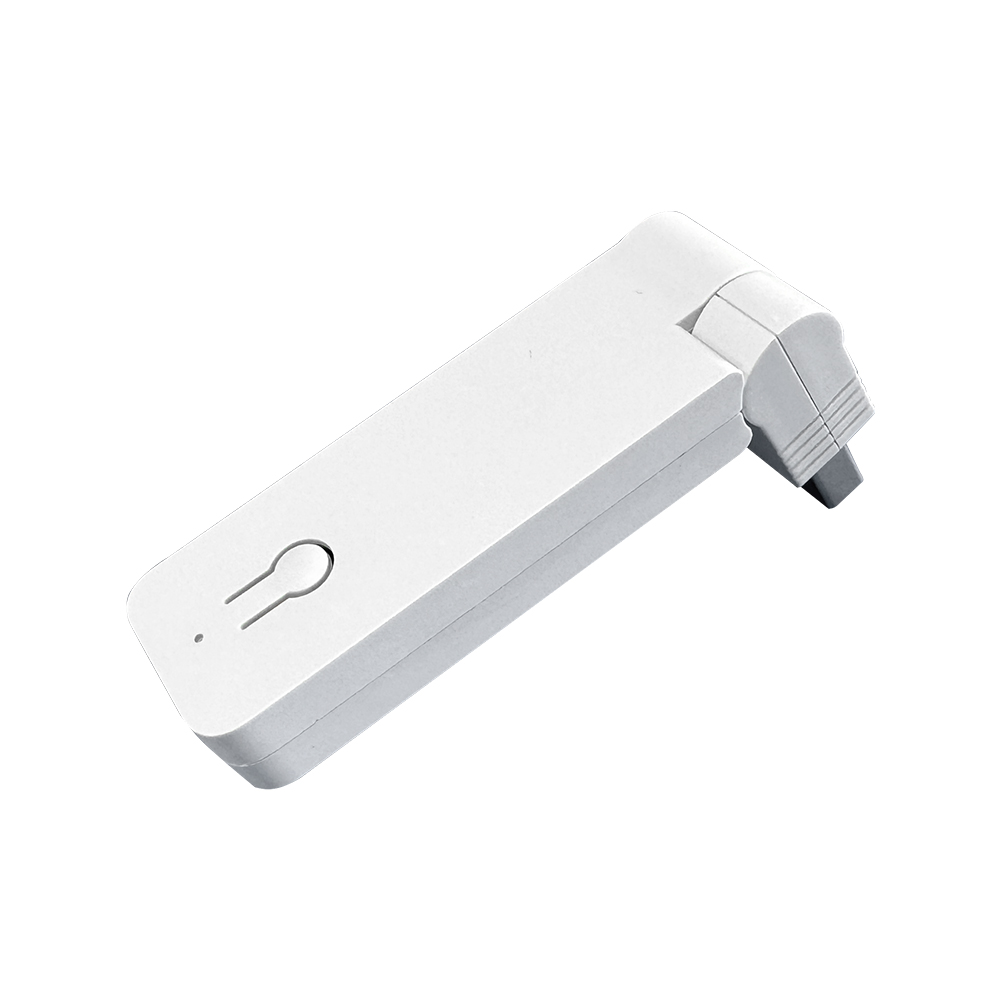

    • USB Trigger(GF159)
  • Fabrics
    • Black Grid (DY3)
      • Viewing
        Angle
        140°
      • Gain
        0.5
    • Black Grid(DY5)
      • Viewing
        Angle
        140°
      • Gain
        0.6
  • Specs
    • Model
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2037 × 1146
        1606
        -
        350
        20
        2274
        102
        152
        100"
        2214 × 1245
        1705
        -
        350
        20
        2451
        102
        152
        110"
        2435 × 1370
        1830
        -
        350
        20
        2672
        102
        152
        120"
        2656 × 1494
        1954
        -
        350
        20
        2893
        102
        152
        (White Fabric)133"
        2944 × 1656
        2216
        -
        450
        20
        3181
        102
        152
