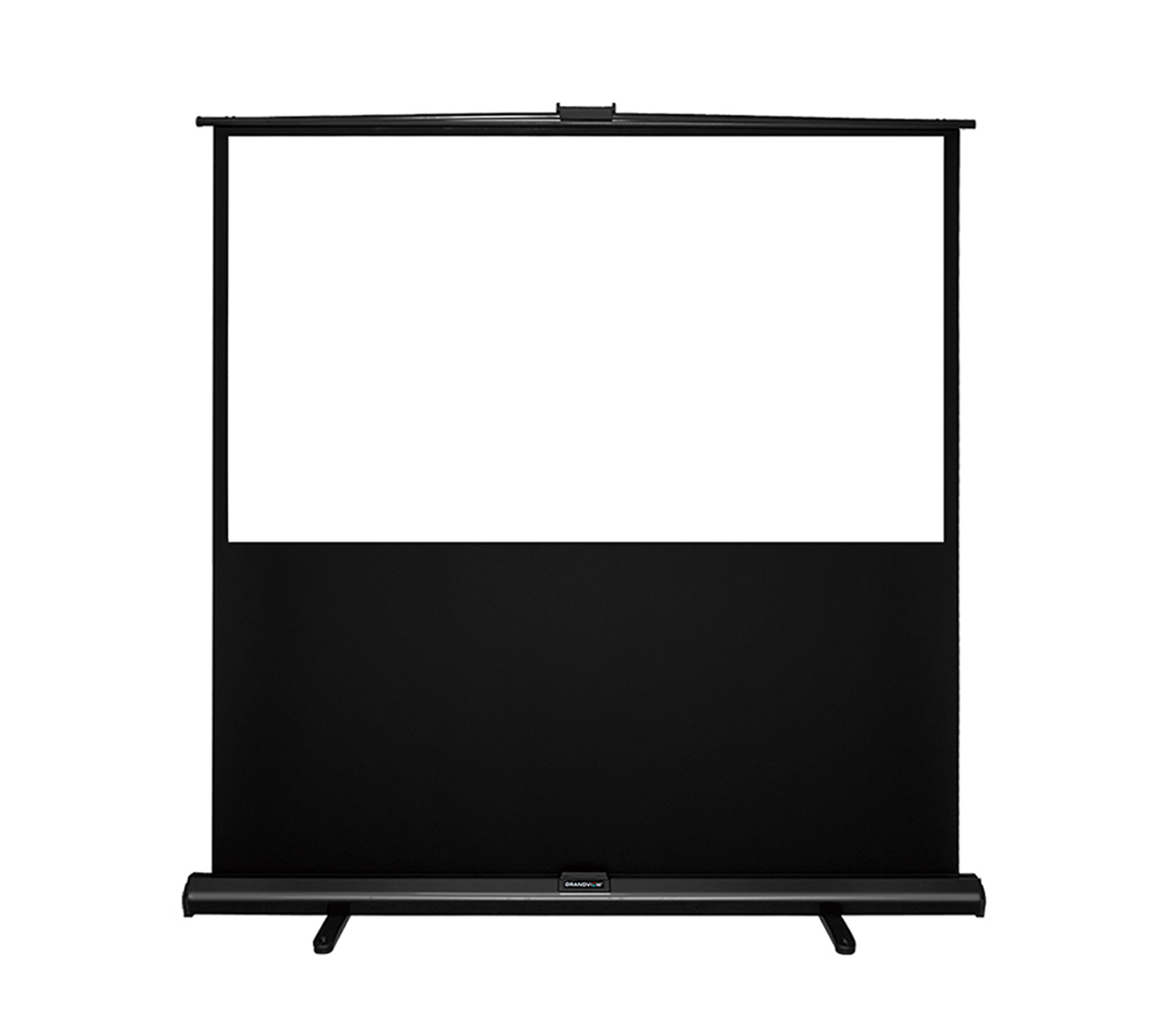

Portable Series Pull-Up Screen

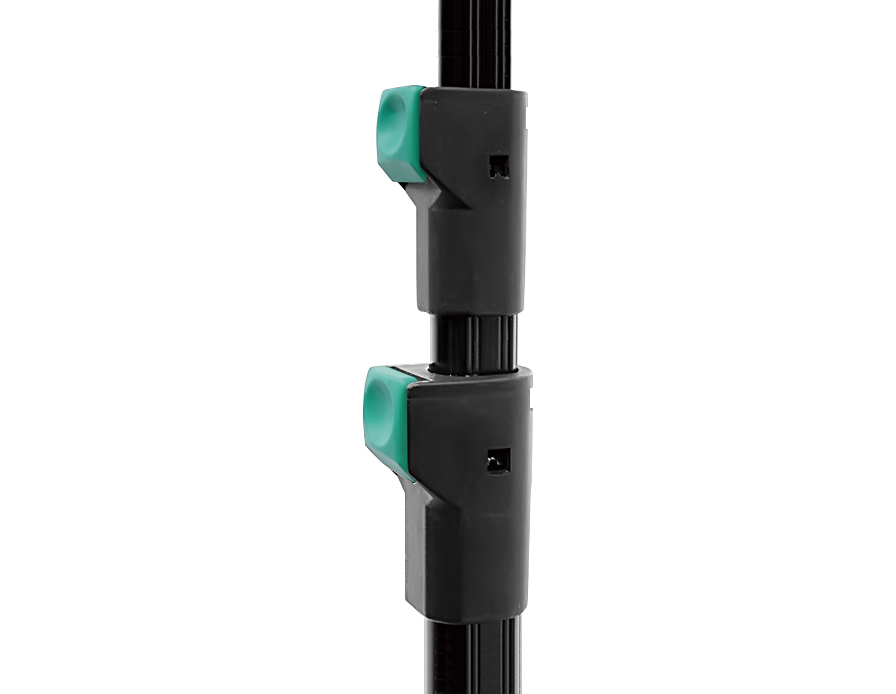

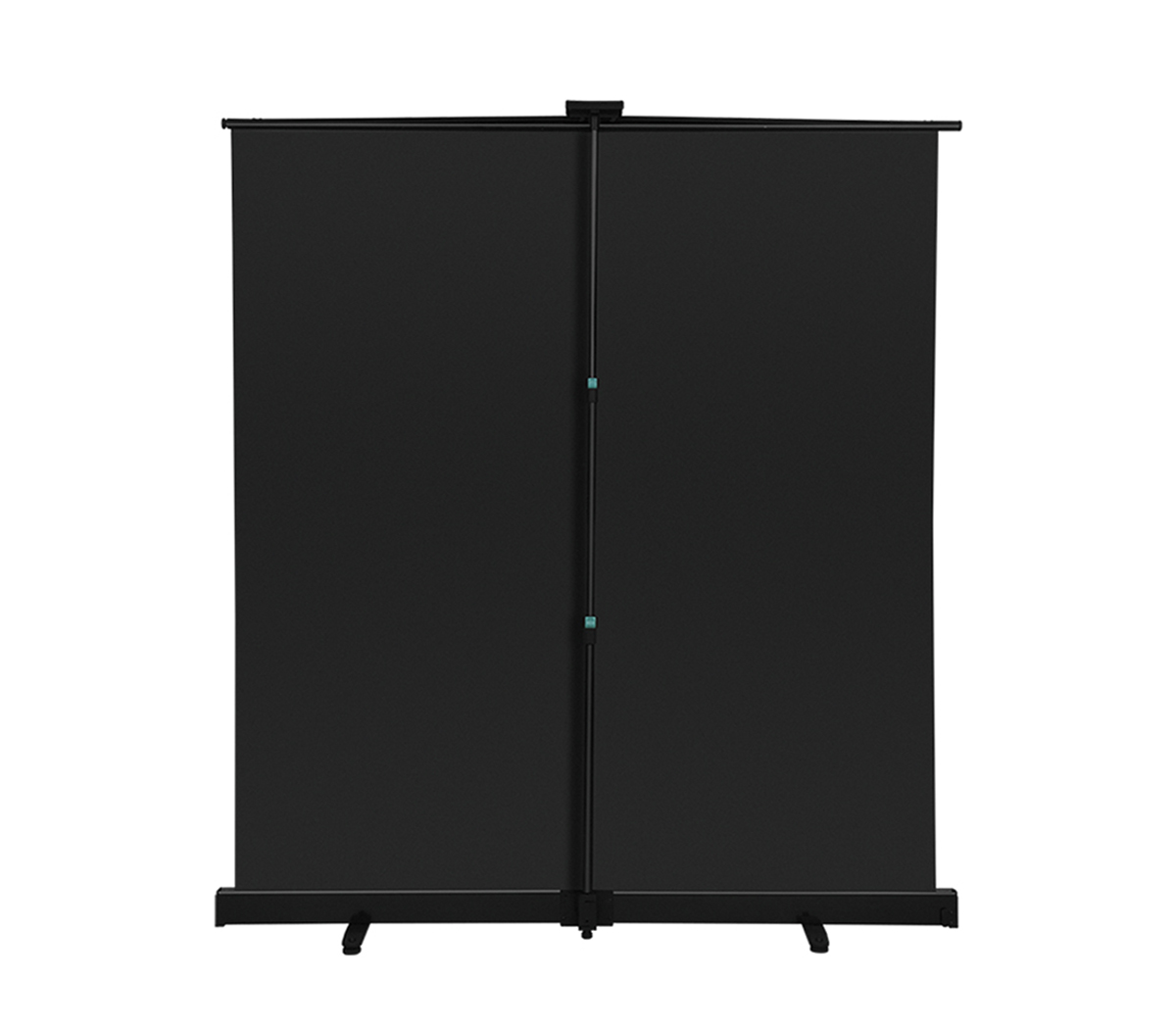

  • Grandview’s Portable Pull-Up Screen has 3 key design features for safety and usability. Each screen is equipped with a "Smart Sync. Lock" which ensures the screen will be lock when it is not in use. The screen can be easily unlocked by lifting the support bar. A "Support Lock" which ensures the screen is fully secured when being used. Four "Level Adjustment Knobs" which are attached under the legs of the screen, they can be adjusted when the screen is on uneven surfaces to keep the screen from leaning.


  • • Sizes: 92” – 100” diagonal
  • • Colour: Black
  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Download
  • FAQ

  • Share

  • Fabrics
    • WM4
      • Viewing
        Angle
        160 °
      • Gain
        1.0
  • Specs
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        Ceiling Cut-out Dimensions
        (LxWxH)mm
        60"
        1219 × 914
        1740
        25
        695
        35
        1380
        82
        61
        N/A
        70"
        1422 × 1067
        1998
        25
        800
        35
        1582
        82
        61
        N/A
        72"
        1463 × 1097
        1908
        25
        680
        35
        1623
        82
        61
        N/A
        80"
        1626 × 1219
        2050
        25
        700
        35
        1785
        82
        61
        N/A
        84"
        1707 × 1280
        2211
        25
        800
        35
        1867
        82
        61
        N/A
        100"
        2032 × 1524
        2239
        25
        690
        34
        2192
        82
        61
        N/A
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        Ceiling Cut-out Dimensions
        (LxWxH)mm
        60"
        1328 × 747
        1616
        25
        738
        35
        1488
        82
        61
        N/A
        70"
        1550 × 871
        1850
        25
        848
        35
        1710
        82
        61
        N/A
        80"
        1771 × 995
        2144
        25
        1018
        28
        1930
        82
        61
        N/A
        84"
        1860 × 1045
        2094
        25
        918
        35
        2020
        82
        61
        N/A
        92"
        2036 × 1145
        1990
        25
        820
        32
        2192
        82
        61
        N/A
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        Ceiling Cut-out Dimensions
        (LxWxH)mm
        60"
        1292 × 808
        1616
        25
        677
        62
        1488
        82
        61
        N/A
        70"
        1508 × 942
        1744
        25
        777
        56
        1710
        82
        61
        N/A
