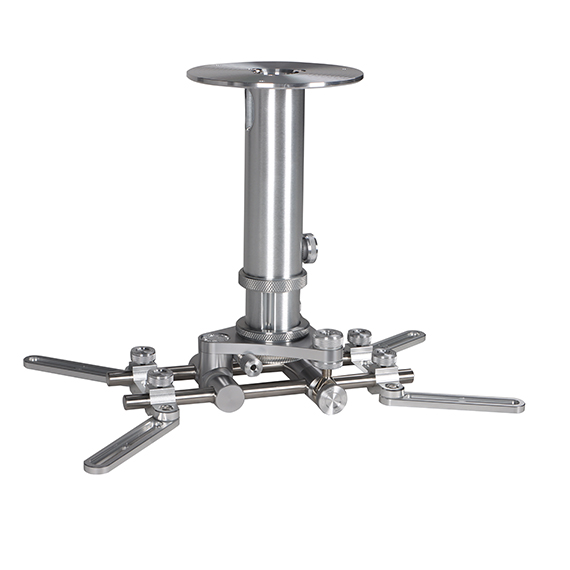

Universal Alumnum Projector Mount

GPCH

  • Major Function:
  • 1. Made of full aluminum alloy.
  • 2. Cable management system included.

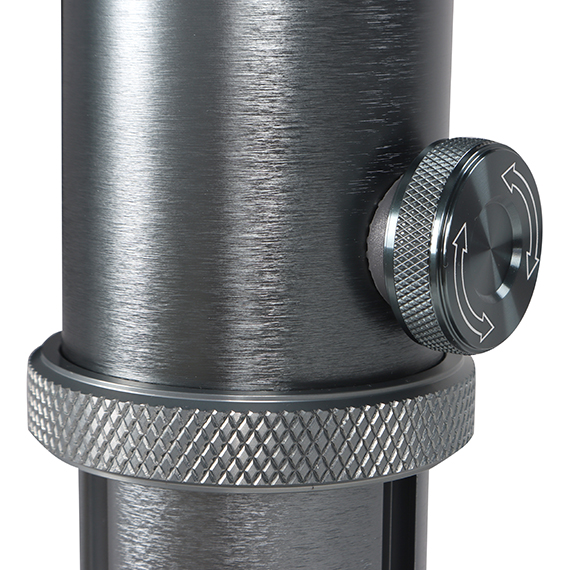

  • 3. Telescoping pole for adjustable height.

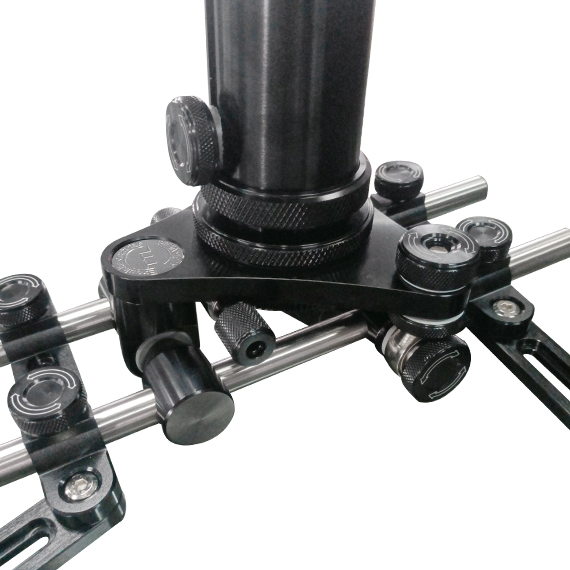

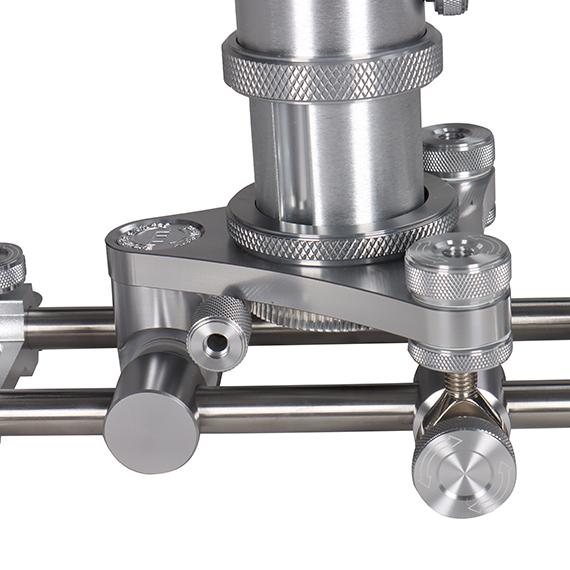

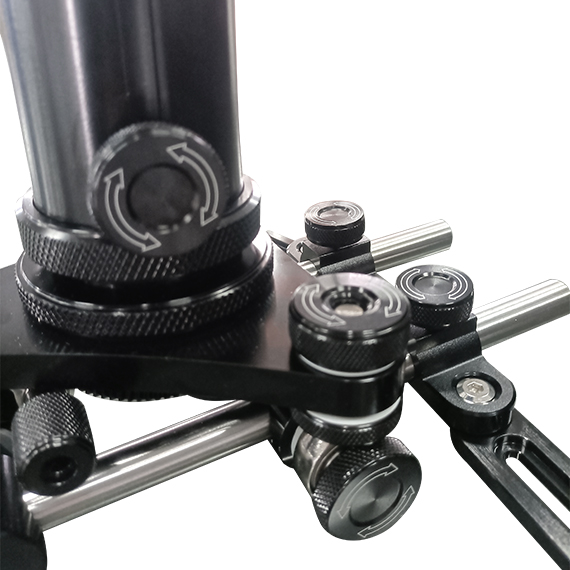

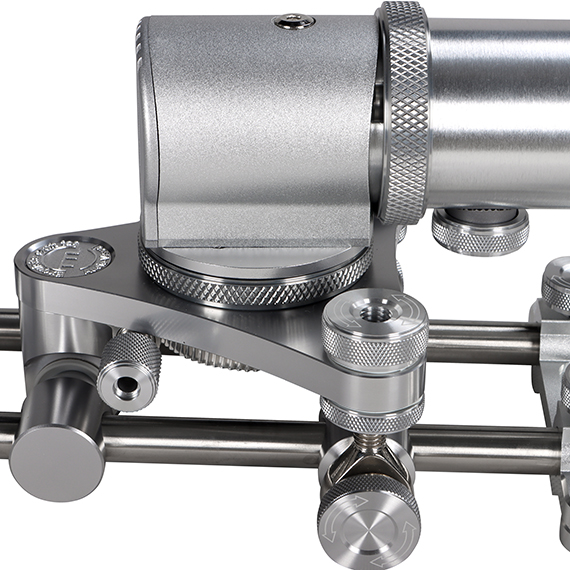

  • 4. Worm gear structure, 360° horizontal rotation and up to 10° vertical adjustment.

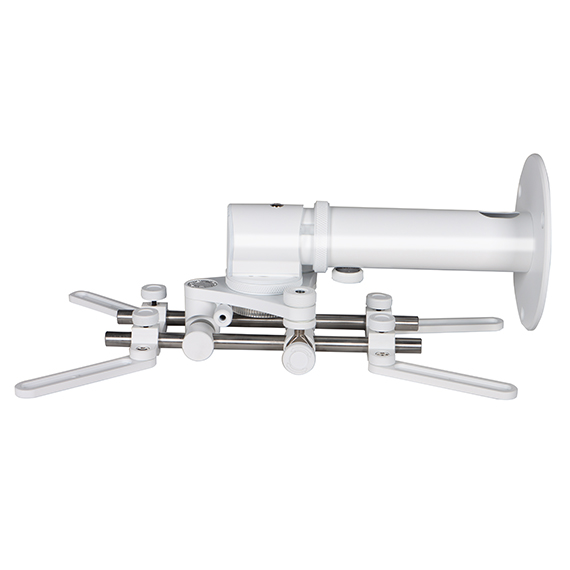

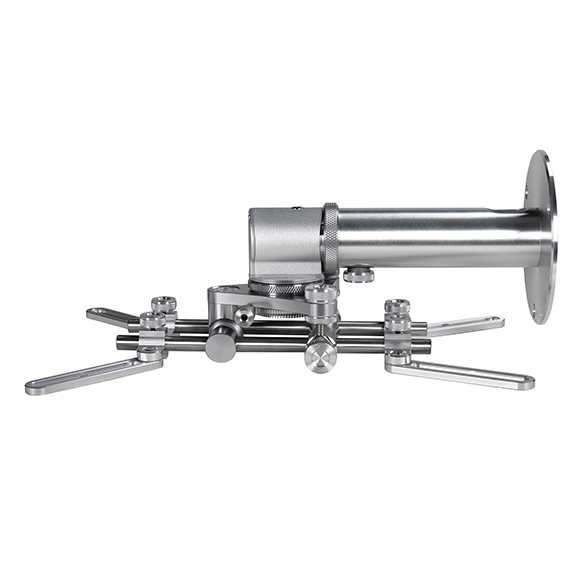

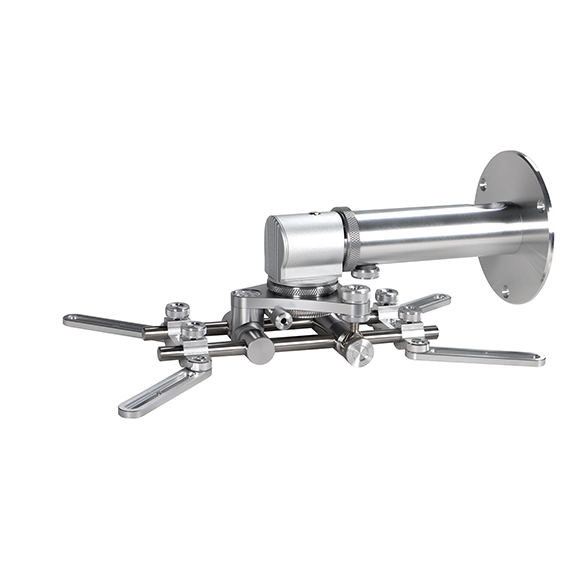

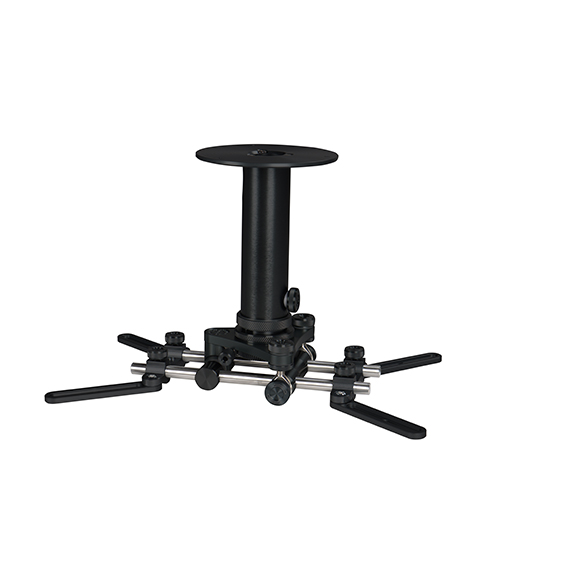

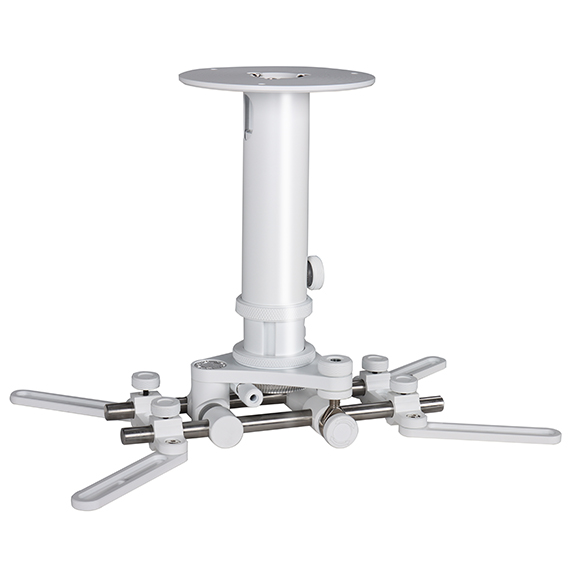

  • 5. Available in two styles: ceiling-mounted and wall-mounted.
  • 6.Color: Black, Silver, White, Grey.
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCH-B200/W200/S200/G200
    • GPCH-B200C/W200C/S200C/G200C
      • Product Dimensions(mm)

        344×344×285
      • Net Weight(kg)

        3.2
      • Max Load(kg)

        25
      • Max Travel(mm)
        285-430
      • Angle Adjustments
        Up/Down/Left/Right
        10° 360°
      • Product Dimensions(mm)

        344×431.5×196
      • Net Weight(kg)

        3.4
      • Max Load(kg)

        25
      • Max Travel(mm)
        325-415
      • Angle Adjustments
        Up/Down/Left/Right
        10° 360°
  • Sketch

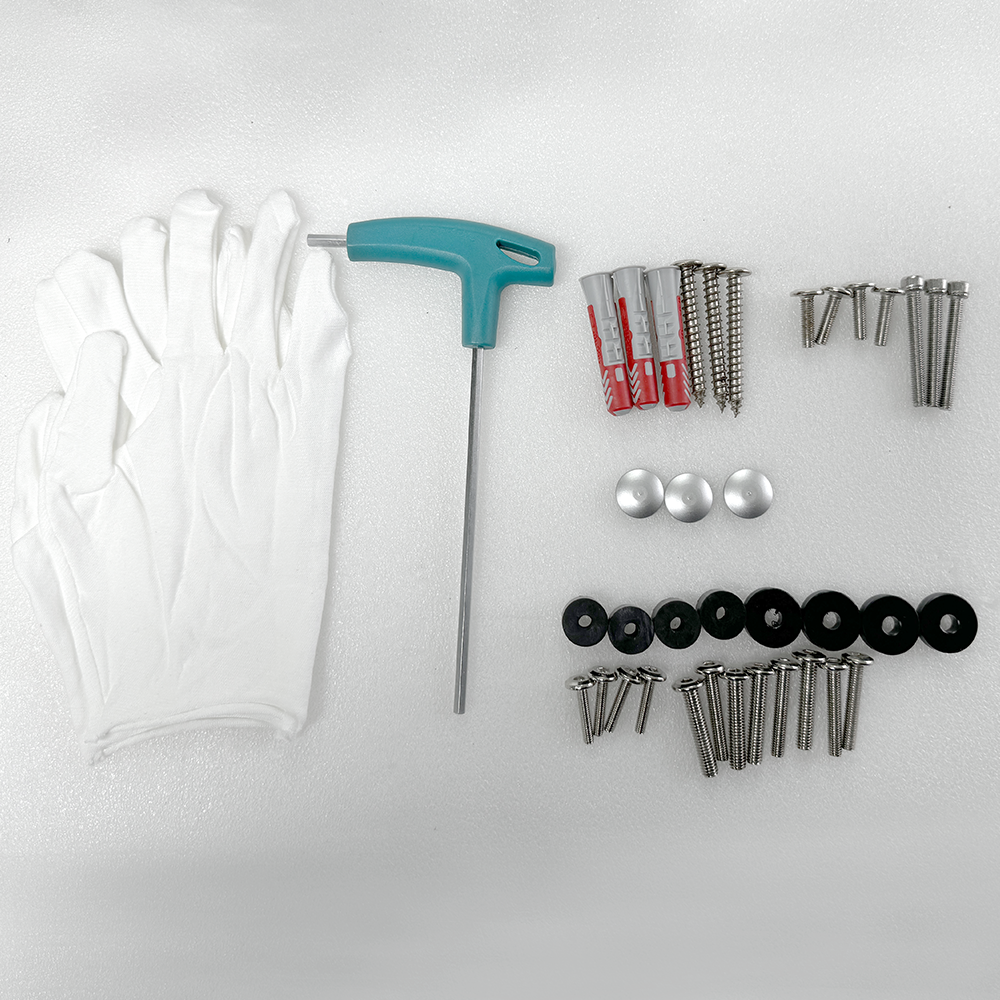

  • Standard Accessories
    • Standard Accessories
  • Download
    GPCH Product Catalog
