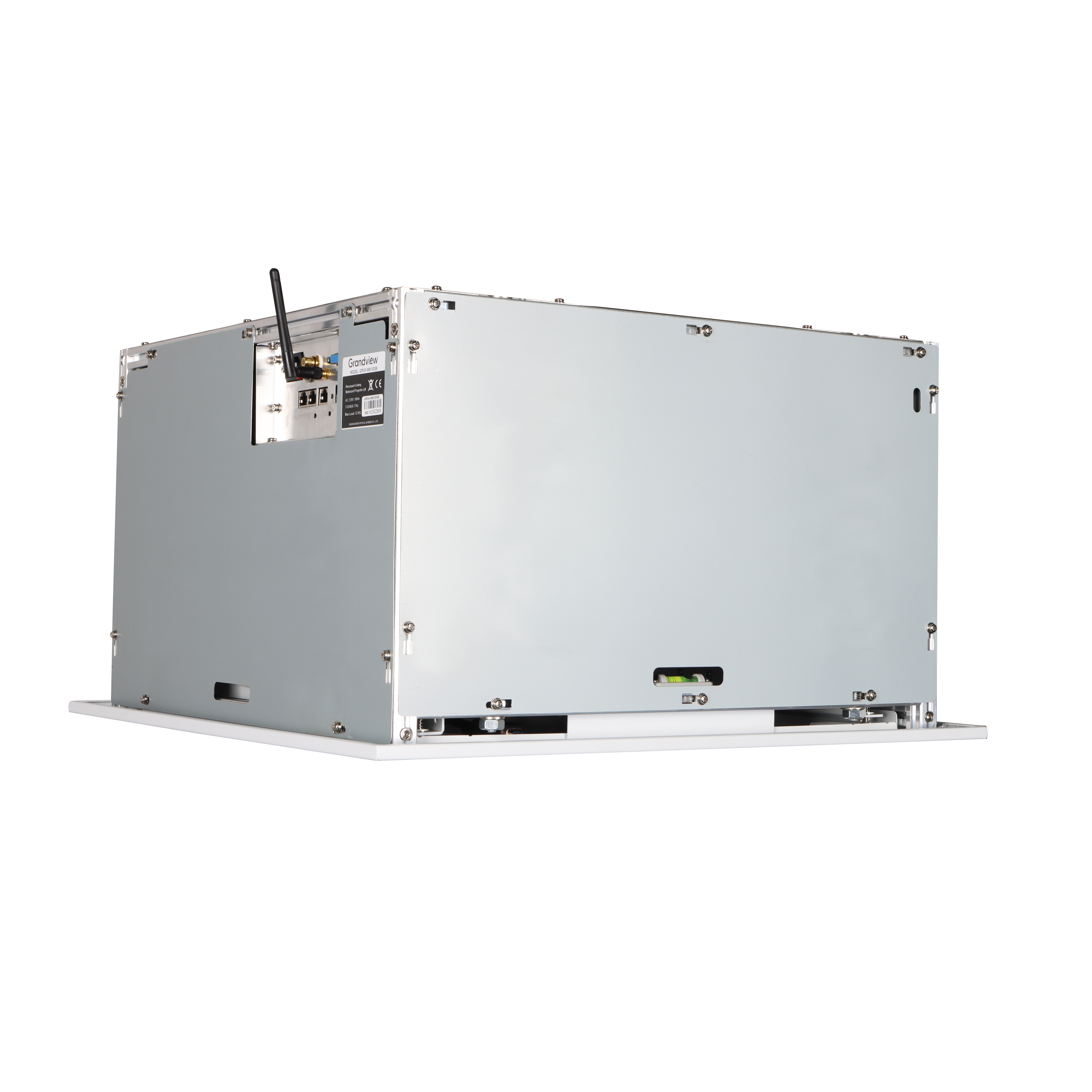

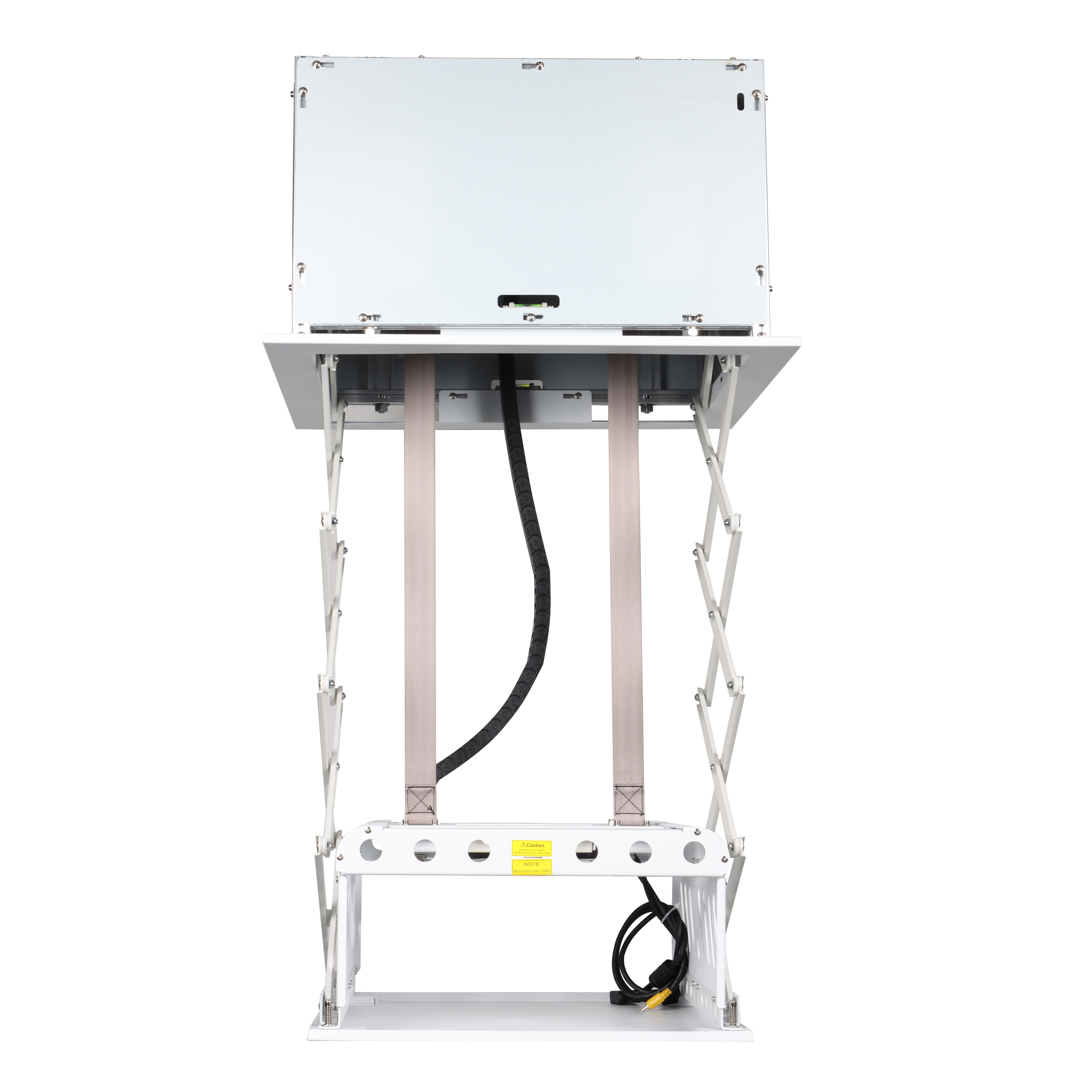

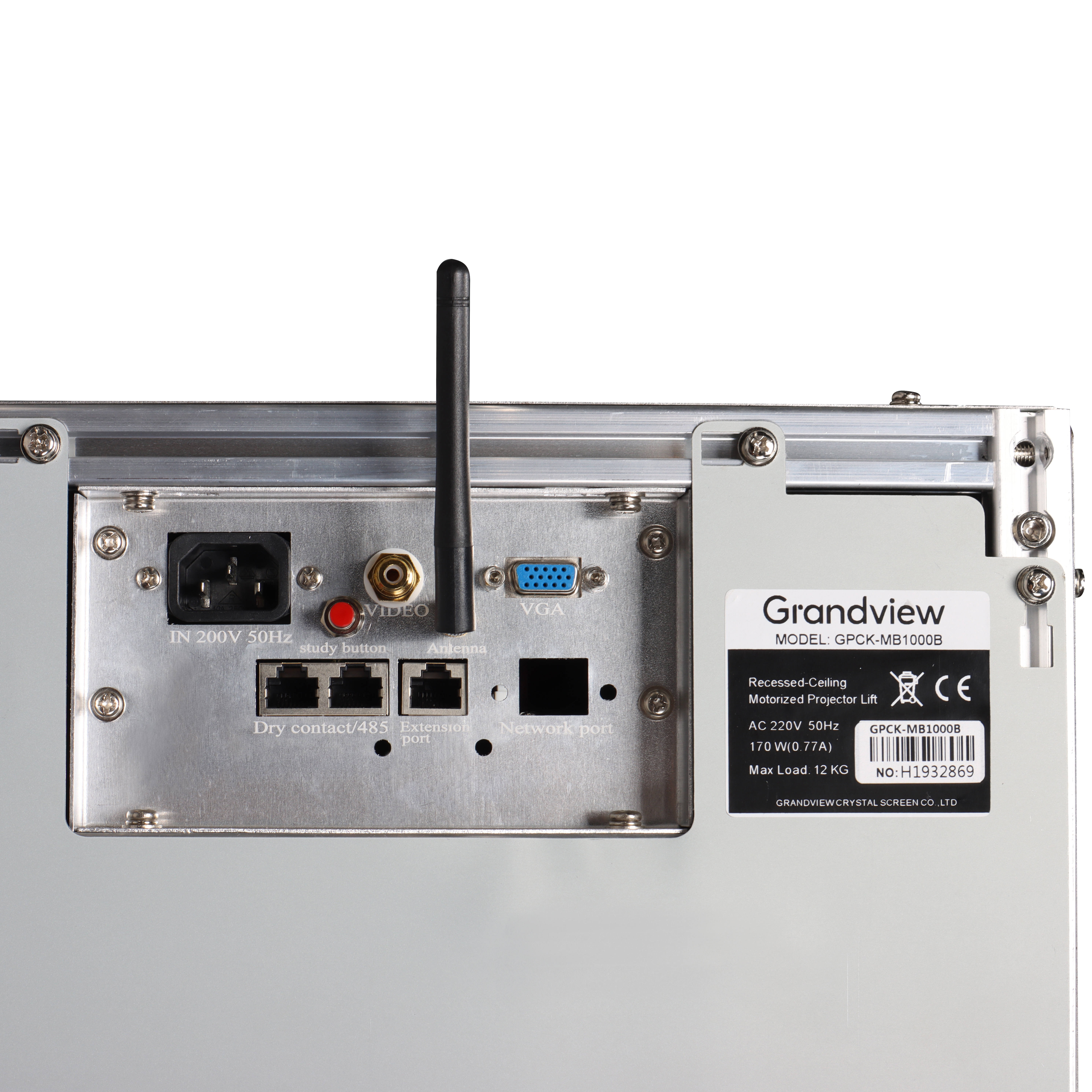

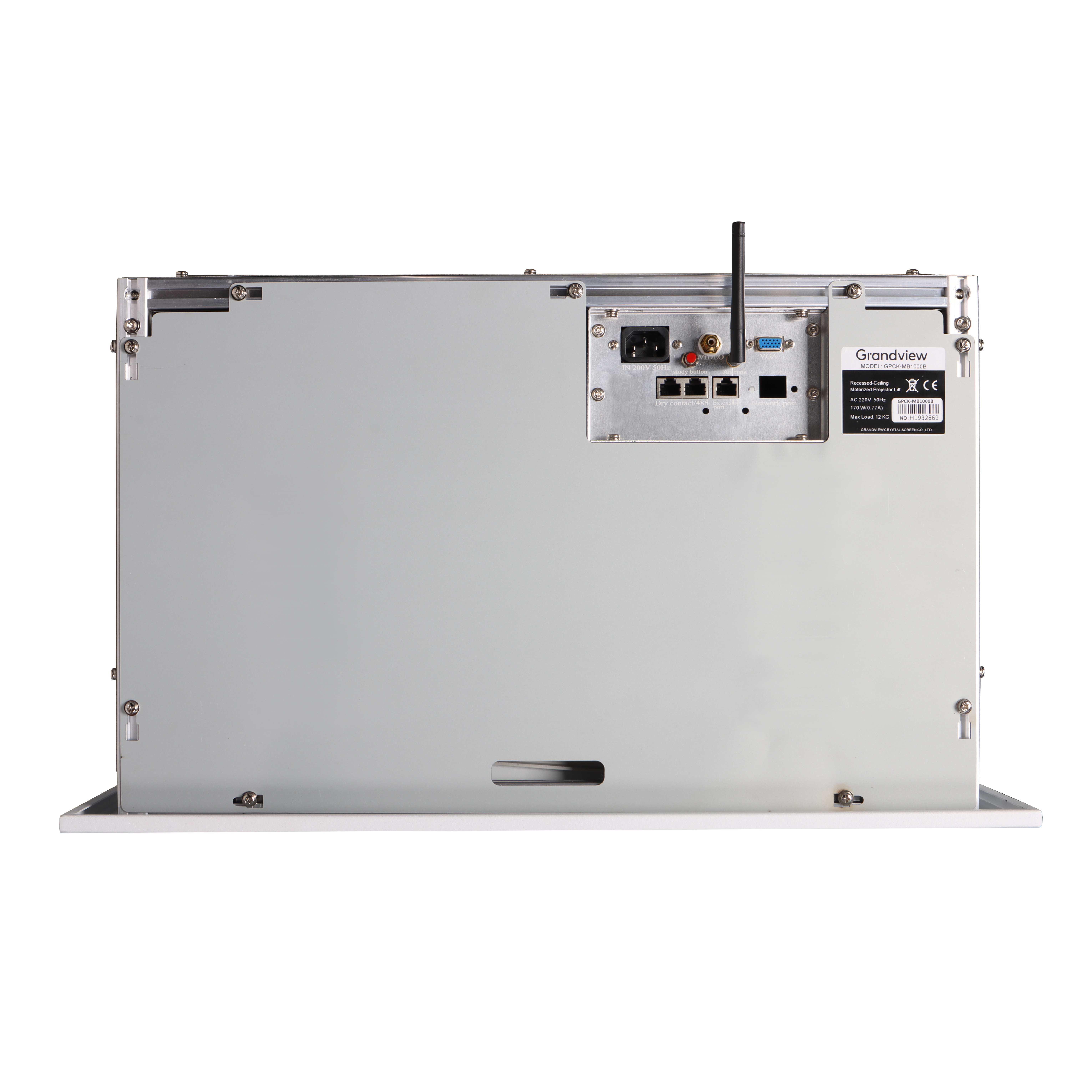

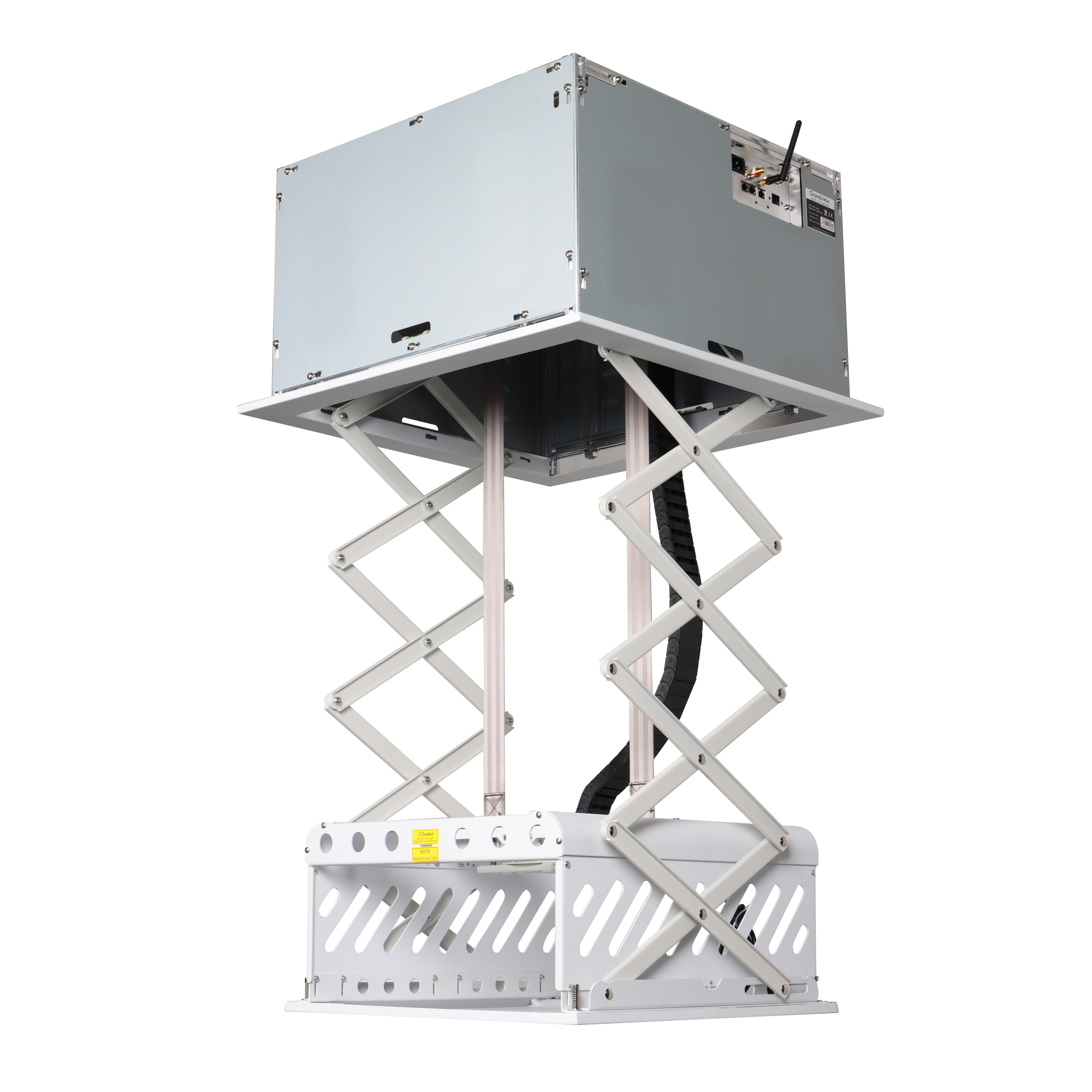

GPCK-MB Series

Motorized Projector Lift

  • GPCK-MB series uses a custom high-torque tubular motor,fully enclosed and dust-proof design,featuring electronic precision positioning of desired drop height,equipped with wireless remote control and intelligent wall control switch;with a projector mounting foot,it can be independently tilted horizontally to fit most projector mounting holes.
  • Smooth running
  • Low noise(≤45db)
  • Precise positioning
  • Durable
  • The maximum load can be 12Kg
  • Power: 170W
  • Voltage: 220V/50Hz or 110v/60Hz
  • Specs
  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCK-MB1000B
      • Product Dimensions(mm)

        542×542×342
      • Net Weight(kg)

        28
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        365x150x425
      • Max Load(kg)

        12
      • Power(w)

        170
      • Max Travel(mm)
        1000
      • Noice(dB)
        ≤45dB
      • Voltage(v)
        220V/110V
      • Ceiling Opening
        Dimensions(mm)
        556.6x556.6
      • Package + Total Product
        Weight
        (kg)
        32
      • Packing Dimensions
        (D×W×H)mm
        630x410x615
  • Sketch
  • Standard Accessories

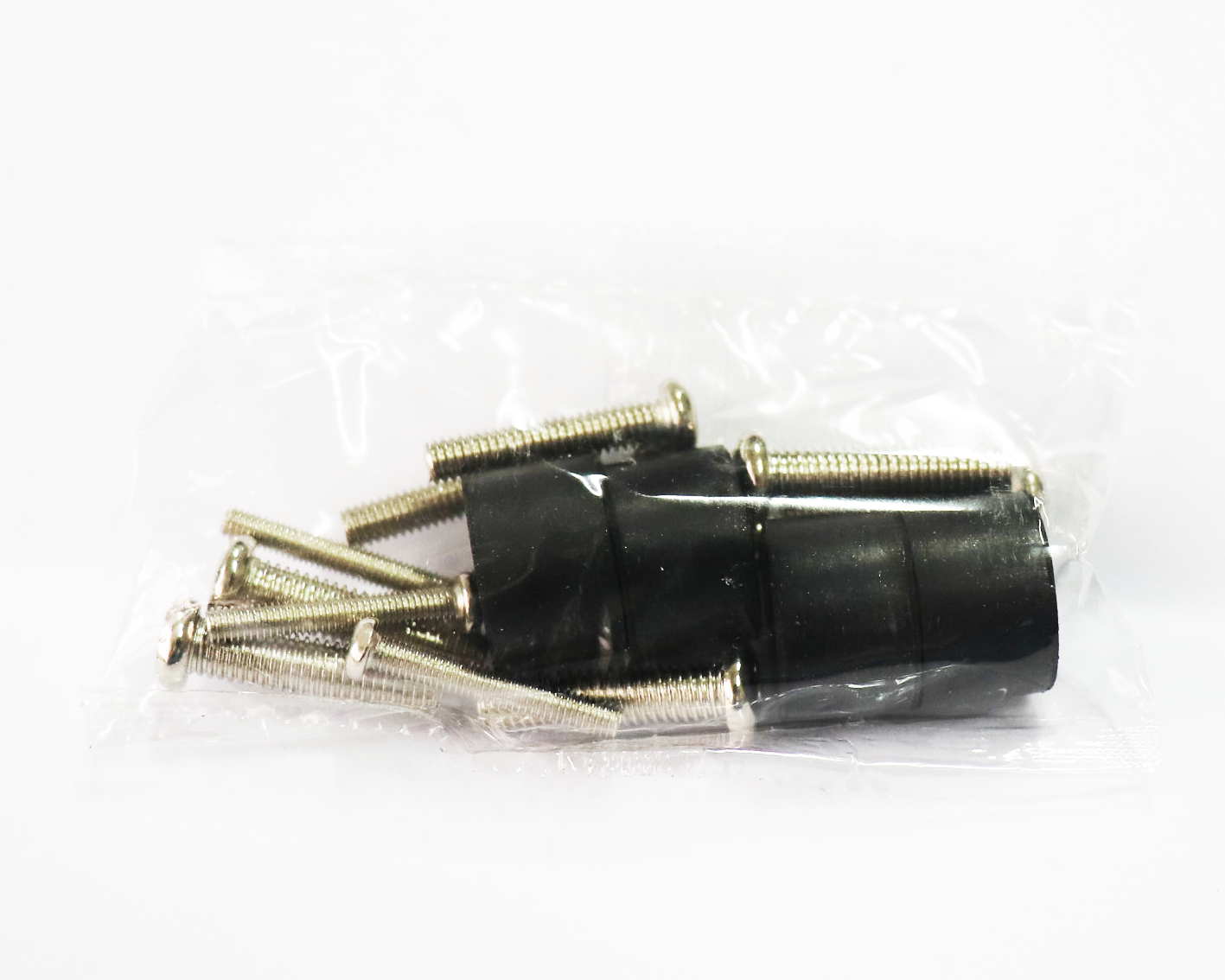

    • Screw

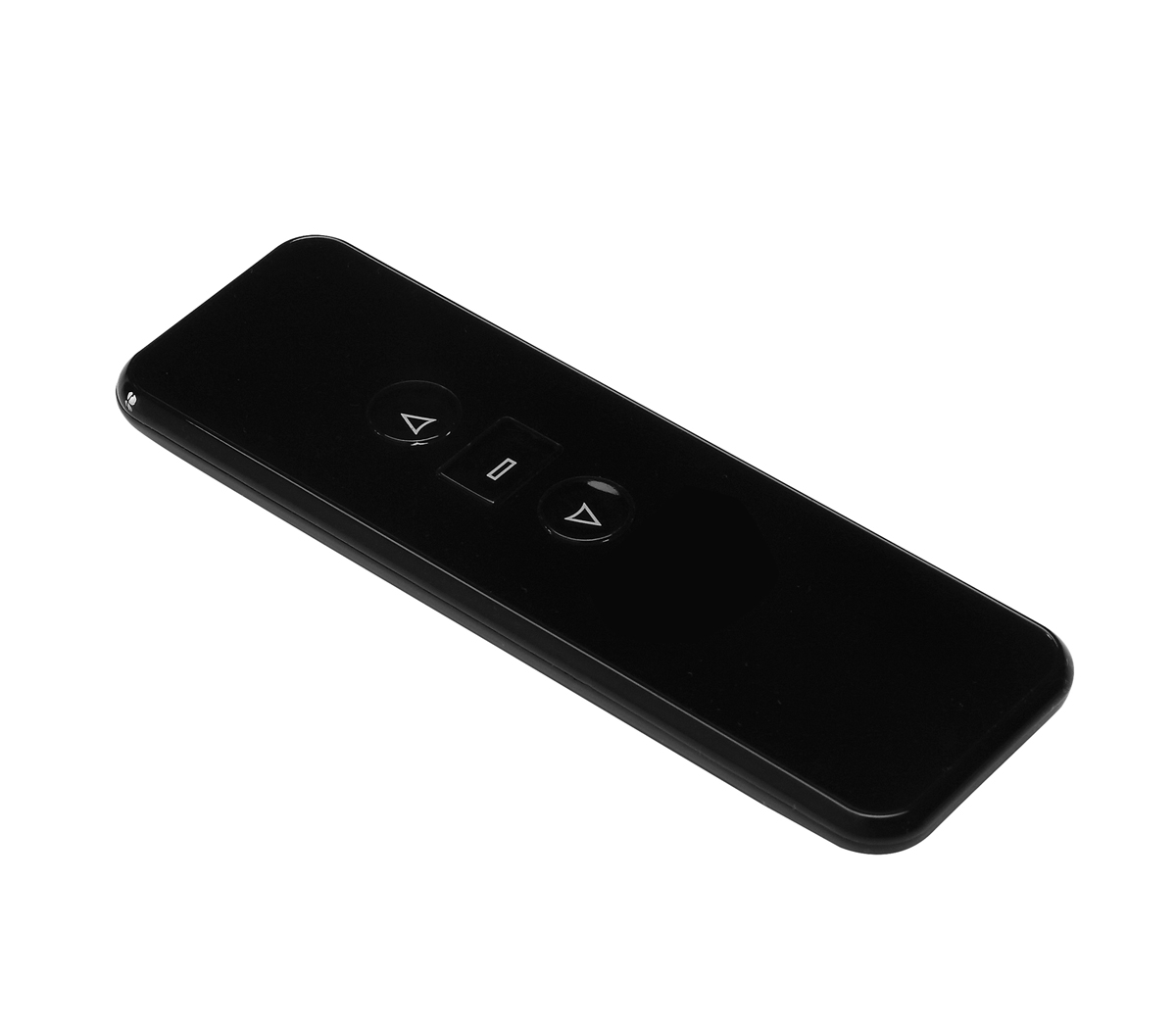

    • RF Remote Control
    Control Options
    • Wireless RF
    • RS485
  • Download
    GPCK-MB1000B Instruction
    GPCK-MB Drawing
    GPCK-MB Product Catalog
