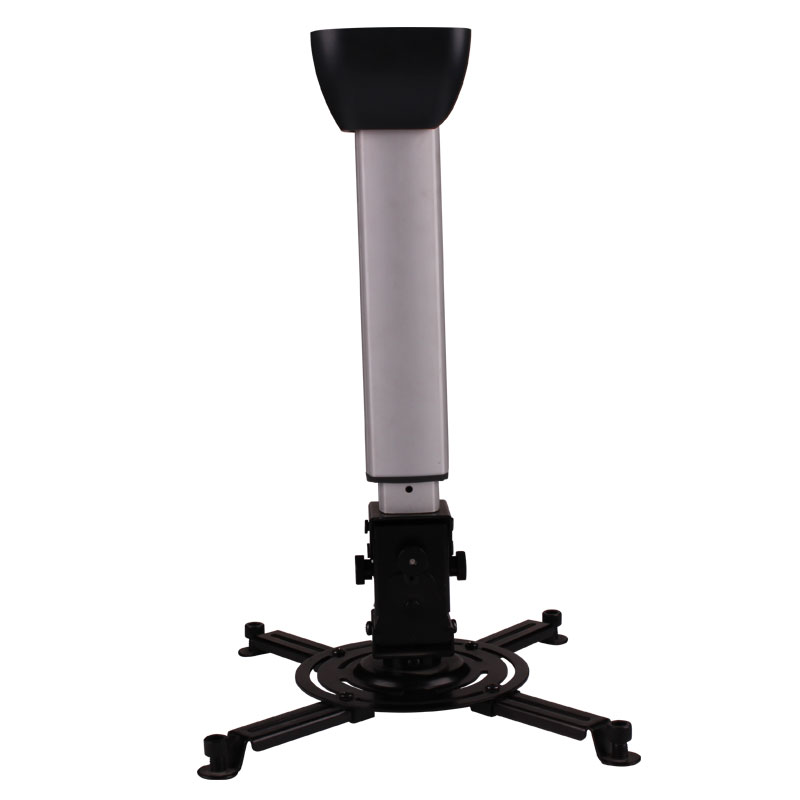

GPCN-D series

GPCN-D series

  • Wire is received
  • The telescopic rod adjusts the height
  • Can be tilted to adapt to the < 15 ° of smallpox
  • The projector can be tilted vertical installation feet plus or minus 15 °, horizontal tilt plus or minus 5 °
  • Specs
  • Drawing
  • Video
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GPCN-D3040
    • GPCN-D4060
    • GPCN-D3040II
    • GPCN-D4060II
    • GPCN-D100
    • GPCN-D200
    • GPCN-D100II
    • GPCN-D200II
      • Product Dimensions
        (D×W×H)mm
        270×270×310
      • Net Weight
        (kg)
        1.45
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        225-347
      • Precision
        mm
        310-432
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        270×270×420
      • Net Weight
        (kg)
        1.65
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        335-555
      • Precision
        mm
        420-640
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        265×265×320
      • Net Weight
        (kg)
        1.45
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        225-347
      • Precision
        mm
        310-432
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        265×265×420
      • Net Weight
        (kg)
        1.65
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        335-555
      • Precision
        mm
        420-640
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        100×270×270
      • Net Weight
        (kg)
        1.3
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        100
      • Precision
        mm
        100
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        270×270×202
      • Net Weight
        (kg)
        1.42
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        200
      • Precision
        mm
        200
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        270×270×100
      • Net Weight
        (kg)
        1.3
      • Max Travel
        (mm)
        100
      • Precision
        mm
        100
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5
      • Product Dimensions
        (D×W×H)mm
        270×270×202
      • Net Weight
        (kg)
        1.42
      • Max Load
        (kg)
        10
      • Max Travel
        (mm)
        200
      • Precision
        mm
        200
      • Angle Adjustments
        Up/Down/Left/Right
        15 15 5 5

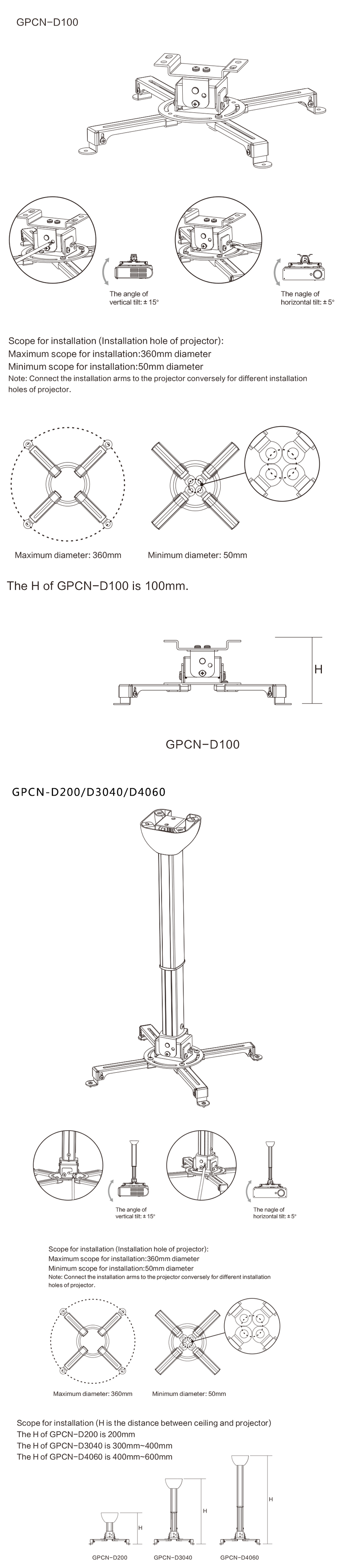

  • Sketch
  • Video
  • Download
    User manual for GPCN-D .pdf
    User manual for GPCN-D II.pdf
