GSAT 65 Series

Iron Hand

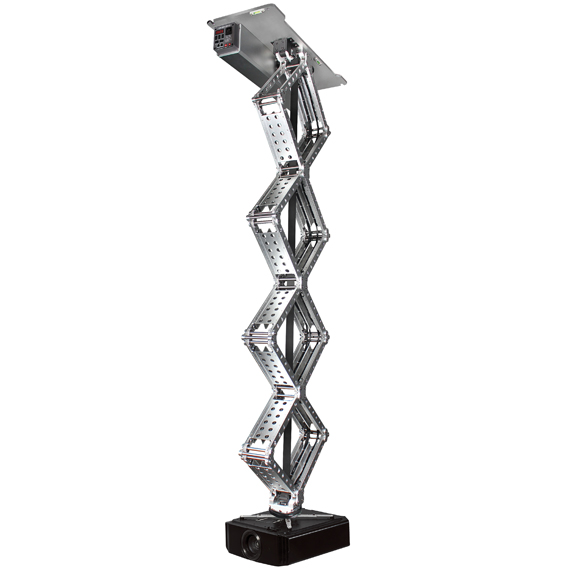

  • GSAT series electric lifting X-type Iron hand, which is used to move down to a suitable height when in use. It is used in hotel banquet halls, exhibition venues, multi-functional conference studios, stages, and large shopping malls. It is used to directly suspend the lights and hide storage the cables and the film and TV after using to maintain the beautiful appearance of the decoration environment. The perfect combination of exquisite craftsmanship and intelligent lift brings a magnificent postmodern visual effect to the application.
  • .All-aluminum alloy is refined, beautiful and elegant.

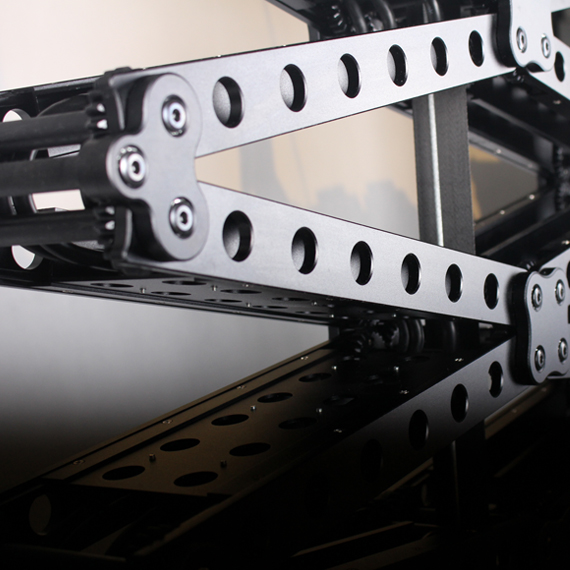

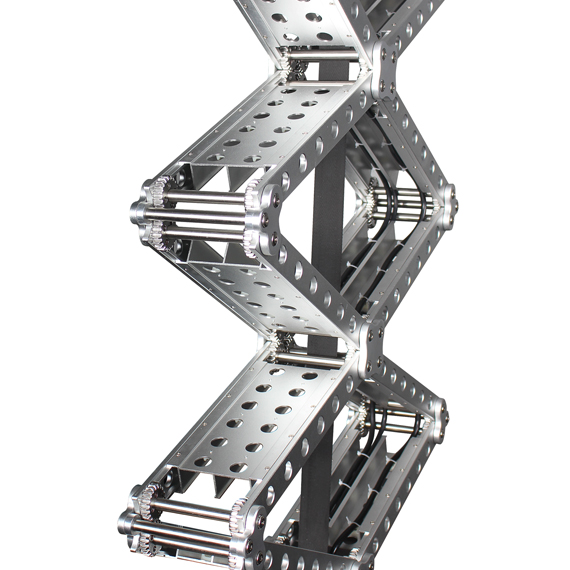

  • .X type unique design, 118 ° gear mesh lock, no risk of falling.
  • .Industrial long running motor, suitable for high frequency and long time use.
  • . Wire rope traction, 10 times safety factor.
  • .Added independent fall arrester, fall arrest rope, multiple protection.
  • .Using digital stroke positioning, repeated operation error is less than 2mm.

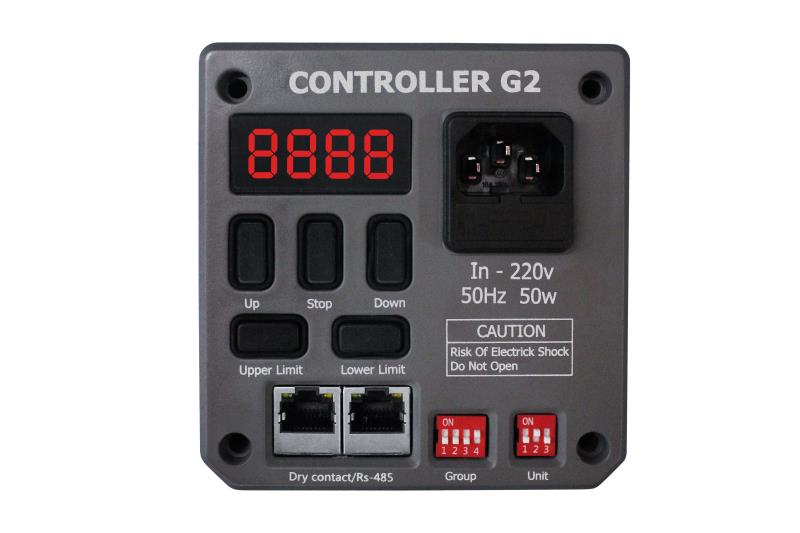

  • .RF / electric dry contact / RS-485 control mode.
  • .The standard power cable X1, category 6 network X1, HDMIX1 are stored in the Iron hand
  • .Load capacity ≤40kg.

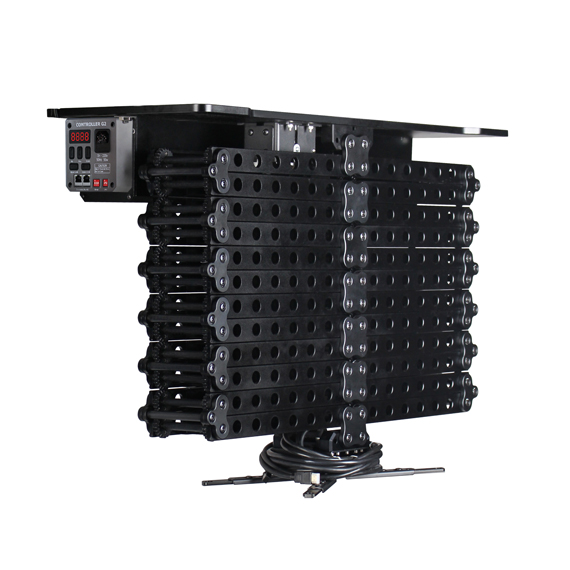

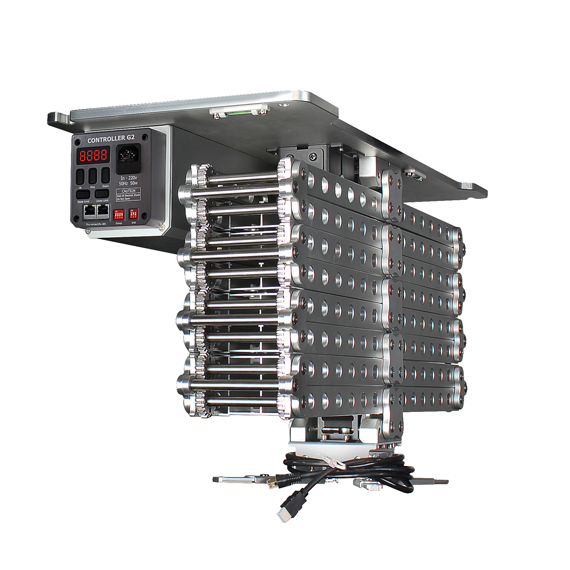

  • .Optional color silver / black.
  • Specs

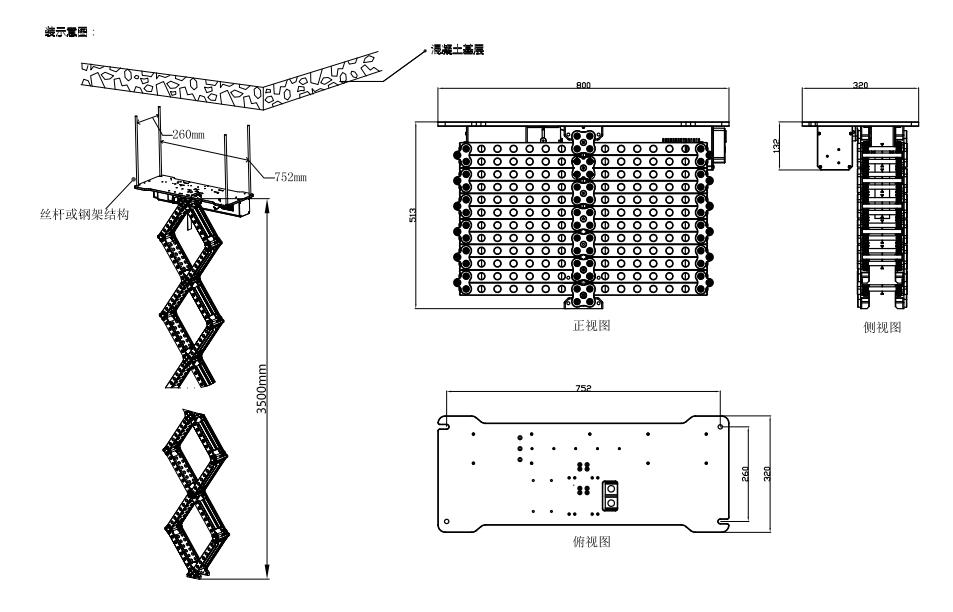

  • Drawing
  • Options
  • Download
  • FAQ

  • Share

  • Specs
    Model
    • GSAT-6553
    • GSAT-6547
    • GSAT-6541
    • GSAT-6535
    • GSAT-6529
    • GSAT-6523
    • GSAT-6517
    • GSAT-6512
    • GSAT-6506
      • Product Dimensions(mm)

        805×320×723
      • Net Weight(kg)

        73
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        5300
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        773
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        83
      • Packing Dimensions
        (D×W×H)mm
        420x1075x823
      • Product Dimensions(mm)

        805×320×653
      • Net Weight(kg)

        67
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        4700
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        703
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        77
      • Packing Dimensions
        (D×W×H)mm
        420x1075x823
      • Product Dimensions(mm)

        805×320×583
      • Net Weight(kg)

        61
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        4100
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        633
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        71
      • Packing Dimensions
        (D×W×H)mm
        420x1075x823
      • Product Dimensions(mm)

        805×320×513
      • Net Weight(kg)

        55
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        3500
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        563
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        65
      • Packing Dimensions
        (D×W×H)mm
        420x680x823
      • Product Dimensions(mm)

        805×320×443
      • Net Weight(kg)

        49
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        2900
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        493
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        59
      • Packing Dimensions
        (D×W×H)mm
        420x860x823
      • Product Dimensions(mm)

        805×320×373
      • Net Weight(kg)

        43
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        2300
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        423
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        53
      • Packing Dimensions
        (D×W×H)mm
        420x740x823
      • Product Dimensions(mm)

        805×320×303
      • Net Weight(kg)

        37
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        1700
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        353
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        47
      • Packing Dimensions
        (D×W×H)mm
        420x740x823
      • Product Dimensions(mm)

        805×320×233
      • Net Weight(kg)

        31
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        1200
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        283
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        41
      • Packing Dimensions
        (D×W×H)mm
        420x680x823
      • Product Dimensions(mm)

        805×320×163
      • Net Weight(kg)

        25
      • Max Projector Dimensions
        (With Wire And Lens)(mm)
        620x280x730
      • Max Load(kg)

        40
      • Power(w)

        60
      • Max Travel(mm)
        600
      • Precision(mm)
        ≤1mm
      • Noice(dB)
        ≤55dB
      • Voltage(v)
        220V/110V
      • jib attachment(mm)
        260x776
      • Required Ceiling
        Opening Height(mm)
        213
      • Angle Adjustments
        Up/Down/Left/Right
        1 8 3 3
      • Dry Contact(Y/N)

        Y
      • 485 Control(Y/N)

        Y
      • The Six Kind
        Of Network Cable
        1
      • HDMI 2.0

        1
      • Power Cord

        1
      • Package + Total Product
        Weight
        (kg)
        35
      • Packing Dimensions
        (D×W×H)mm
        420x680x823
  • Sketch
  • Download
    GSAT Series Instruction
