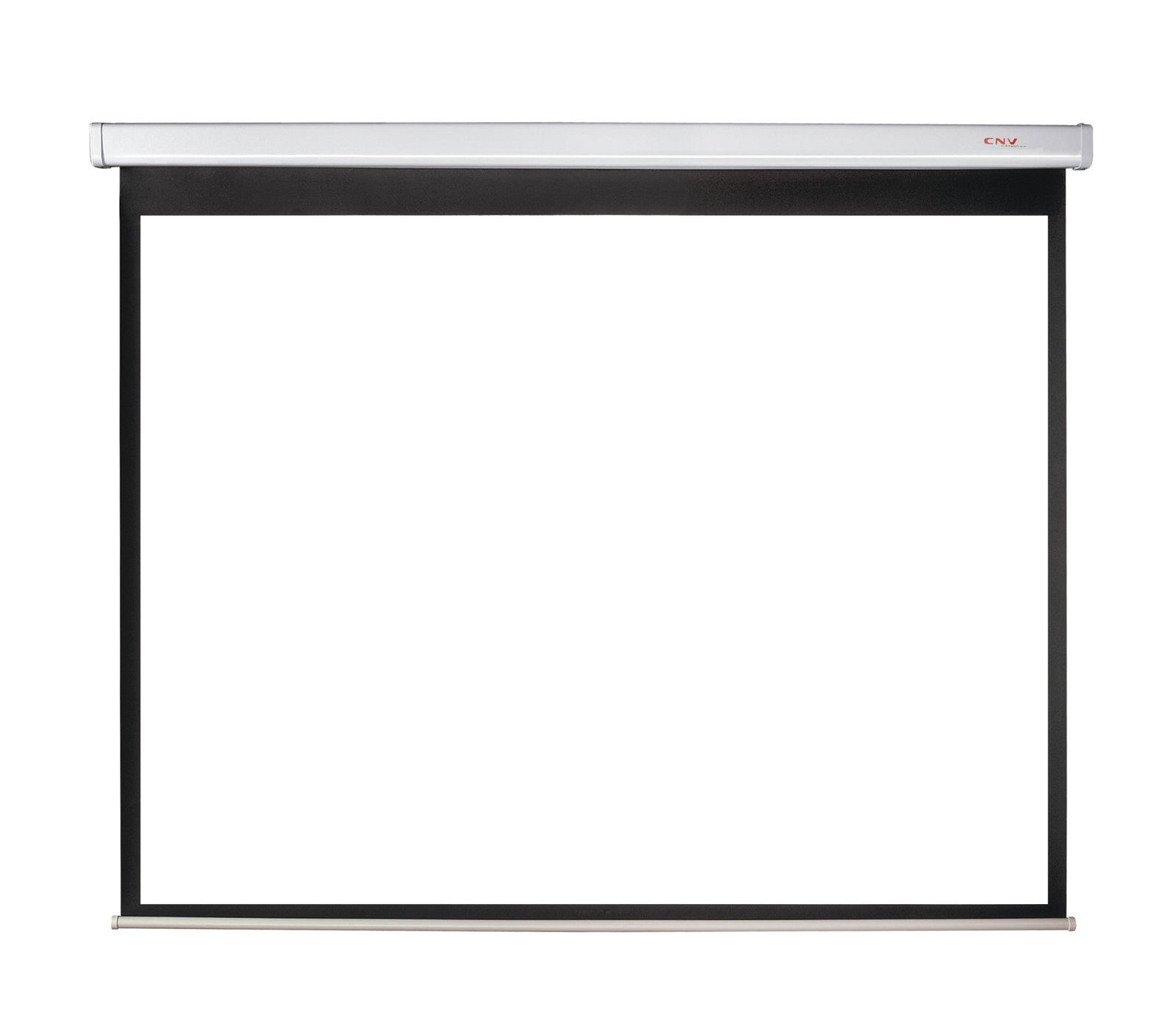

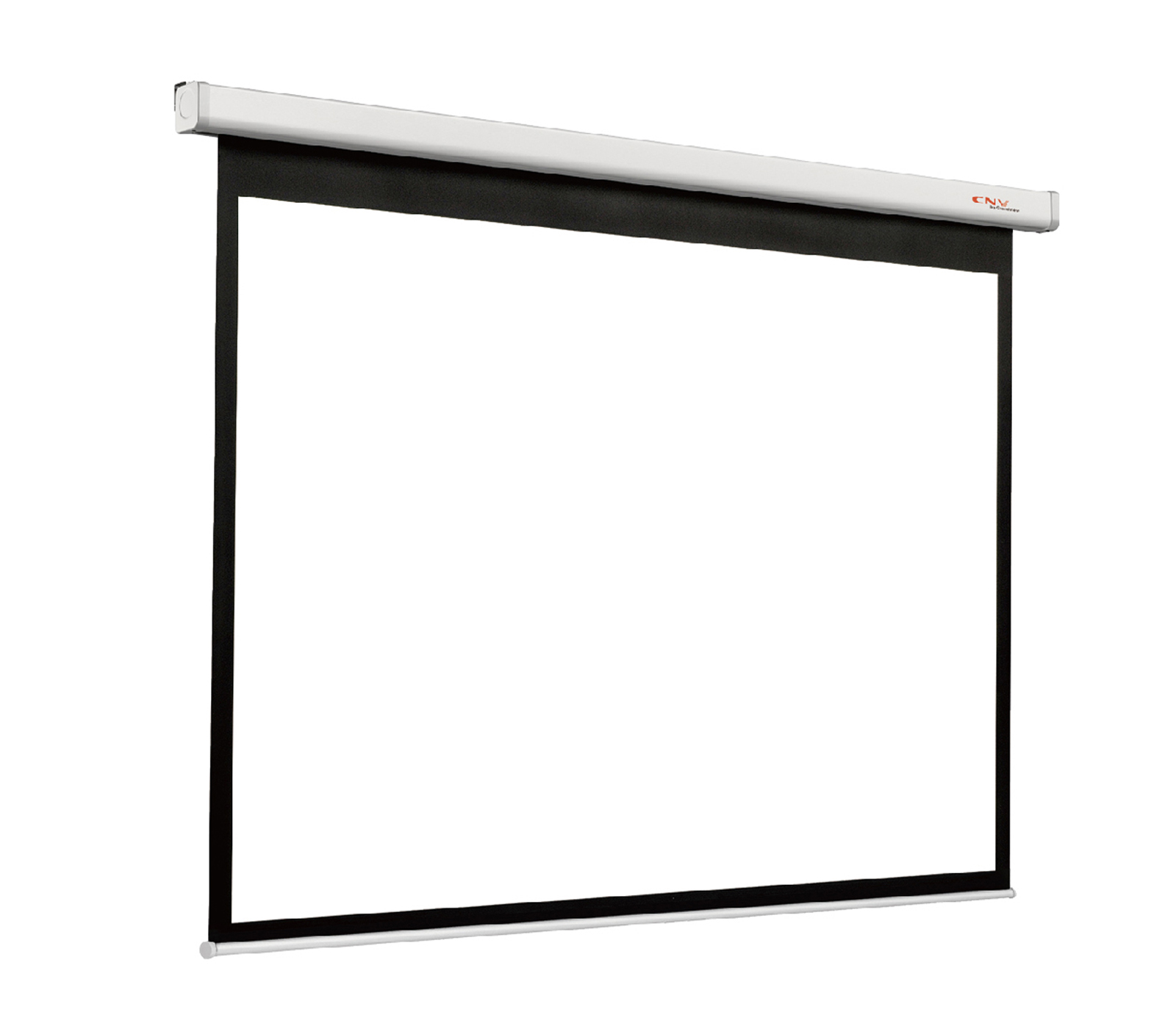

CNV Series Motorized Screen

  • The simple, square shaped metal casing gives the CNV Series a durable look.The CNV brackets give users the option of wall mount,ceiling mount or ceiling hang.This model is the perfect choice for economical educational budgets and applications.


  • • Sizes: 92” – 150” diagonal
  • • Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount (using the “L bracket”)
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White

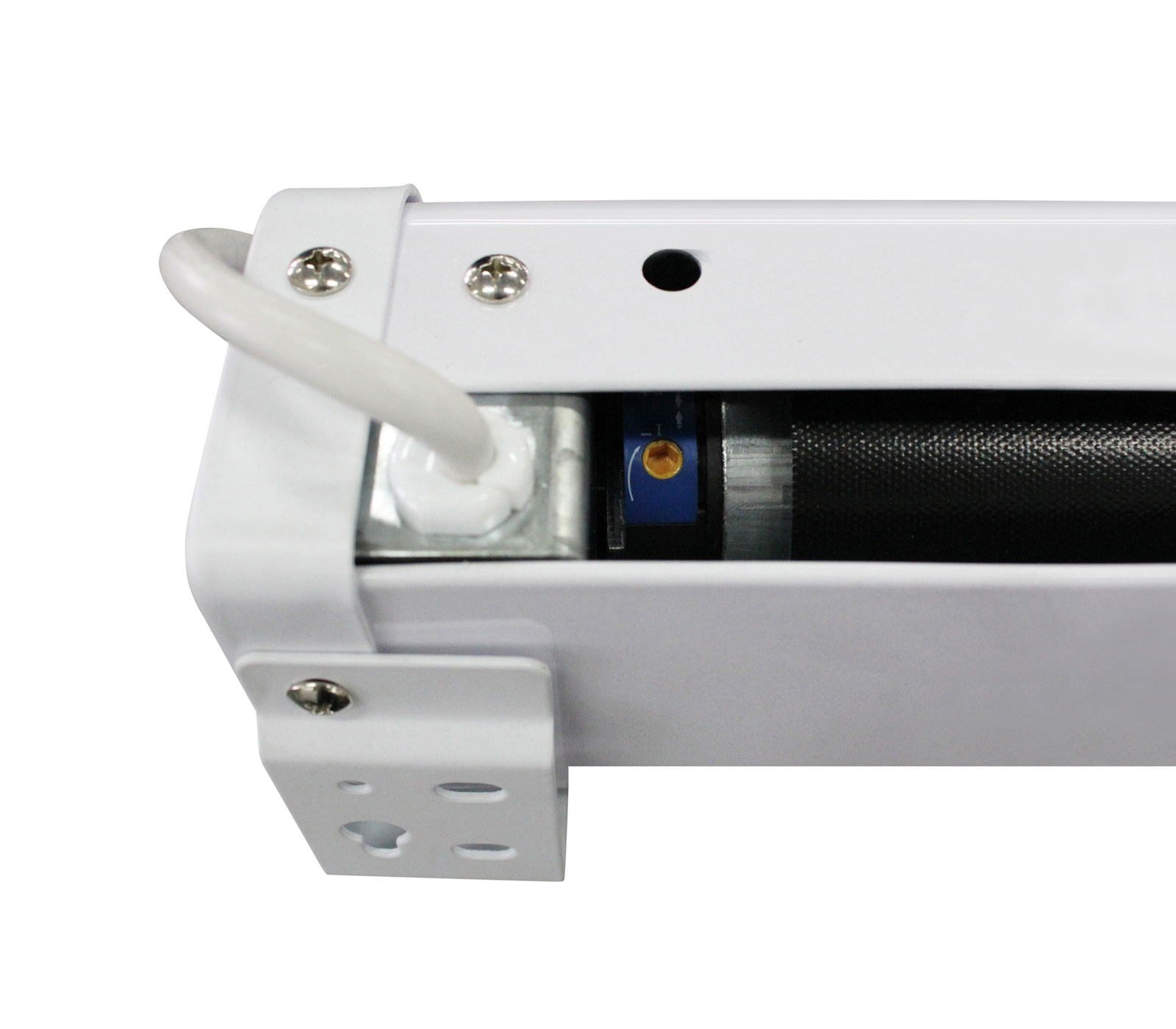

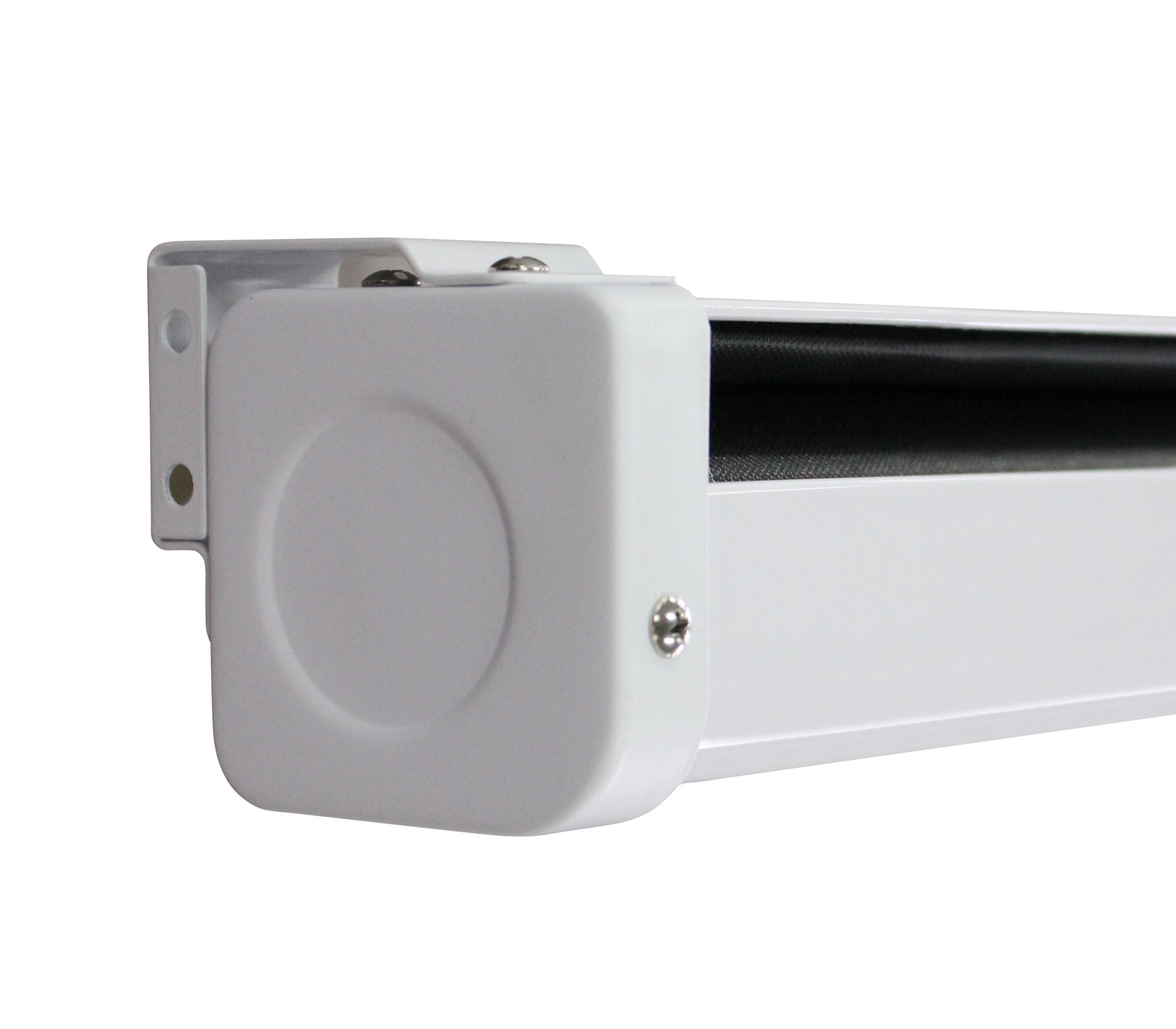

  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard Control Options

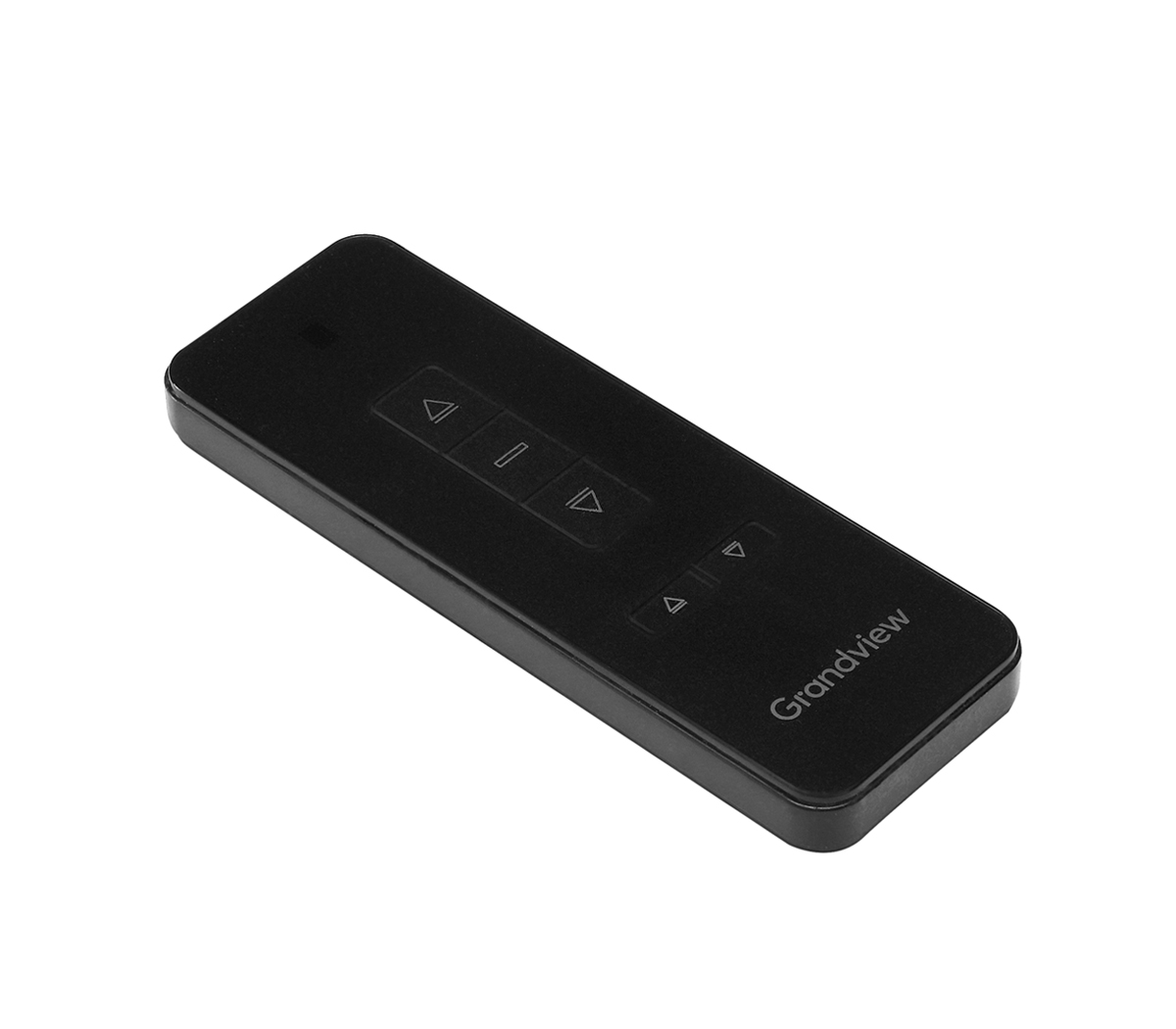

    • IR Remote Control

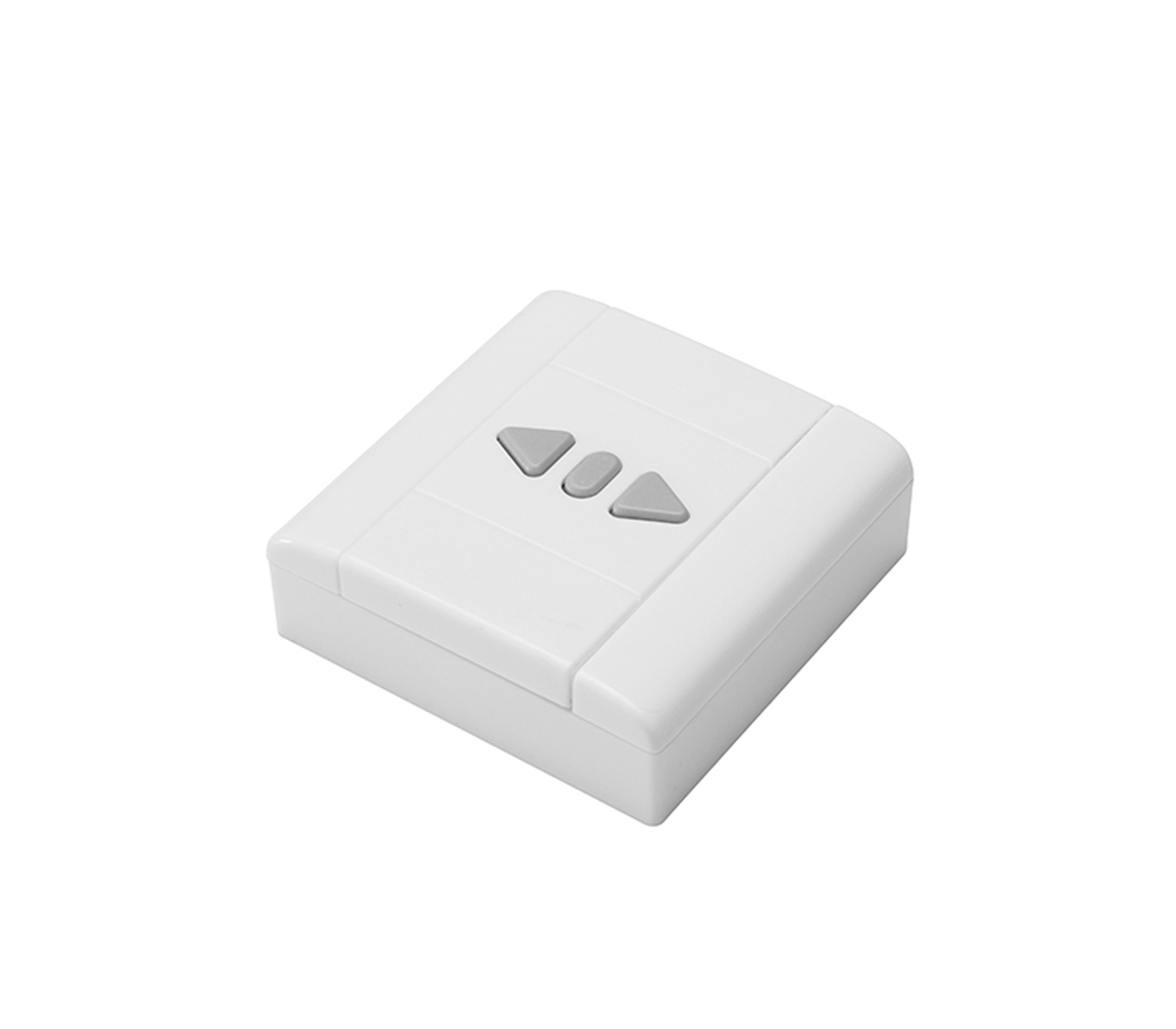

    • Wall Swtich

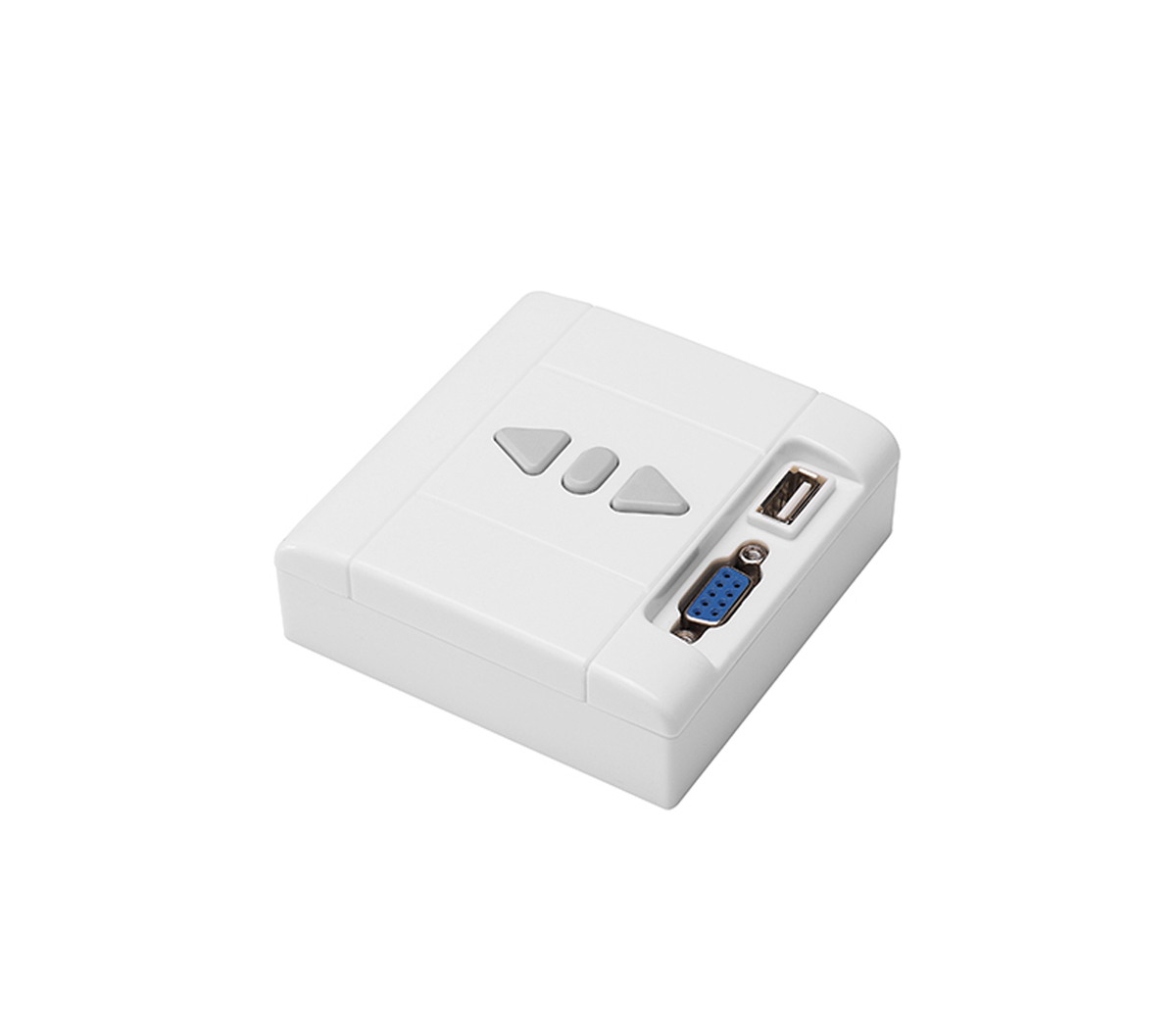

    • Smart Wall Switch

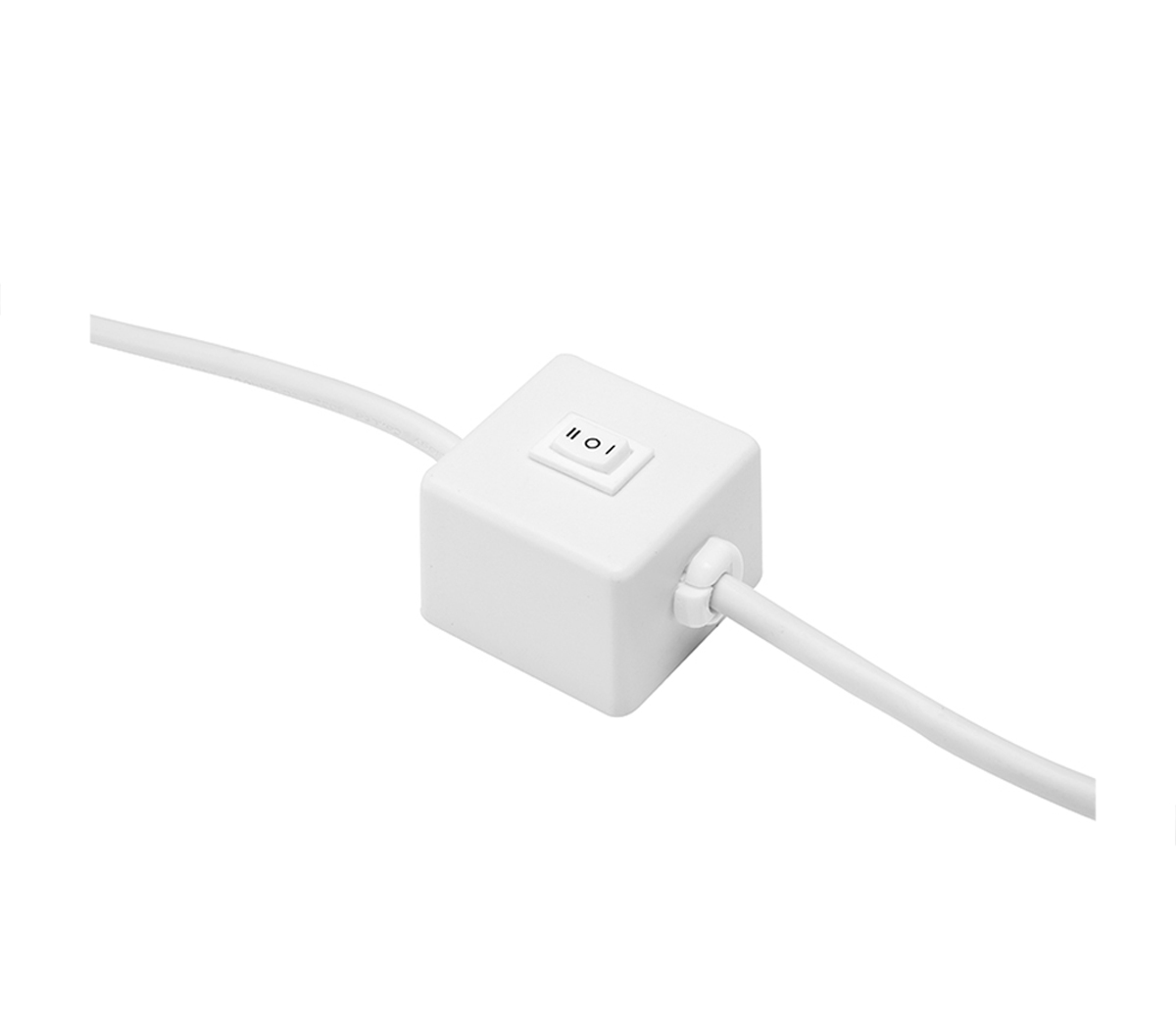

    • In-Line Switch
    Standard Accessories

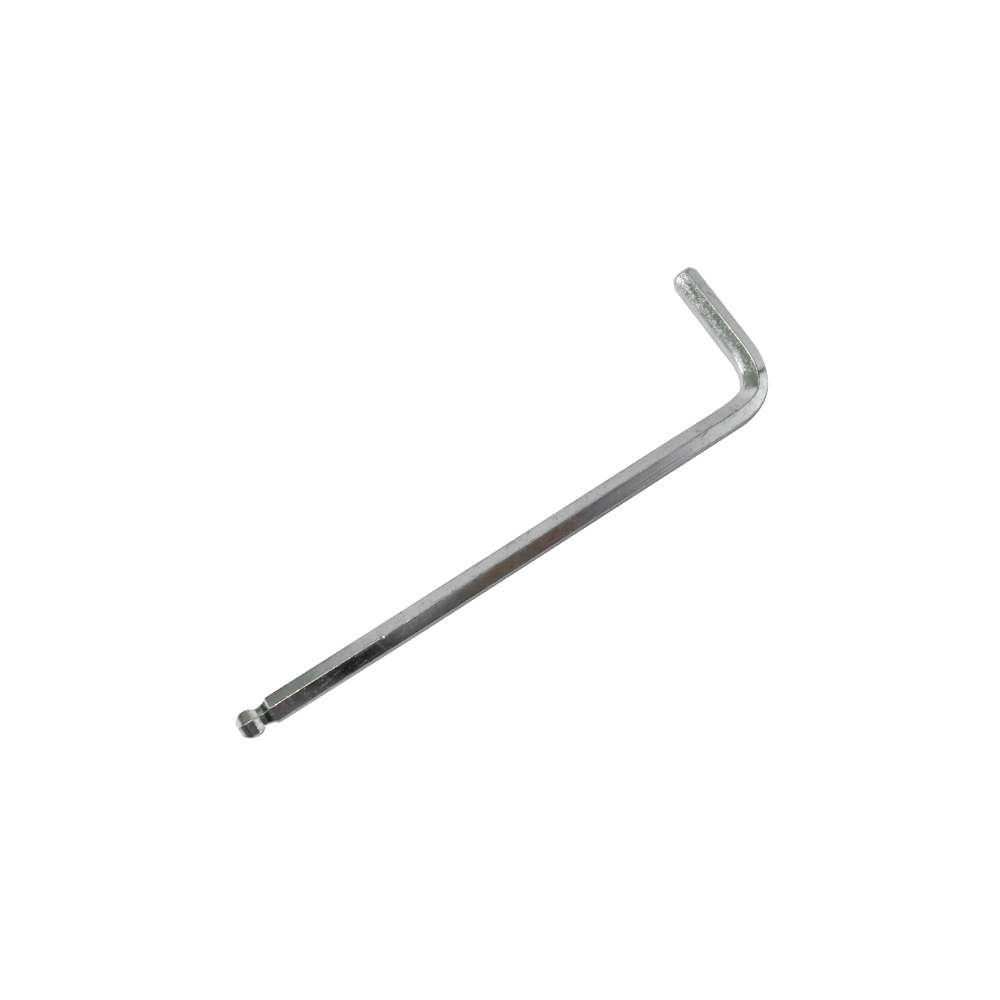

    • Limit Adjustment Tool
    External Control Options

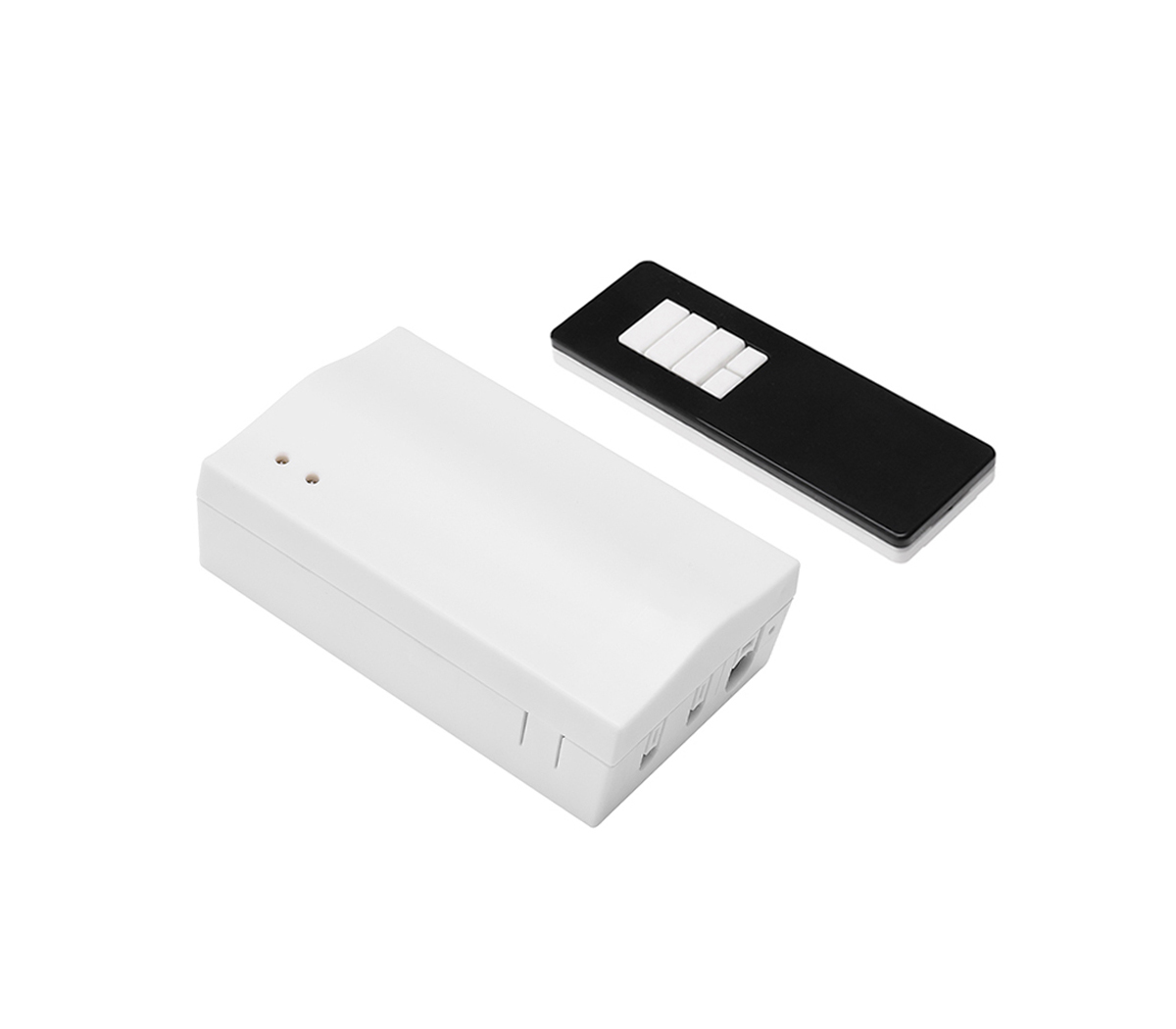

    • External RF Control System

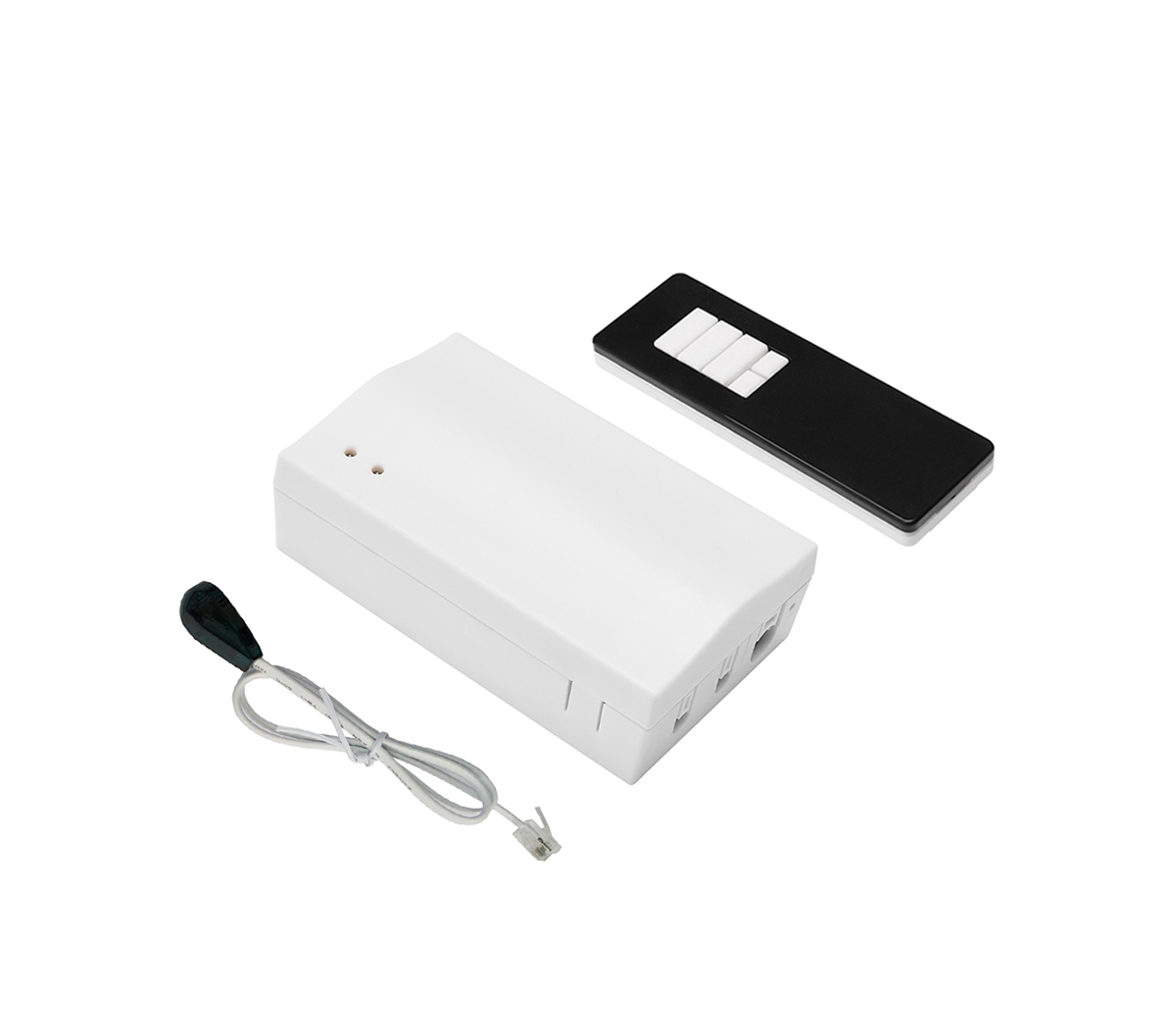

    • External IR Control System

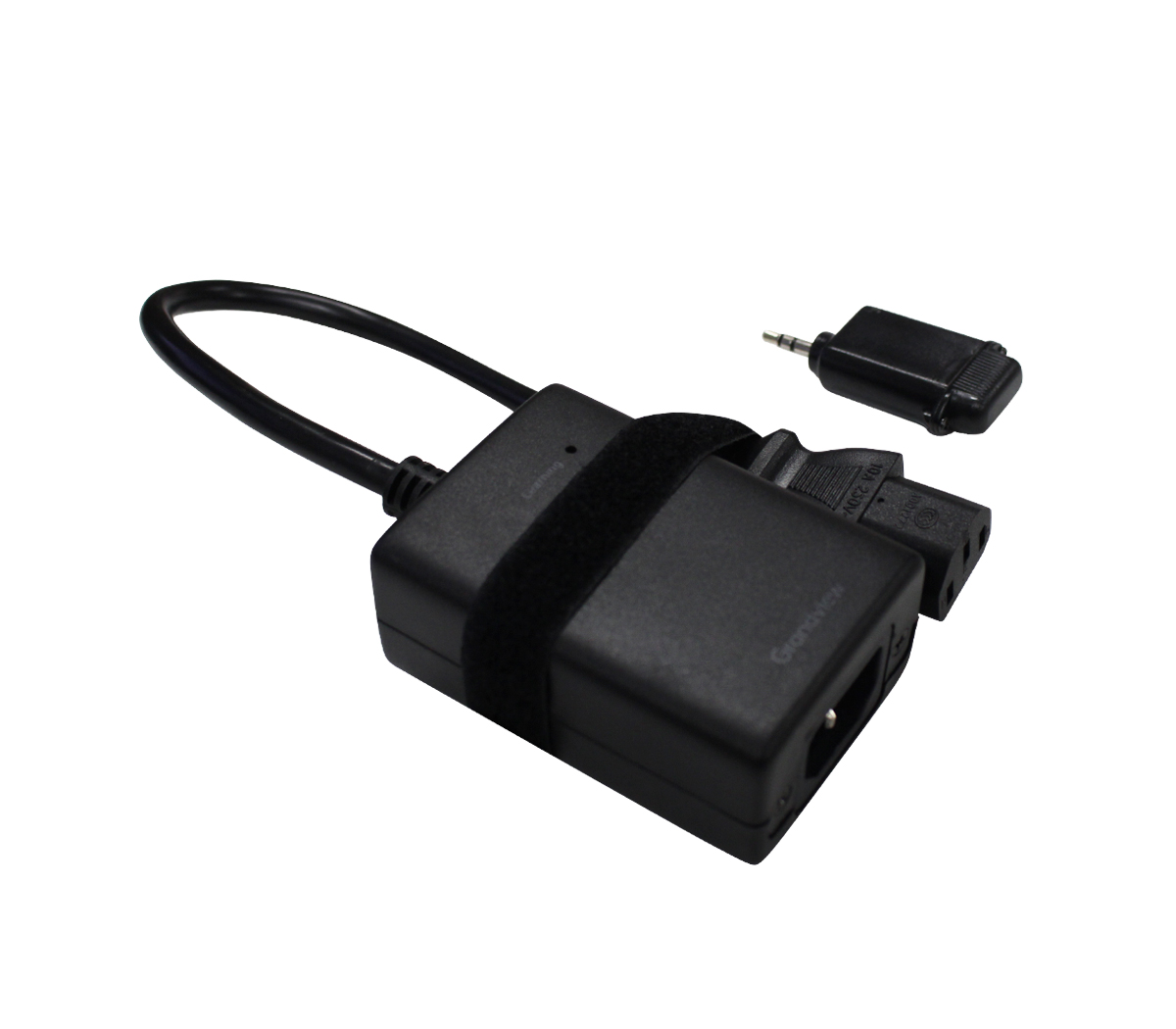

    • Power Synchro Relay

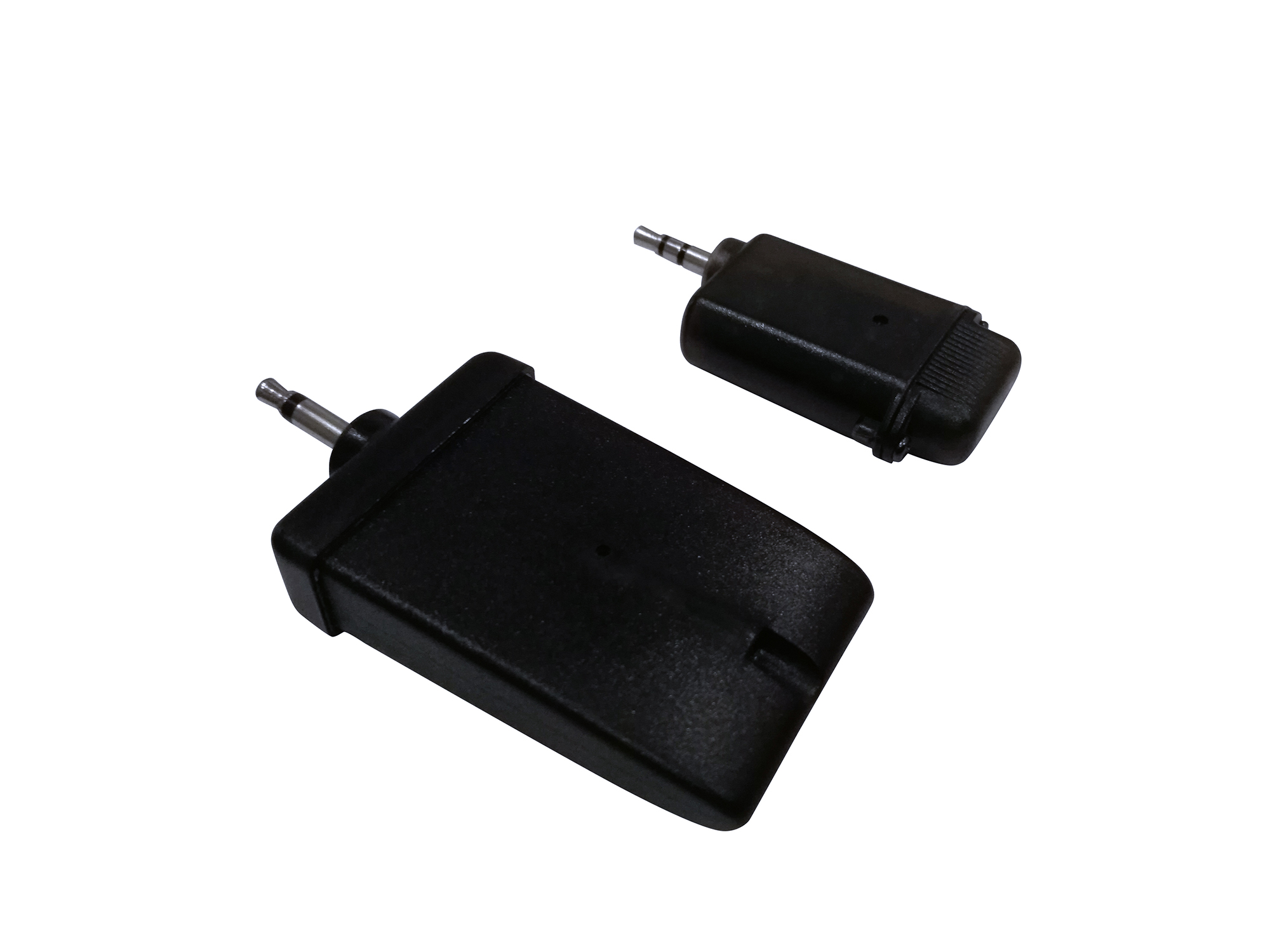

    • RF Wireless Trigger

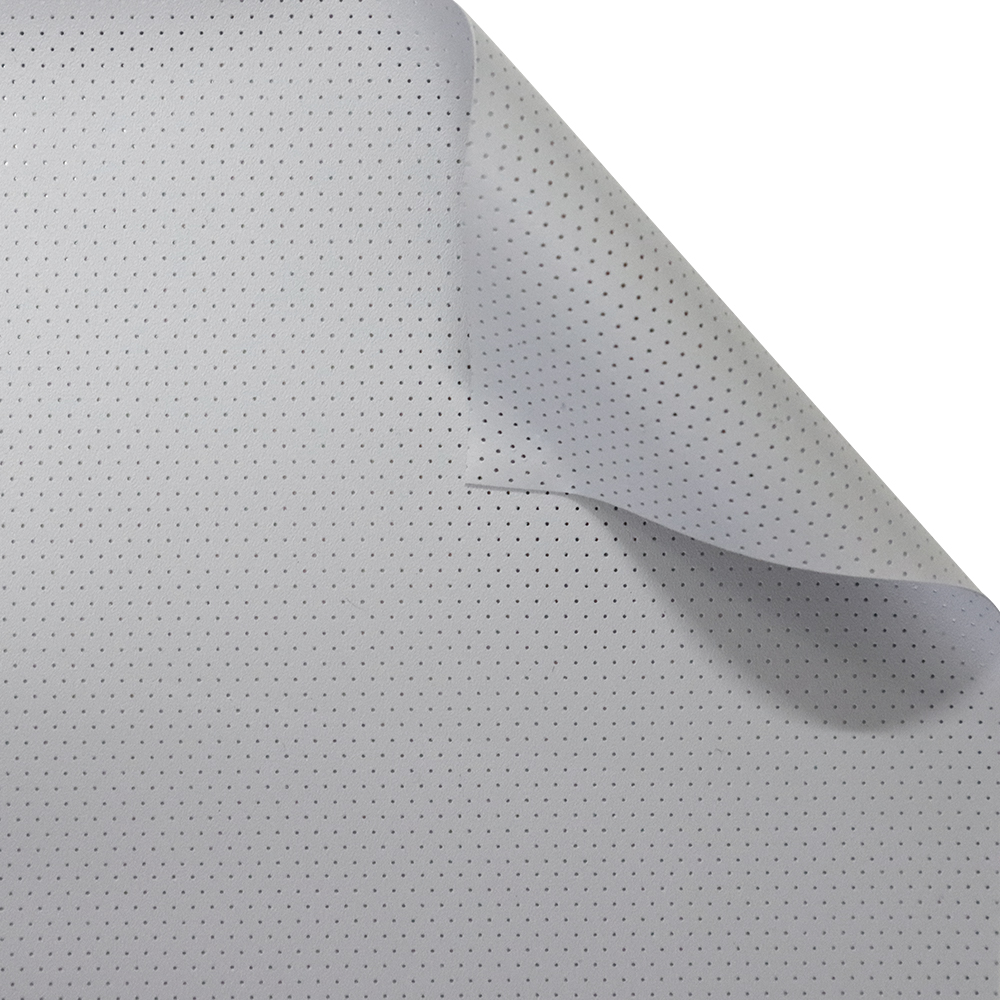

  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WP5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • Model
      • 1:1
      • 4:3
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        2030 × 2030
        2245
        80
        55
        50
        2395
        79
        78
        96"
        2338 × 2338
        2641
        80
        80
        50
        2572
        113
        113
        100"
        2540 × 2540
        2843
        80
        80
        50
        2774
        113
        113
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1710 × 1280
        1495
        80
        55
        50
        2091
        79
        78
        100"
        2030 × 1520
        1735
        80
        55
        50
        2395
        79
        78
        120"
        2338 × 1755
        1970
        80
        55
        48
        2699
        79
        78
        145"
        2945 × 2210
        2510
        80
        80
        50
        3179
        110
        110
        150"
        3048 × 2286
        2586
        80
        80
        50
        3282
        110
        110
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2030 × 1145
        1930
        650
        55
        50
        2395
        79
        78
        100"
        2214 × 1245
        1930
        550
        55
        50
        2579
        79
        78
        106"
        2338 × 1320
        1955
        500
        55
        48
        2699
        79
        78
        120"
        2656 × 1494
        2114
        400
        80
        50
        2890
        110
        110
        133"
        2945 × 1655
        2175
        300
        80
        50
        3179
        110
        110
        138"
        3048 × 1715
        2235
        300
        80
        50
        3282
        110
        110
