Portable Series
X/Y-Press Pull-Up Screen

  • Grandview’s X-Press and Y-Press are patented self-standing screens that can be set up in 3 seconds. Its unique design allows it to be positioned at any height. The expansion and retraction process are smooth and stable, requiring minimal effort or strength.

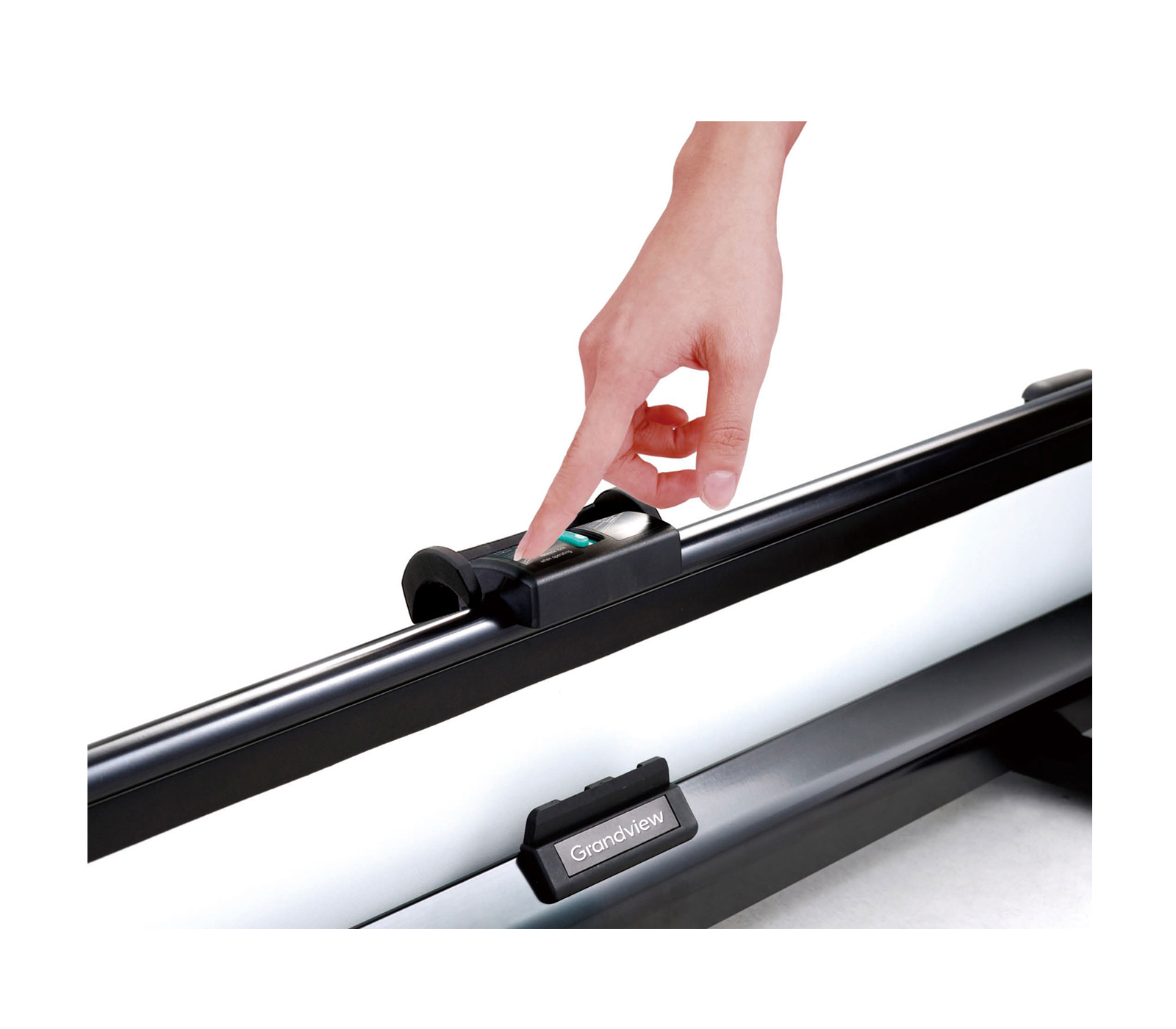

  • • Simple locking mechanism makes it easy and safe to transport and use
  • • Adjustable knobs for uneven surface
  • • Sizes: 60” – 100” diagonal
  • • Colour: Black
  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Fabrics
    • WM4
      • Viewing
        Angle
        160 °
      • Gain
        1.0
  • Specs
    • X-Press
    • Y-Press
    • Model
      • 4:3
      • 16:9
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        60"
        1219 × 914
        1764
        700
        25
        35
        1380
        125
        113
        70"
        1422 × 1067
        2017
        800
        25
        35
        1582
        125
        113
        72"
        1463 × 1097
        2047
        800
        25
        35
        1623
        125
        113
        80"
        1626 × 1219
        2069
        700
        25
        35
        1785
        125
        113
        84"
        1707 × 1280
        2130
        700
        25
        35
        1867
        125
        113
        100"
        2032 × 1524
        2374
        700
        25
        34
        2192
        125
        113
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        60"
        1328 × 747
        1597
        700
        25
        35
        1488
        125
        113
        70"
        1550 × 871
        1821
        800
        25
        35
        1710
        125
        113
        80"
        1771 × 995
        1945
        800
        25
        28
        1930
        125
        113
        84"
        1860 × 1045
        1995
        800
        25
        35
        2020
        125
        113
        92"
        2036 × 1145
        1995
        700
        25
        32
        2192
        125
        113
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        60"
        1219 × 914
        1714
        650
        25
        35
        1380
        125
        113
        70"
        1422 × 1067
        1942
        725
        25
        35
        1582
        125
        113
        80"
        1626 × 1219
        2179
        810
        25
        35
        1785
        125
        113
        100"
        2032 × 1524
        2494
        820
        25
        34
        2192
        125
        113
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        60"
        1328 × 747
        1737
        840
        25
        35
        1488
        125
        113
        70"
        1550 × 871
        1821
        800
        25
        35
        1710
        125
        113
        80"
        1771 × 996
        1946
        800
        25
        27
        1930
        125
        113
        92"
        2036 × 1145
        2130
        835
        25
        32
        2192
        125
        113
        100"
        2214 × 1245
        2295
        900
        25
        30
        2364
        125
        113
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        65"
        1400 × 914
        N/A
        125
        1488
        825
        113
        1864
        N/A
        85"
        1831 × 1219
        N/A
        125
        1930
        780
        113
        2124
        N/A
        100"
        2154 × 1346
        2296
        800
        25
        50
        2364
        125
        113
