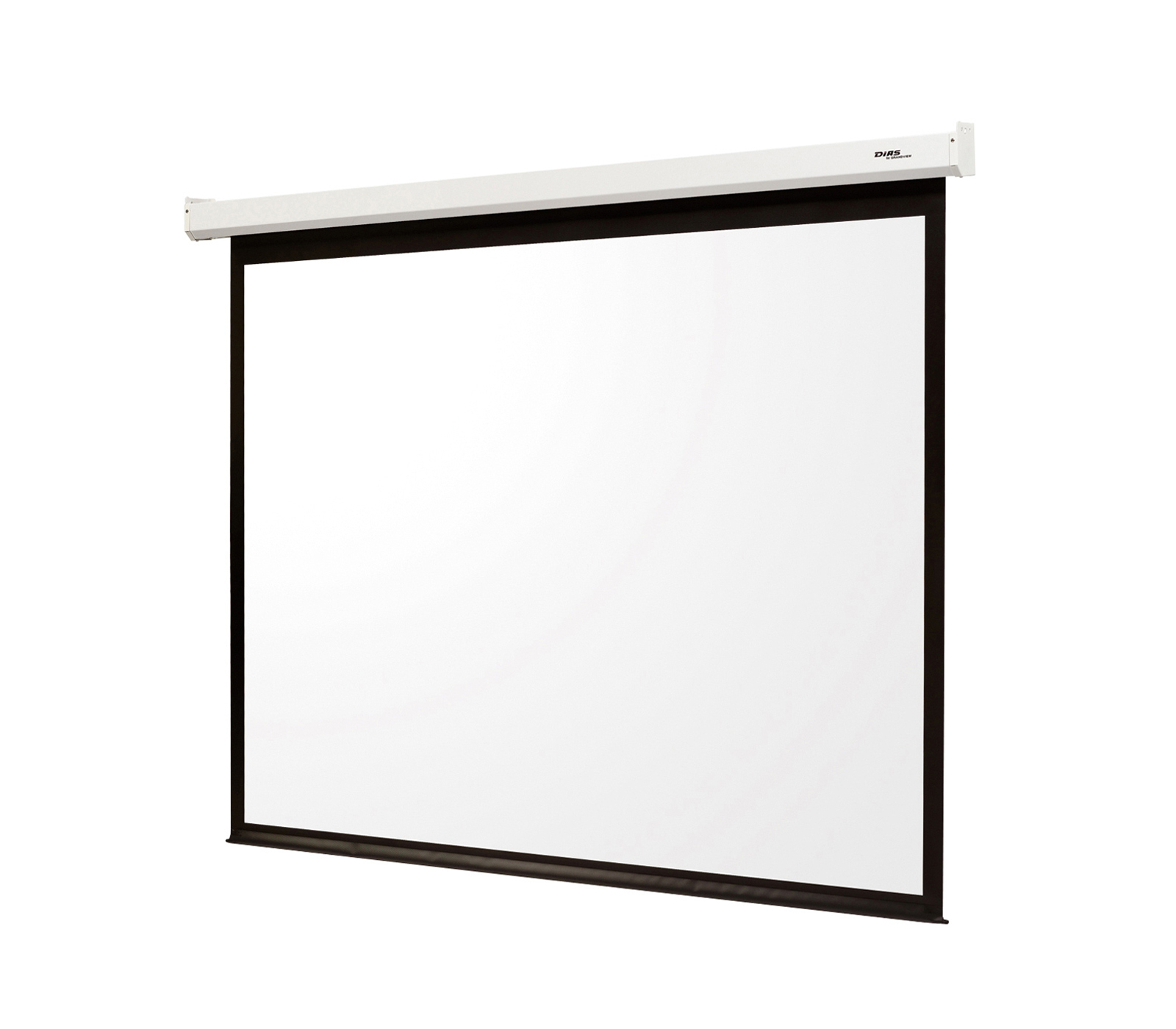

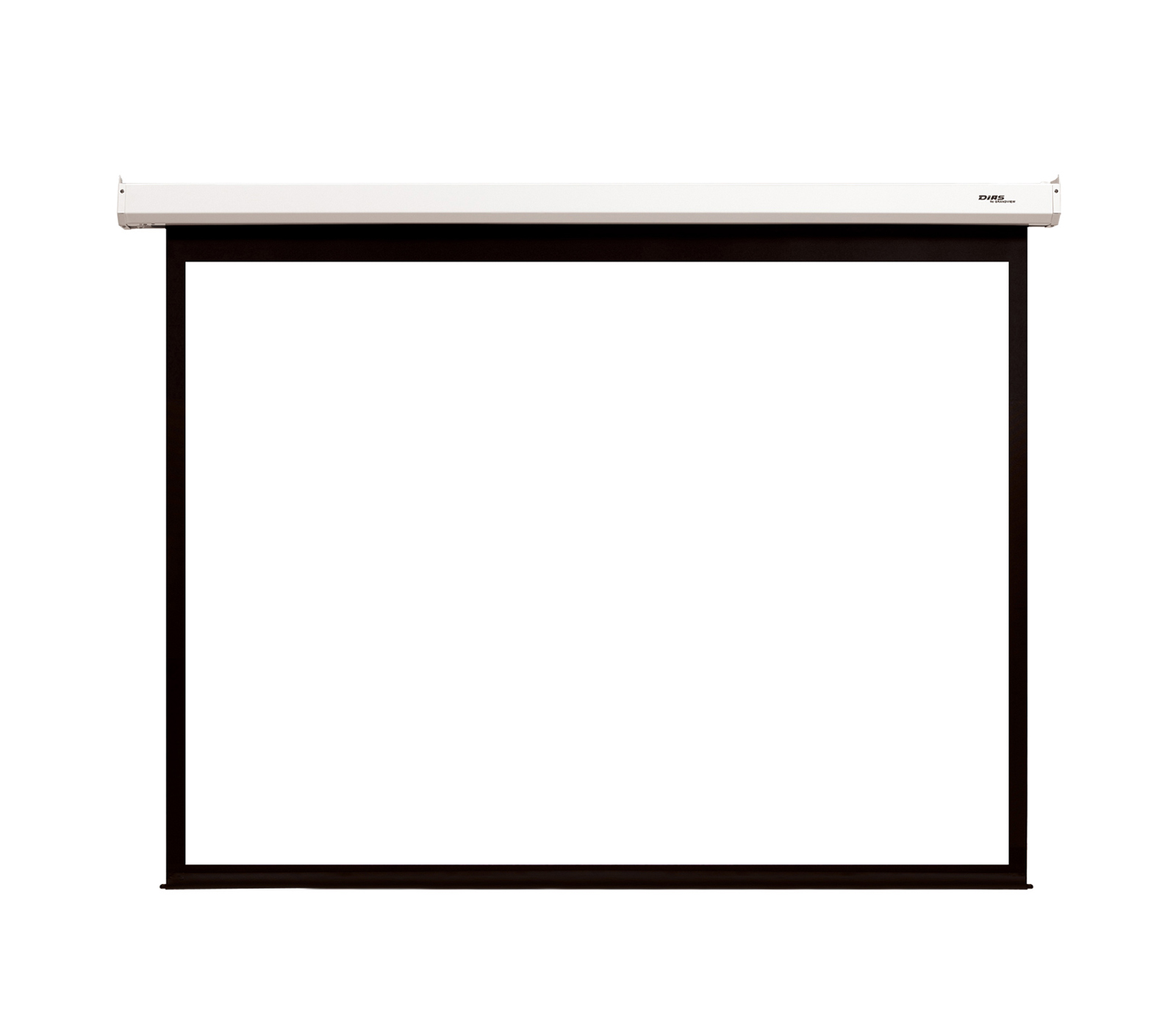

Dias Series Motorized Screen

  • The DIAS Series screen is the perfect balance of practicability and integrated control functions all in a economical package. The screen's simple but durable design features a sprayed metal coating, quiet tubular motor and multi-control and fabric options. It's the ideal cost-effective choice for a simple install environments.


  • • Sizes: 92” – 200” diagonal
  • • Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White

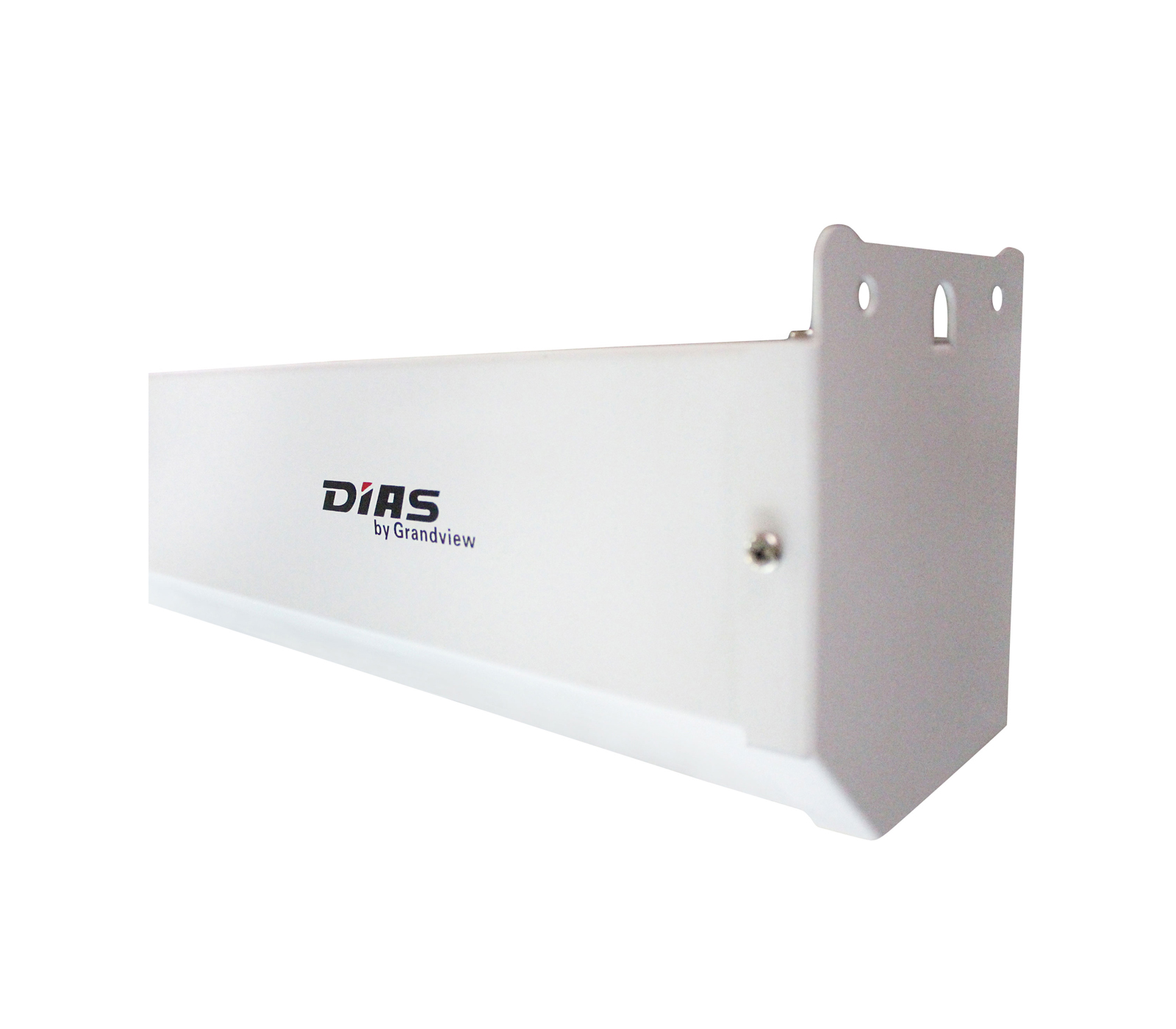

  • • Sheet Metal Casing
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard Control Options

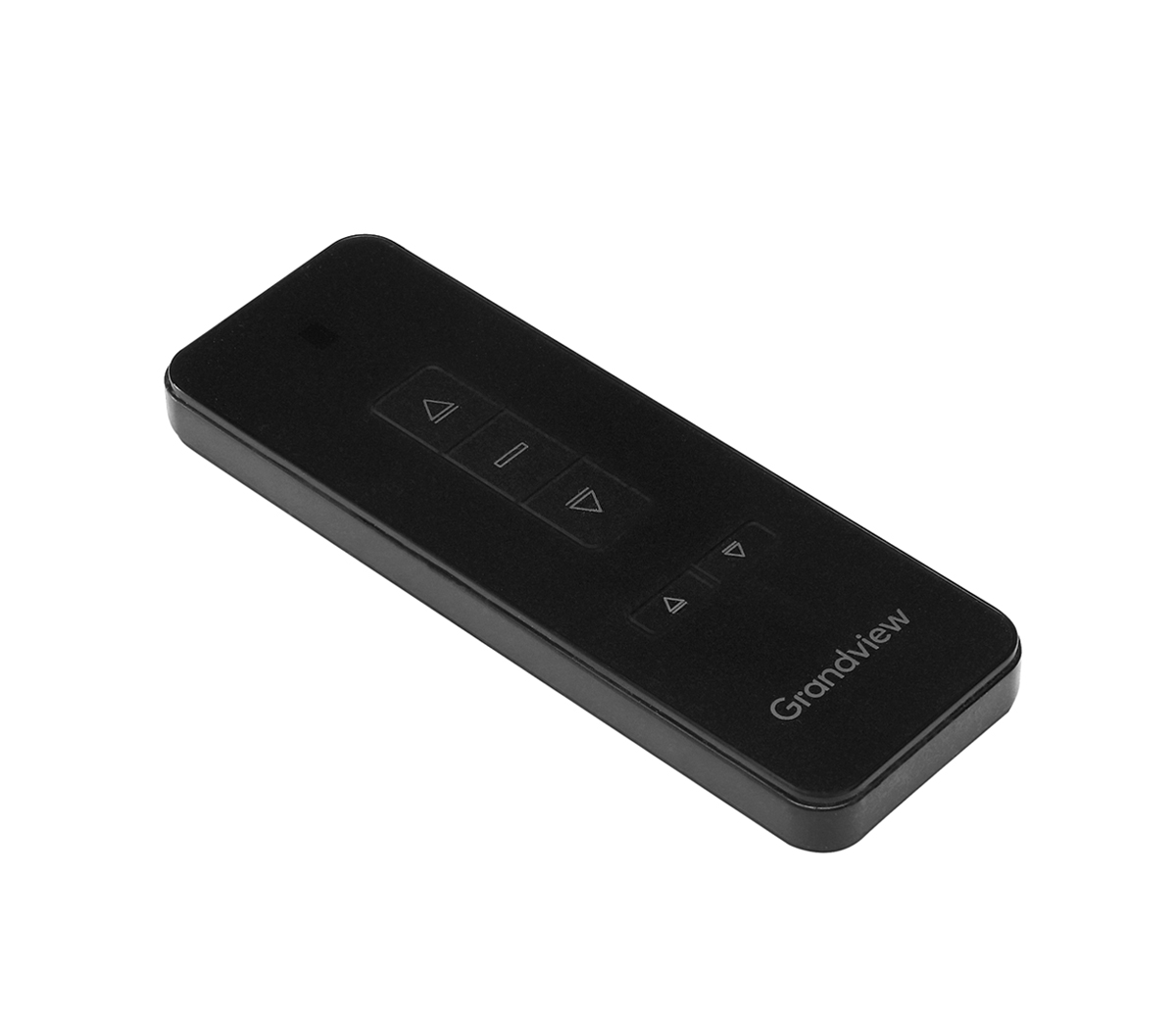

    • IR Remote Control (MI Series only)

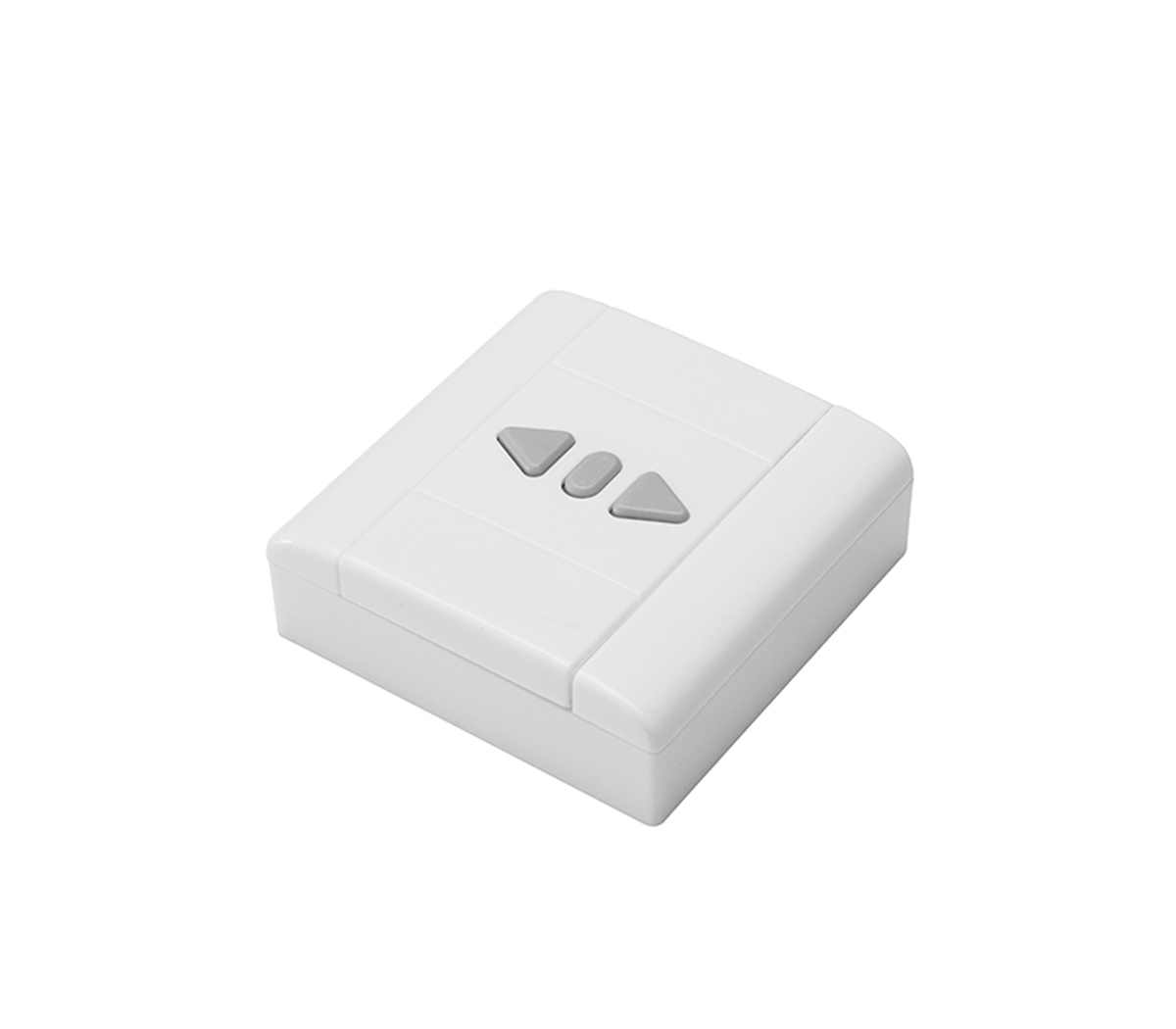

    • Wall Swtich

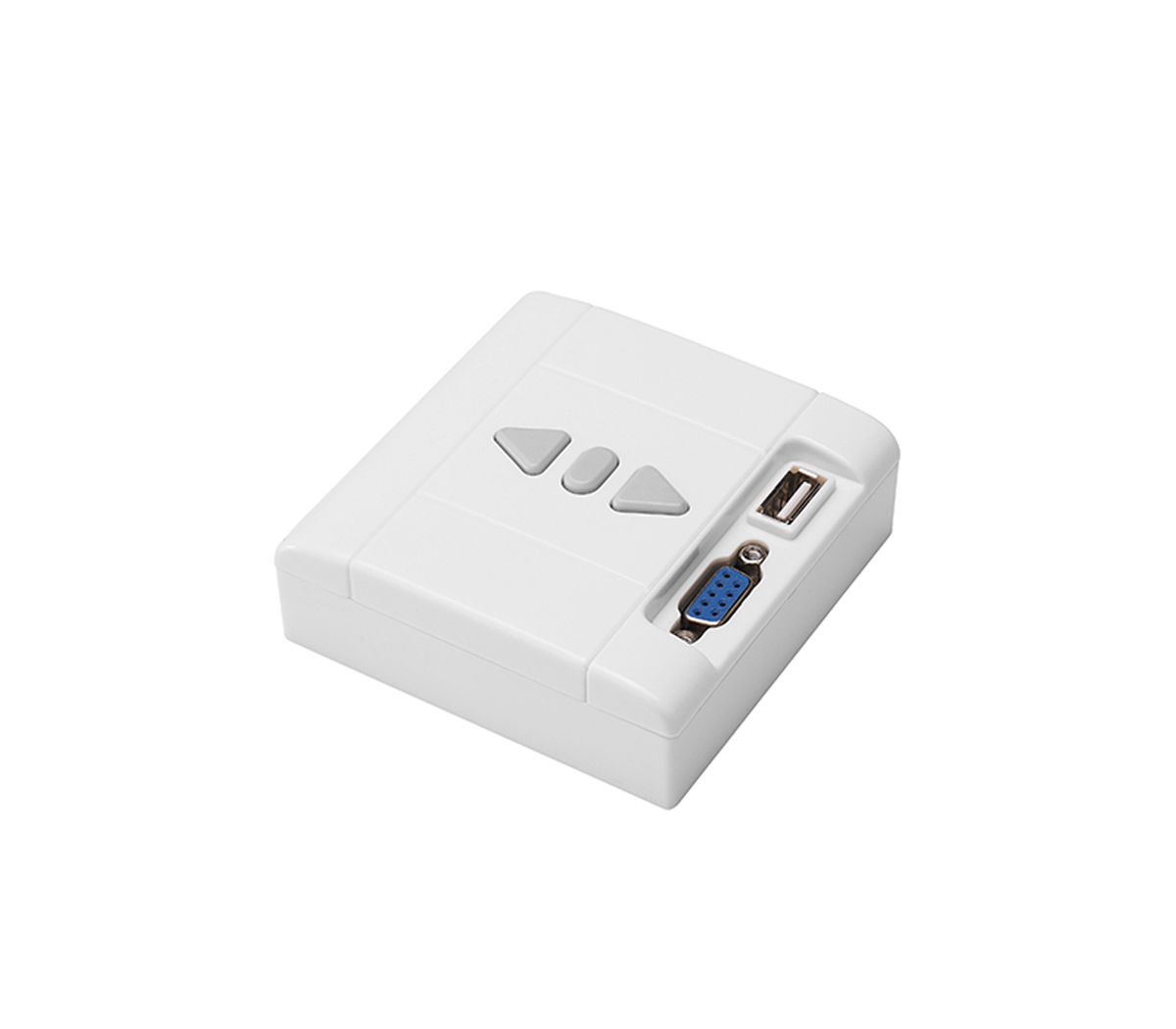

    • Smart Wall Switch
    External Control Options

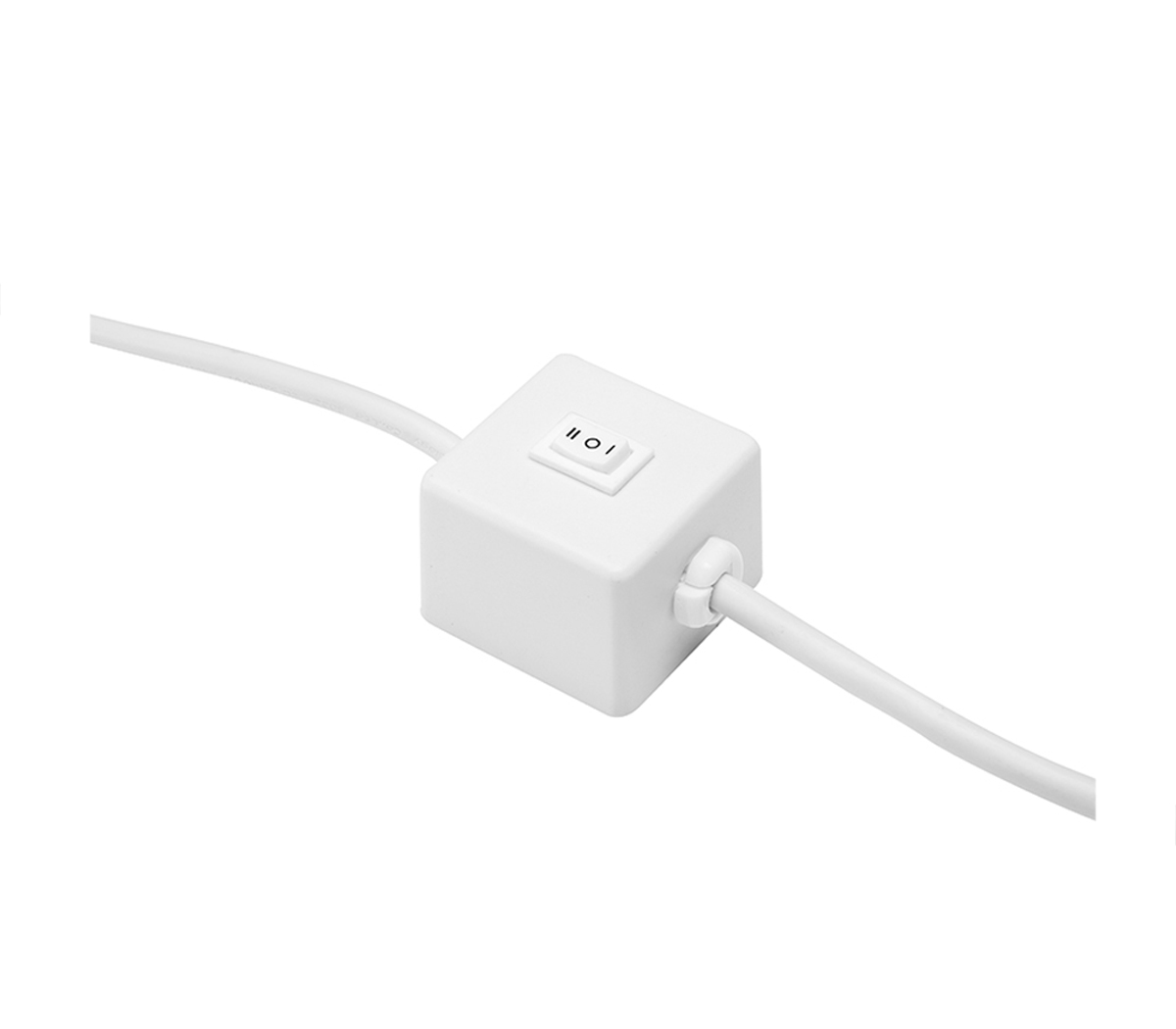

    • In-Line Switch

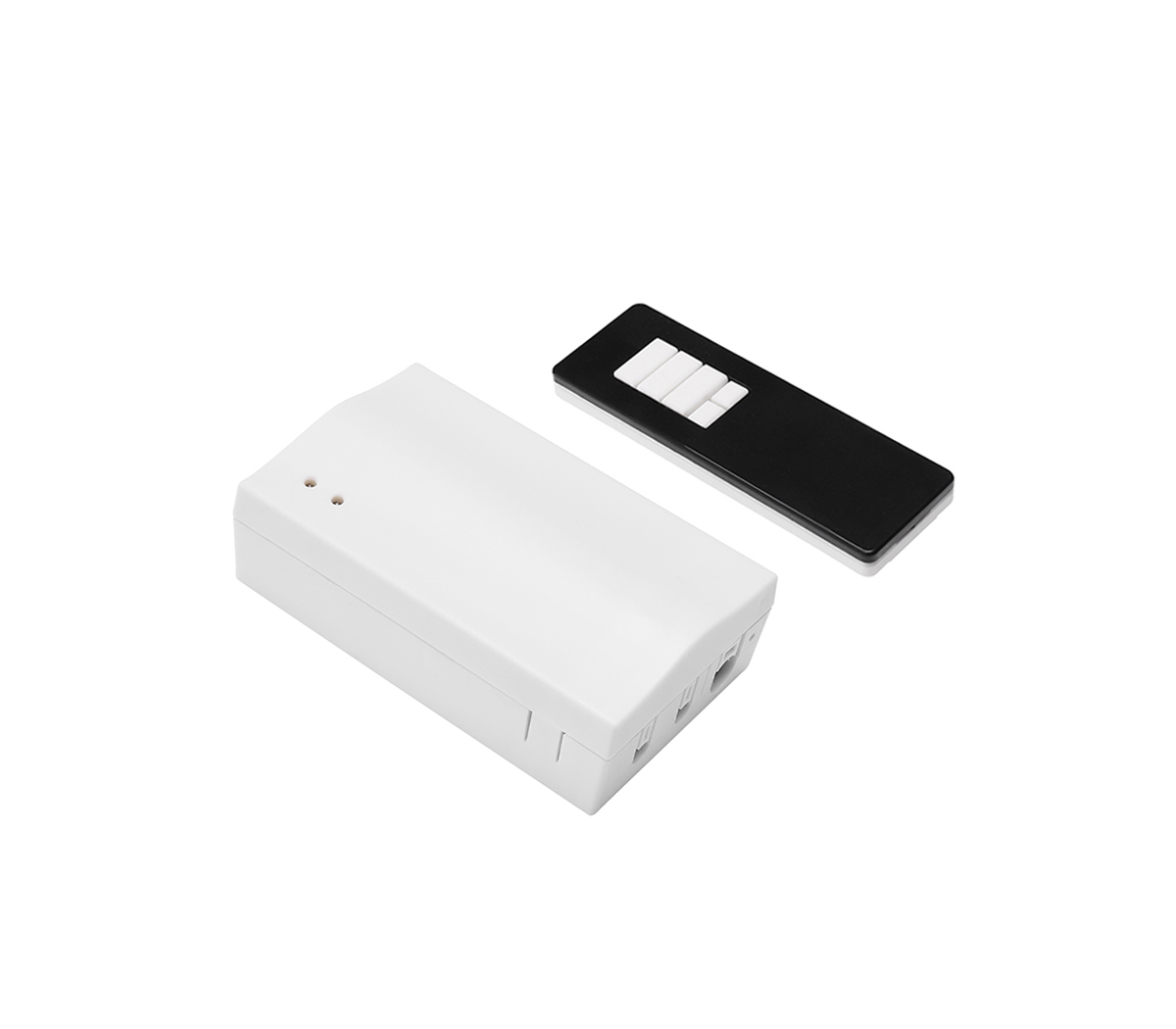

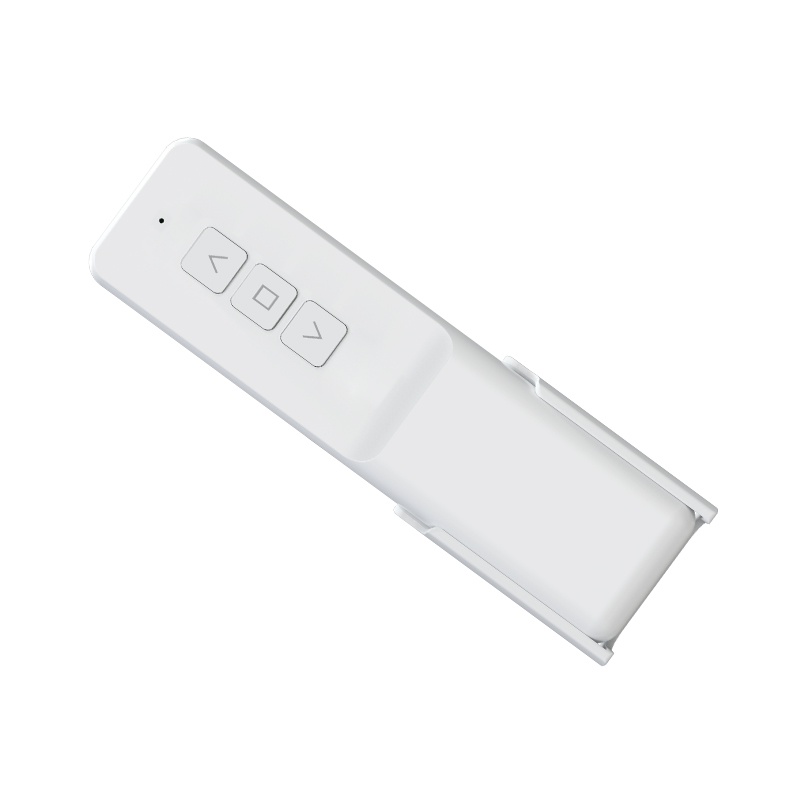

    • External RF Control System

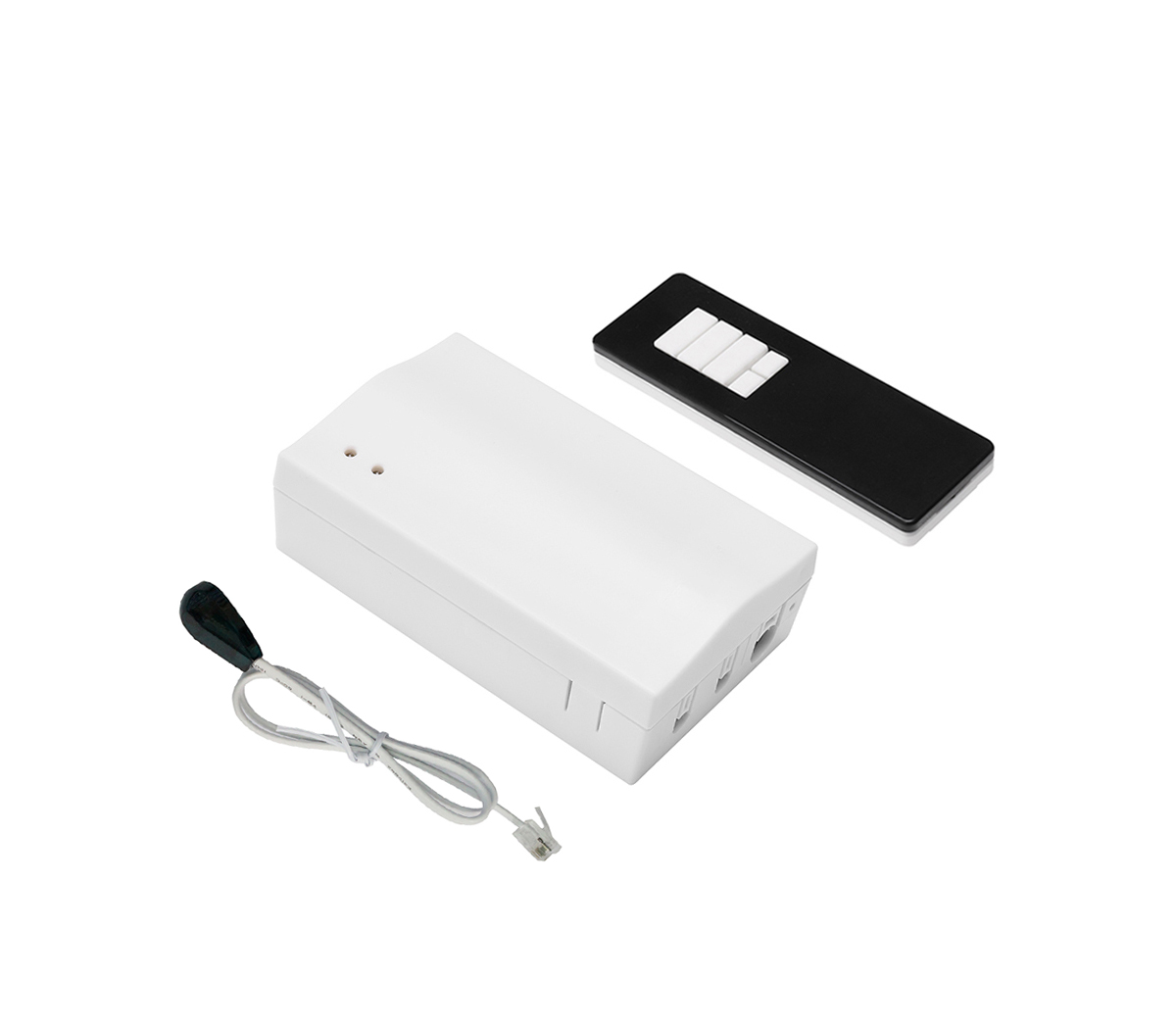

    • External IR Receiver

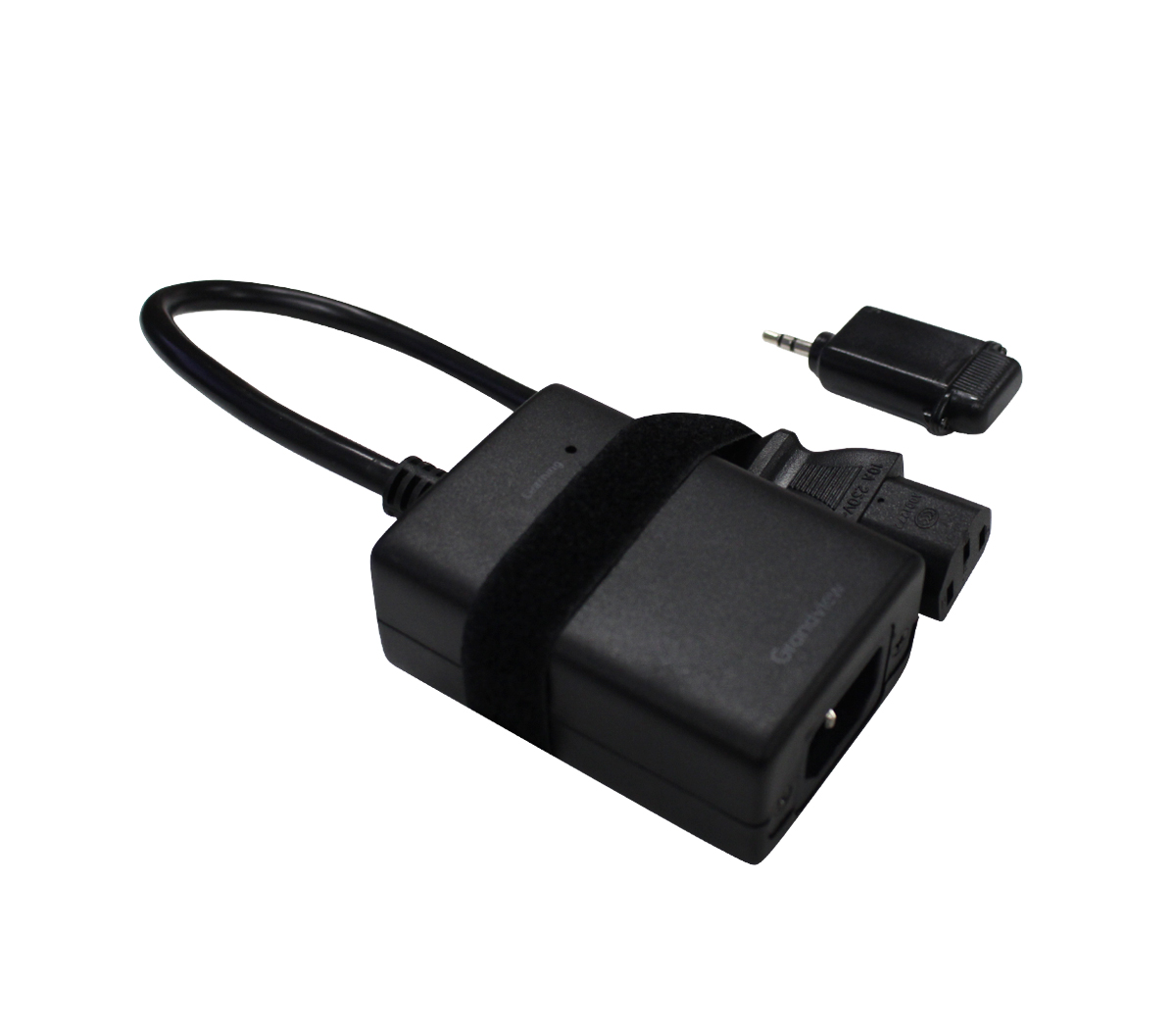

    • Power Synchro Relay

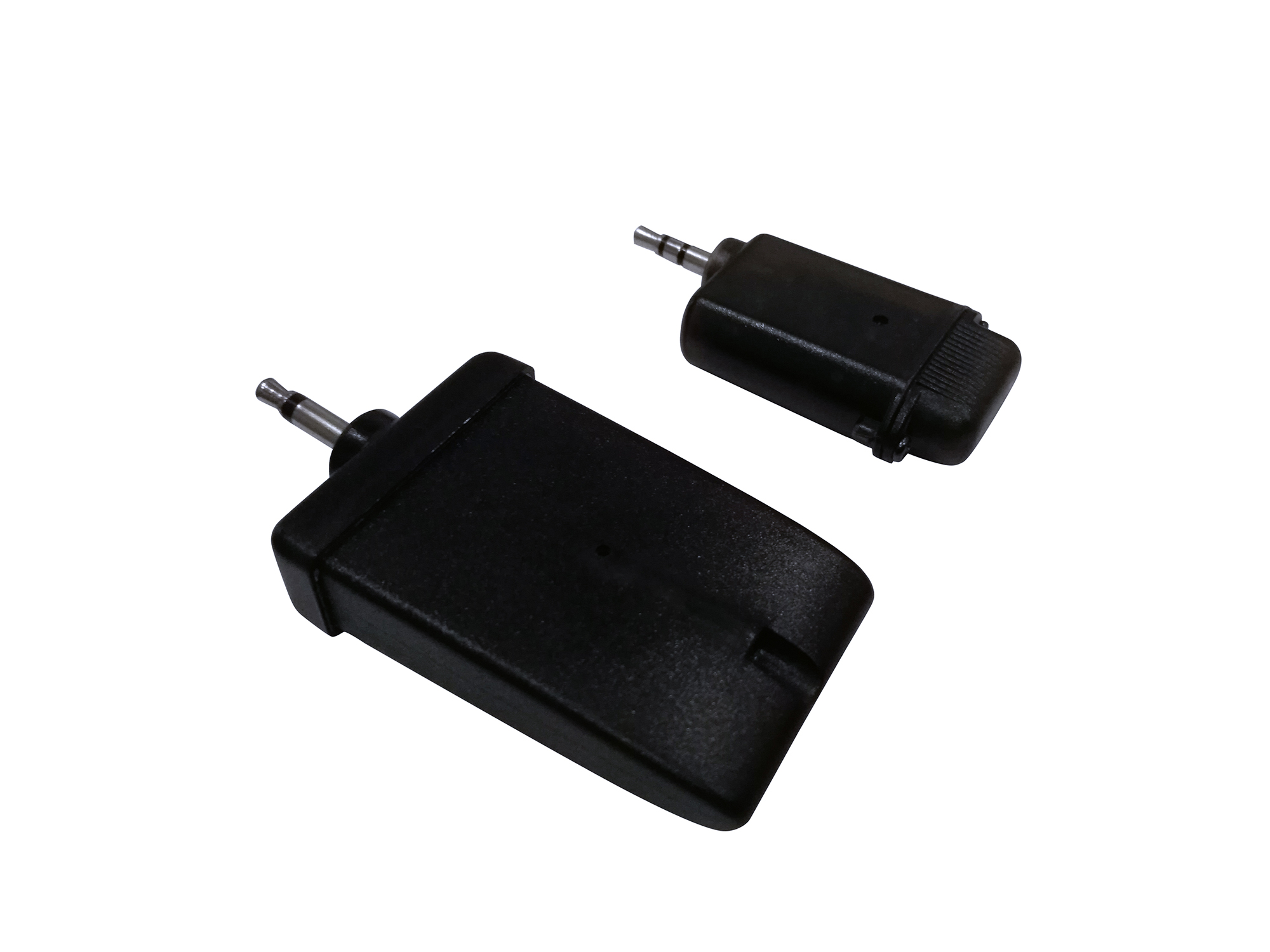

    • RF Wireless Trigger
    Standard Accessories

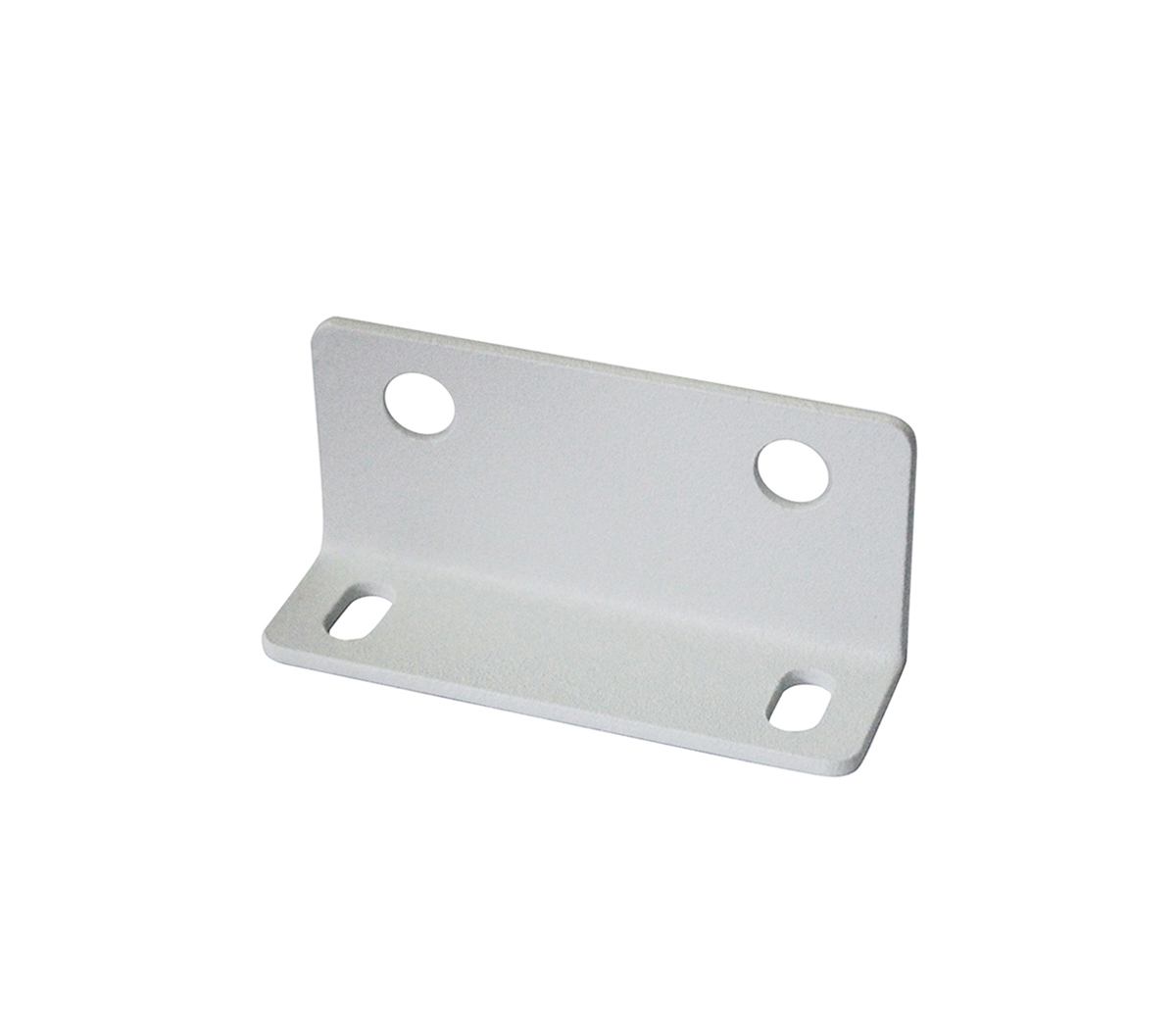

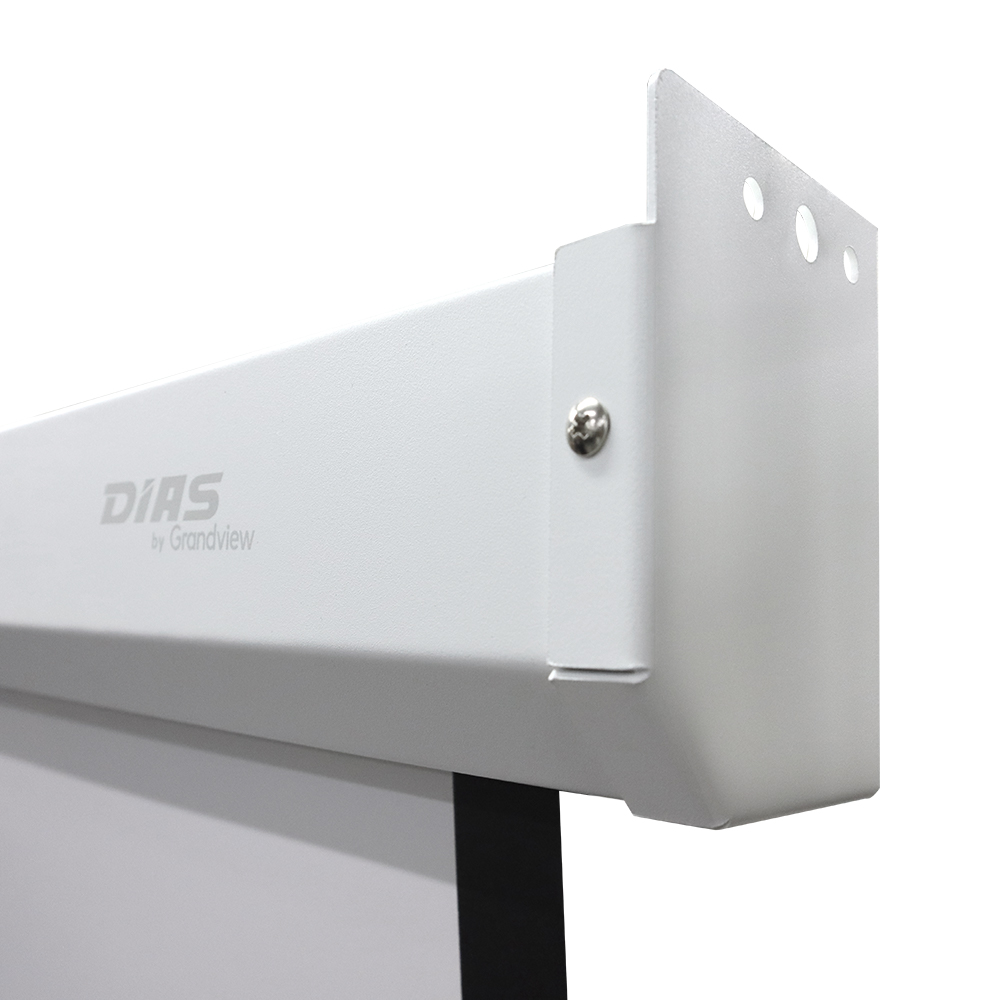

    • Hanging Brackets

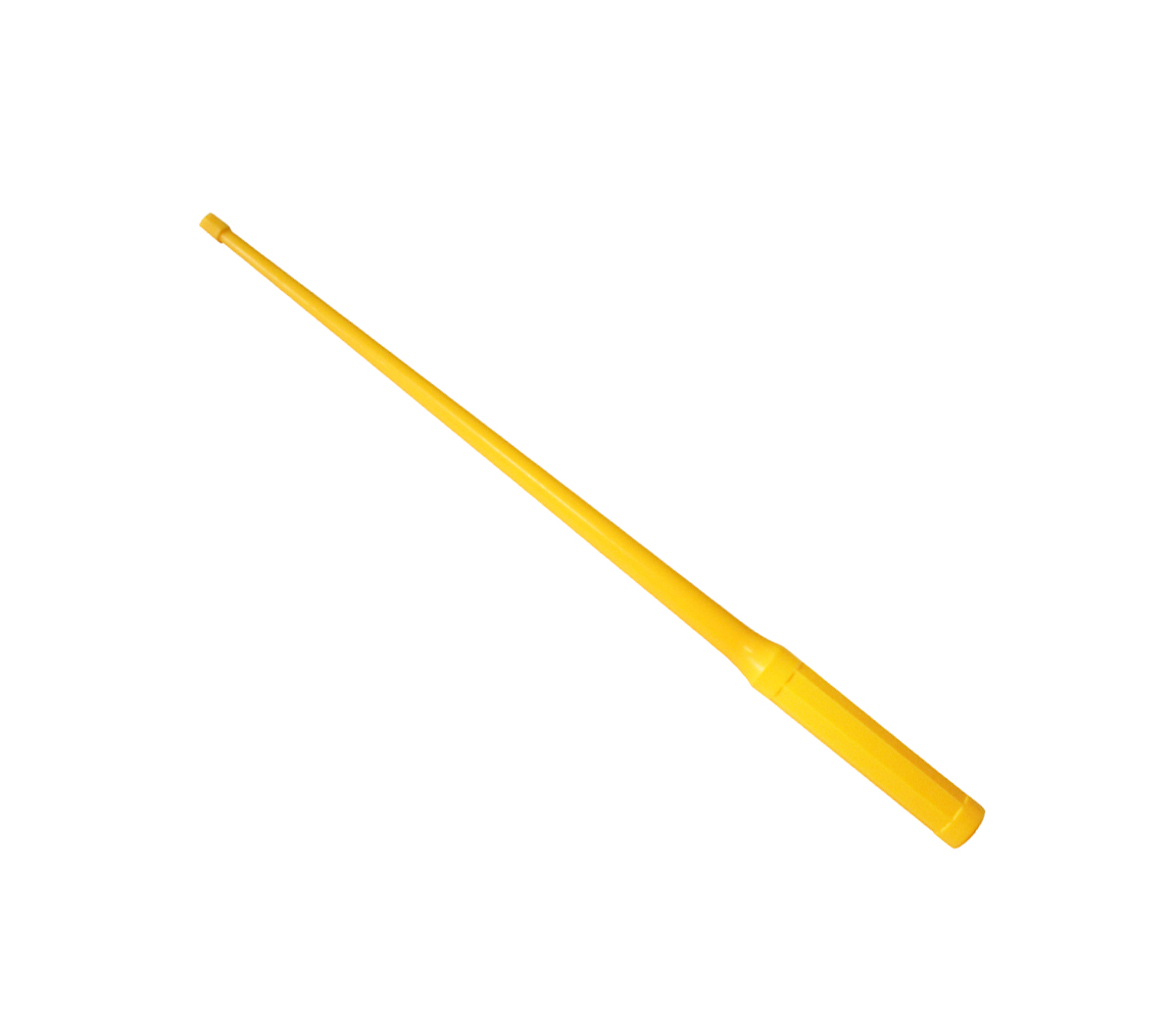

    • Limit Adjustment Tool
  • Fabrics
    • WM5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • WP5
      • Viewing
        Angle
        160°
      • Gain
        1.0
    • GM5
      • Viewing
        Angle
        160°
      • Gain
        0.8
  • Specs
    • S
    • M
    • L
    • Model
      • 1:1
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        73"
        1860 × 1860
        2096
        80
        55
        40
        2031
        101
        75
        80"
        2030 × 2030
        2266
        80
        55
        50
        2221
        101
        75
        92"
        2340 × 2340
        2576
        80
        55
        47
        2525
        101
        75
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1710 × 1280
        1516
        80
        55
        40
        1881
        101
        75
        92"
        1860 × 1395
        1631
        80
        55
        40
        2031
        101
        75
        100"
        2030 × 1520
        1756
        80
        55
        50
        2221
        101
        75
        120"
        2340 × 1755
        1991
        80
        55
        47
        2525
        101
        75
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        77"
        1710 × 962
        1768
        650
        55
        40
        1881
        101
        75
        84"
        1860 × 1046
        1752
        550
        55
        40
        2031
        101
        75
        92"
        2030 × 1145
        1601
        300
        55
        50
        2221
        101
        75
        100"
        2214 × 1245
        1701
        300
        55
        50
        2405
        101
        75
        106"
        2340 × 1320
        1766
        290
        55
        47
        2525
        101
        75
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        80"
        1710 × 1069
        1765
        540
        55
        40
        1881
        101
        75
        86"
        1860 × 1163
        1769
        450
        55
        40
        2031
        101
        75
        94"
        2030 × 1270
        1726
        300
        55
        50
        2221
        101
        75
        100"
        2154 × 1346
        1752
        250
        55
        50
        2345
        101
        75
        103"
        2214 × 1384
        1740
        200
        55
        50
        2405
        101
        75
        109"
        2340 × 1463
        1819
        200
        55
        47
        2525
        101
        75
    • Model
      • 1:1
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        70"
        1780 × 1780
        2036
        80
        55
        23
        1953
        121
        90
        84"(80")"
        2030 × 2030
        2286
        80
        55
        50
        2257
        121
        90
        92"
        2340 × 2340
        2596
        80
        55
        47
        2561
        121
        90
        72"
        1460 × 1100
        1356
        80
        55
        30
        1647
        121
        90
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        84"
        1710 × 1280
        1536
        80
        55
        50
        1953
        121
        90
        92"
        1869 × 1402
        1658
        80
        55
        50
        2096
        121
        90
        100"
        2030 × 1520
        1776
        80
        55
        50
        2257
        121
        90
        120"
        2340 × 1755
        2011
        80
        55
        47
        2561
        121
        90
        77"
        1710 × 962
        1988
        850
        55
        50
        1953
        121
        90
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        80"
        1770 × 996
        1972
        800
        55
        28
        1953
        121
        90
        92"
        2030 × 1145
        1971
        650
        55
        50
        2257
        121
        90
        100"
        2214 × 1245
        1971
        550
        55
        50
        2441
        121
        90
        106"
        2340 × 1320
        1996
        500
        55
        47
        2561
        121
        90
        120"
        2656 × 1494
        1970
        300
        55
        50
        2883
        121
        90
        80"
        1726 × 1077
        1753
        500
        55
        50
        1953
        121
        90
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1982 × 1239
        1915
        500
        55
        50
        2209
        121
        90
        94"
        2030 × 1270
        1946
        500
        55
        50
        2257
        121
        90
        100"
        2154 × 1346
        1822
        300
        55
        50
        2381
        121
        90
        103"
        2214 × 1384
        1860
        300
        55
        50
        2441
        121
        90
        109"
        2340 × 1463
        1939
        300
        55
        47
        2561
        121
        90
        120"
        2585 × 1615
        2091
        300
        55
        50
        2812
        121
        90
    • Model
      • 4:3
      • 16:9
      • 16:10
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        120"
        2340 × 1755
        2070
        80
        80
        50
        2605
        155
        123
        130"
        2656 × 1992
        2307
        80
        80
        50
        2921
        155
        123
        138"
        2804 × 2103
        2418
        80
        80
        50
        3069
        155
        123
        145"
        2944 × 2208
        2523
        80
        80
        50
        3209
        155
        123
        150"
        3048 × 2286
        2601
        80
        80
        50
        3313
        155
        123
        165"
        3320 × 2490
        2805
        80
        80
        80
        3650
        155
        123
        180"
        3620 × 2715
        3030
        80
        80
        80
        3950
        155
        123
        200"
        4020 × 3015
        3330
        80
        80
        80
        4350
        155
        123
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        106"
        2340 × 1316
        1951
        400
        80
        50
        2605
        155
        123
        120"
        2656 × 1494
        2129
        400
        80
        50
        2921
        155
        123
        128"
        2804 × 1577
        2212
        400
        80
        50
        3069
        155
        123
        133"
        2944 × 1656
        2291
        400
        80
        50
        3209
        155
        123
        138"
        3048 × 1715
        2350
        400
        80
        50
        3313
        155
        123
        150"
        3320 × 1867
        2402
        300
        80
        80
        3650
        155
        123
        165"
        3620 × 2036
        2571
        300
        80
        80
        3950
        155
        123
        182"
        4020 × 2261
        2796
        300
        80
        80
        4350
        155
        123
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Length
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        110"
        2340 × 1463
        2098
        400
        80
        50
        2605
        155
        123
        120"
        2656 × 1660
        2295
        400
        80
        50
        2921
        155
        123
        130"
        2804 × 1753
        2388
        400
        80
        50
        3069
        155
        123
        133"
        2865 × 1790
        2425
        400
        80
        50
        3130
        155
        123
        138"
        2944 × 1840
        2475
        400
        80
        50
        3209
        155
        123
        142"
        3048 × 1905
        2540
        400
        80
        50
        3313
        155
        123
        150"
        3231 × 2019
        2554
        300
        80
        80
        3561
        155
        123
        155"
        3320 × 2075
        2610
        300
        80
        80
        3650
        155
        123
        168"
        3620 × 2263
        2798
        300
        80
        80
        3950
        155
        123
        180"
        3877 × 2423
        2958
        300
        80
        80
        4207
        155
        123
        187"
        4020 × 2513
        3048
        300
        80
        80
        4350
        155
        123
