Large Stage Series

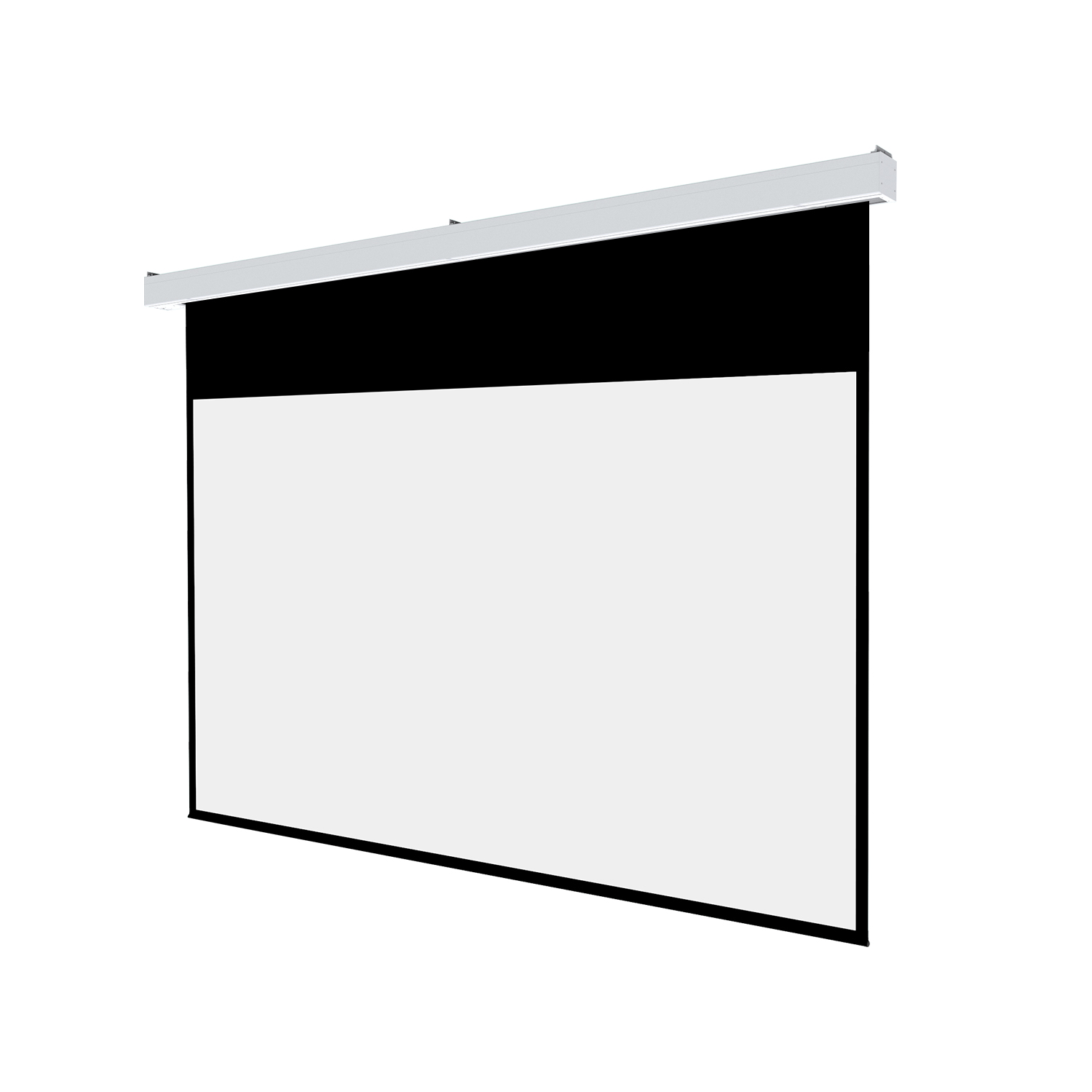

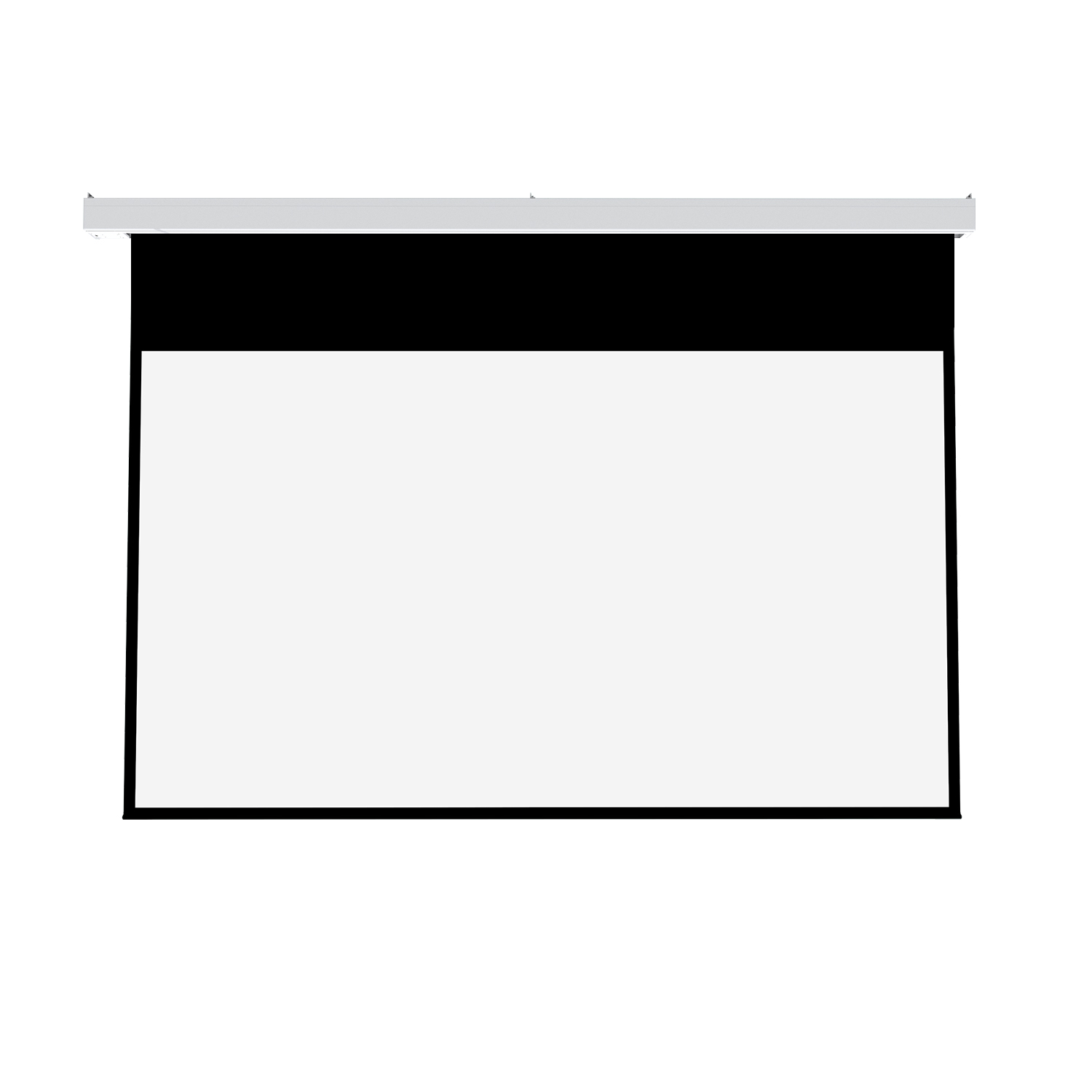

Motorized Screen-Model MA/MB

  • Having the capability to design and manufacture commercial grade large stage screens with a high level of precision and expertise is a crucial attribute that differentiates Grandview from the competition. Grandview’s Large Stage motorized screens are an iconic product featuring an unrivalled level of quality and design features. The high-intensity extra-large aluminum alloy roller allow it to remain rigid and straight up to 10m span which contributes greatly to keep the screen flat even at large sizes. The internal structure is equipped with self-lubricating supports and special shock absorbent parts to effectively reduce noise and vibration to a minimum.


  • • Sizes: 200” – 400” diagonal
  • • Installation Options: Ceiling Mount / Suspended Mount

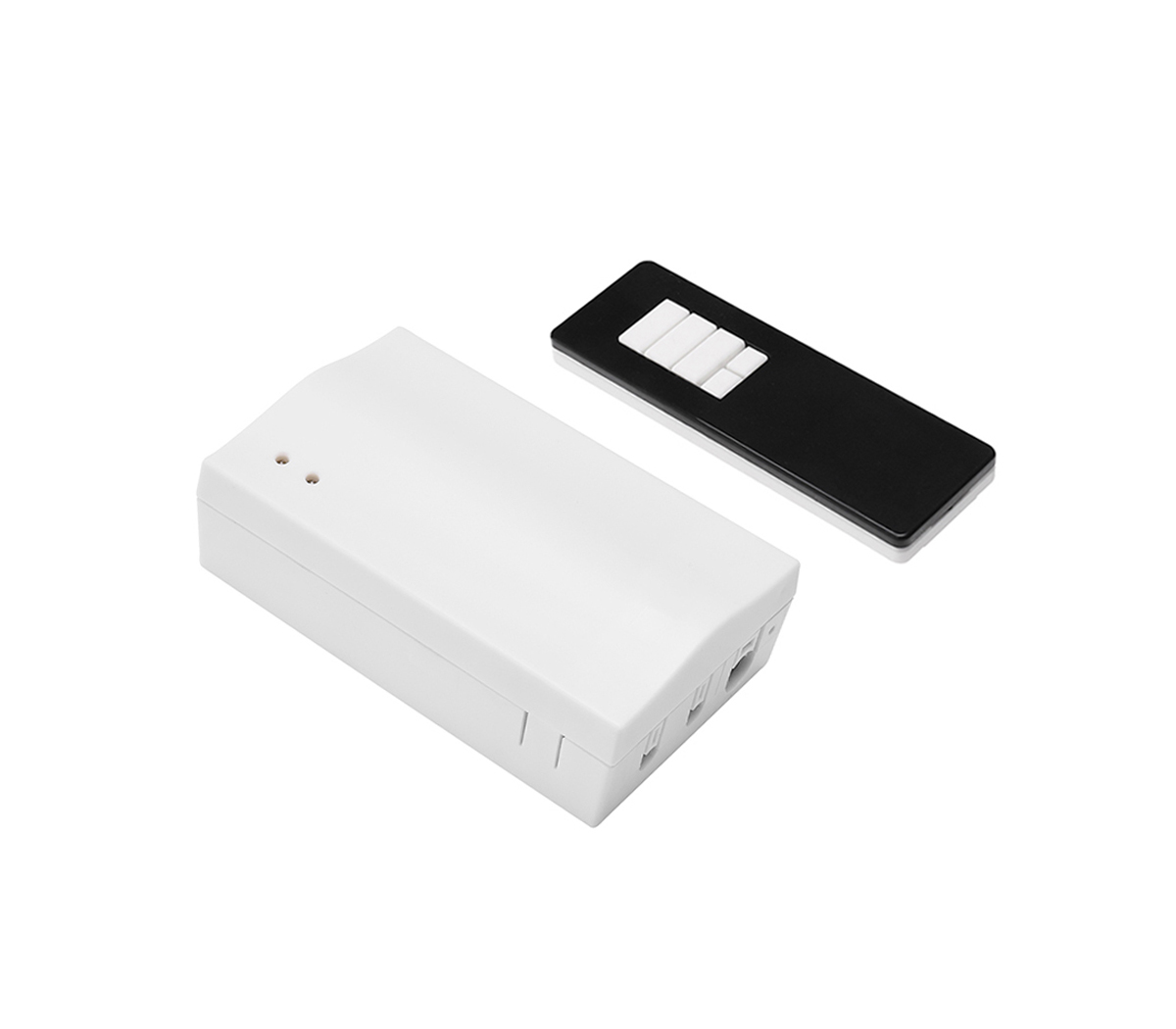

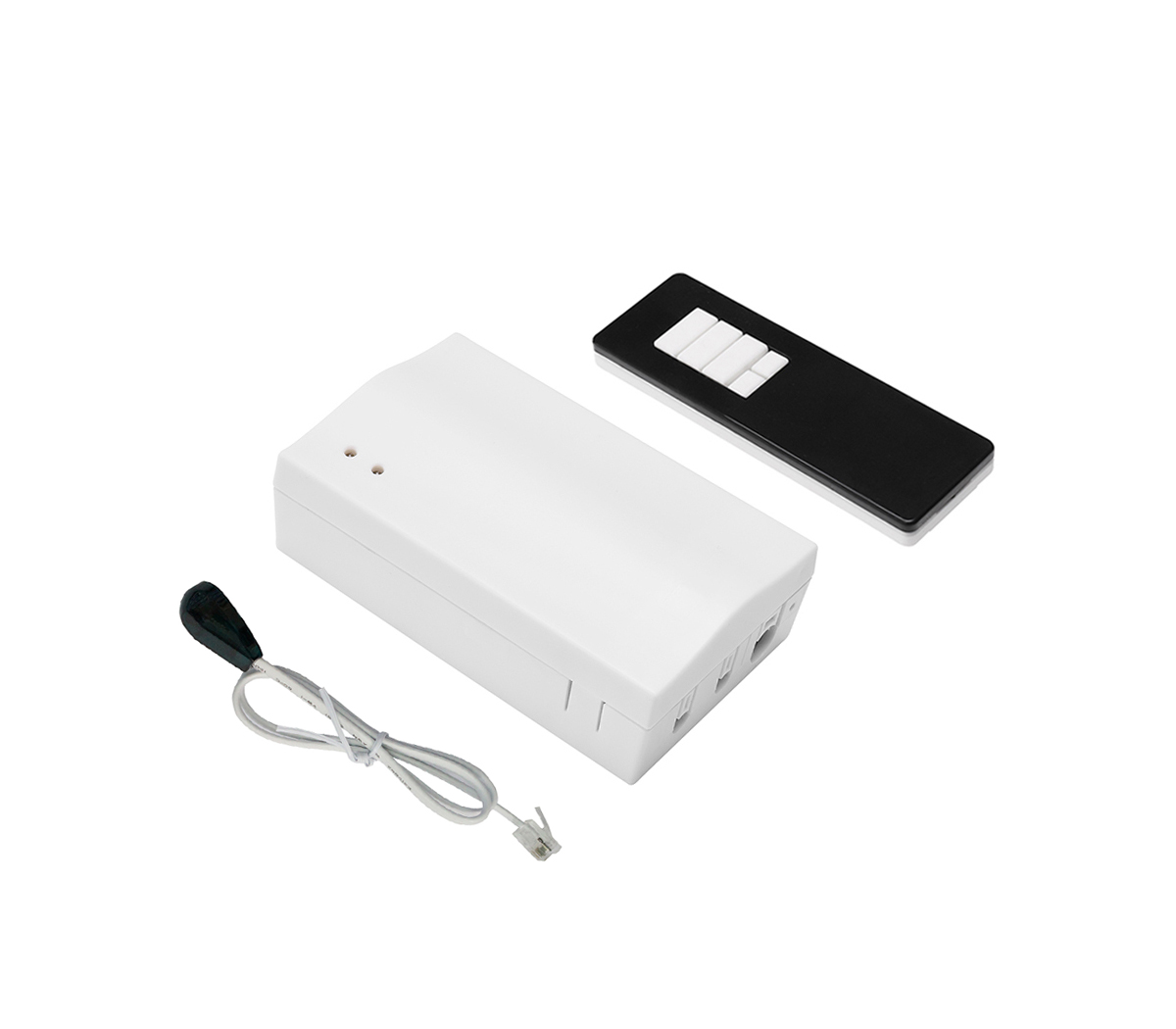

  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White
  • • Aluminum Casing
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

  • Standard control
    • Optional Accessory

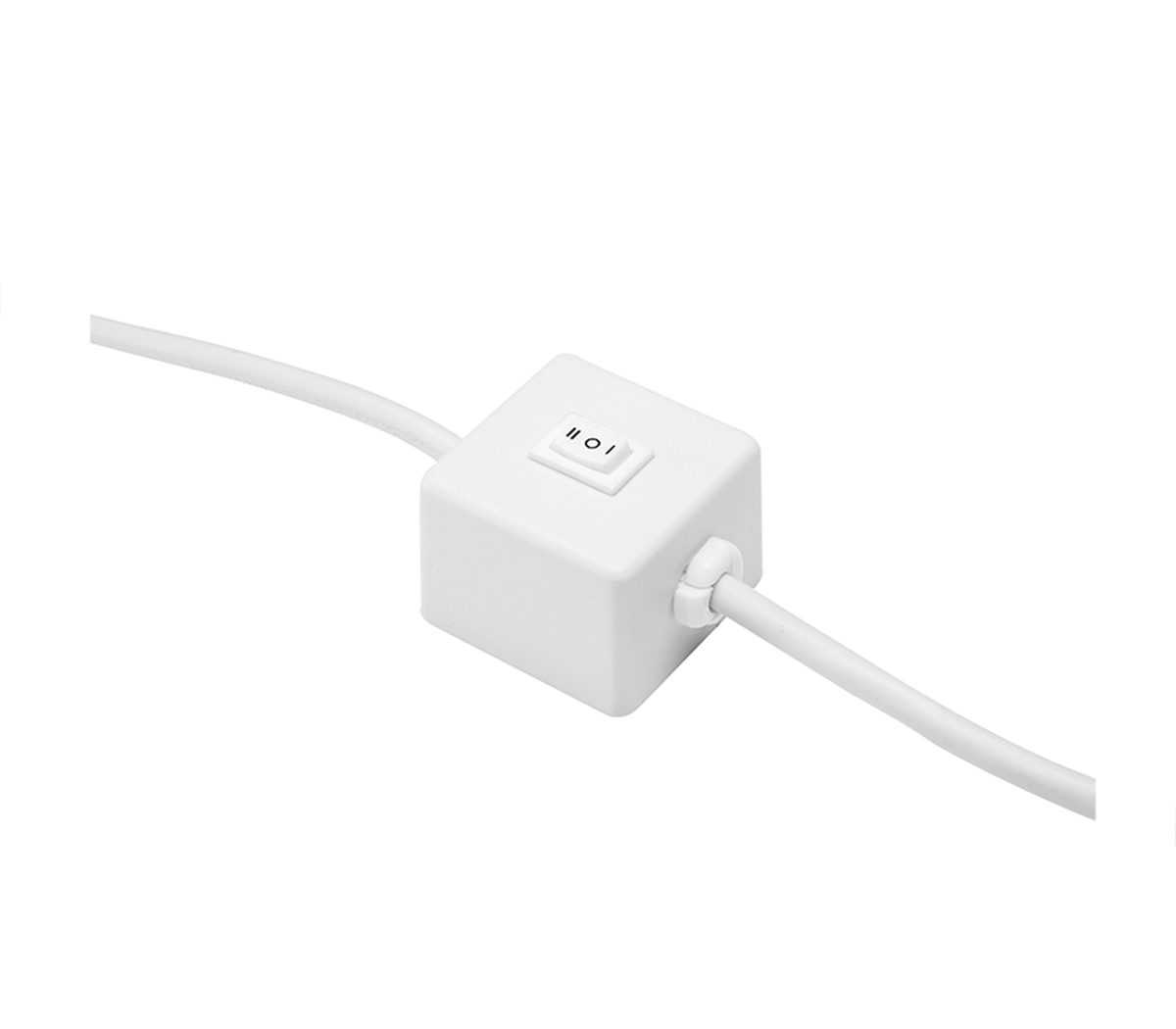

    • In-line Switch
  • Fabrics
    • WM9
      • Viewing Angle
        160°
      • Gain
        1.0
  • Specs
    • MA
    • MB
    • Model
      • 4:3
      • 16:9
      • 16:10
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        200"
        4064 × 3048
        3962
        600
        80
        80
        N/A
        234
        219
        220"
        4470 × 3353
        4267
        600
        80
        80
        N/A
        234
        219
        221"
        4491 × 3368
        4282
        600
        80
        80
        N/A
        234
        219
        240"
        4877 × 3658
        4572
        600
        80
        80
        N/A
        234
        219
        246"
        4999 × 3810
        4724
        600
        80
        80
        N/A
        234
        219
        250"
        5080 × 3810
        4724
        600
        80
        80
        N/A
        234
        219
        280"
        5690 × 4267
        5181
        600
        80
        80
        N/A
        234
        219
        300"
        6000 × 4500
        5414
        600
        80
        80
        N/A
        234
        219
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        200"
        4428 × 2491
        3405
        600
        80
        80
        N/A
        234
        219
        220"
        4870 × 2740
        3654
        600
        80
        80
        N/A
        234
        219
        240"
        5313 × 2989
        3903
        600
        80
        80
        N/A
        234
        219
        250"
        5535 × 3113
        4027
        600
        80
        80
        N/A
        234
        219
        280"
        6199 × 3487
        4401
        600
        80
        80
        N/A
        234
        219
        300"
        6641 × 3736
        4650
        600
        80
        80
        N/A
        234
        219
        306"
        6770 × 3808
        4722
        600
        80
        80
        N/A
        234
        219
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        200"
        4308 × 2692
        3606
        600
        80
        80
        N/A
        234
        219
        220"
        4739 × 2962
        3876
        600
        80
        80
        N/A
        234
        219
        240"
        5169 × 3231
        4145
        600
        80
        80
        N/A
        234
        219
        250"
        5385 × 3365
        4279
        600
        80
        80
        N/A
        234
        219
        280"
        6031 × 3769
        4683
        600
        80
        80
        N/A
        234
        219
        300"
        6462 × 4039
        4953
        600
        80
        80
        N/A
        234
        219
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        200"
        4674 × 1989
        2903
        600
        80
        80
        N/A
        234
        219
        220"
        5142 × 2188
        3102
        600
        80
        80
        N/A
        234
        219
        240"
        5609 × 2387
        3301
        600
        80
        80
        N/A
        234
        219
        250"
        5843 × 2486
        3400
        600
        80
        80
        N/A
        234
        219
        280"
        6544 × 2785
        3699
        600
        80
        80
        N/A
        234
        219
        290"
        6770 × 2949
        3863
        600
        80
        80
        N/A
        234
        219
    • Model
      • 4:3
      • 16:9
      • 16:10
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        300"
        6096 × 4572
        5584
        600
        80
        80
        6521
        332
        279
        315"
        6400 × 4800
        5812
        600
        80
        80
        6825
        332
        279
        320"
        6502 × 4877
        5889
        600
        80
        80
        6927
        332
        279
        330"
        6706 × 5029
        6041
        600
        80
        80
        7131
        332
        279
        350"
        7112 × 5334
        6346
        600
        80
        80
        7537
        332
        279
        360"
        7315 × 5486
        6498
        600
        80
        80
        7740
        332
        279
        380"
        7722 × 5791
        6803
        600
        80
        80
        8147
        332
        279
        400"
        8128 × 6096
        7108
        600
        80
        80
        8553
        332
        279
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        300"
        6641 × 3734
        4746
        600
        80
        80
        7066
        332
        279
        315"
        6973 × 3923
        4935
        600
        80
        80
        7398
        332
        279
        320"
        7084 × 3983
        4995
        600
        80
        80
        7509
        332
        279
        330"
        7306 × 4109
        5121
        600
        80
        80
        7731
        332
        279
        340"
        7527 × 4234
        5246
        600
        80
        80
        7952
        332
        279
        350"
        7748 × 4358
        5370
        600
        80
        80
        8173
        332
        279
        360"
        7969 × 4481
        5493
        600
        80
        80
        8394
        332
        279
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        300"
        6462 × 4039
        5051
        600
        80
        80
        6887
        332
        279
        315"
        6785 × 4241
        5253
        600
        80
        80
        7210
        332
        279
        320"
        6893 × 4308
        5320
        600
        80
        80
        7318
        332
        279
        330"
        7108 × 4442
        5454
        600
        80
        80
        7533
        332
        279
        340"
        7323 × 4577
        5589
        600
        80
        80
        7748
        332
        279
        350"
        7538 × 4712
        5724
        600
        80
        80
        7963
        332
        279
        360"
        7754 × 4846
        5858
        600
        80
        80
        8179
        332
        279
        380"
        8189 × 5116
        6128
        600
        80
        80
        8614
        332
        279
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        300"
        7012 × 2984
        4296
        900
        80
        80
        7437
        332
        279
        320"
        7479 × 3183
        4495
        900
        80
        80
        7904
        332
        279
        330"
        7713 × 3282
        4594
        900
        80
        80
        8138
        332
        279
        340"
        7946 × 3381
        4693
        900
        80
        80
        8371
        332
        279
        350"
        8180 × 3481
        4793
        900
        80
        80
        8605
        332
        279
