Hidetech Series

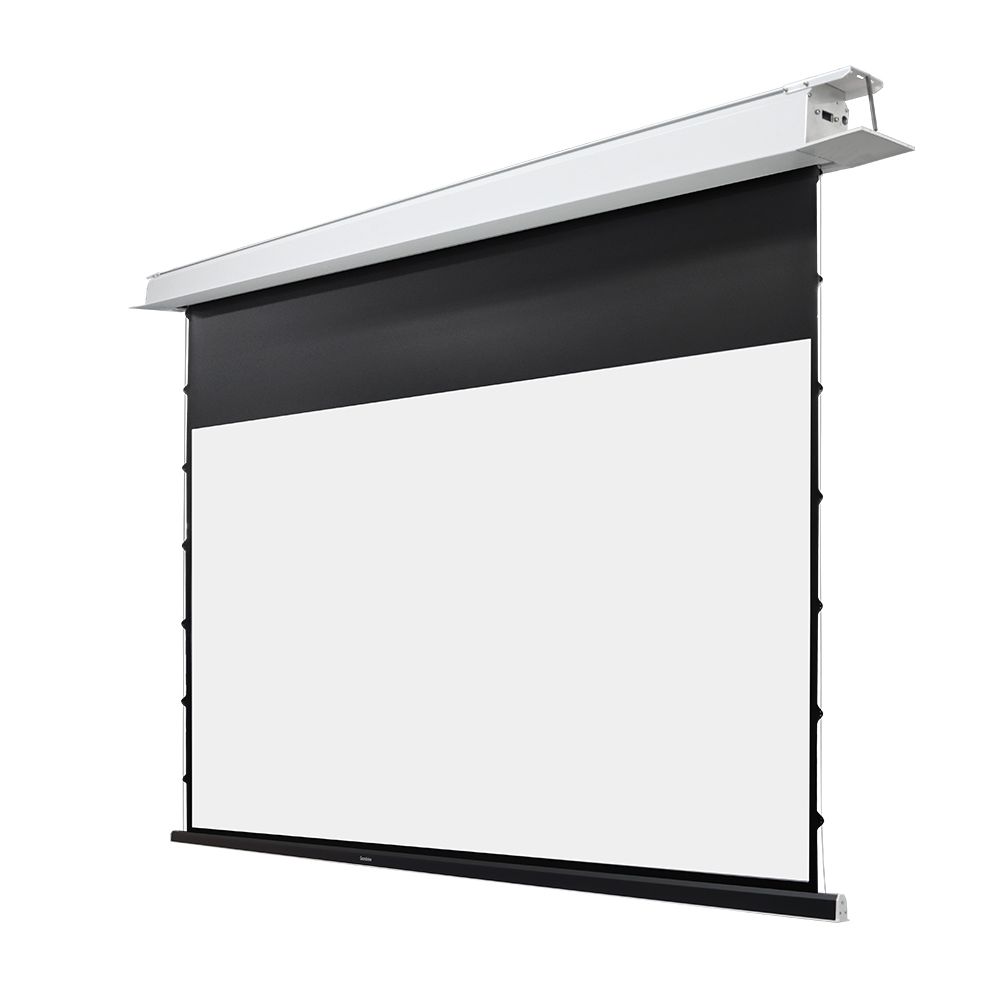

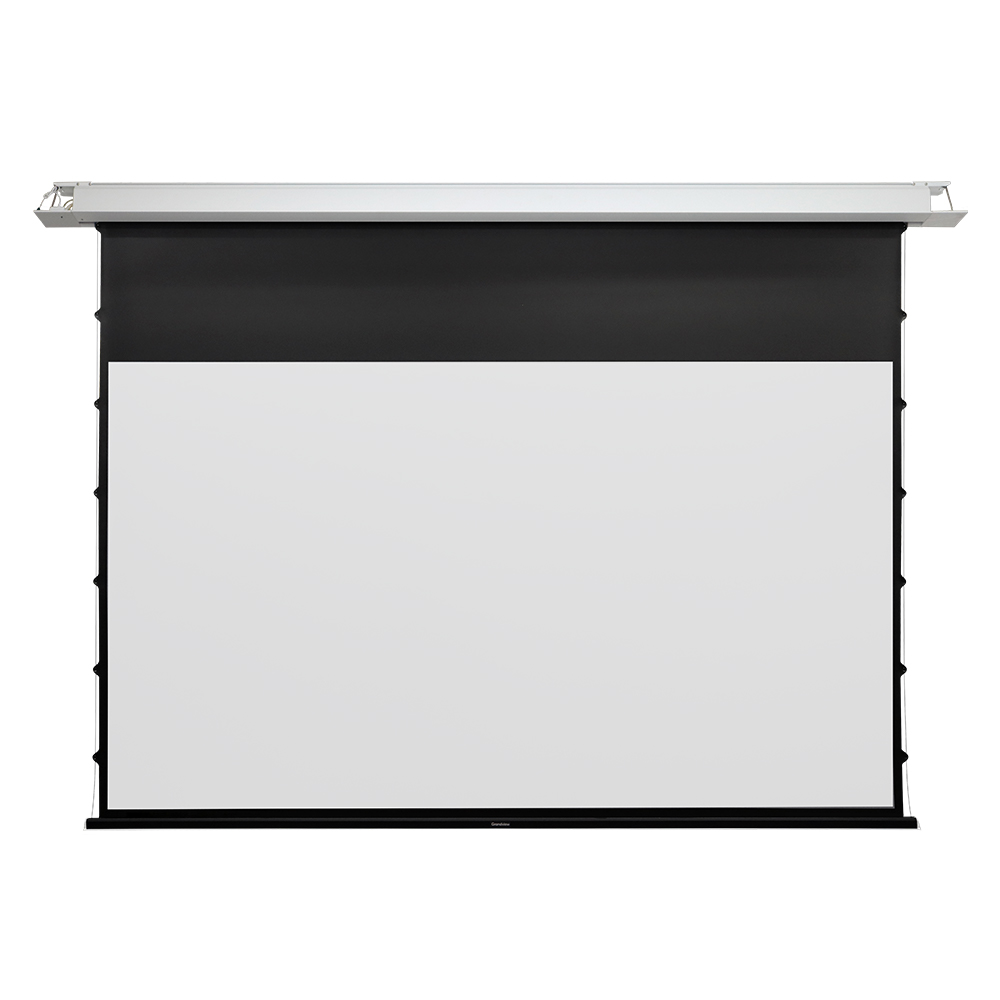

Recessed Tab-Tension Screen

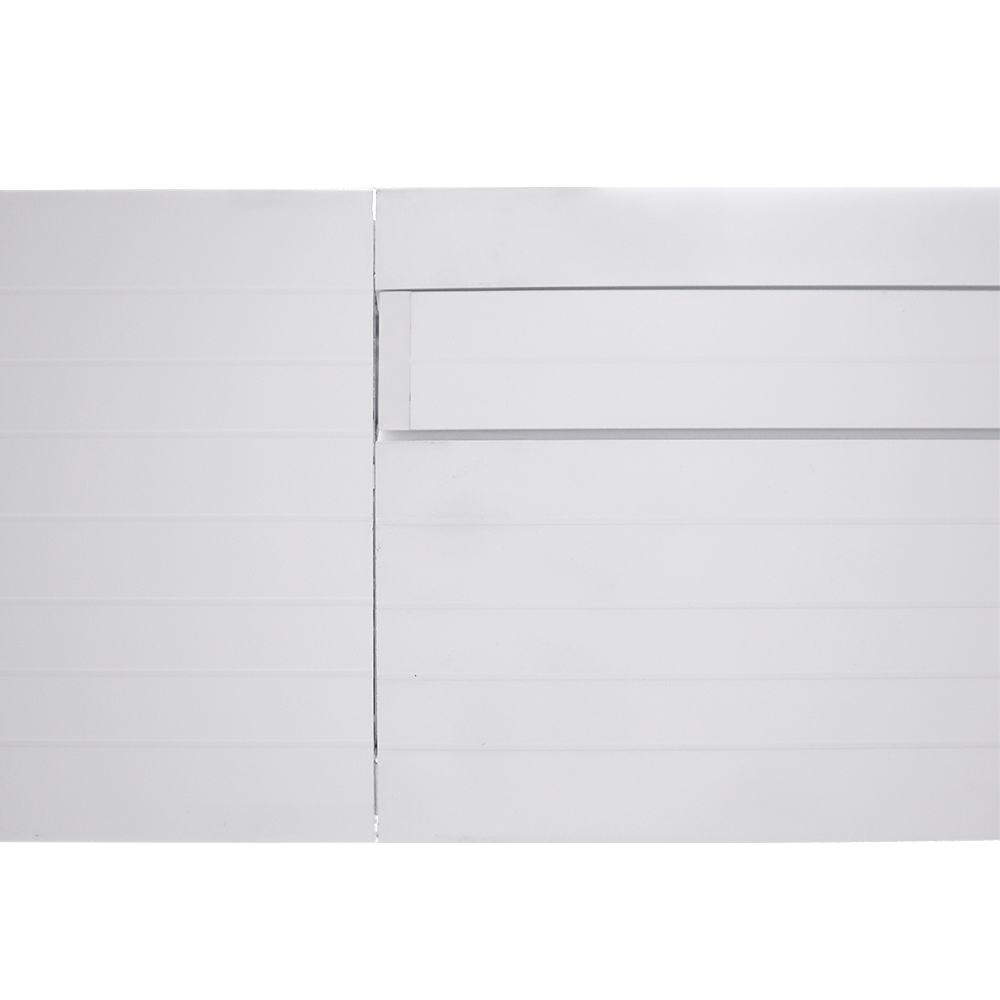

  • With a focus on the essence of industrial design, the Grandview’s Recessed Series blends itself perfectly in any in-ceiling installation. Boasting a concealed look, the screens functionality is seamlessly hidden away until use. Patented Separated Casing design reduces noise and vibration, the screen also offers a multitude of commercial grade features.


  • • Sizes: 92” – 200” diagonal
  • • Installation Options: In-Ceiling Mount
  • • Control Options: IR / RF / RS485 + Dry Contact Control / 3-12 Voltage Trigger Control / Central Control
  • • Colour: White

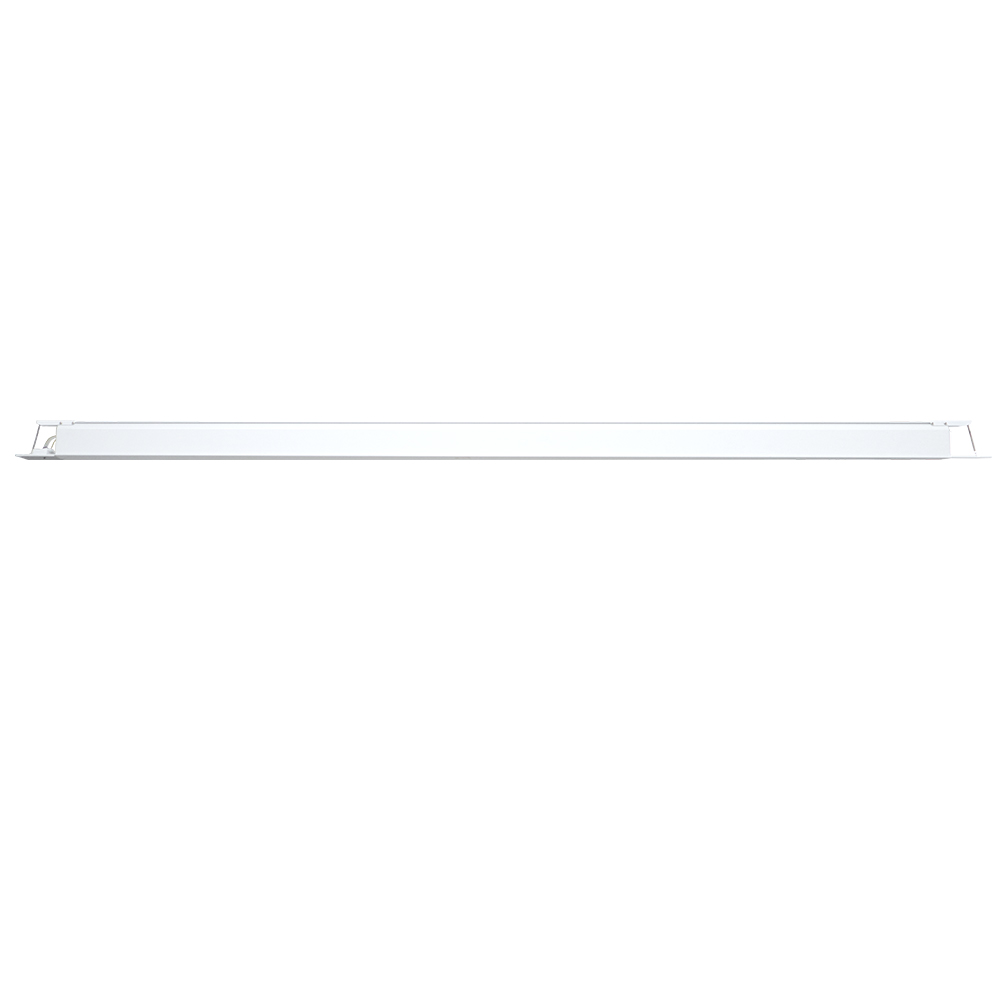

  • • Aluminum Casing
  • • Easy installation

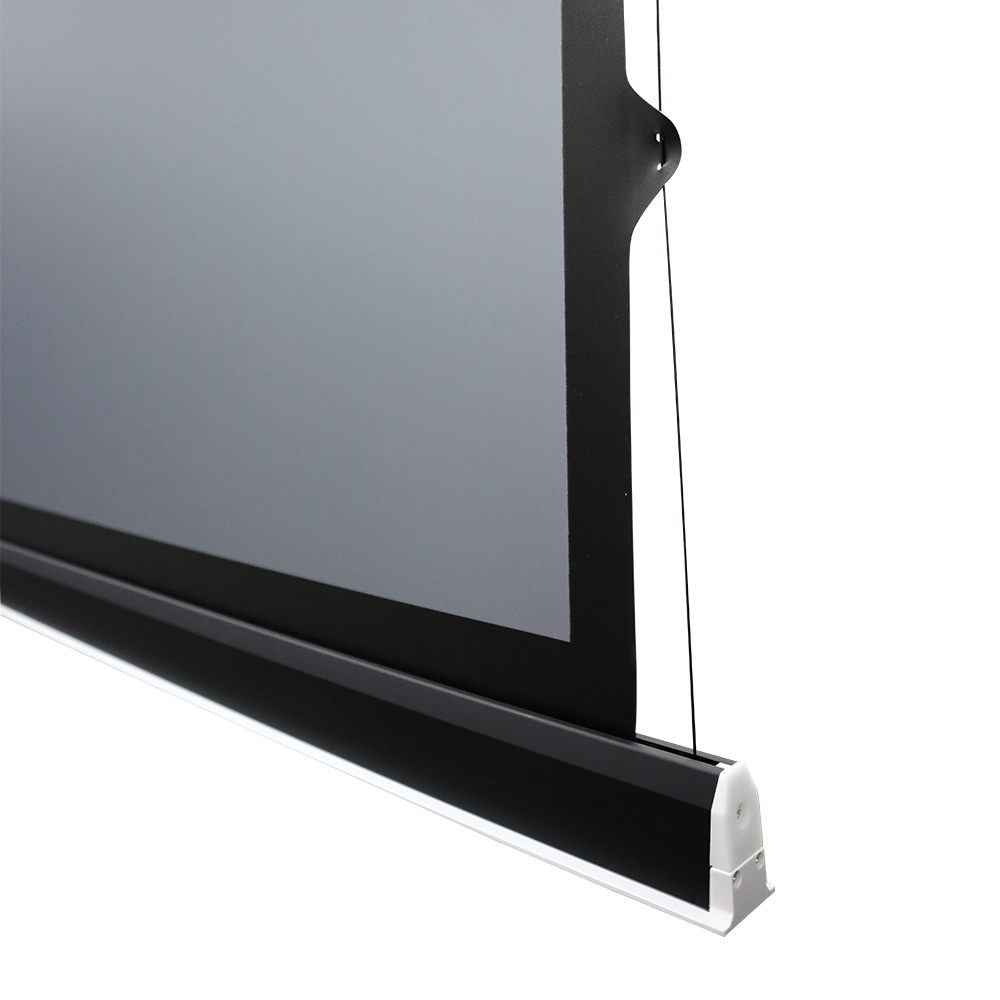

  • • Tension Adjustment Mechanism
  • Options
  • Fabrics
  • Specs
  • Video
  • Download
  • FAQ

  • Share

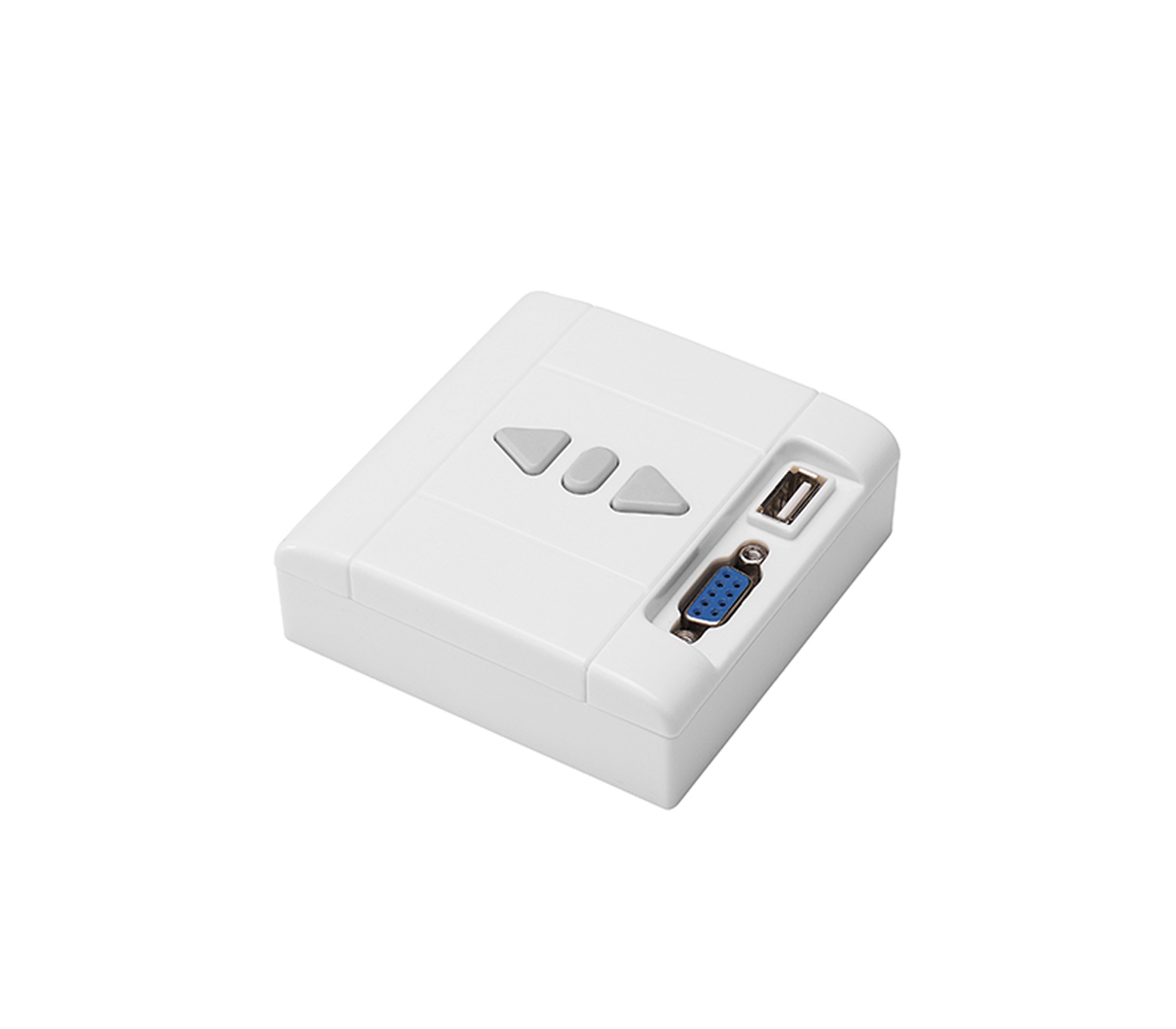

  • Standard control

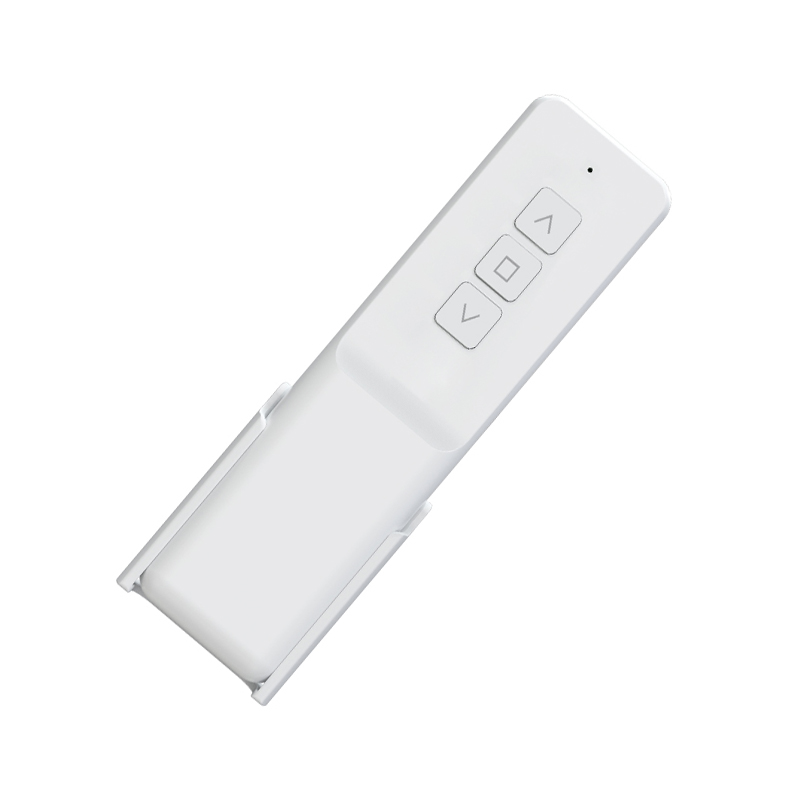

    • IR Control

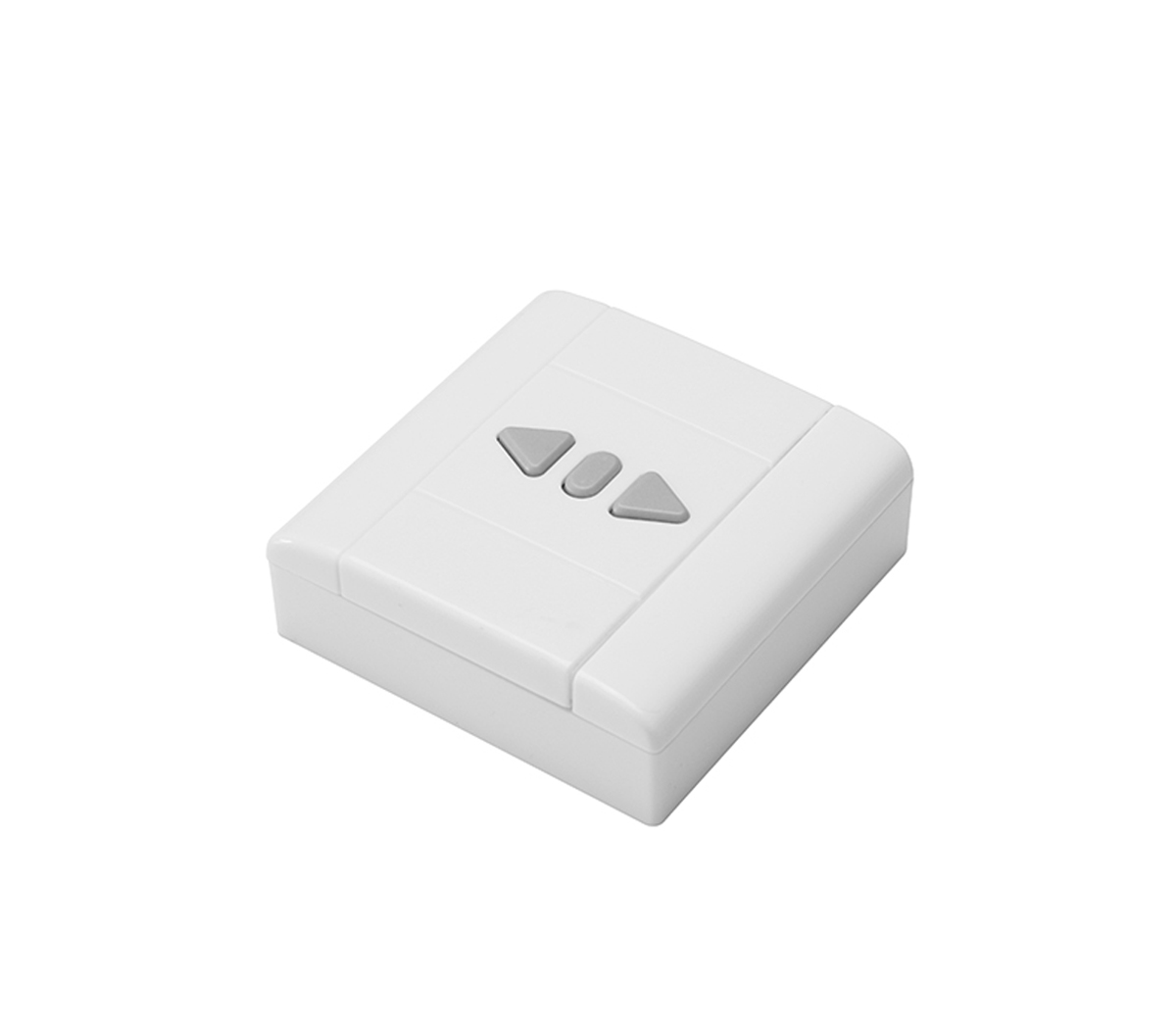

    • Wall Swtich
    Standard Accessories
    • Limit Adjustment Tool
    Intelligent Control

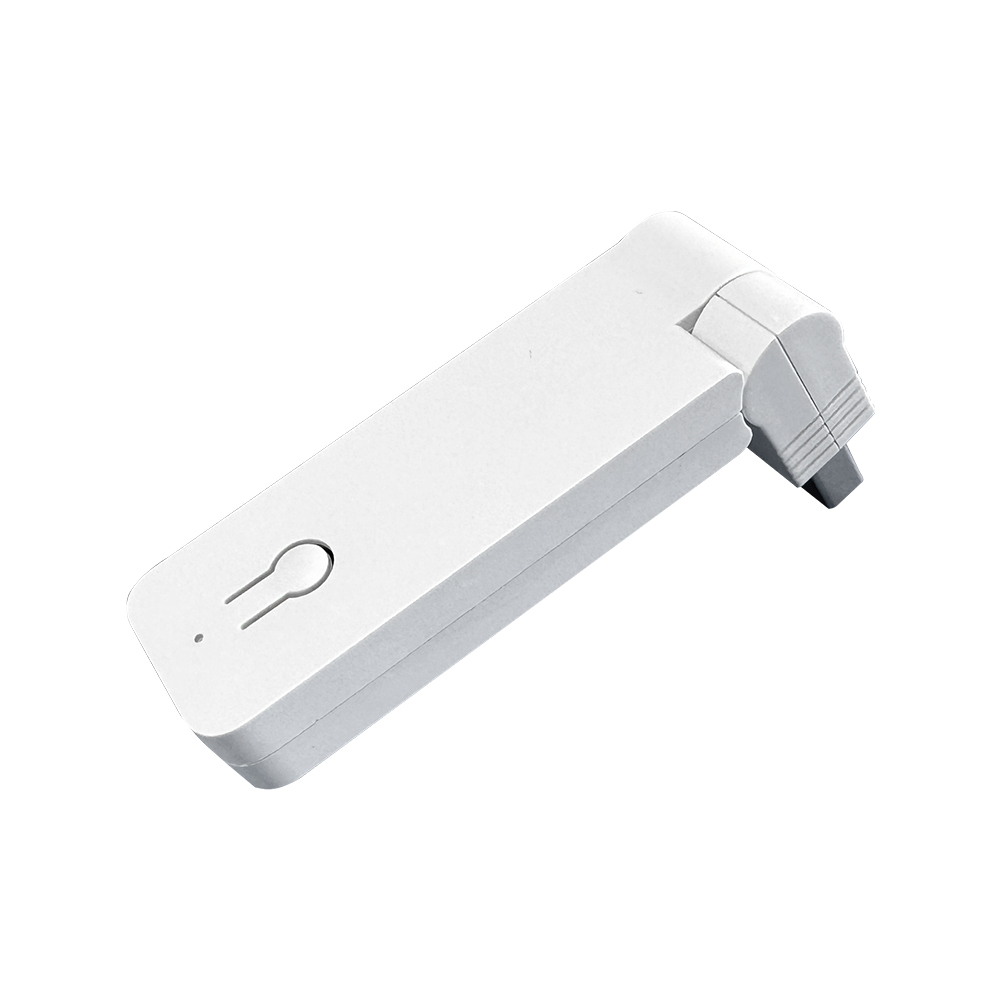

    • Power Synchro Relay
  • Fabrics
    • UHD130
      • Viewing Angle
        130°
      • Gain
        1.3
    • WW3
      • Viewing Angle
        160°
      • Gain
        1.0
    • WB5
      • Viewing Angle
        160°
      • Gain
        1.0
    • GG3
      • Viewing Angle
        160°
      • Gain
        0.8
    • DY2
      • Viewing Angle
        45°
      • Gain
        2.0
  • Specs
    • Model
      • 4:3
      • 16:9
      • 16:10
      • 2.35:1
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1869 × 1402
        1990
        400
        30
        80
        2317
        119
        105
        100"
        2032 × 1524
        2112
        400
        30
        80
        2480
        119
        105
        120"
        2438 × 1829
        2417
        400
        30
        80
        2886
        119
        105
        130"
        2656 × 1992
        2620
        400
        30
        80
        3114
        160
        140
        150"
        3048 × 2286
        2914
        400
        30
        80
        3506
        160
        140
        180"
        3658 × 2743
        3371
        400
        30
        80
        4116
        160
        140
        200"
        4064 × 3048
        3676
        400
        30
        80
        4522
        160
        140
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2037 × 1146
        1734
        400
        30
        80
        2480
        119
        105
        100"
        2214 × 1245
        1833
        400
        30
        80
        2662
        119
        105
        106"
        2346 × 1320
        1908
        400
        30
        80
        2794
        119
        105
        110"
        2435 × 1370
        1958
        400
        30
        80
        2886
        119
        105
        120"
        2656 × 1494
        2082
        400
        30
        80
        3104
        119
        105
        133"
        2944 × 1656
        2284
        400
        30
        80
        3402
        160
        140
        138"
        3055 × 1718
        2346
        400
        30
        80
        3506
        160
        140
        150"
        3320 × 1867
        2495
        400
        30
        80
        3778
        160
        140
        180"
        3985 × 2241
        2869
        400
        30
        80
        4443
        160
        140
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        1982 × 1239
        1827
        400
        30
        80
        2430
        119
        105
        100"
        2154 × 1346
        1934
        400
        30
        80
        2602
        119
        105
        110"
        2369 × 1481
        2069
        400
        30
        80
        2817
        119
        105
        120"
        2585 × 1615
        2203
        400
        30
        80
        3033
        119
        105
        133"
        2865 × 1790
        2418
        400
        30
        80
        3323
        160
        140
        138"
        2972 × 1858
        2486
        400
        30
        80
        3430
        160
        140
        150"
        3231 × 2019
        2647
        400
        30
        80
        3689
        160
        140
        180"
        3877 × 2423
        3051
        400
        30
        80
        4335
        160
        140
      • Diagonal Measurement
        Viewing Area
        (W×H)mm
        Product Height
        (A)mm
        Black Drop
        (B3)mm
        Lower Border
        (B2)mm
        Left/Right
        (B1)mm
        Product Legth
        (L)
        Endcap Height
        (Hc)mm
        Endcap Width
        (Wc)
        92"
        2150 × 915
        1703
        600
        30
        80
        2598
        119
        105
        100"
        2337 × 995
        1783
        600
        30
        80
        2794
        119
        105
        104"
        2438 × 1037
        1825
        600
        30
        80
        2886
        119
        105
        110"
        2570 × 1095
        1883
        600
        30
        80
        3018
        119
        105
        120"
        2804 × 1194
        1982
        600
        30
        80
        3252
        119
        105
        130"
        3038 × 1293
        2121
        600
        30
        80
        3496
        160
        140
        142"
        3320 × 1413
        2241
        600
        30
        80
        3778
        160
        140
        150"
        3506 × 1492
        2320
        600
        30
        80
        3964
        160
        140
